Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

63 part groups · 11 illustrations

Illustrations

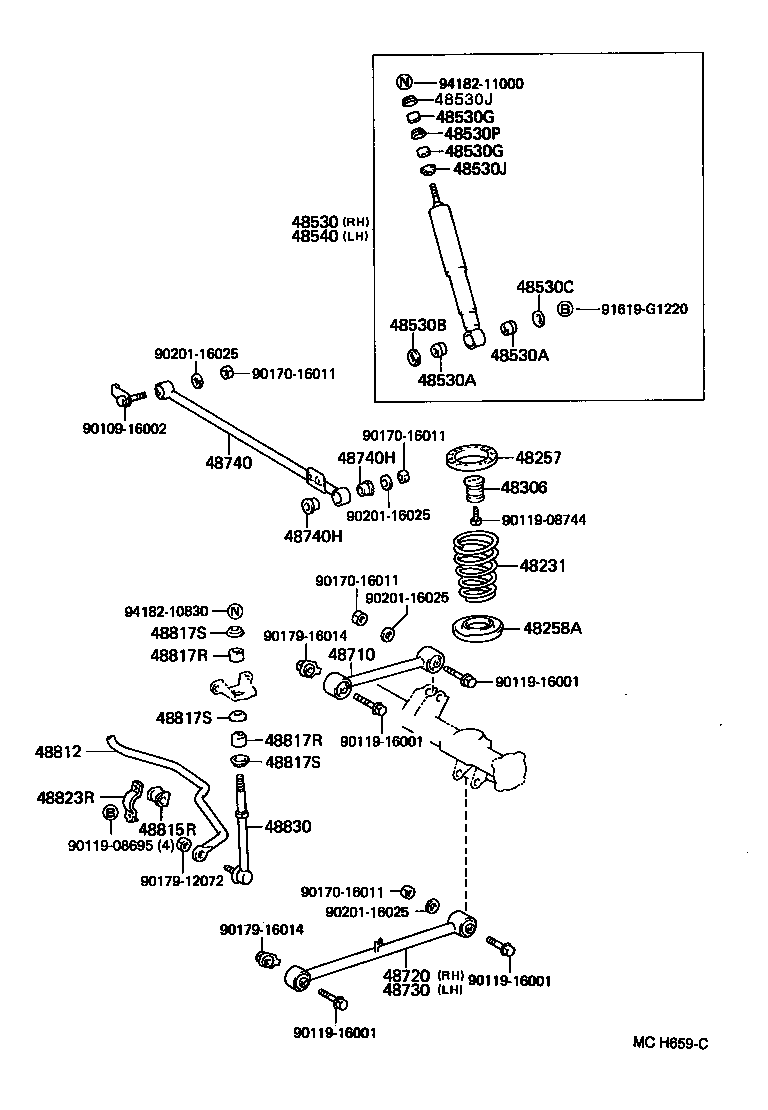

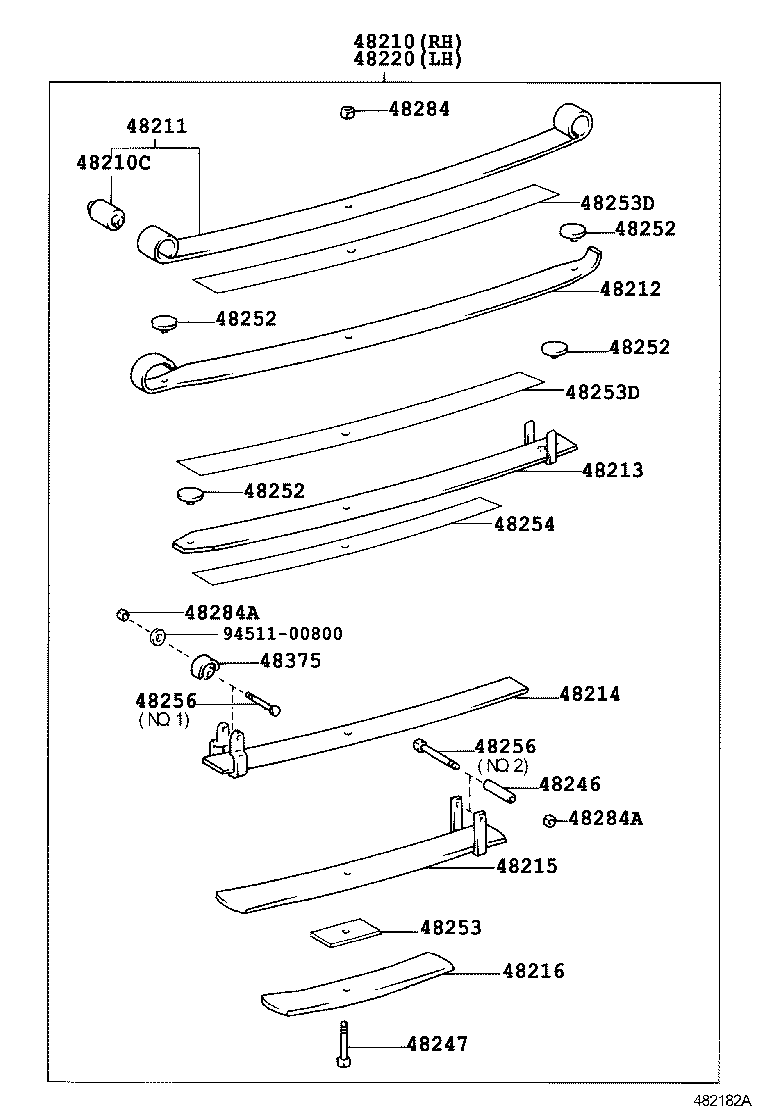

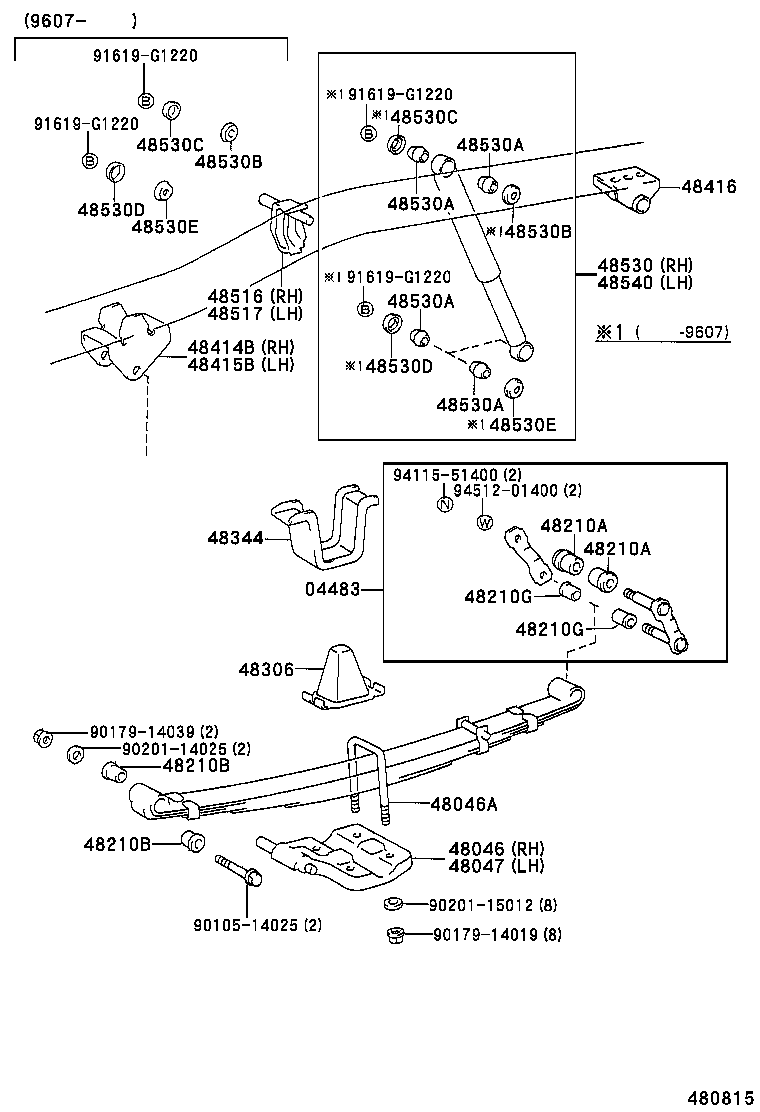

Figure MCG542E MCG542E 1988-08 → — Figure 480815 480815 1988-08 → — Figure MCT659 MCT659 1988-08 → — Figure 480319 480319 1994-09 → — Figure MCG543A MCG543A 1988-08 → — Figure MCT661 MCT661 1988-08 → — Figure MCH661C MCH661C 1989-04 → — Figure MCH659C MCH659C 1989-08 → 1995-11 Figure 481326 481326 2001-05 → — Figure 482181A 482181A 2001-06 → 2004-10 Figure 482182A 482182A 2004-10 → 2004-12

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48231 Spring, Coil, Rear
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252E Wedge, Rear Spring Caster
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48257 Insulator, Rear Coil Spring
48258A Insulator, Rear Coil Spring, Lower
48284 Nut, Rear Spring Center Bolt
48284A Nut, Rear Spring Clip
48306 Bumper Sub-assy, Rear Spring
48344 Stopper, Bumper, Rear
48375 Damper, Leaf Spring Dynamic
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48416 Bracket, Spring, NO.4
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530G Cushion, Rear Shock Absorber, NO.1
48530H Bush, Rear Shock Absorber
48530J Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530P Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
48540 Absorber Assy, Shock, Rear LH
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48812 Bar, Stabilizer, Rear
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48823R Cover, Stabilizer Link(FOR REAR)
48830 Link Assy, Rear Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
