Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

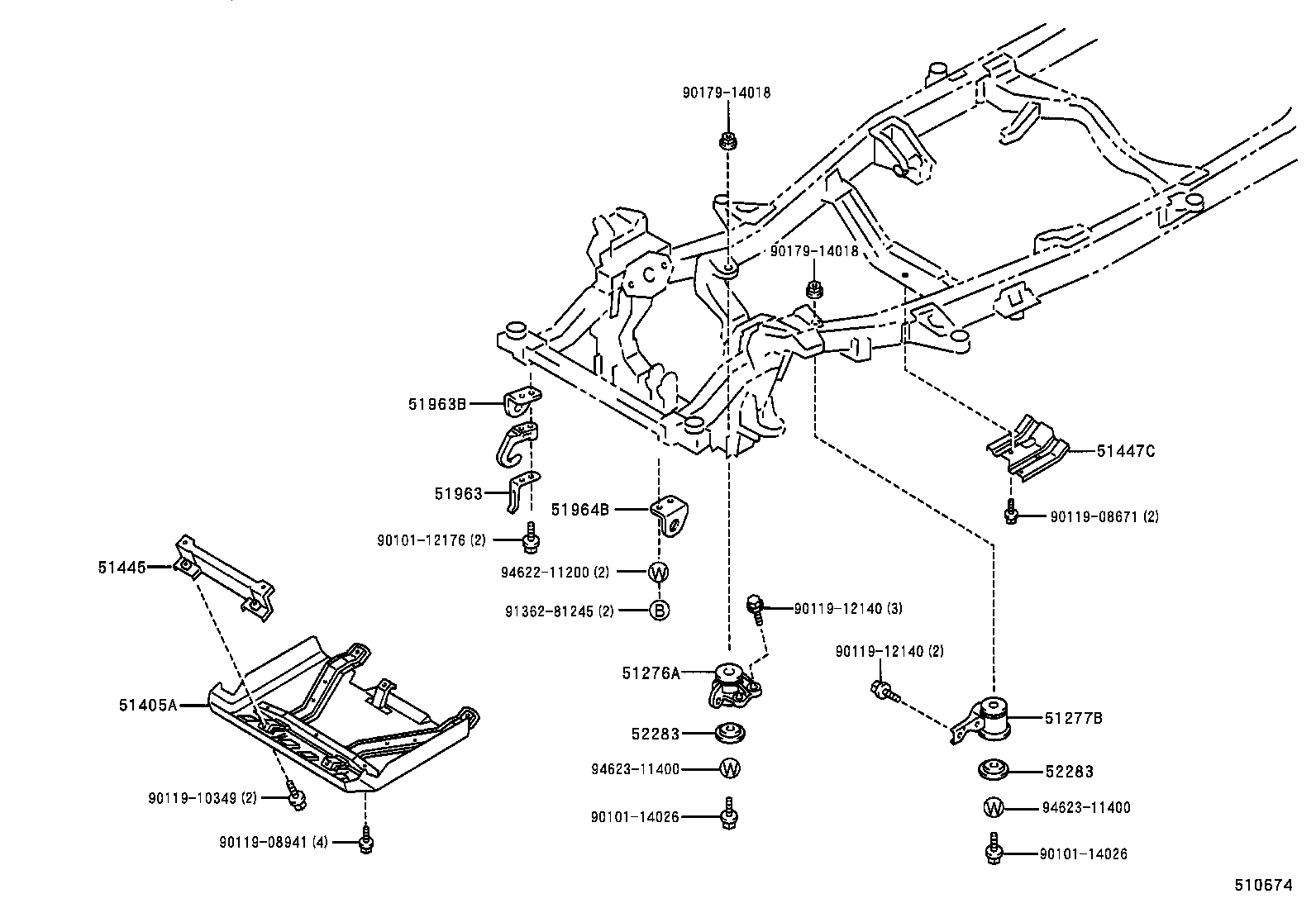

Figure 510221A 510221A 1988-08 → 2001-06 Figure 510674 510674 2001-06 → —

Part groups

PNCDescription
51276A Bracket, Differential Support
51277B Bracket Assy, Differential Support, LH
51405A Cover Sub-assy, Engine Under, NO.1
51445 Bracket, Engine Under Cover
51447C Protector, Transfer Case
51455B Bracket, Engine Under Cover, Rear RH
51456B Bracket, Engine Under Cover, Rear LH
51961 Hook, NO.1
51963 Stopper, Hook Wire
51963B Hook, Transport, Front RH
51964B Hook, Transport, Front LH
51967 Hook, Transport, Rear
51968 Spacer, Hook
52283 Stopper, Differential Support Member, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
