Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 18 illustrations

Illustrations

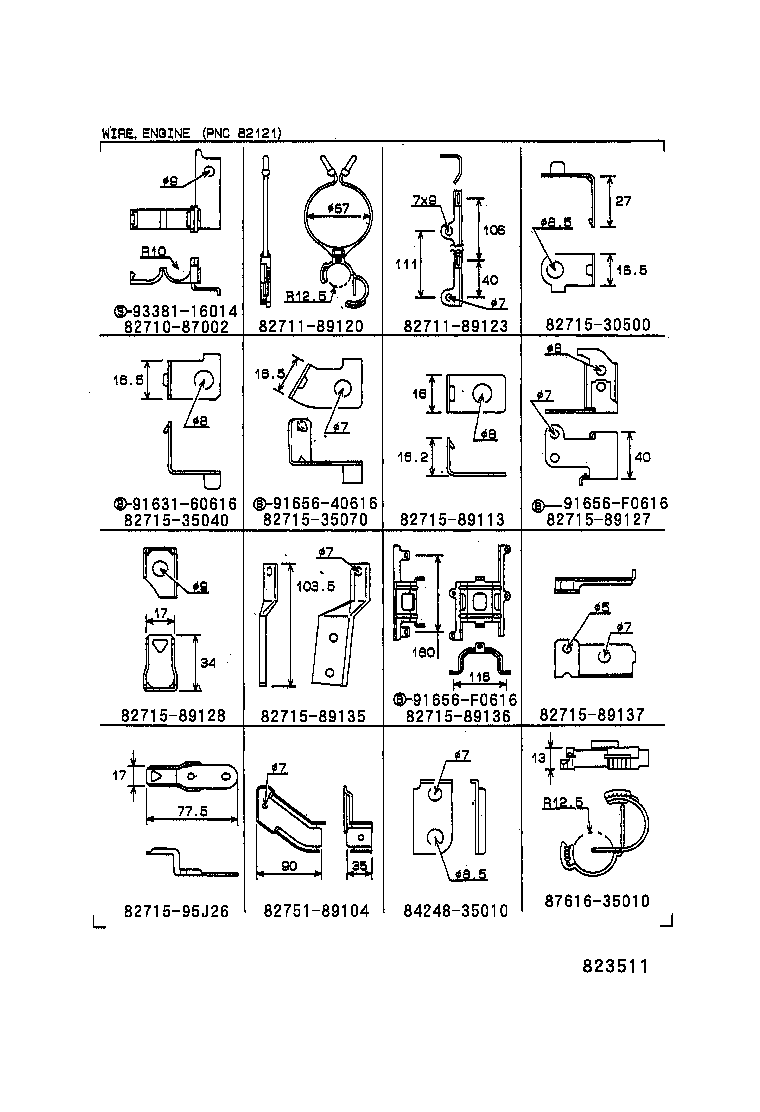

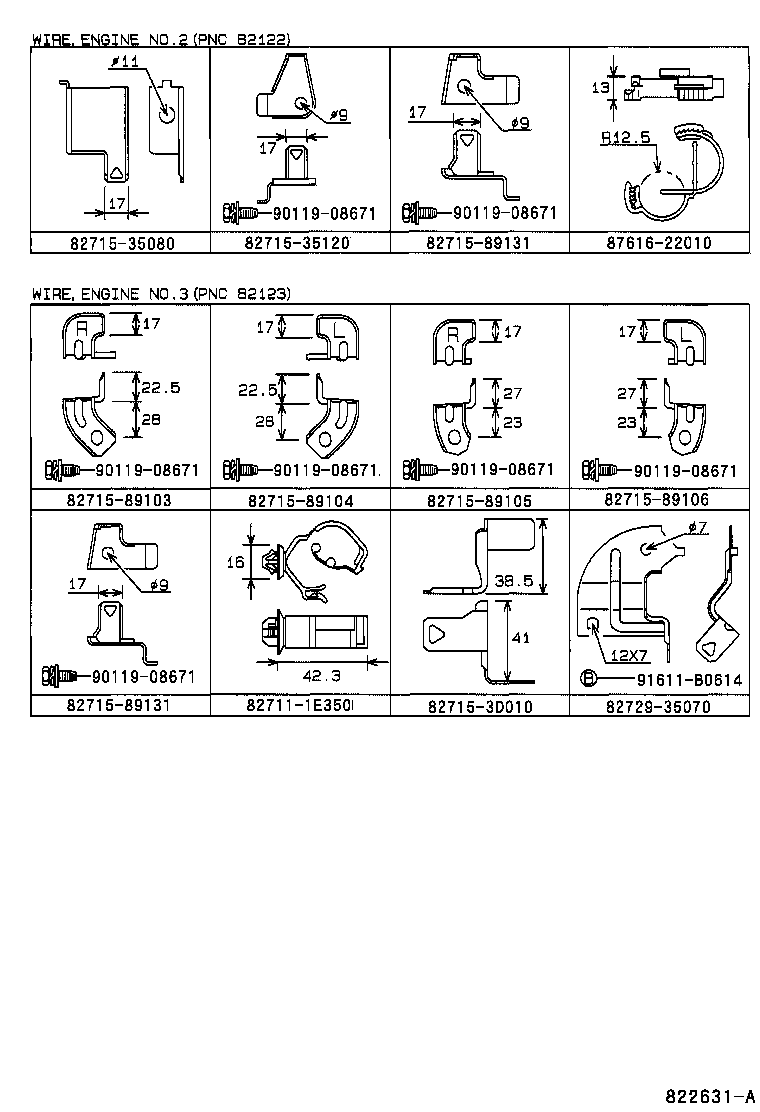

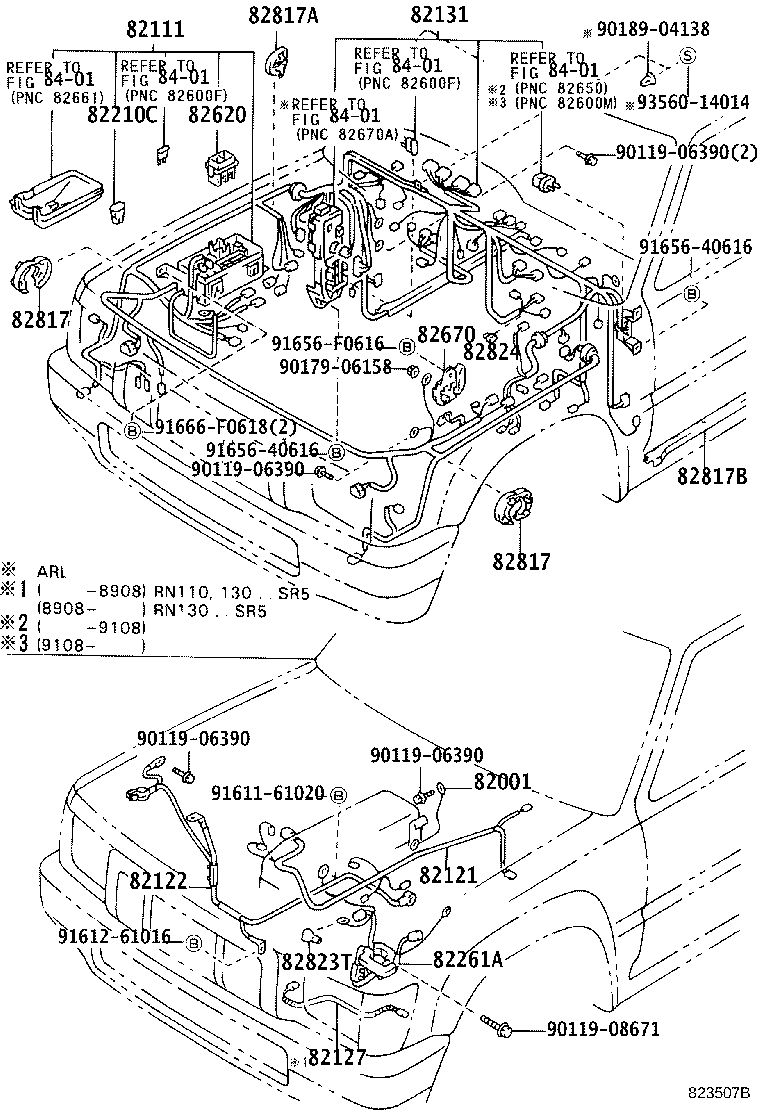

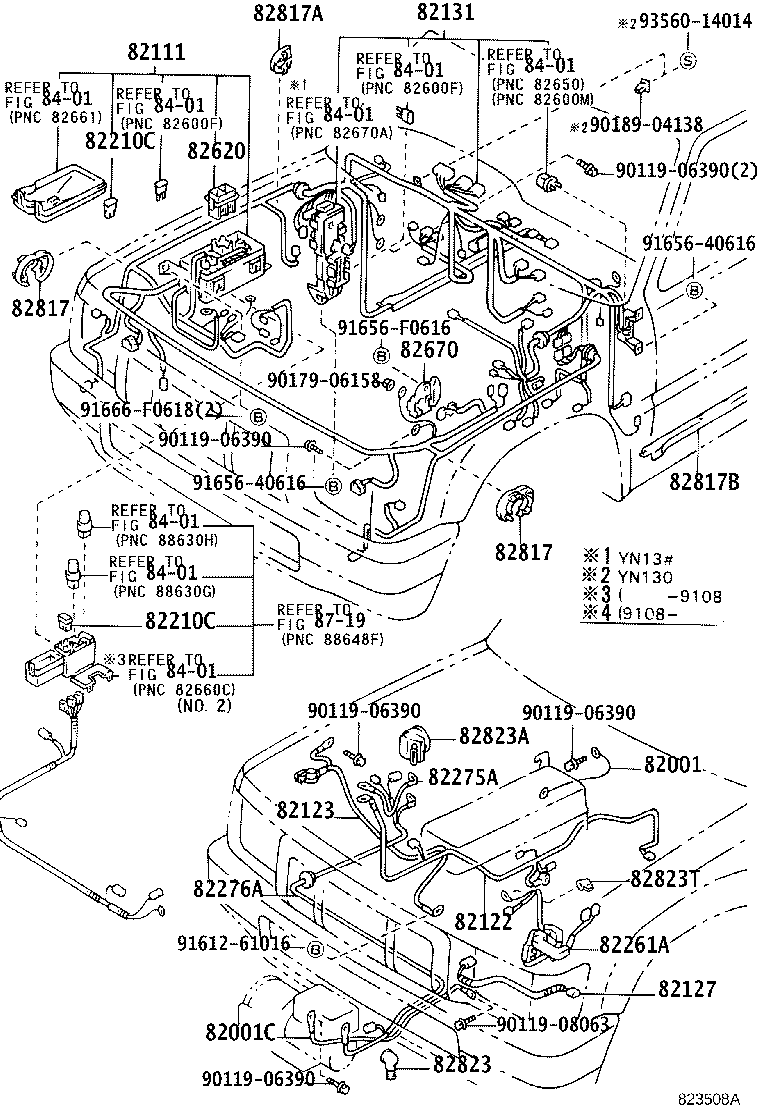

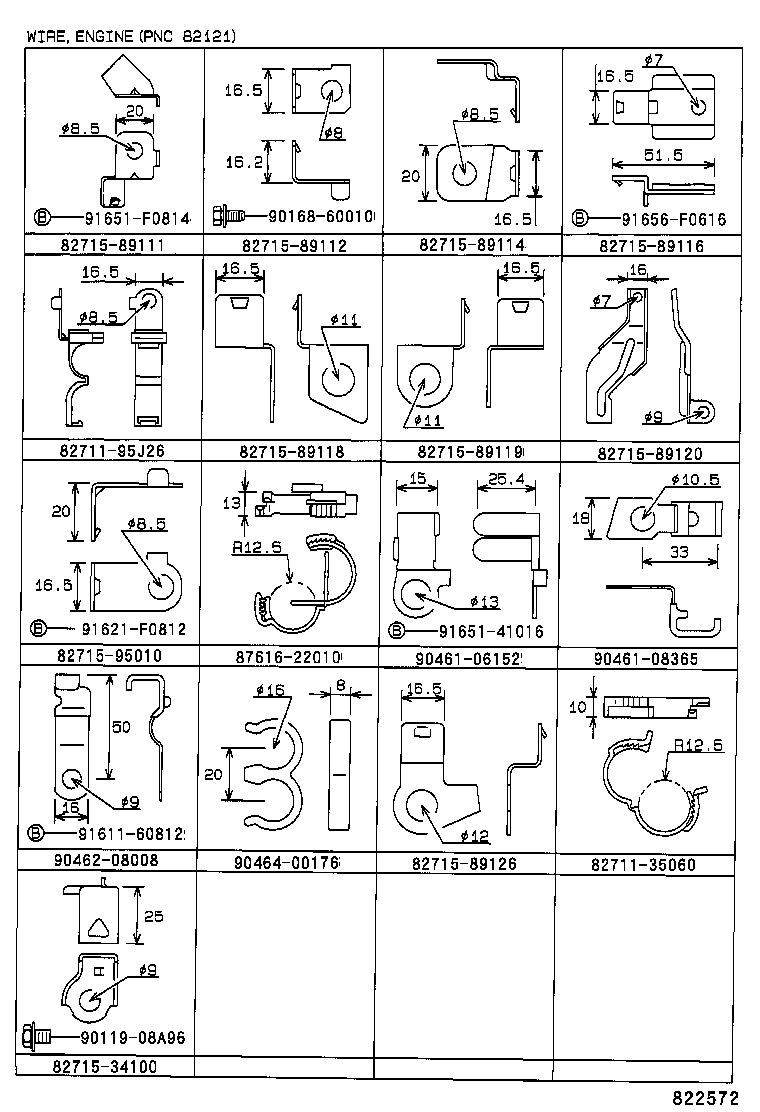

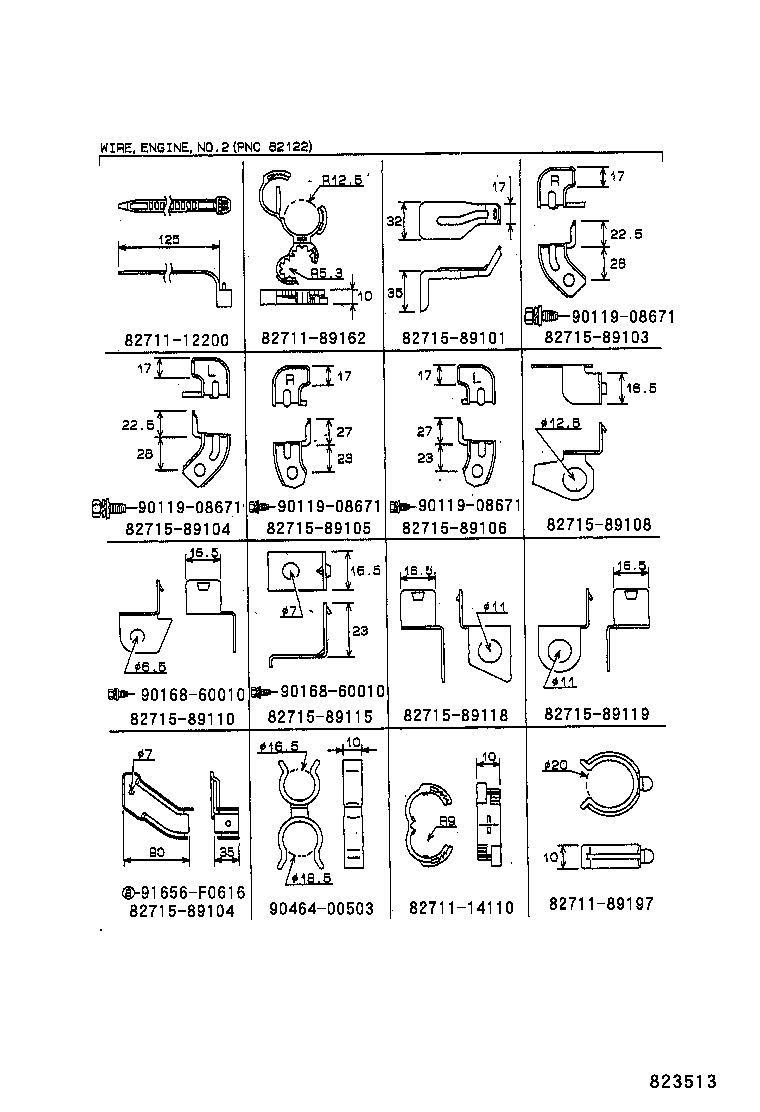

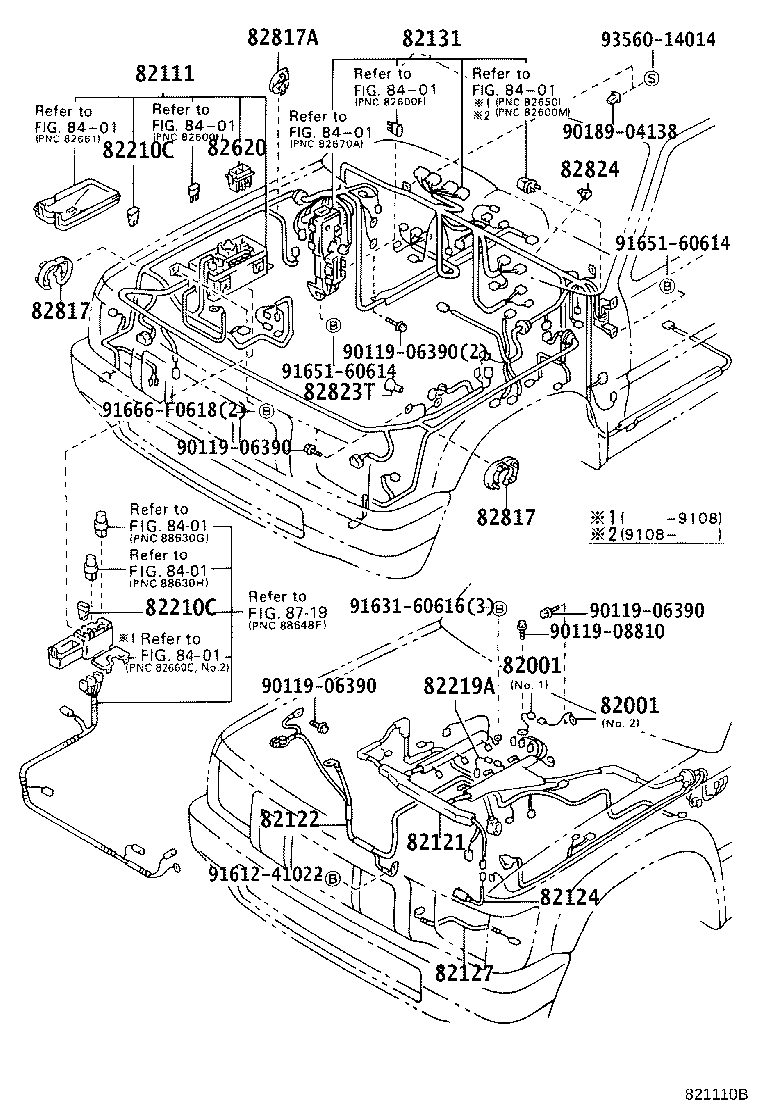

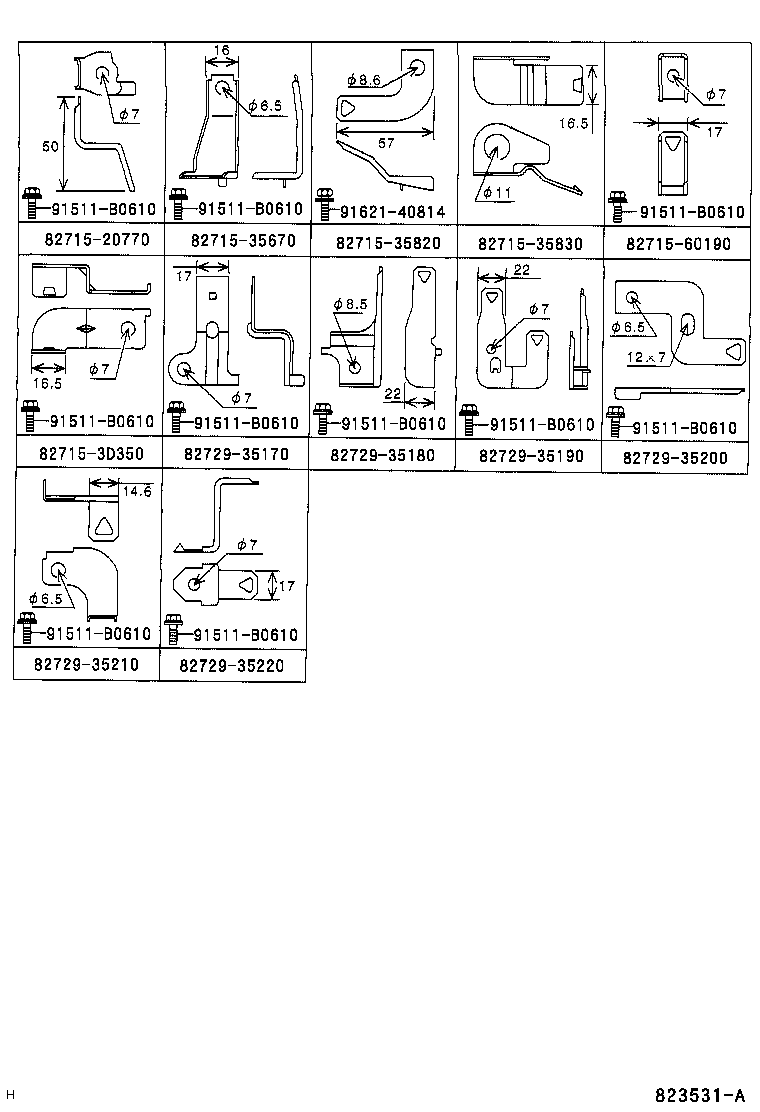

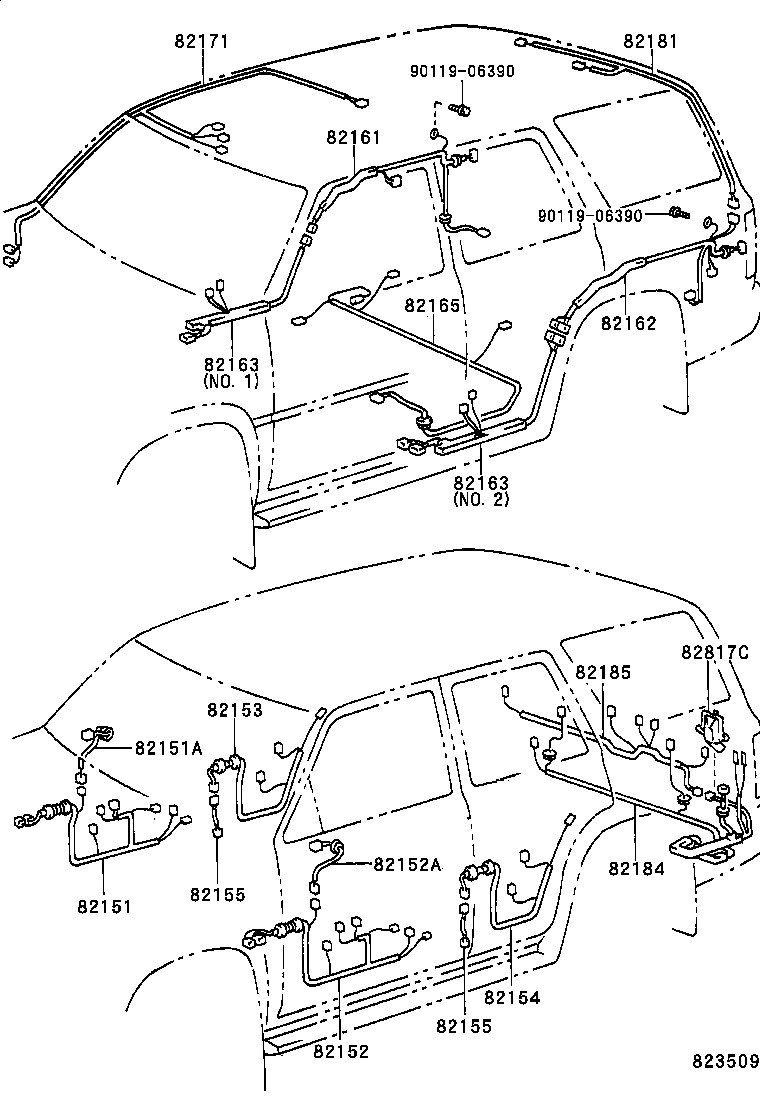

Figure 822090D 822090D 1988-08 → — Figure 823507B 823507B 1988-08 → — Figure 823508A 823508A 1988-08 → — Figure 821110B 821110B 1990-08 → — Figure 820900 820900 1988-08 → — Figure 823509 823509 1989-04 → — Figure 823510 823510 1988-08 → — Figure 823521 823521 1988-08 → — Figure 821626A 821626A 1988-08 → — Figure 822572 822572 1988-08 → — Figure 823511 823511 1988-08 → — Figure 823512 823512 1988-08 → — Figure 823531A 823531A 2001-08 → — Figure 823513 823513 1988-08 → — Figure 822631A 822631A 1988-08 → — Figure 823514 823514 1988-08 → — Figure 823505 823505 1988-08 → — Figure 823506 823506 1988-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential
82131 Wire, Cowl
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82219A Wire, Sensor
82261A Wire, Alternator
82275A Cable, Battery TO Magnet Switch
82276A Cable, Magnet Switch TO Winch
82620 Block Assy, Fusible Link
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness

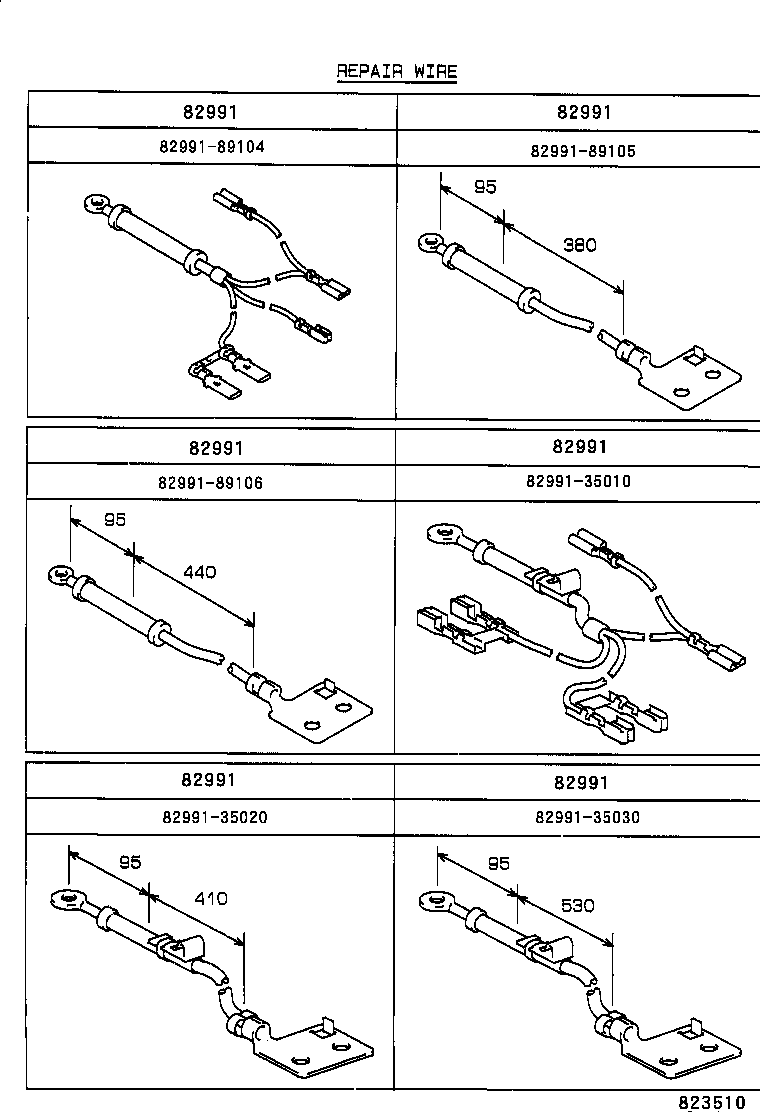

82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
