Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

14 part groups · 5 illustrations

Illustrations

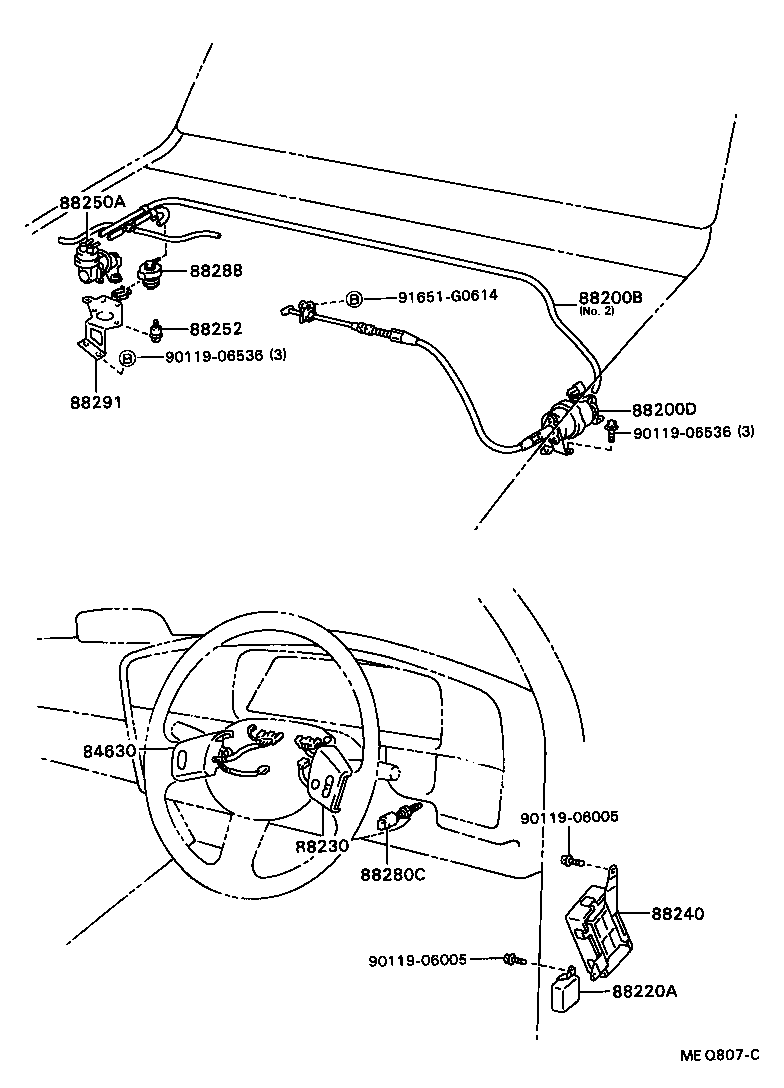

Figure NE1127C NE1127C 1988-08 → 1989-08 Figure NE1127C NE1127C 1989-08 → 1990-08 Figure NE1129A NE1129A 1988-08 → 1989-08 Figure NE1129A NE1129A 1989-08 → 1990-08 Figure MEQ807C MEQ807C 1990-08 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88220A Relay Assy, Speed Control Main
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88240 Computer Assy, Cruise Control
88250A Pump Assy, Cruise Control
88252 Cushion, Vacuum Pump
88280C Switch Assy, Clutch
88288 Switch, Vacuum Speed Control
88290A Bellcrank Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
