Toyota Hilux/4Runner (4WD)

1988-08 → 2004-12 · chassis LN,RN,YN,VZN10#,11#,13#,KZN,LN205 · catalogue 671350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

19 part groups · 7 illustrations

Illustrations

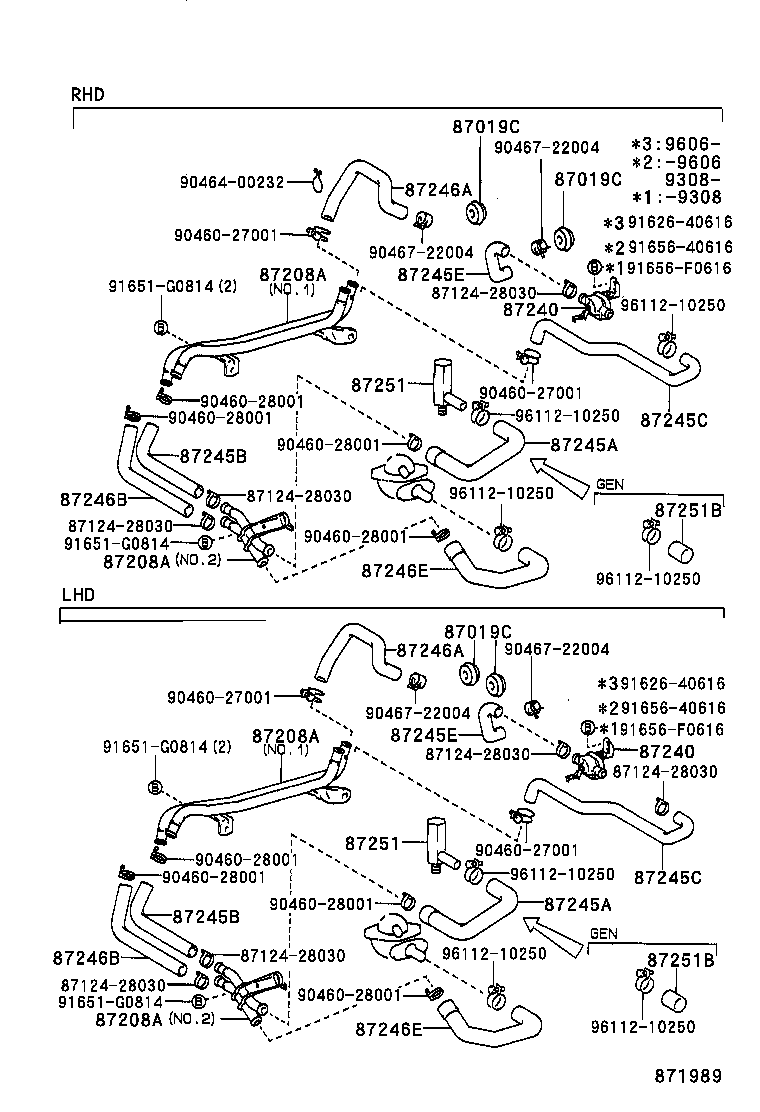

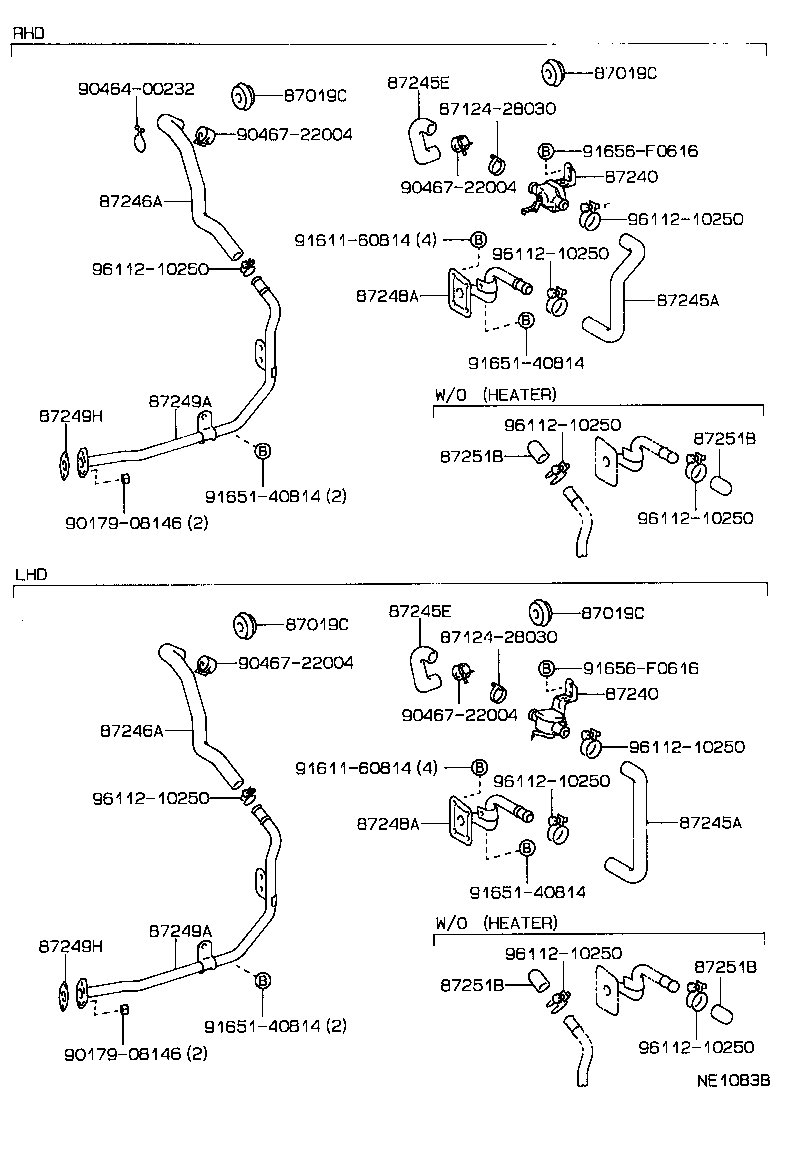

Figure NE1081A NE1081A 1988-08 → 1988-10 Figure 871989 871989 1988-10 → — Figure 871990 871990 1988-08 → — Figure NE1083B NE1083B 1988-08 → — Figure MEN318 MEN318 1989-04 → — Figure 874774 874774 2001-05 → — Figure 874992B 874992B 2001-08 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249H Gasket, Water Outlet Pipe
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87263 Bracket, Heater Water Pipe, NO.1
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
