Toyota 4Runner

1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 16 illustrations

Illustrations

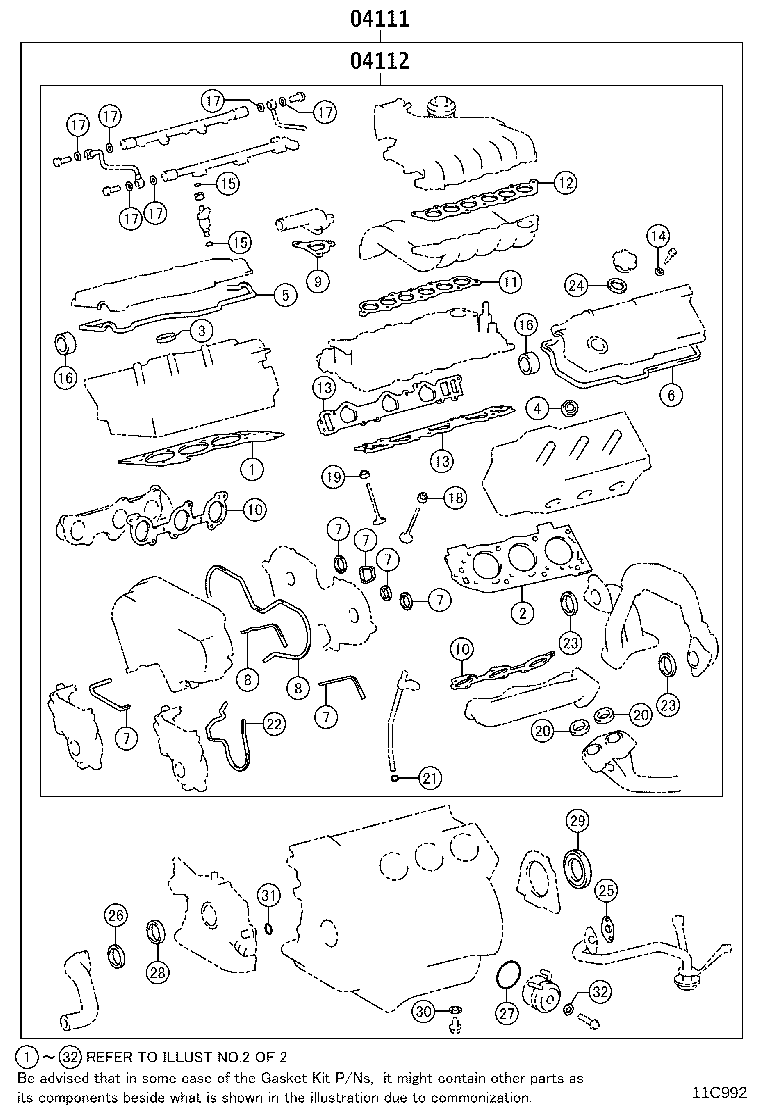

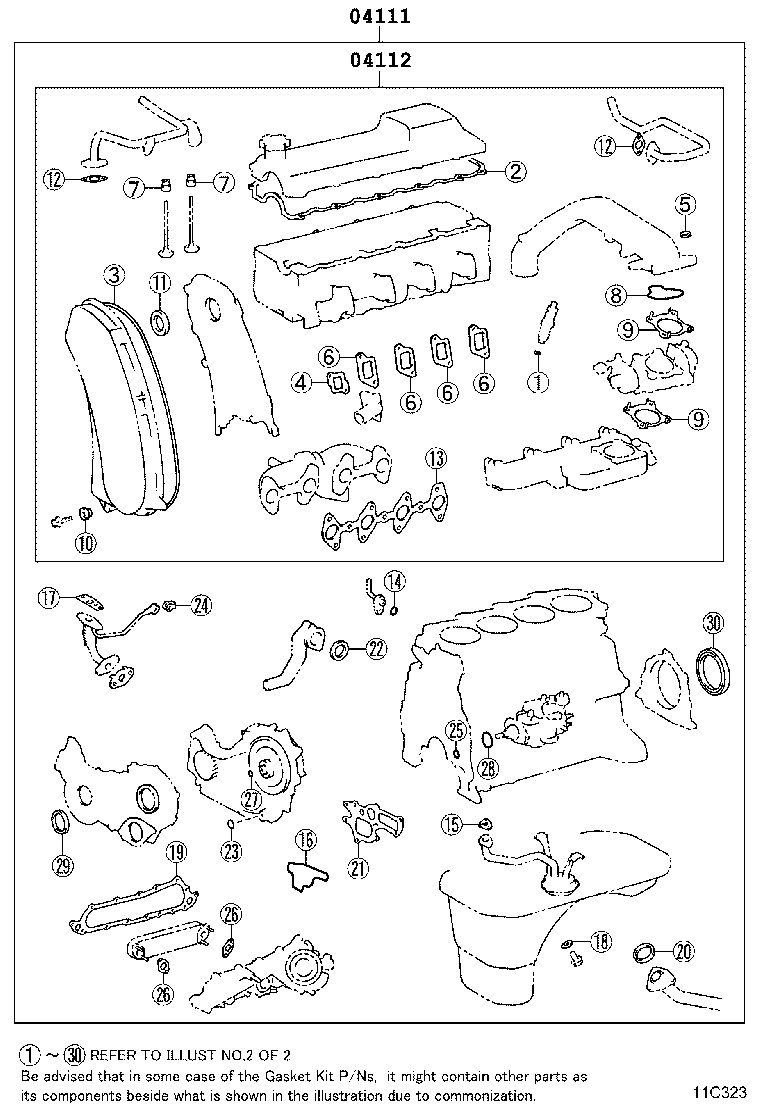

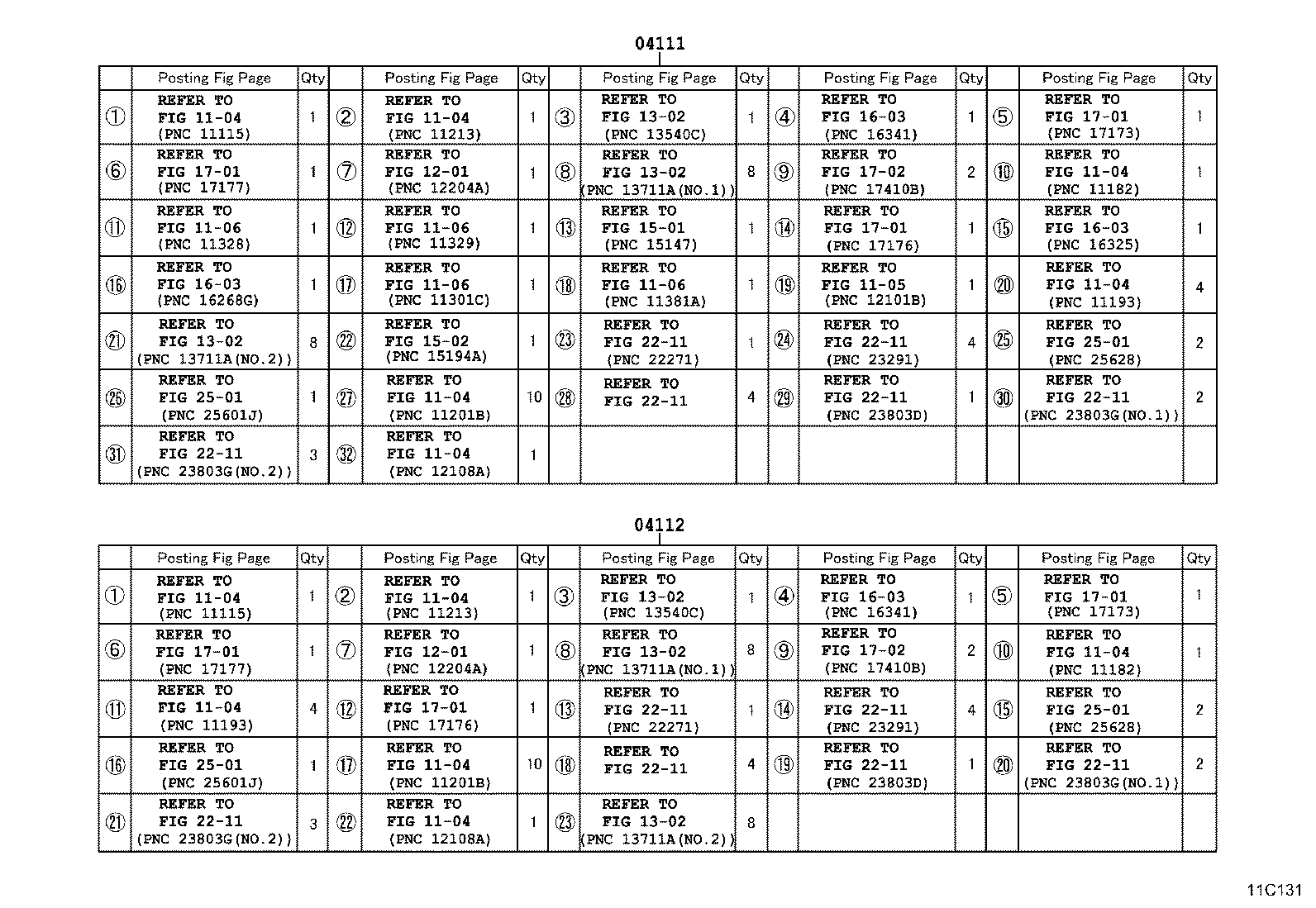

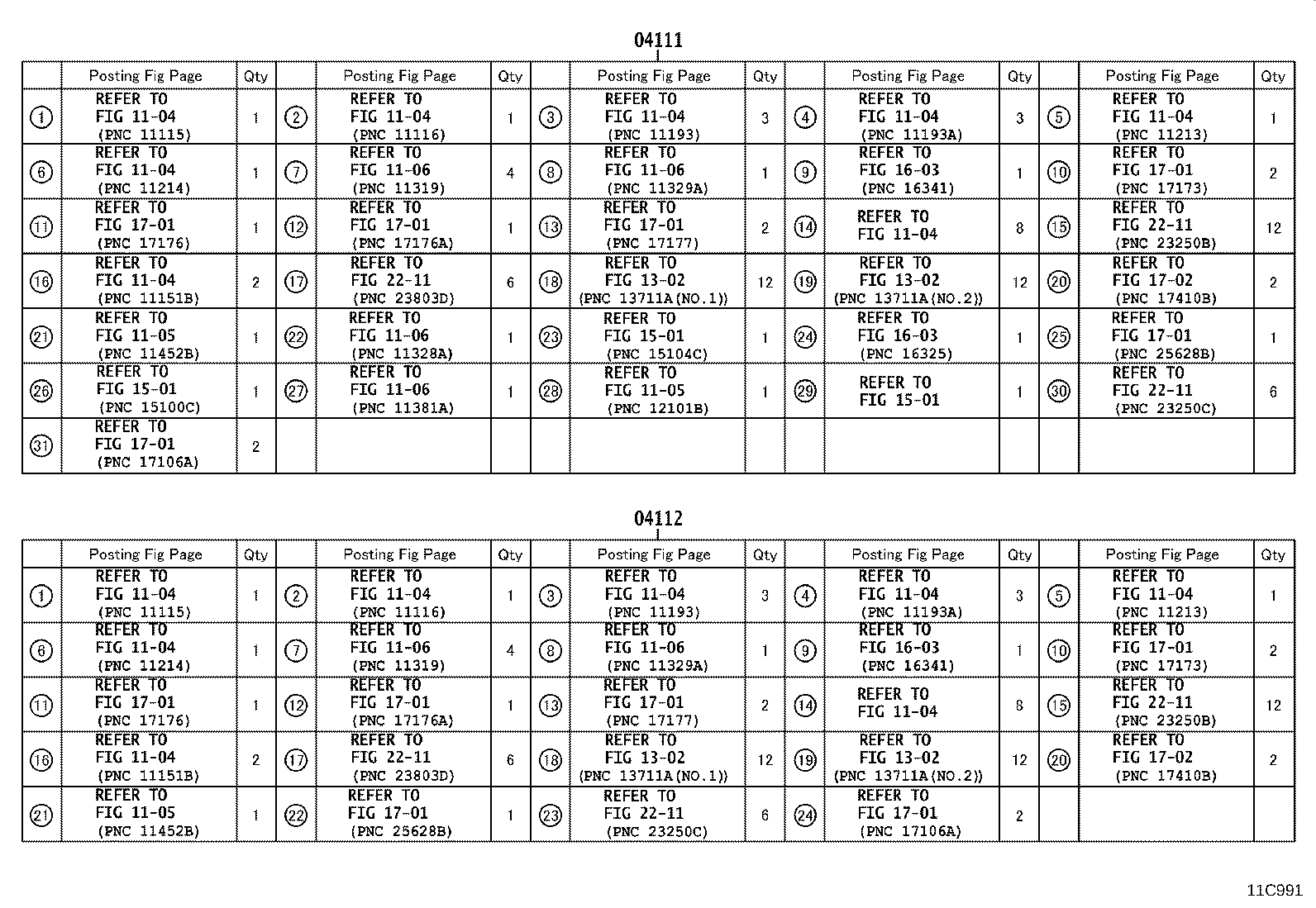

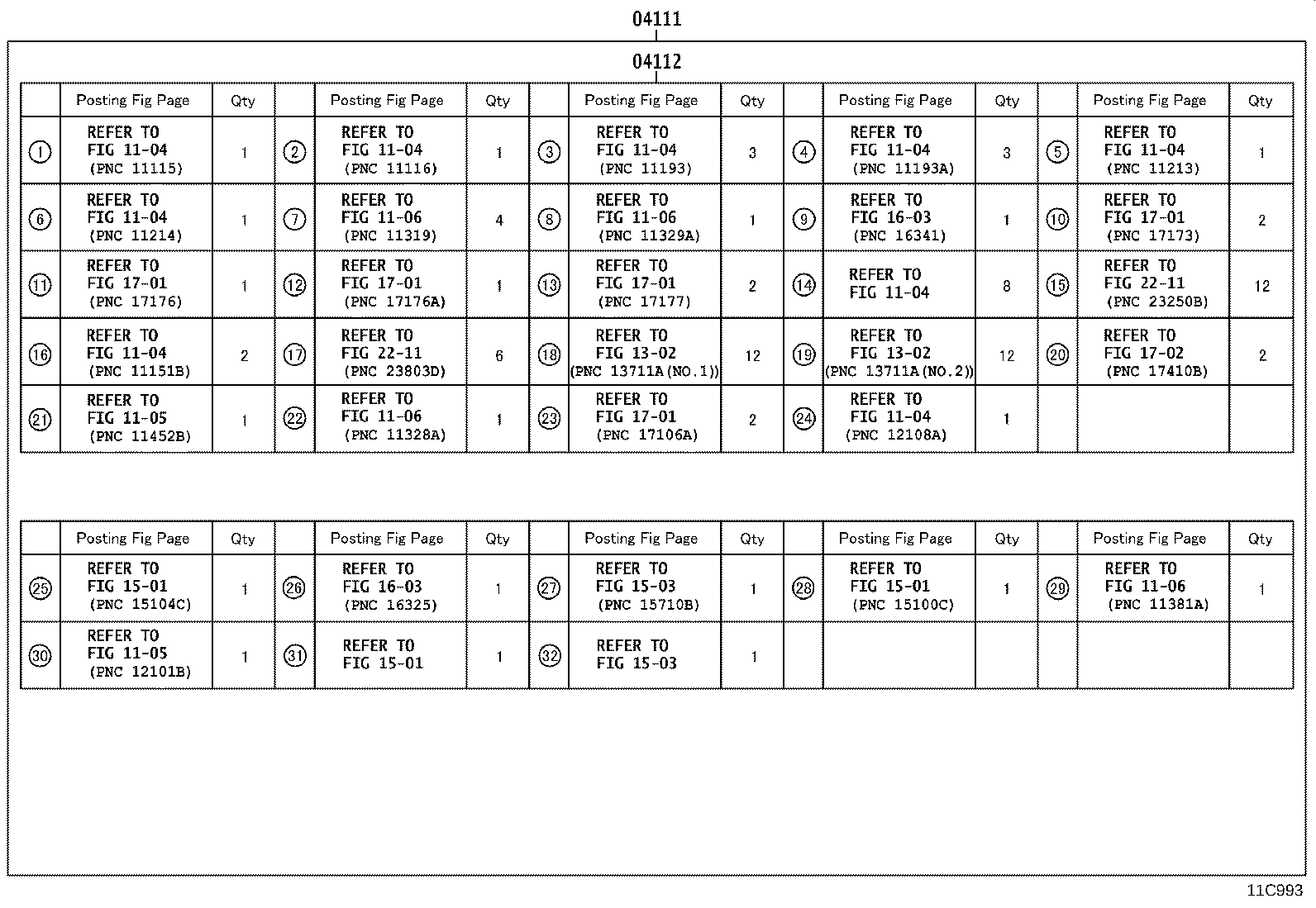

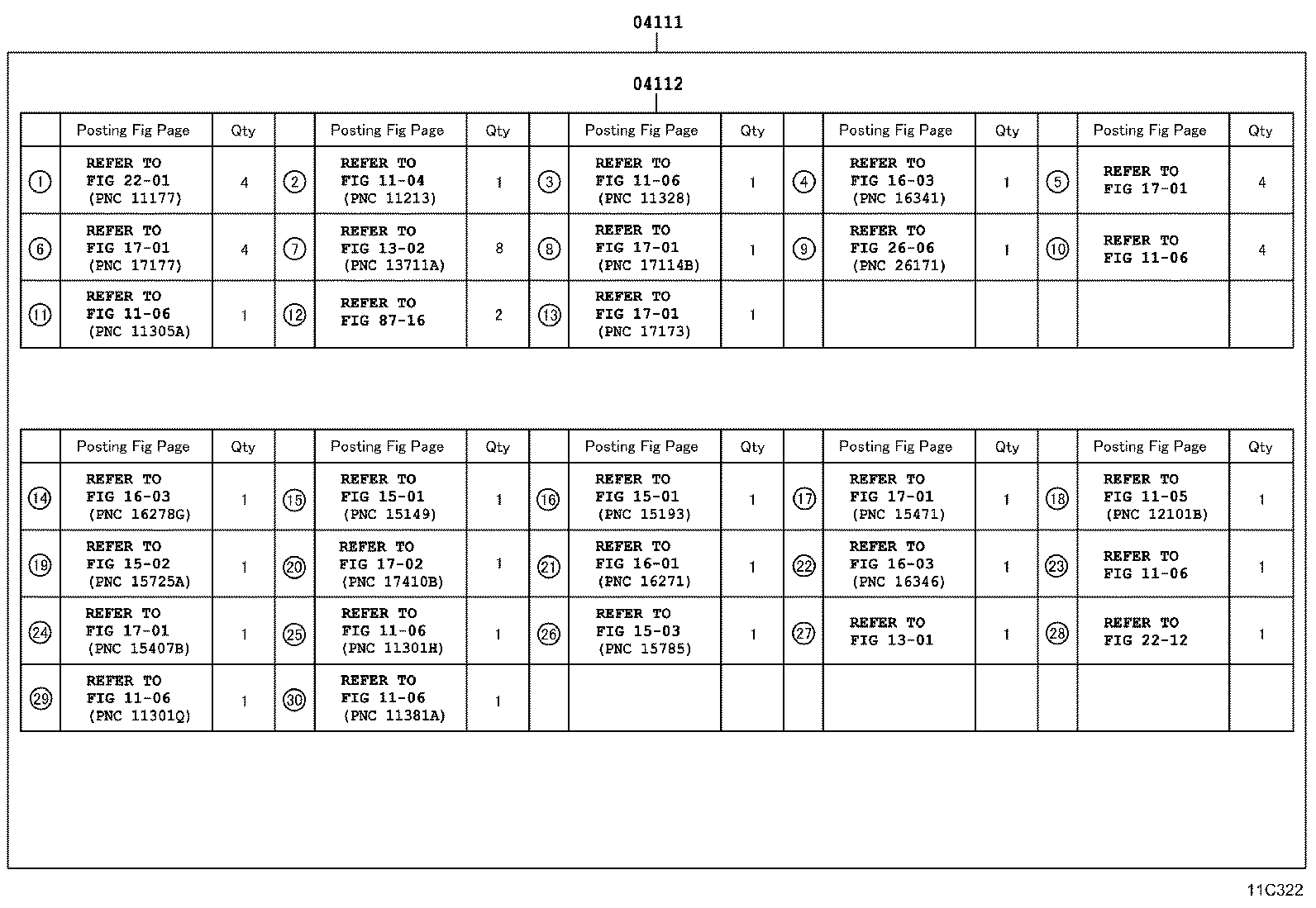

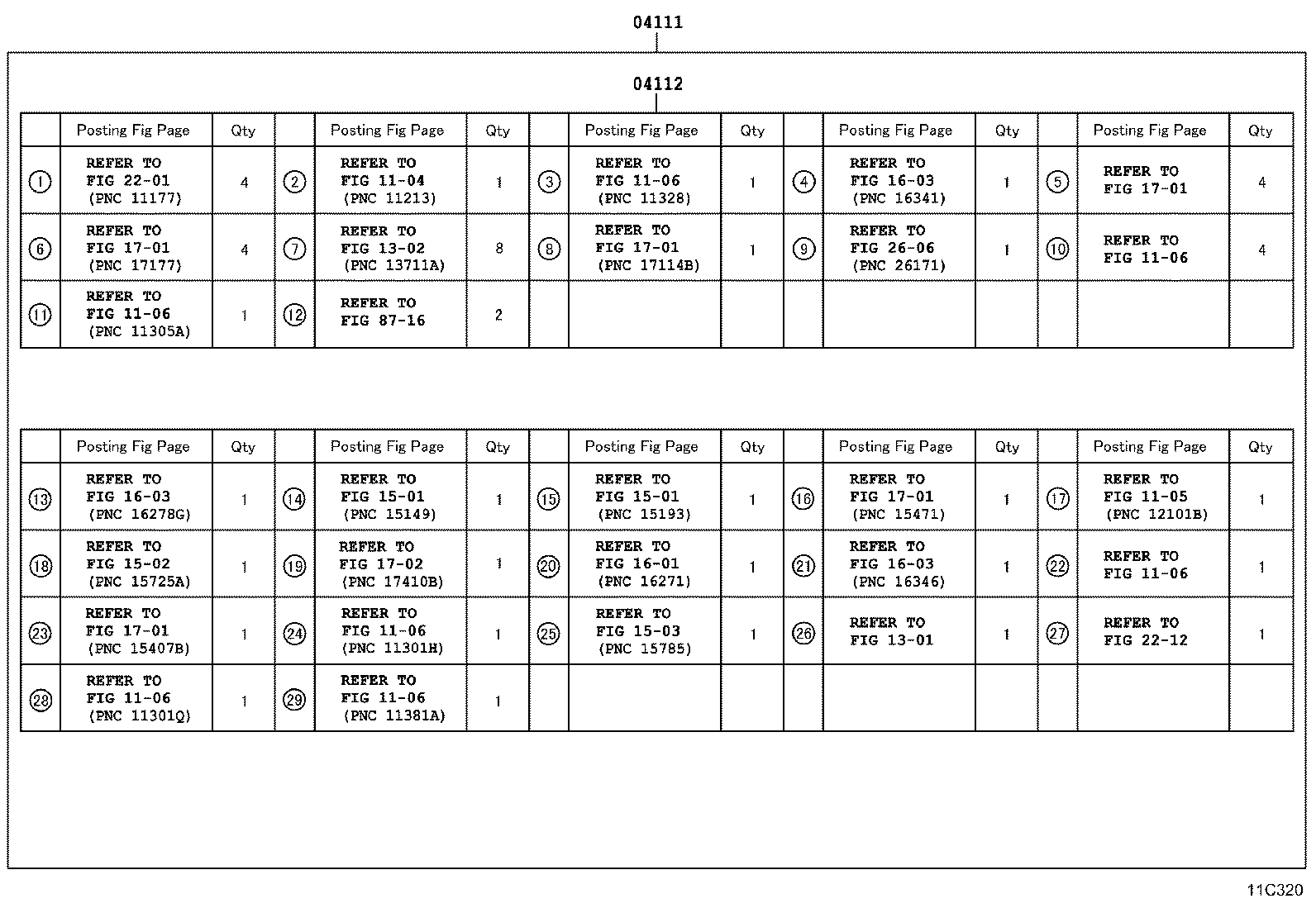

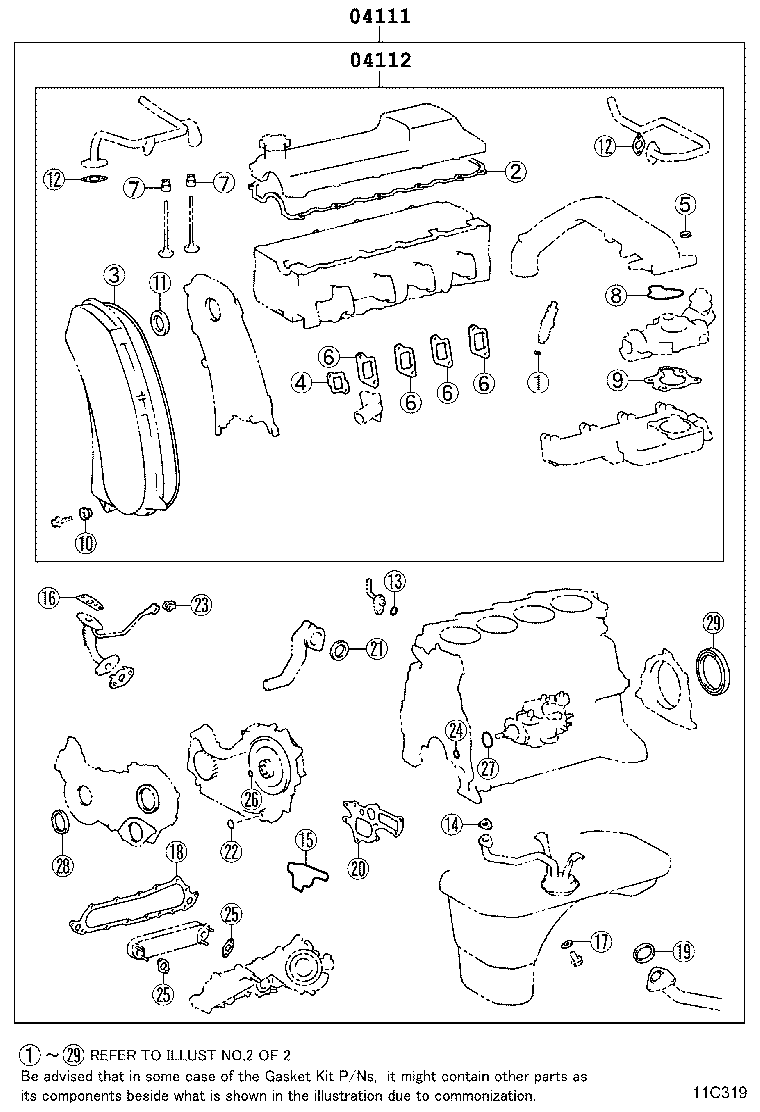

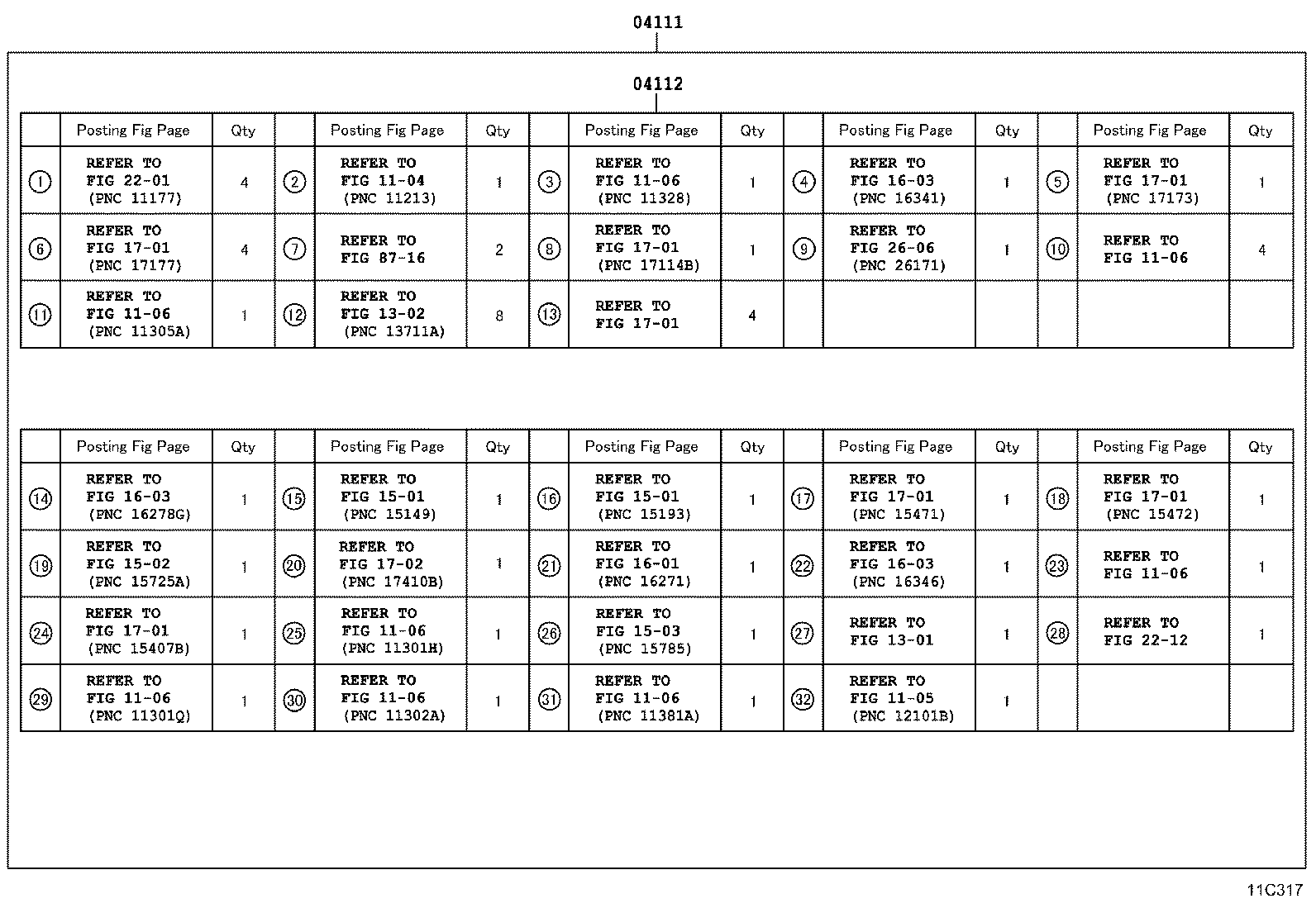

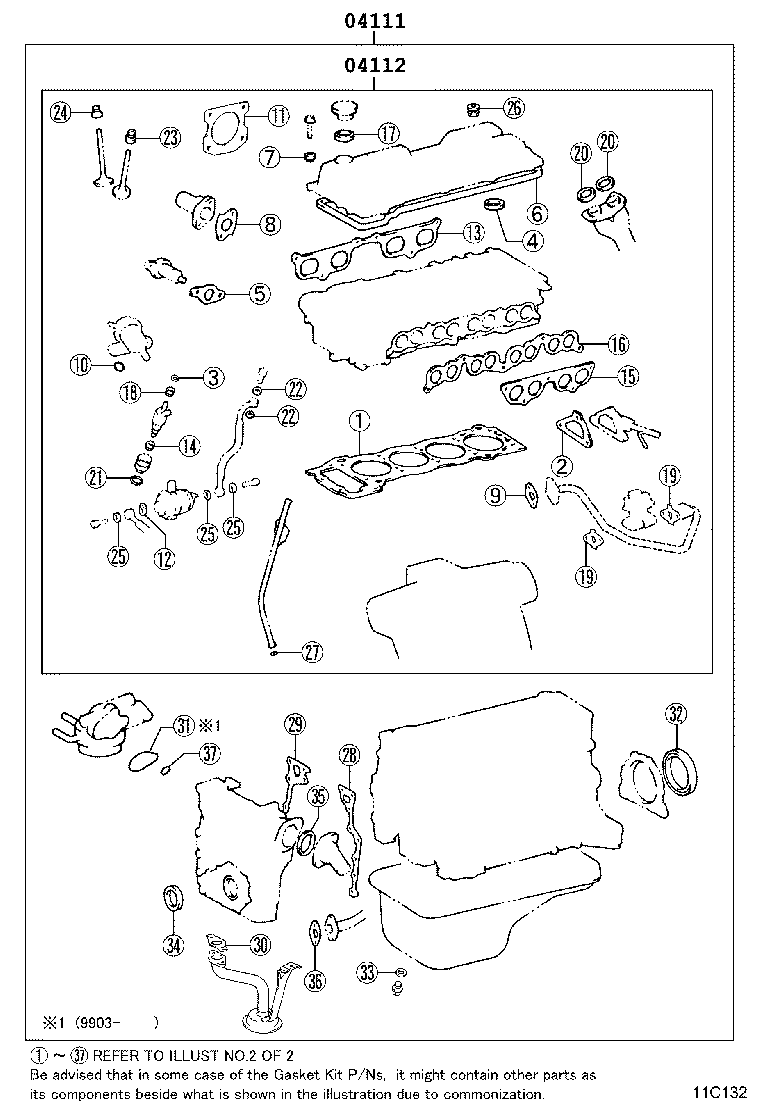

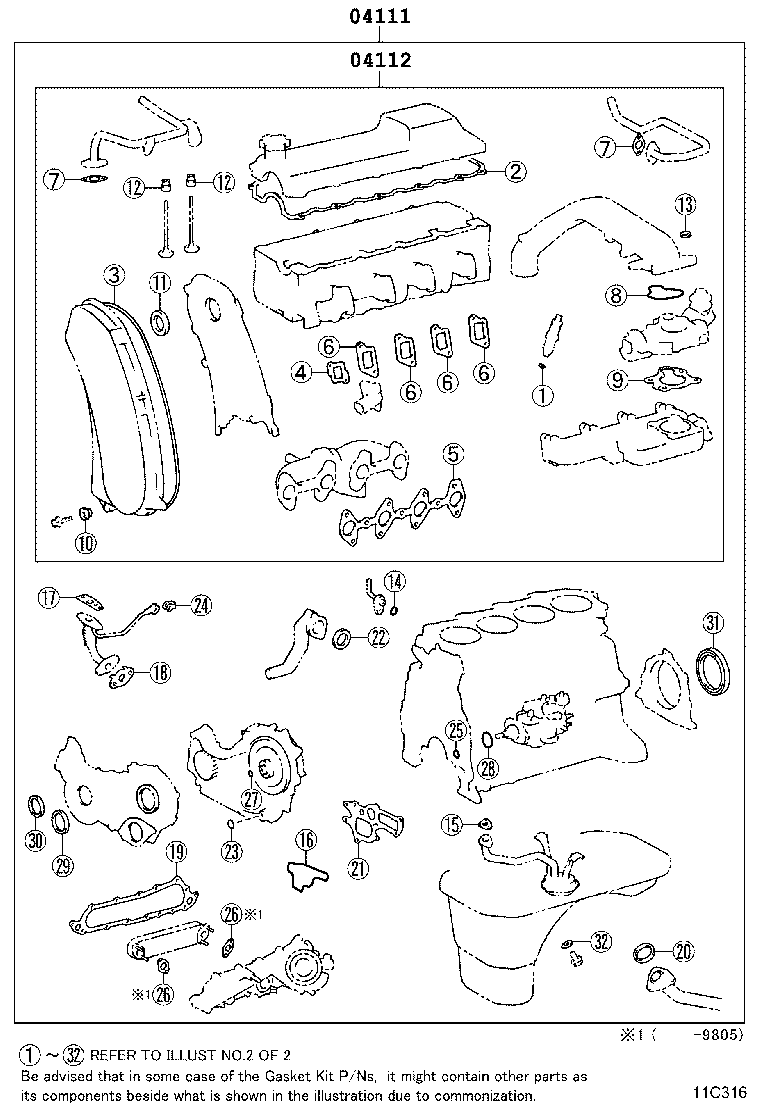

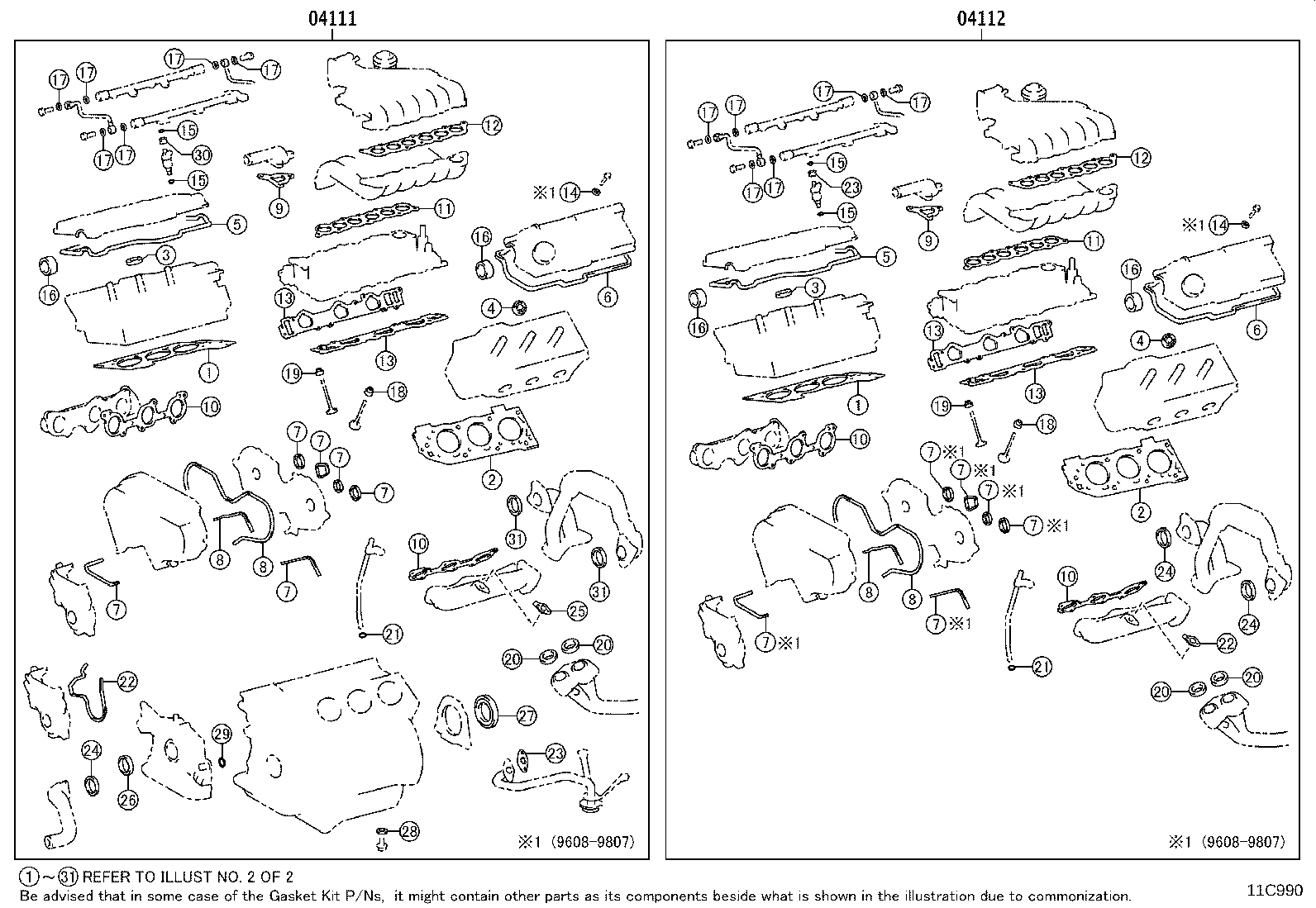

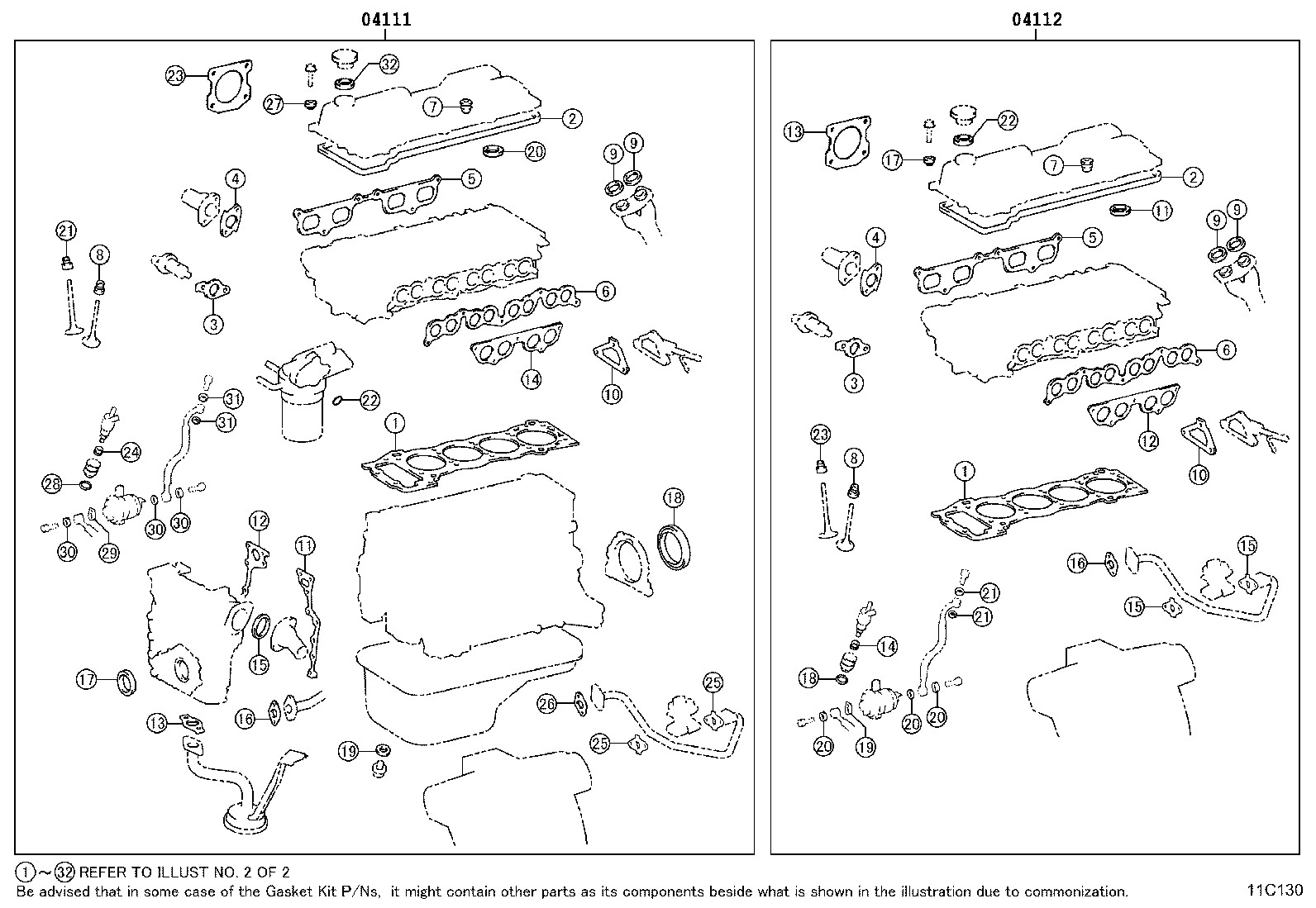

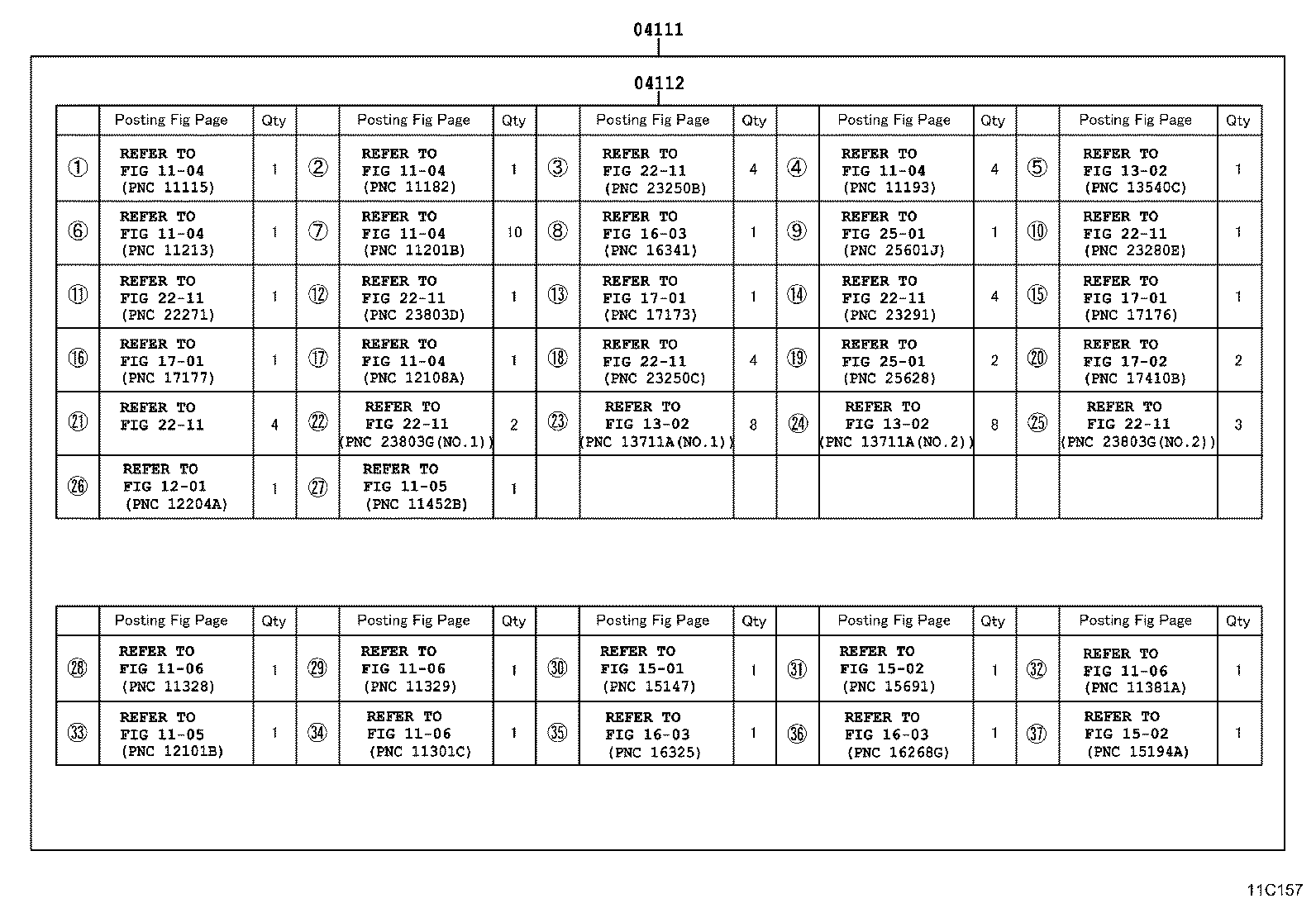

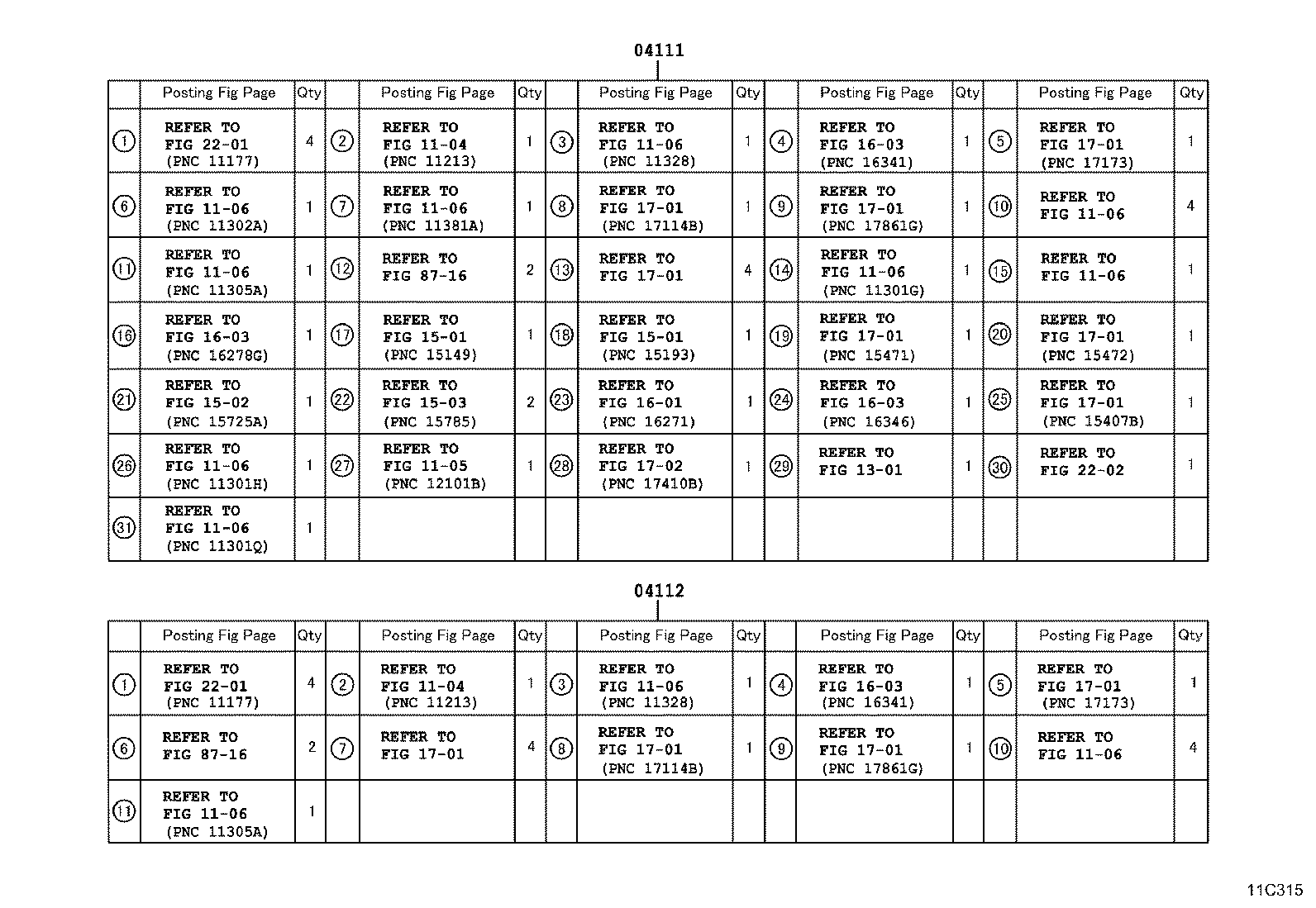

Figure 11C314 11C314 1995-11 → 1996-07 Figure 11C315 11C315 1995-11 → 1996-07 Figure 11C316 11C316 1996-07 → 2000-02 Figure 11C317 11C317 1996-07 → 2000-02 Figure 11C319 11C319 2000-02 → 2000-08 Figure 11C320 11C320 2000-02 → 2000-08 Figure 11C323 11C323 2000-08 → — Figure 11C322 11C322 2000-08 → — Figure 11C130 11C130 1995-11 → 1998-07 Figure 11C131 11C131 1995-11 → 1998-07 Figure 11C156 11C156 1998-07 → — Figure 11C157 11C157 1998-07 → — Figure 11C990 11C990 1995-11 → 1998-07 Figure 11C991 11C991 1995-11 → 1998-07 Figure 11C992 11C992 1998-07 → — Figure 11C993 11C993 1998-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
