Toyota 4Runner
1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General
Discontinued model
Data version 2003-04

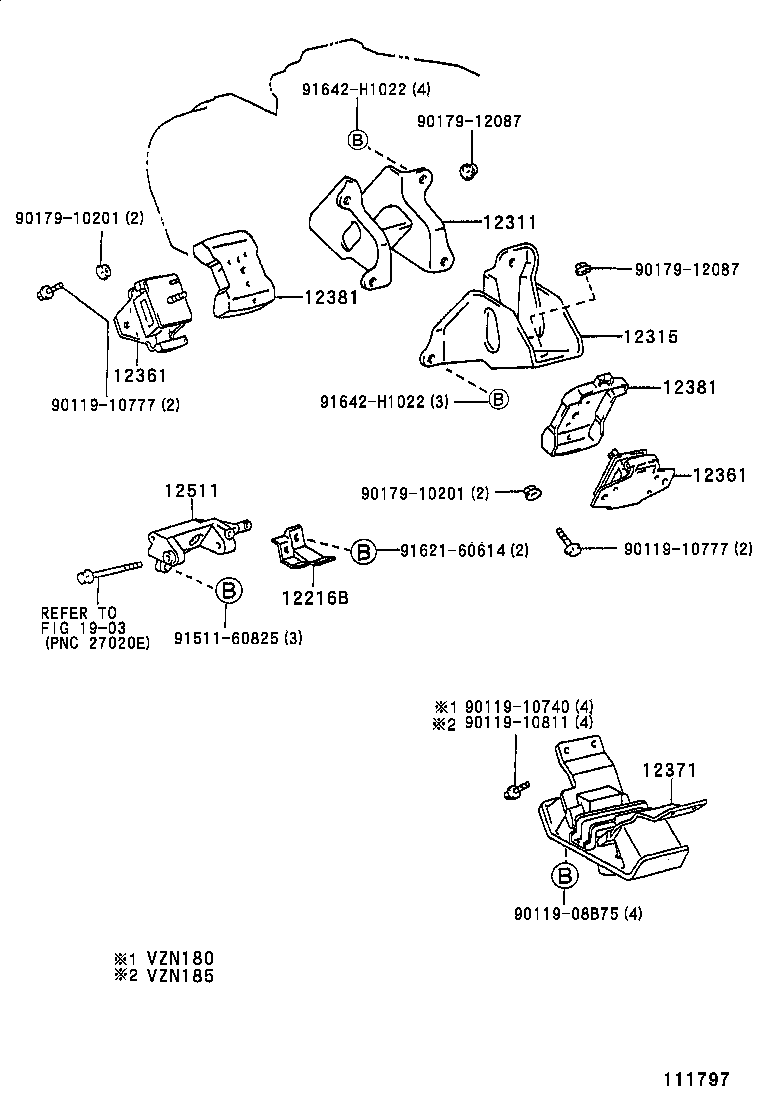

Mounting
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12216B | Plate, Oil Baffle |
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12371 | Insulator, Engine Mounting, Rear NO.1 |
| 12381 | Stabilizer, Engine Mounting |
| 12382 | Stabilizer, Engine Mounting, LH |
| 12511 | Bracket, Alternator, NO.1 |
| 12511A | Bush, Alternator Bracket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
