Toyota 4Runner

1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 3 illustrations

Illustrations

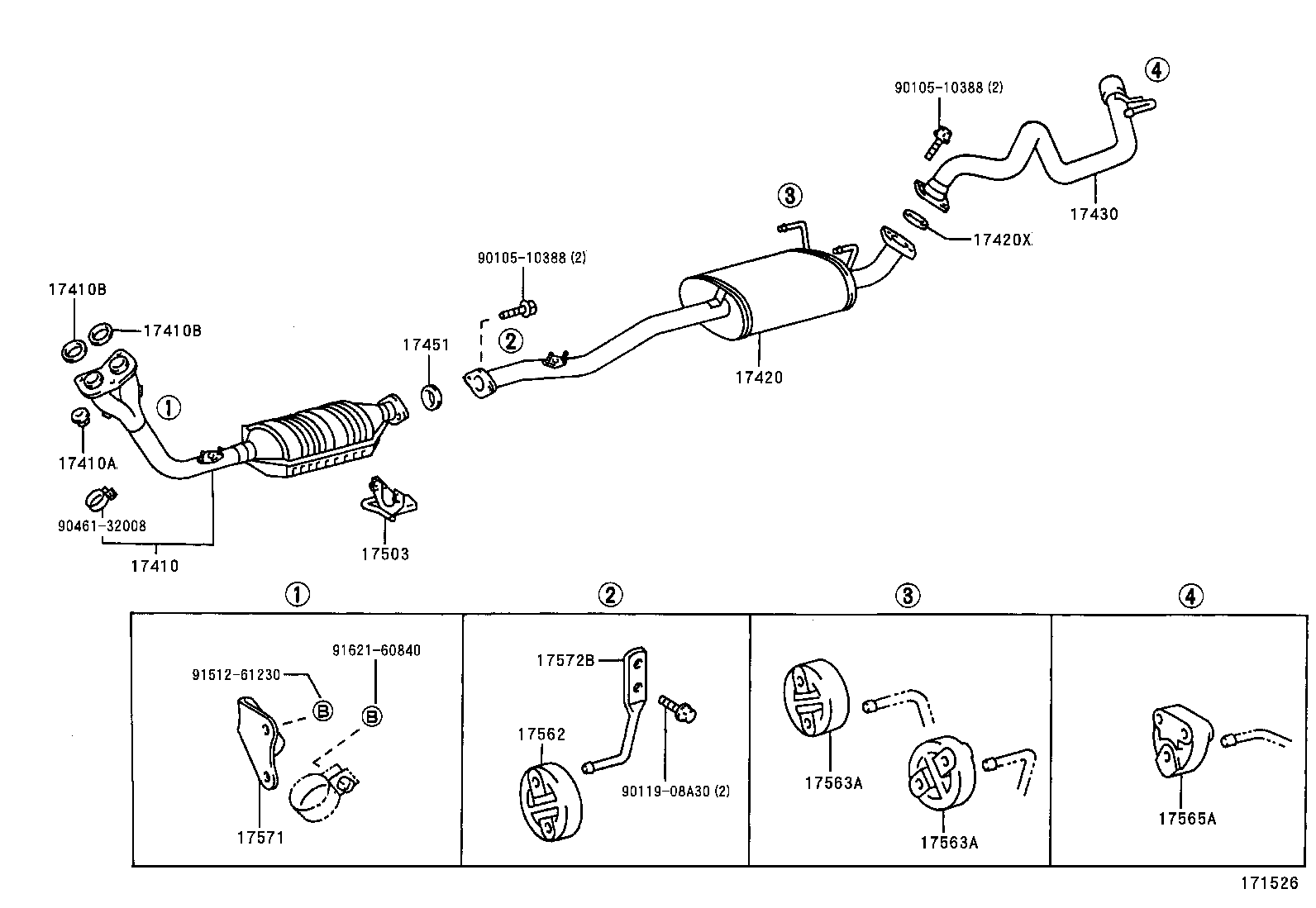

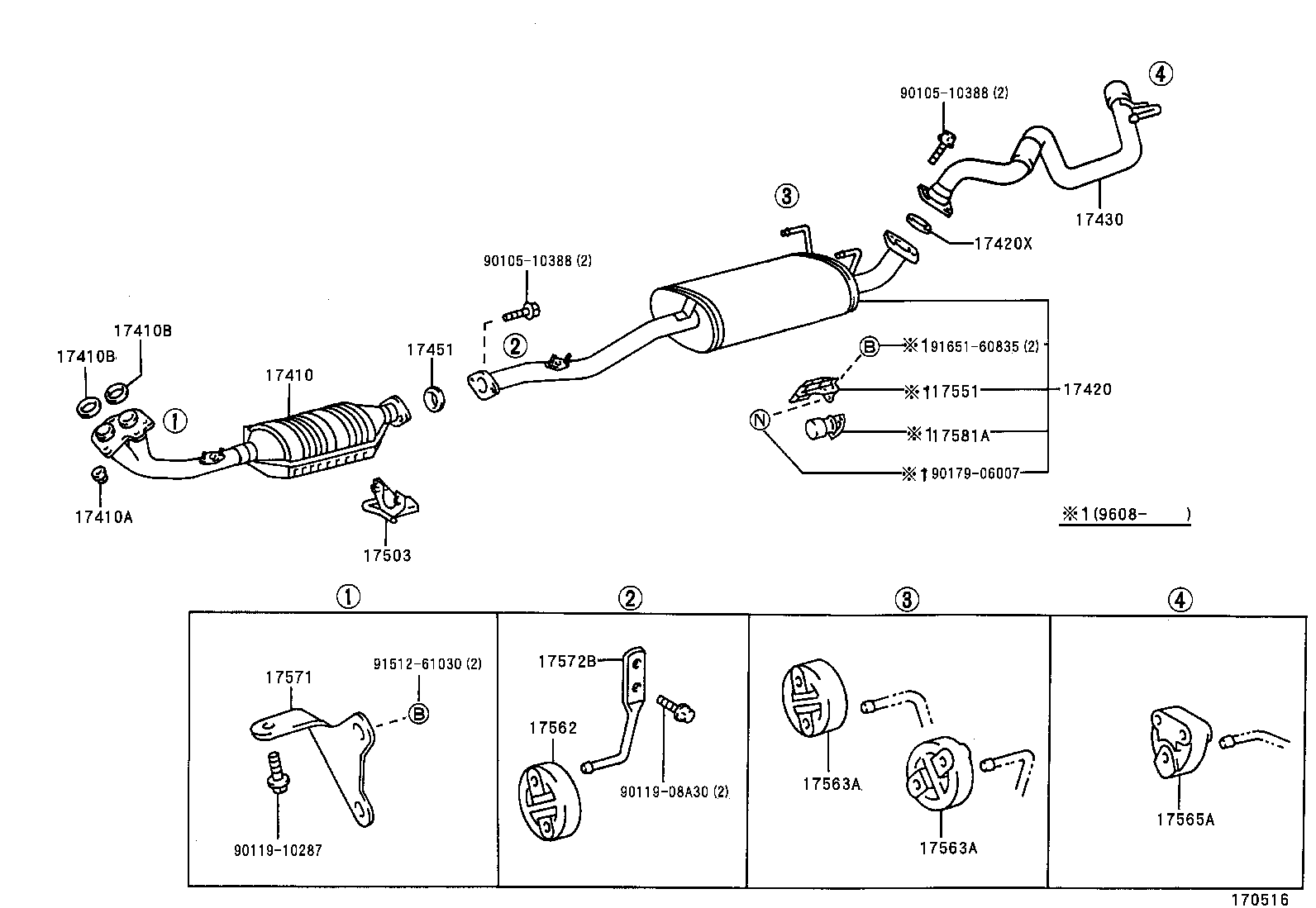

Figure MAJ674 MAJ674 1995-11 → — Figure 171526 171526 1995-11 → — Figure 170516 170516 1995-11 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
17551 Insulator, Exhaust Pipe Heat, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
