Toyota 4Runner
1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General
Discontinued model
Data version 2003-04
Fuel Tank & Tube

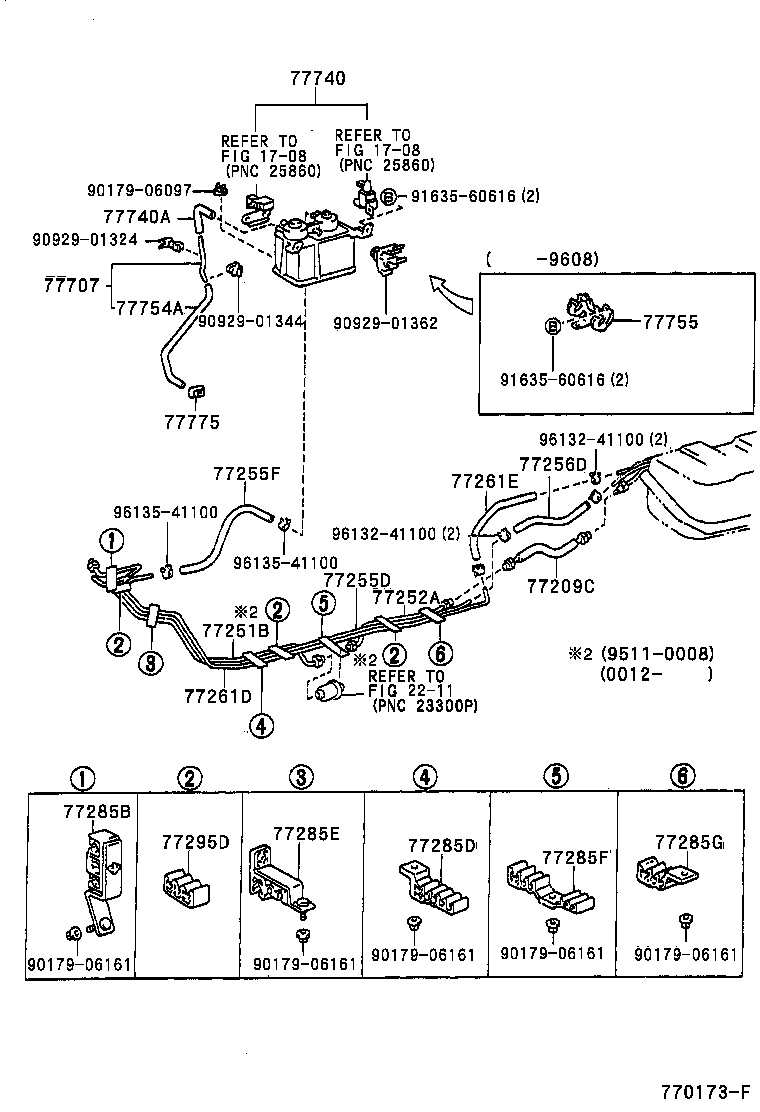

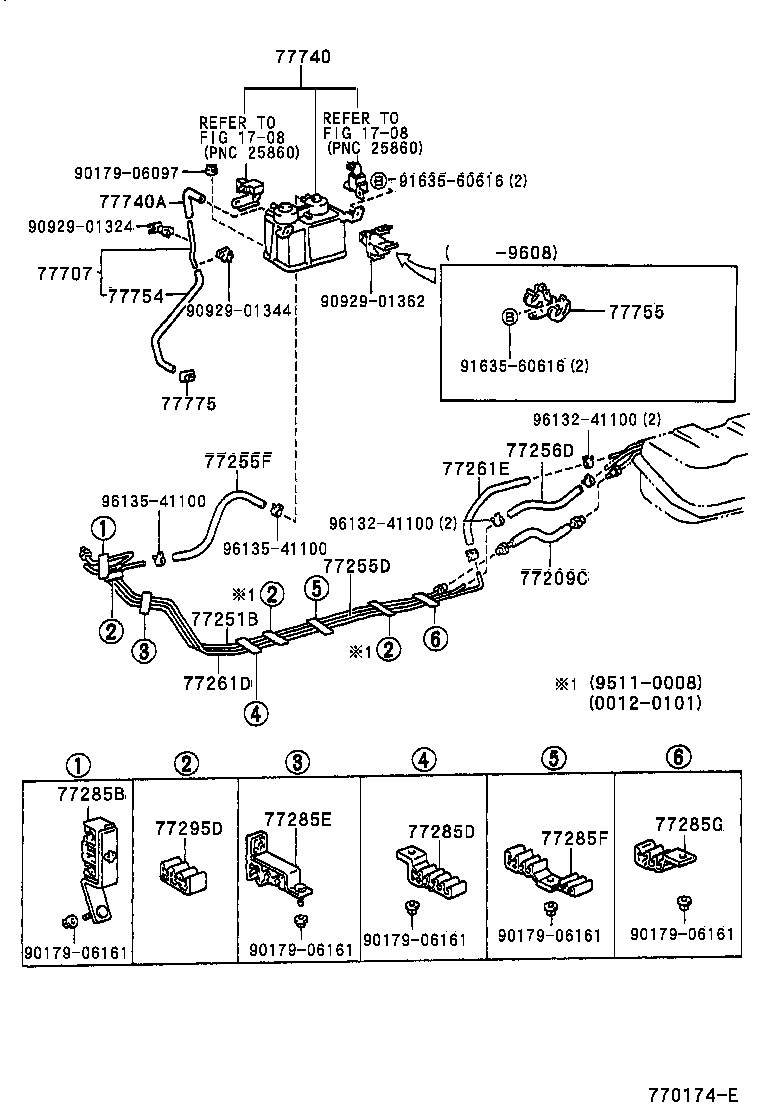

56 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012 | Tube Sub-assy, Fuel Tank Breather |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77026A | Tube Sub-assy, Fuel Evaporation, NO.1 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77051 | Lever Sub-assy, Fuel Lid Open |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77256D | Hose, Fuel, NO.1 (FOR FUEL RETURN NO.2 TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285E | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77285G | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77295D | Grommet, Fuel Tube |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77707 | Tube Sub-assy, Charcoal Canister Outlet |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77754A | Hose, Charcoal Canister Outlet, NO.2 |
| 77755 | Bracket, Charcoal Canister Outlet Hose |
| 77775 | Guide, Charcoal Canister Outlet |
