Toyota 4Runner
1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General
Discontinued model
Data version 2003-04

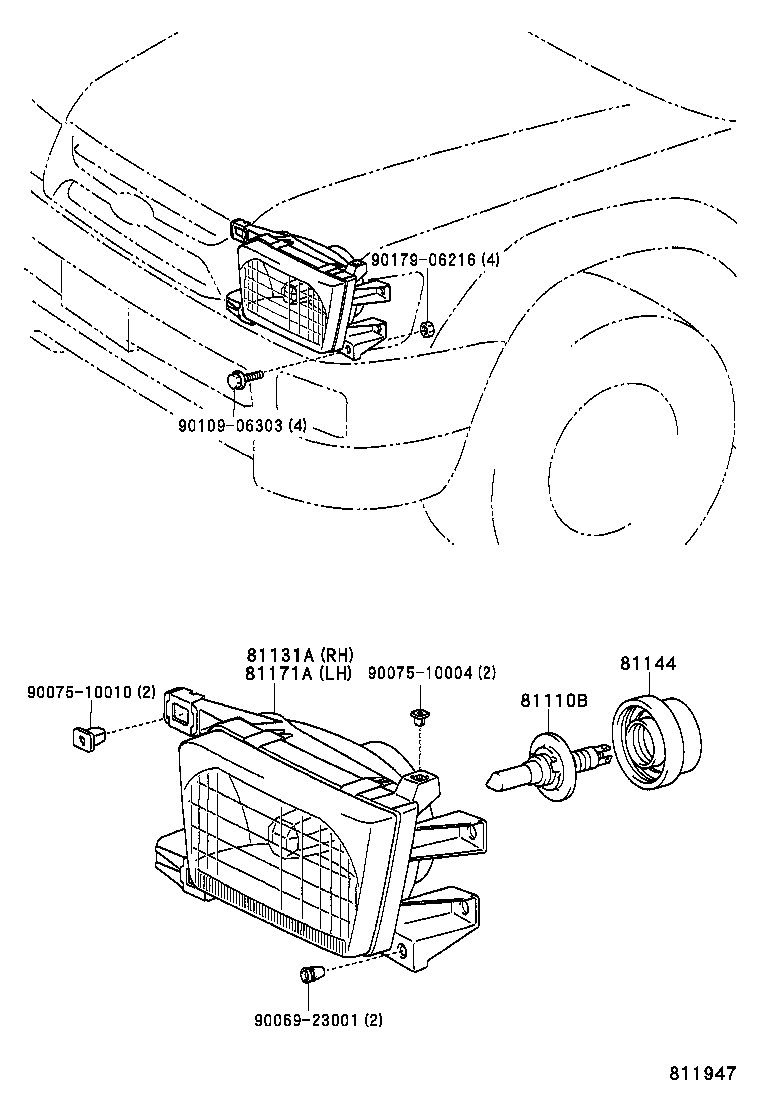

Headlamp
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81121 | Spring, Headlamp Tension |
| 81122 | Holder, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81153B | Bearing, Headlamp |
| 81171A | Unit, Headlamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
