Toyota 4Runner

1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 14 illustrations

Illustrations

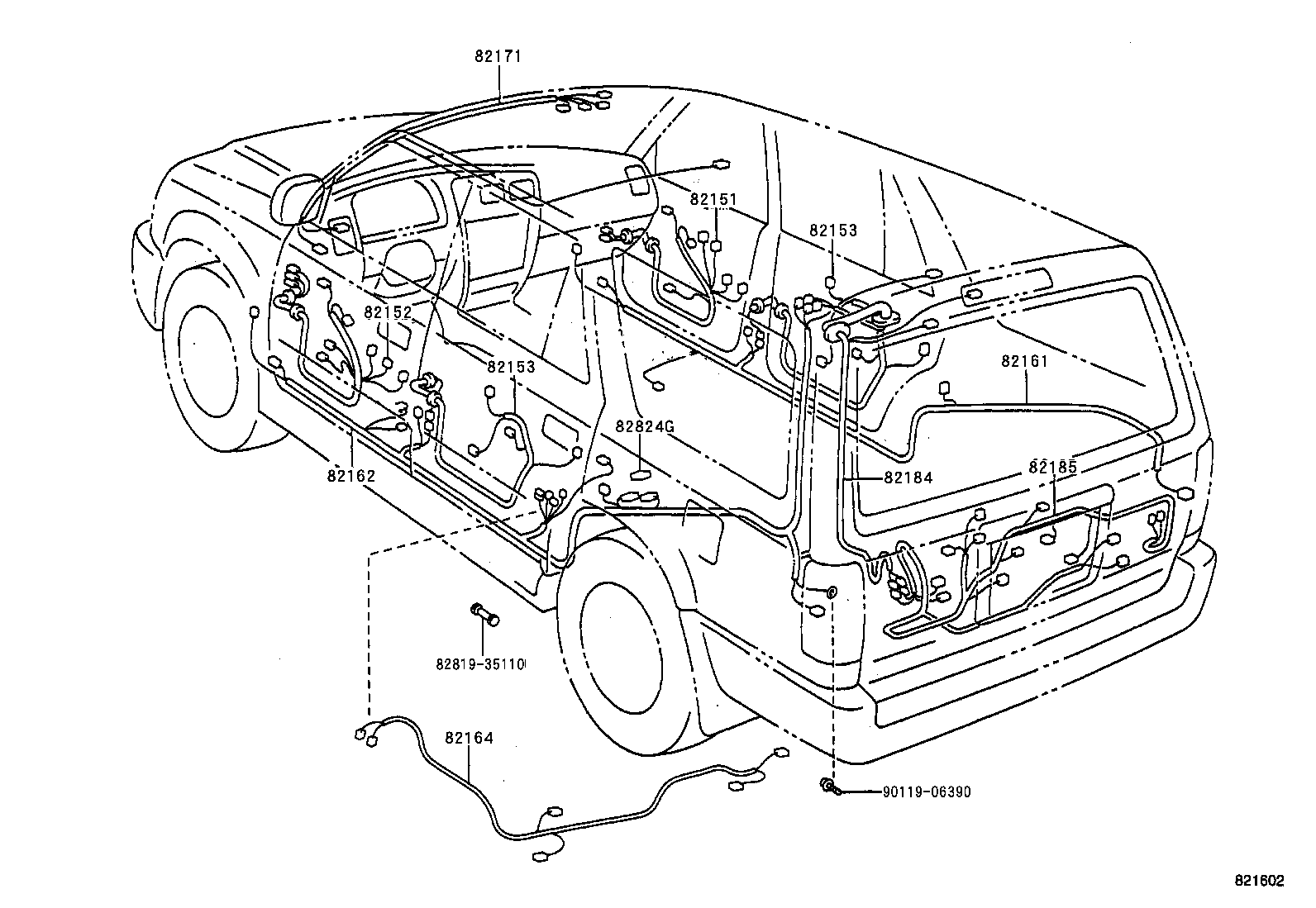

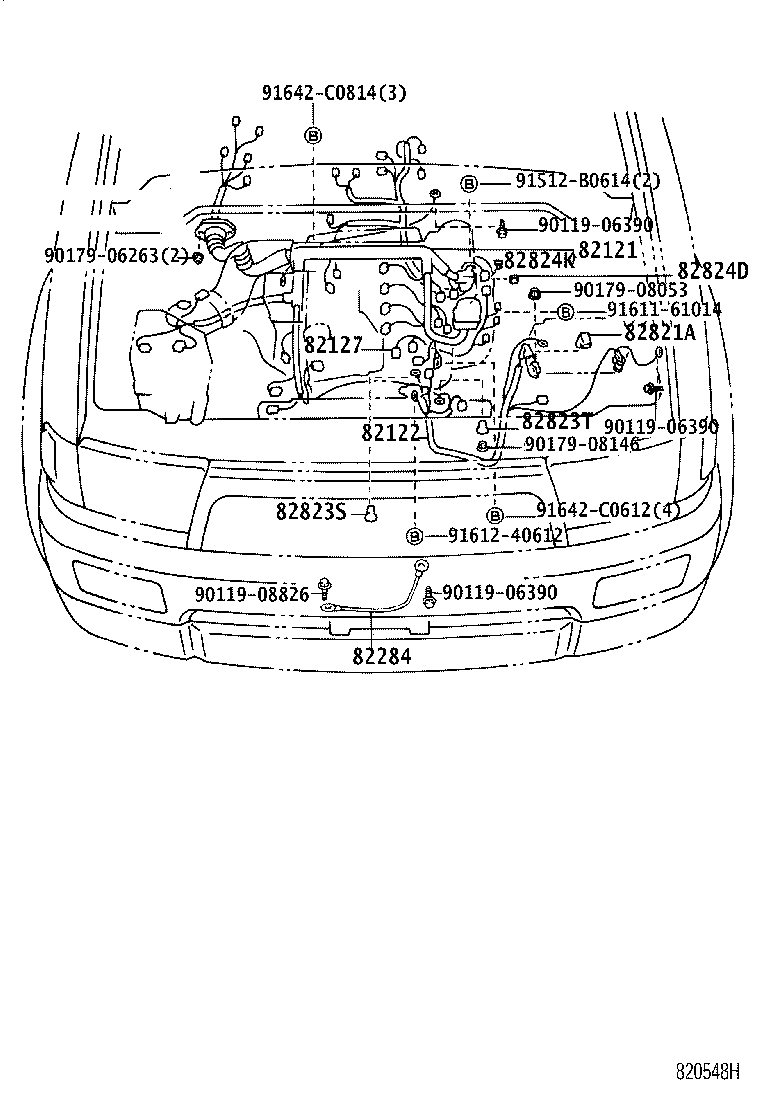

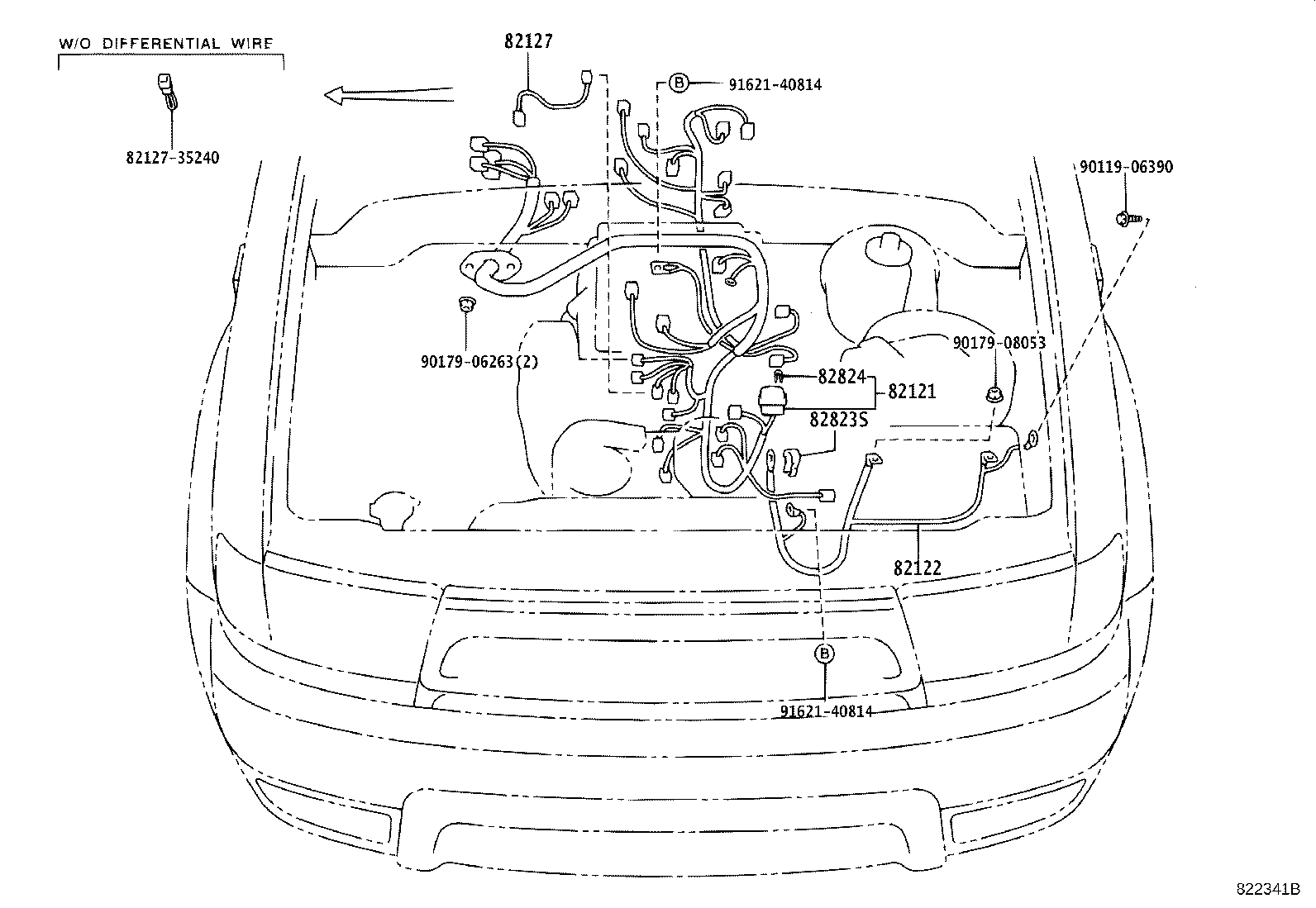

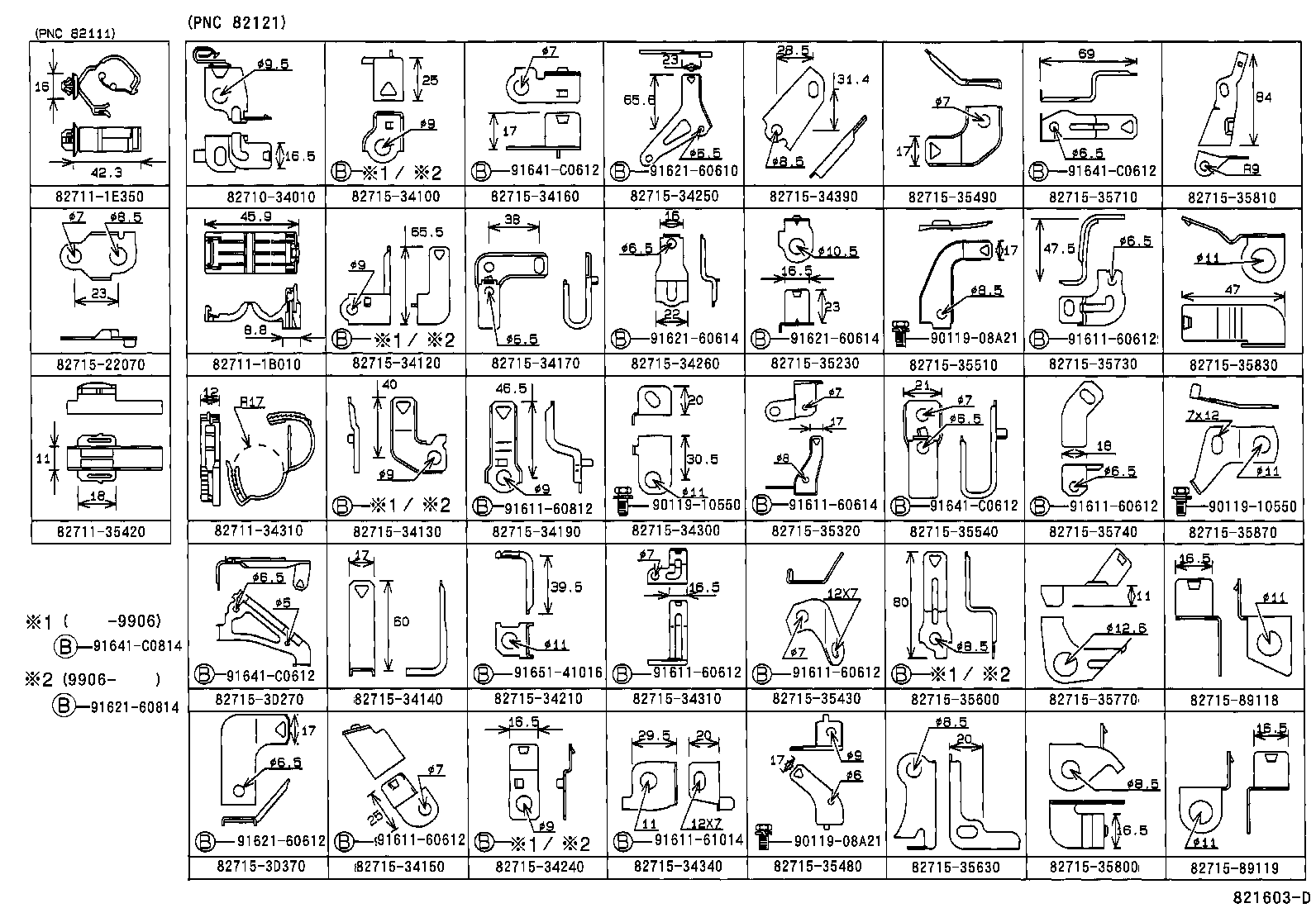

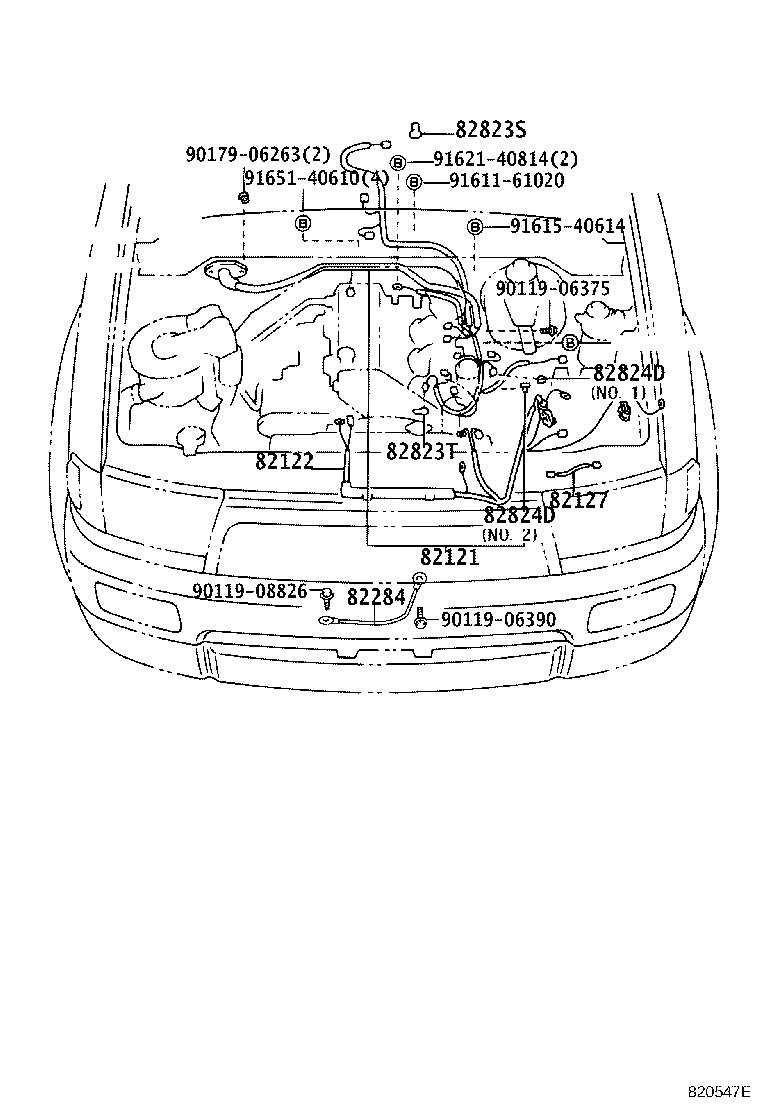

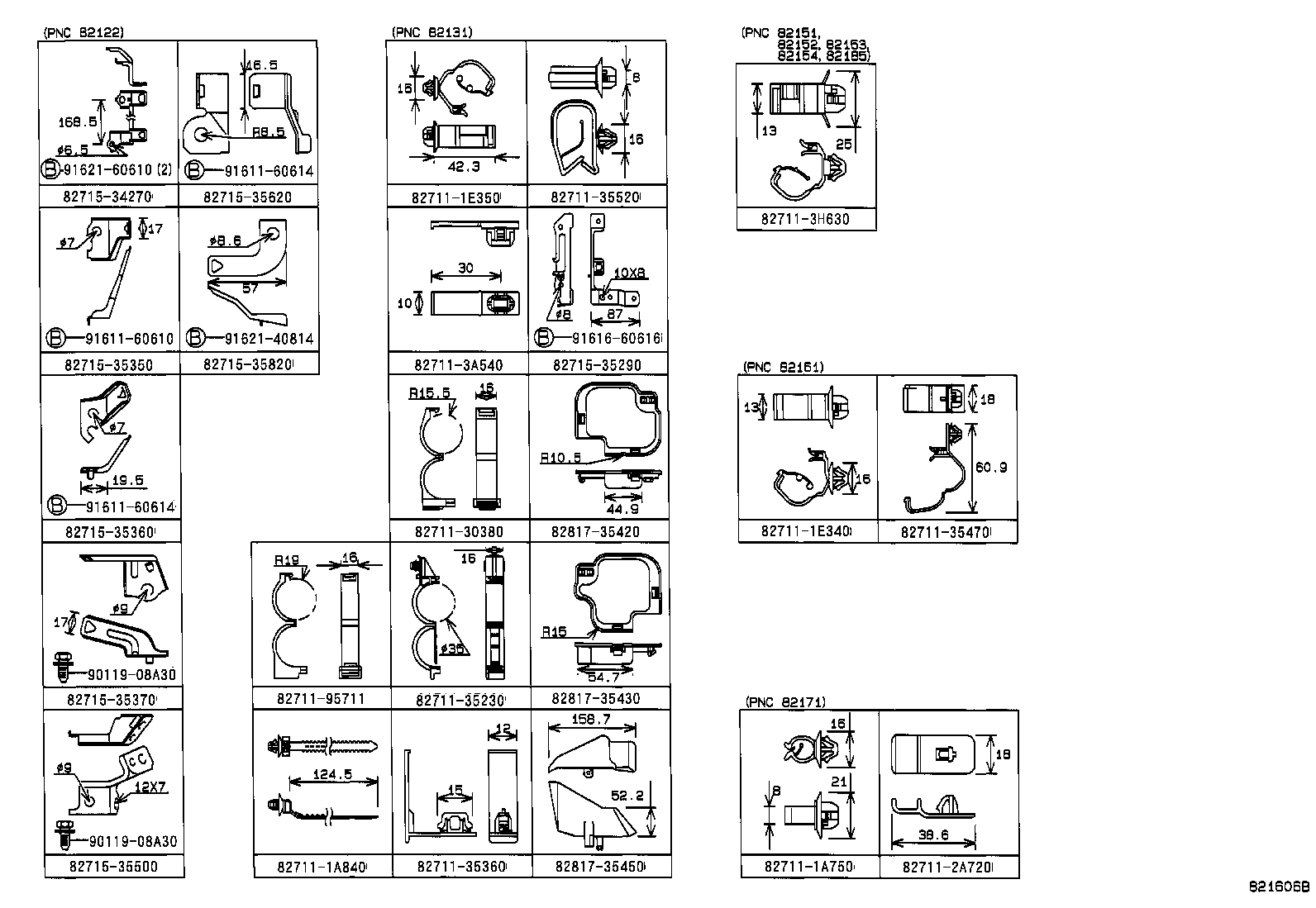

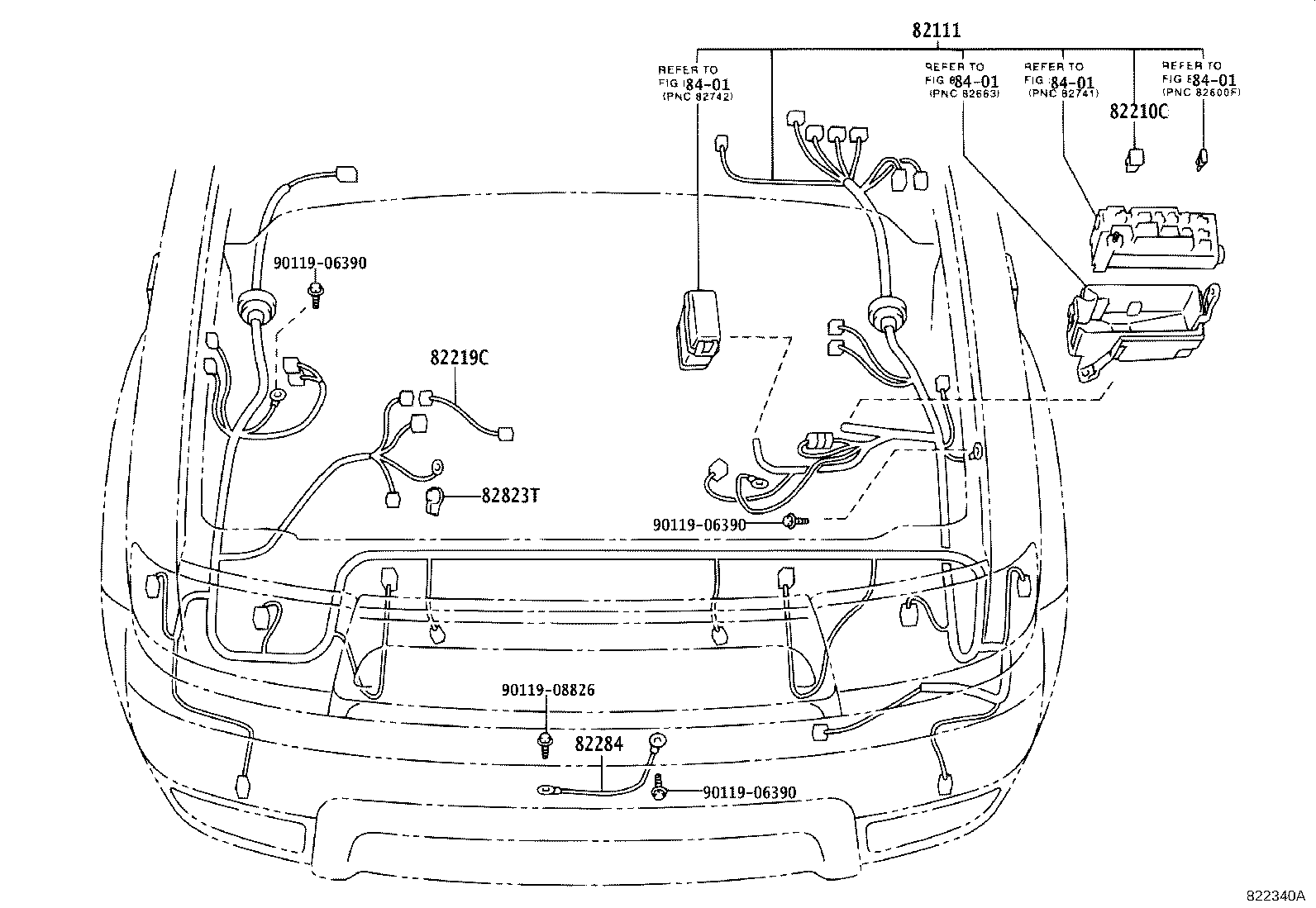

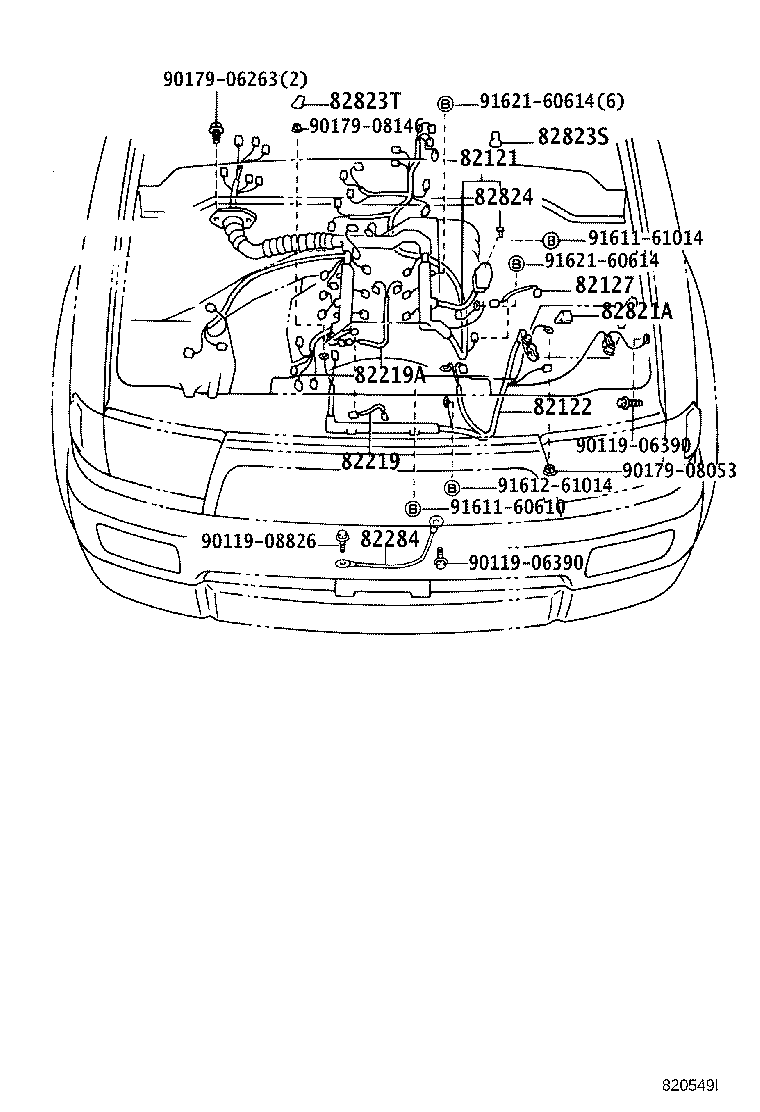

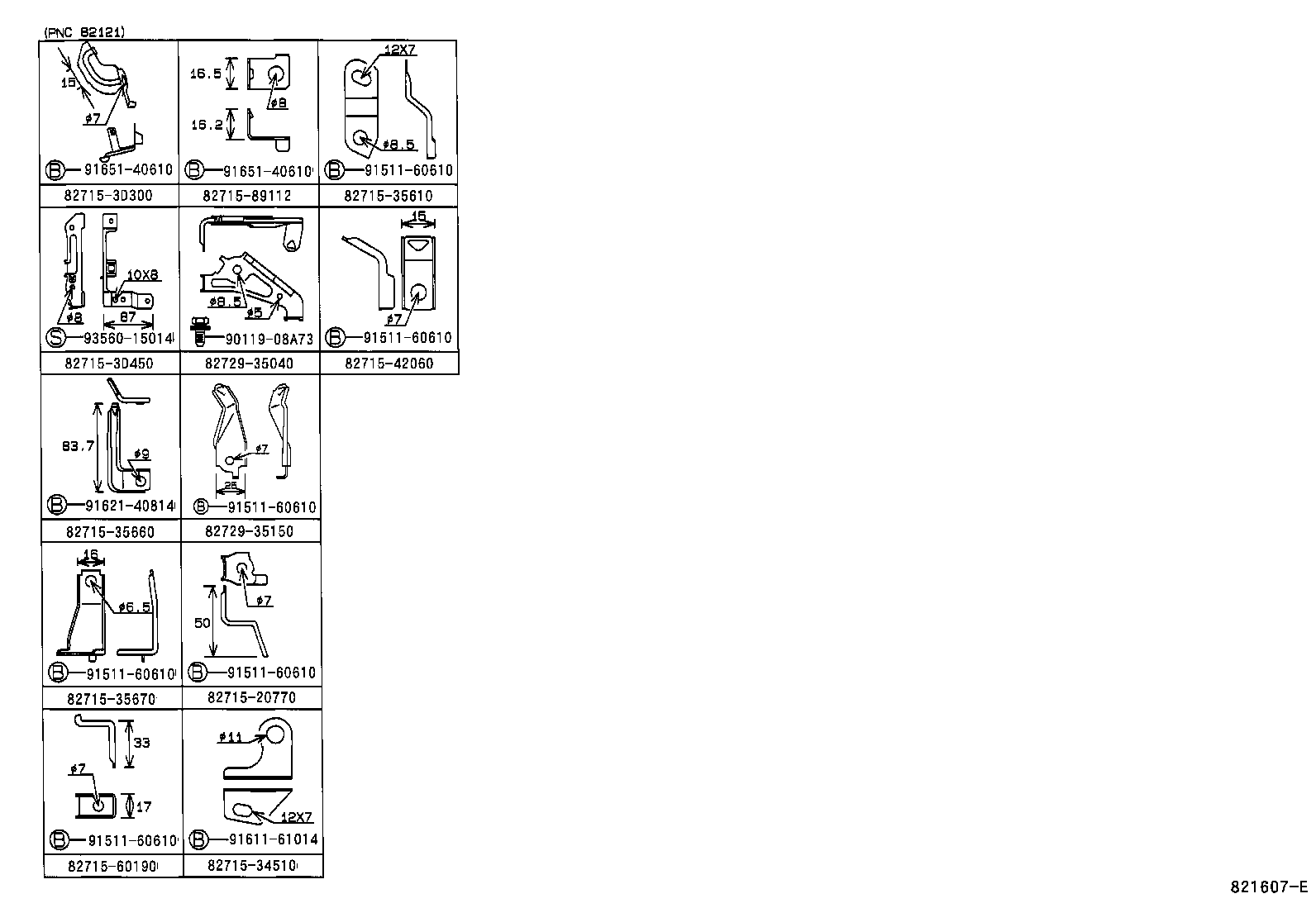

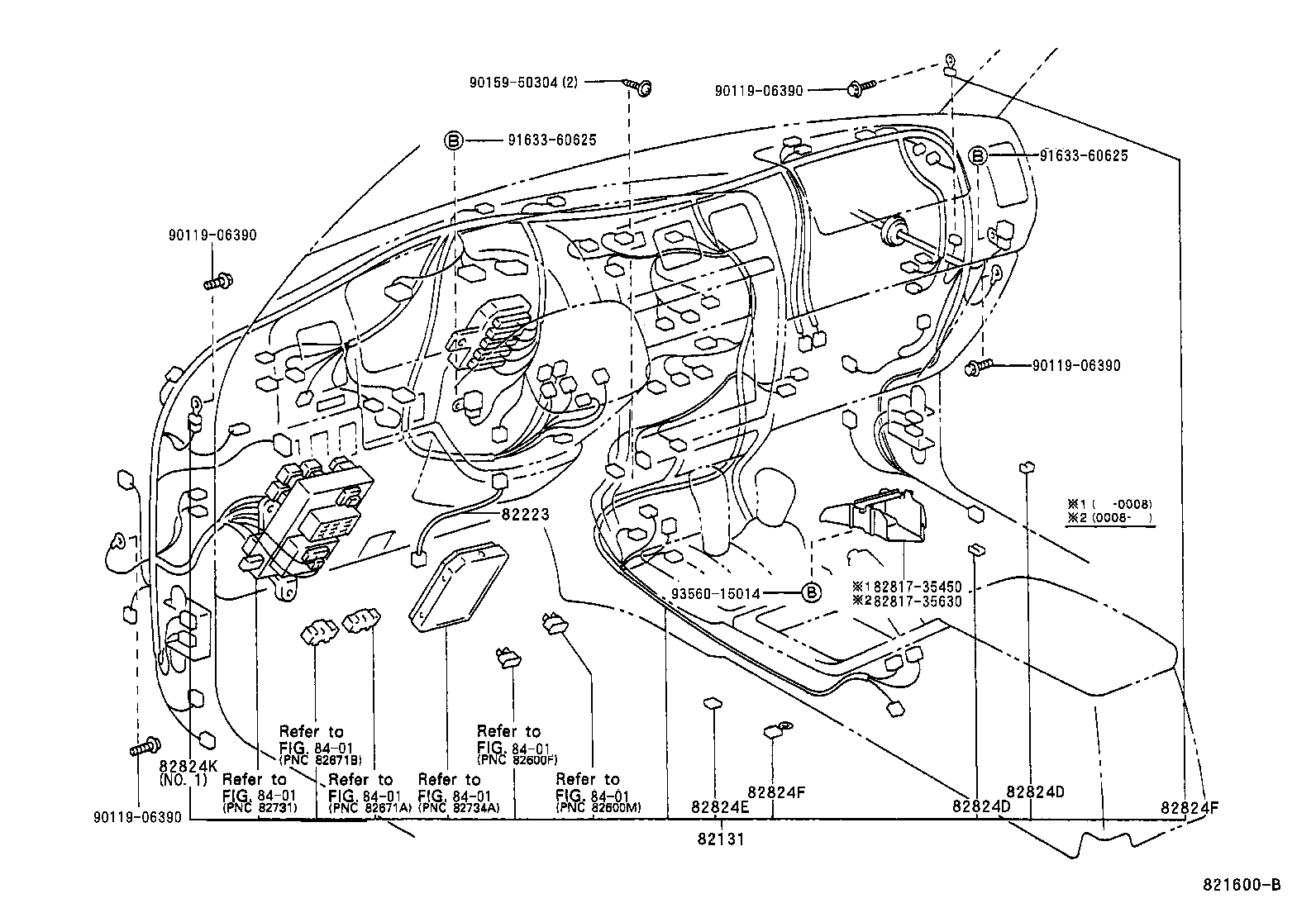

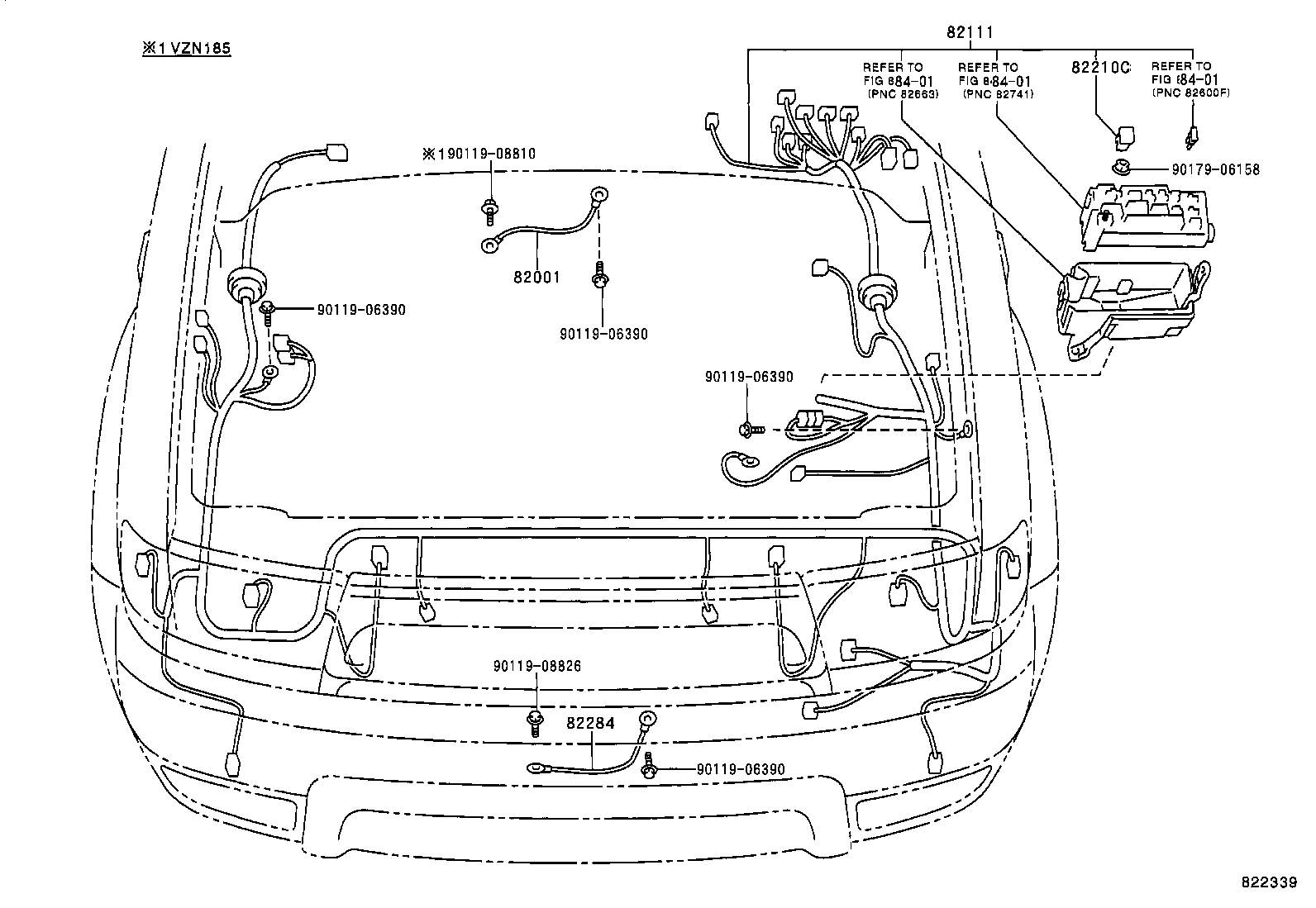

Figure 821612A 821612A 1995-11 → 2000-08 Figure 822339 822339 2000-08 → — Figure 822340A 822340A 2000-08 → — Figure 820547E 820547E 1995-11 → 2000-08 Figure 820548H 820548H 1995-11 → — Figure 820549I 820549I 1995-11 → — Figure 822341B 822341B 2000-08 → — Figure 821600B 821600B 1995-11 → — Figure 821602 821602 1995-11 → — Figure 821603D 821603D 1995-11 → — Figure 821607E 821607E 1995-11 → — Figure 821606B 821606B 1995-11 → — Figure 821611 821611 1995-11 → — Figure 823624 823624 1995-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82127 Wire, Differential
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82219C Wire, Sensor
82223 Wire, Switch
82284 Wire, Earth
82345 Diode
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
