Toyota 4Runner
1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General
Discontinued model
Data version 2003-04

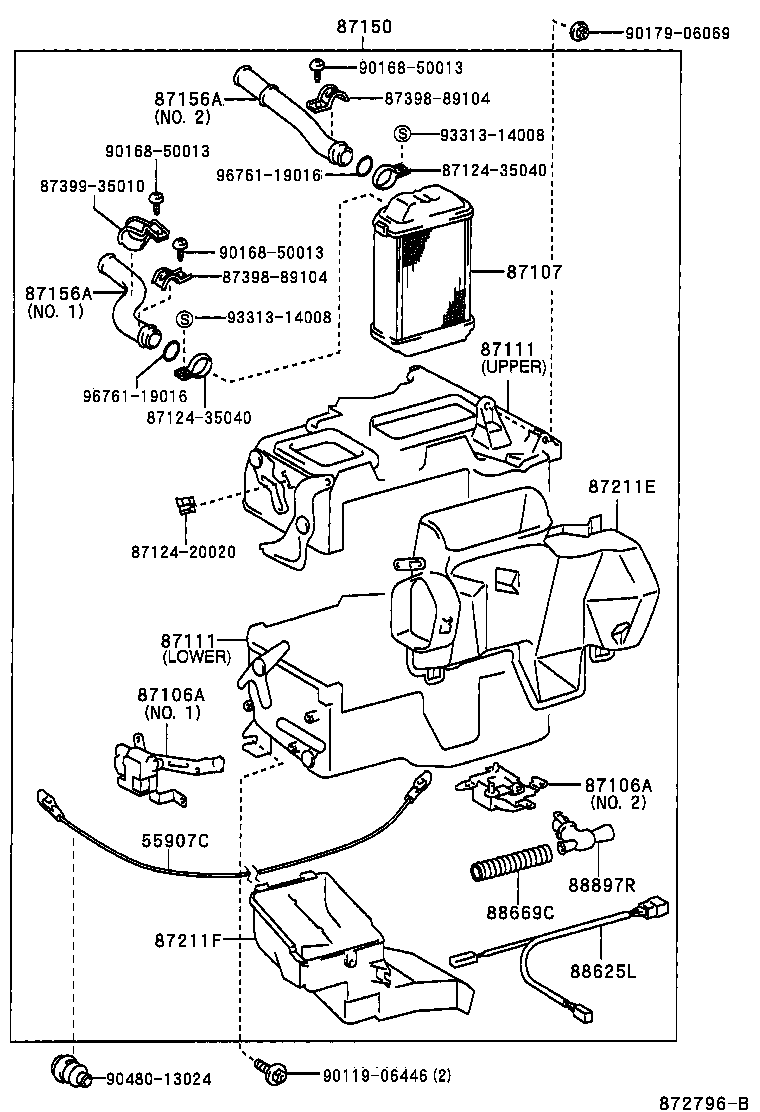

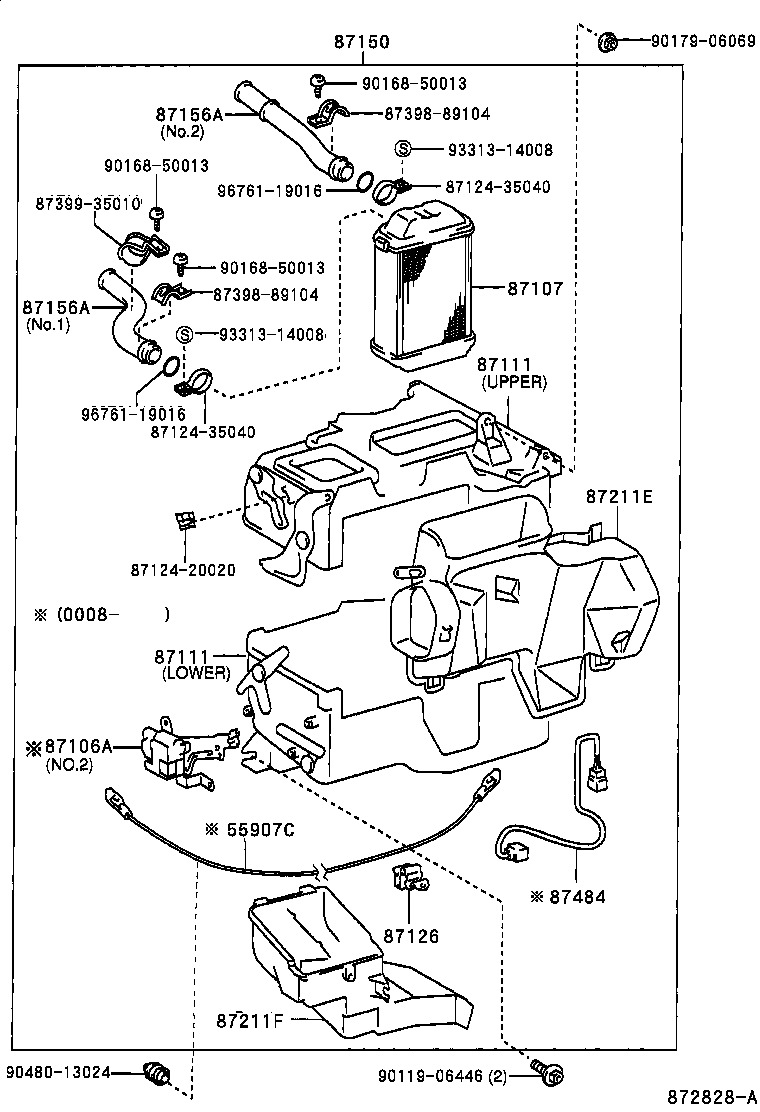

Heating & Air Conditioning - Heater Unit & Blower
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87111 | Case, Heater |
| 87126 | Clamp, Heater Control |
| 87130 | Blower Assy, Heater, Front |
| 87130C | Relay, Heater Blower Motor |
| 87150 | Radiator Assy, Heater |
| 87156A | Connector, Heater Water Hose |
| 87187A | Wire, Blower Motor Lead |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87484 | Wire, Heater |
| 88625L | Thermistor, Cooler |
| 88669C | Hose, Air |
| 88897R | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
