Toyota 4Runner
1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General
Discontinued model
Data version 2003-04
Heating & Air Conditioning - Control & Air Duct
28 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

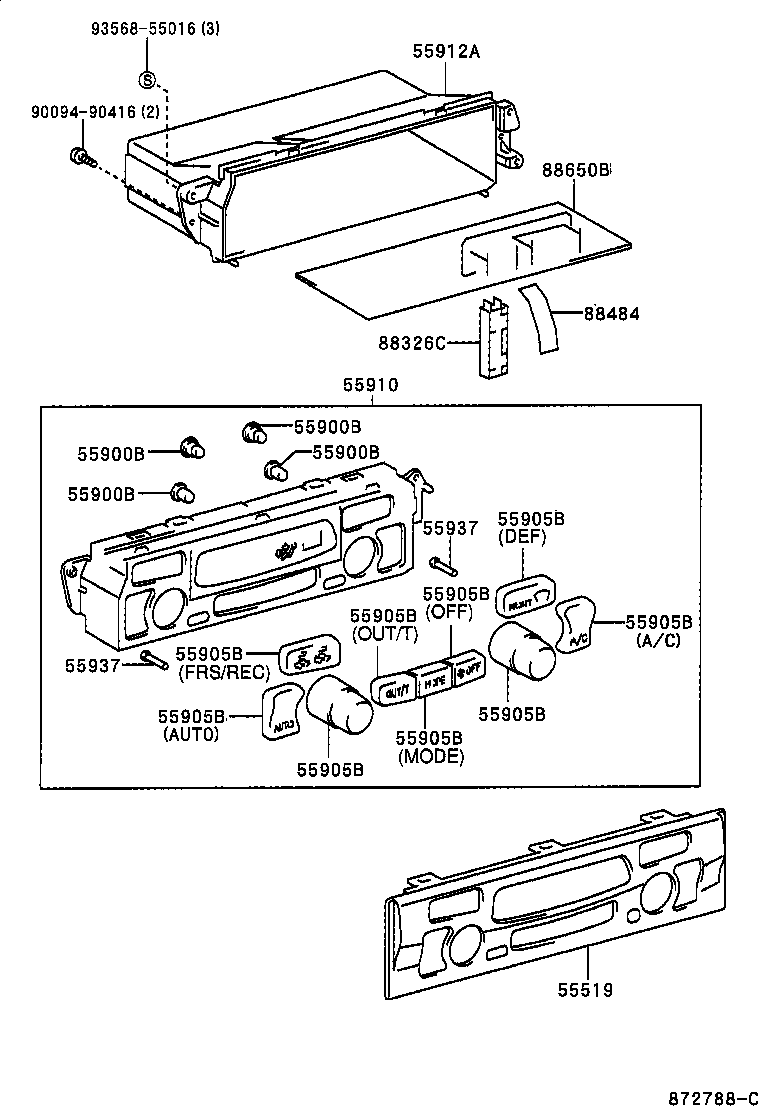

| 55519 | Plate, Heater Control Name |

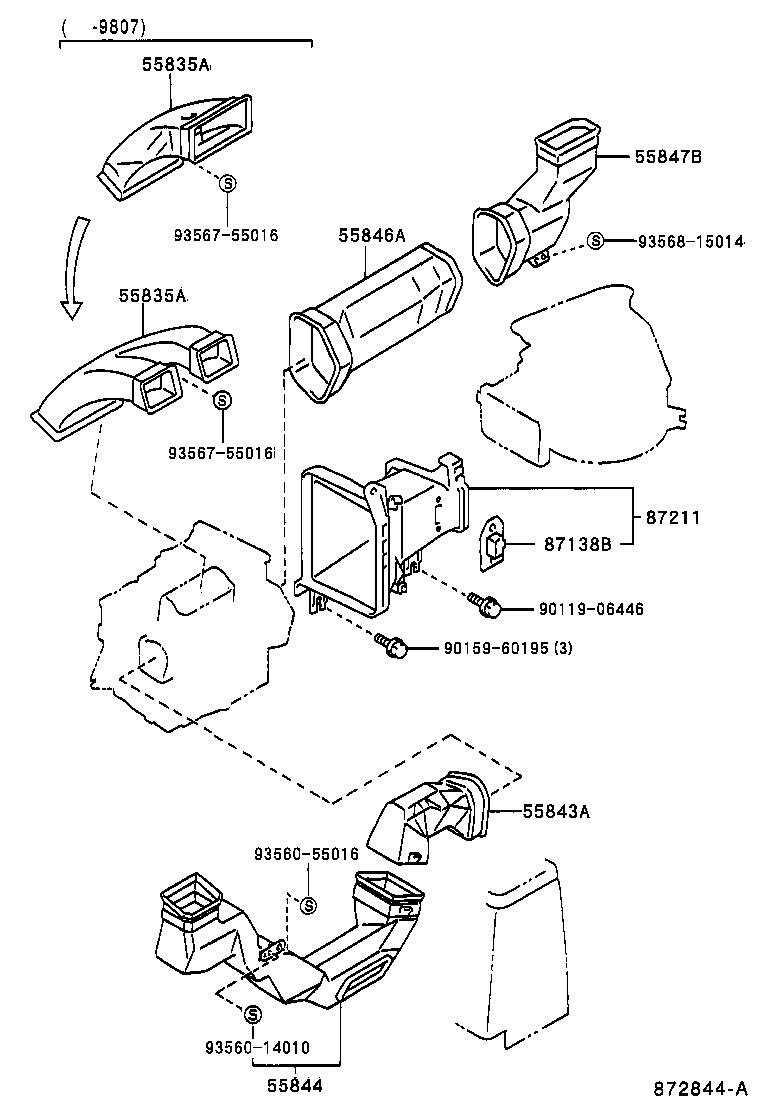

| 55835A | Duct, Heater TO Register, Center |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55847B | Duct, Heater TO Register, NO.5 |
| 55900B | Bulb, Air Conditioner Control |
| 55905A | Knob, Heater Control |
| 55905B | Knob, Heater Control, NO.2 |

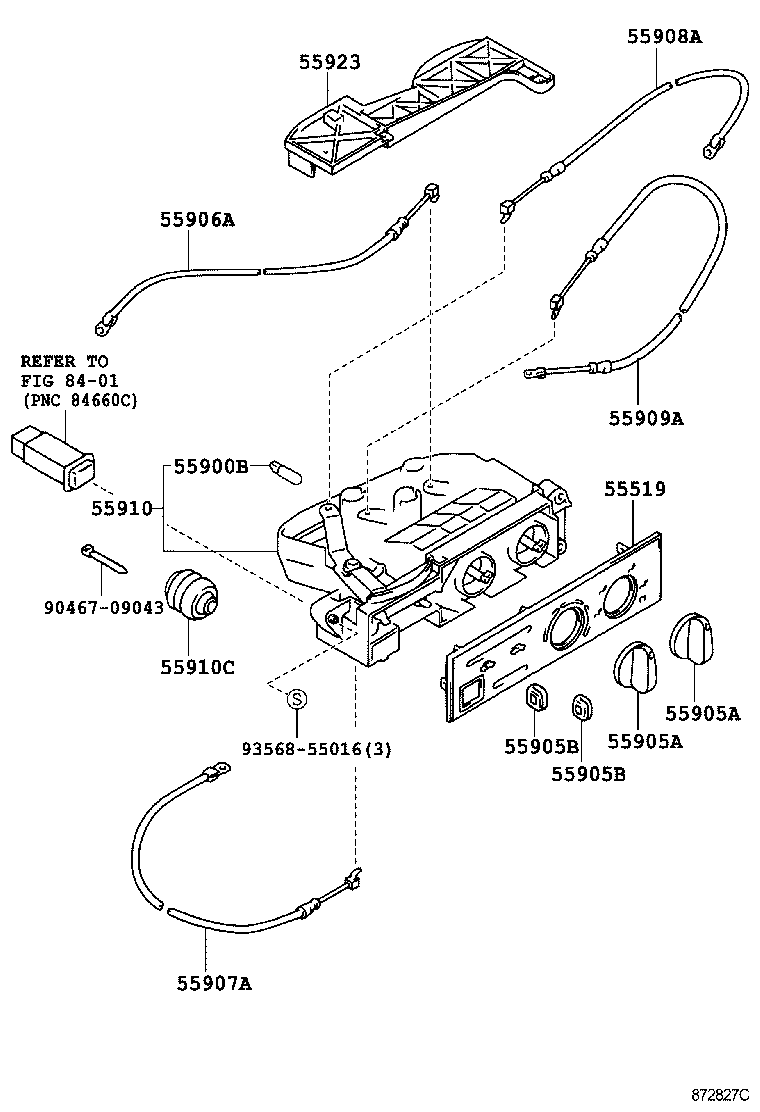

| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55910C | Grommet(FOR HEATER CONTROL CABLE) |
| 55912A | Housing, Heater Control |
| 55923 | Retainer, Heater Control, Upper |
| 55937 | Knob, Heater Control Lever |
| 84661A | Knob, Cooler Control Switch |
| 87138B | Resistor, Heater Blower |
| 87211 | Duct, Air, NO.1 |
| 88326C | Plate, Cover |
| 88484 | Wire, Cooler, NO.1 |

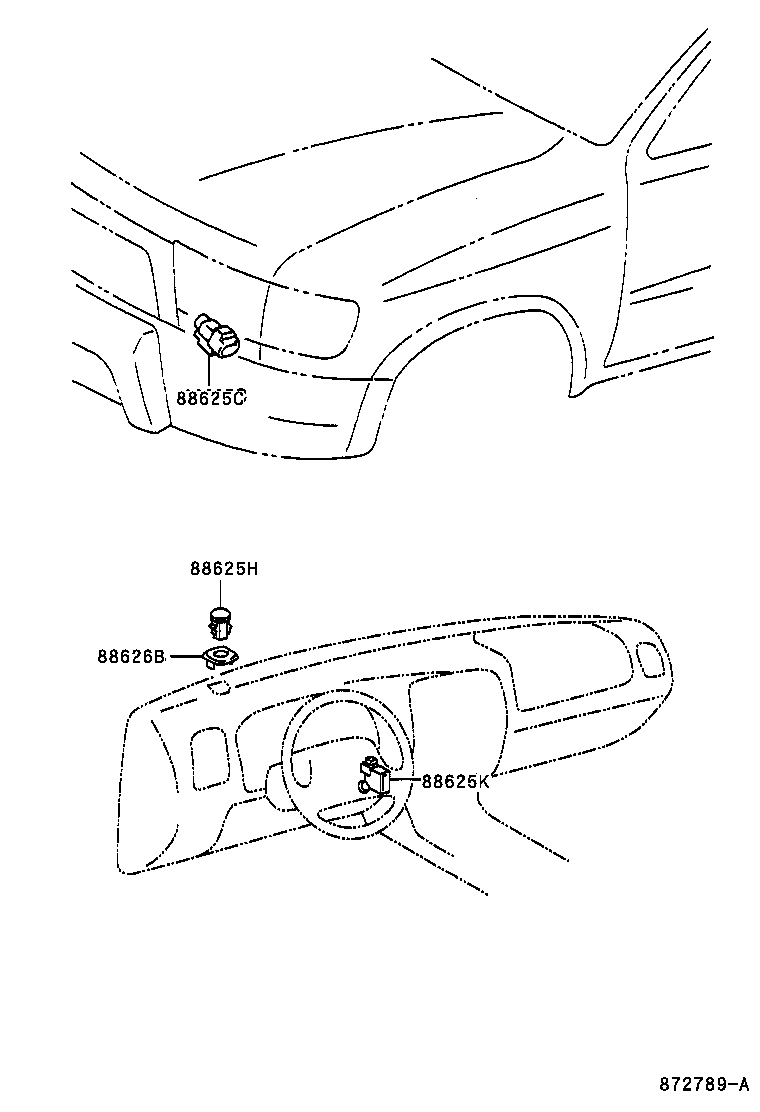

| 88625C | Thermistor, Cooler |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625K | Thermistor, Cooler |
| 88626B | Holder, Thermistor |
| 88650B | Amplifier Assy, Airconditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
