Toyota 4Runner

1995-11 → 2002-11 · chassis KZN185,RZN18#,VZN18# · catalogue 671360 · General

Discontinued model Data version 2003-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 2 illustrations

Illustrations

Figure 872808B

872808B 1995-11 → —

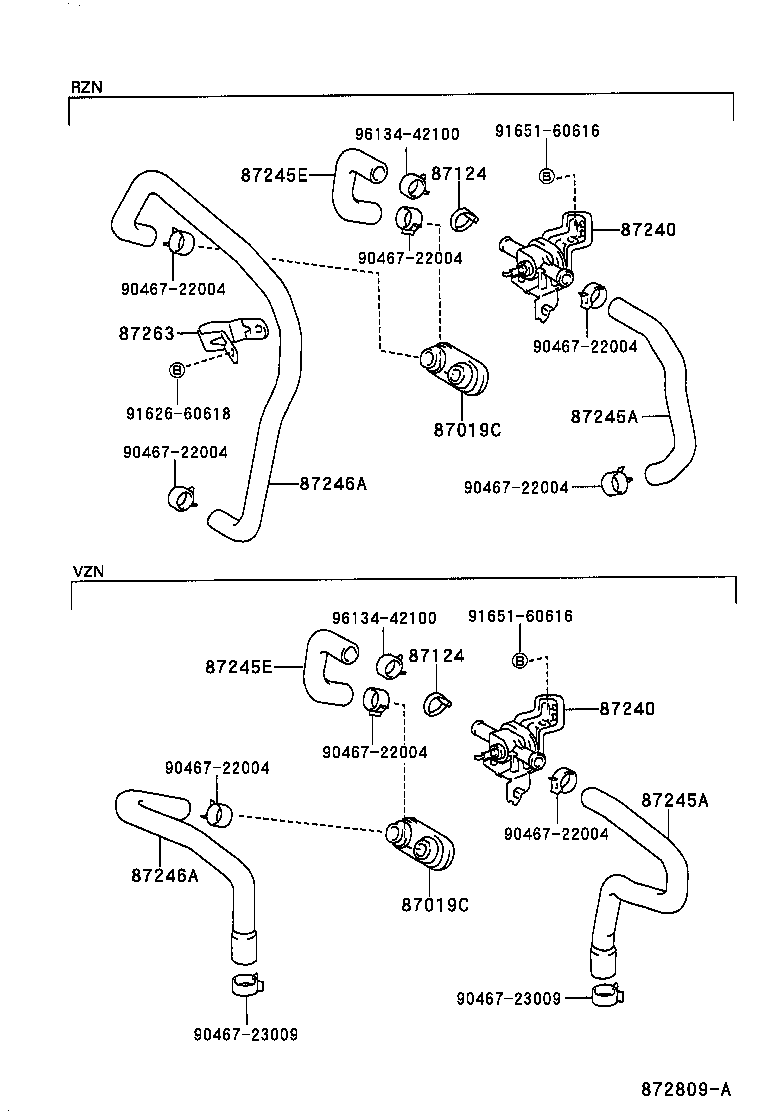

Figure 872809A

872809A 1995-11 → —

Part groups

PNC	Description
87019C	Grommet, Heater Hose
87124	Clamp, Heater
87208	Pipe Sub-assy, Heater Water
87208A	Pipe Sub-assy, Heater Water, A
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87263	Bracket, Heater Water Pipe, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
