Toyota 4Runner

2002-11 → 2009-08 · chassis GRN21#,KZN215 · catalogue 671370 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

21 part groups · 2 illustrations

Illustrations

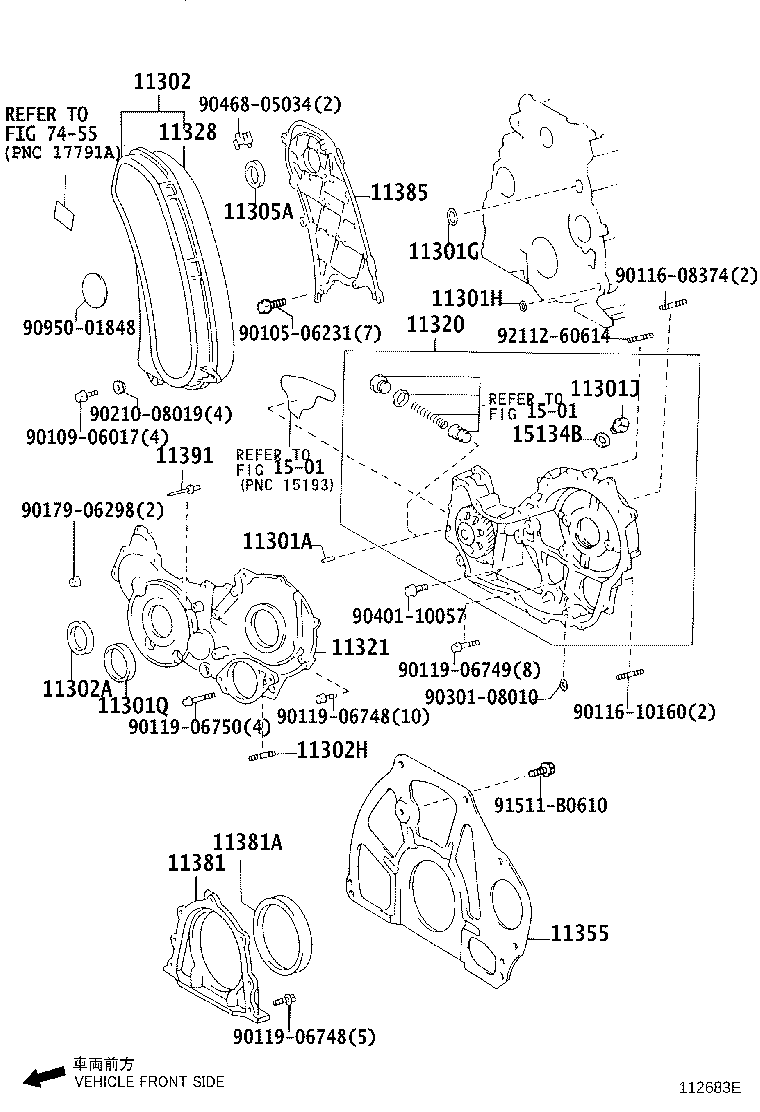

Figure 11D431 11D431 2002-11 → — Figure 112683E 112683E 2002-11 → —

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301M Sensor, Cam Position
11301Q Seal, Type T Oil(FOR INJECTION PUMP)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11305A Seal, Oil(FOR OIL SEAL RETAINER, NO.2)
11320 Case Assy, Timing Gear
11321 Case, Timing Gear
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
15134B Gasket, Oil Pump Relief Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
