Toyota 4Runner

2002-11 → 2009-08 · chassis GRN21#,KZN215 · catalogue 671370 · General

Supported model Data version 2010-01

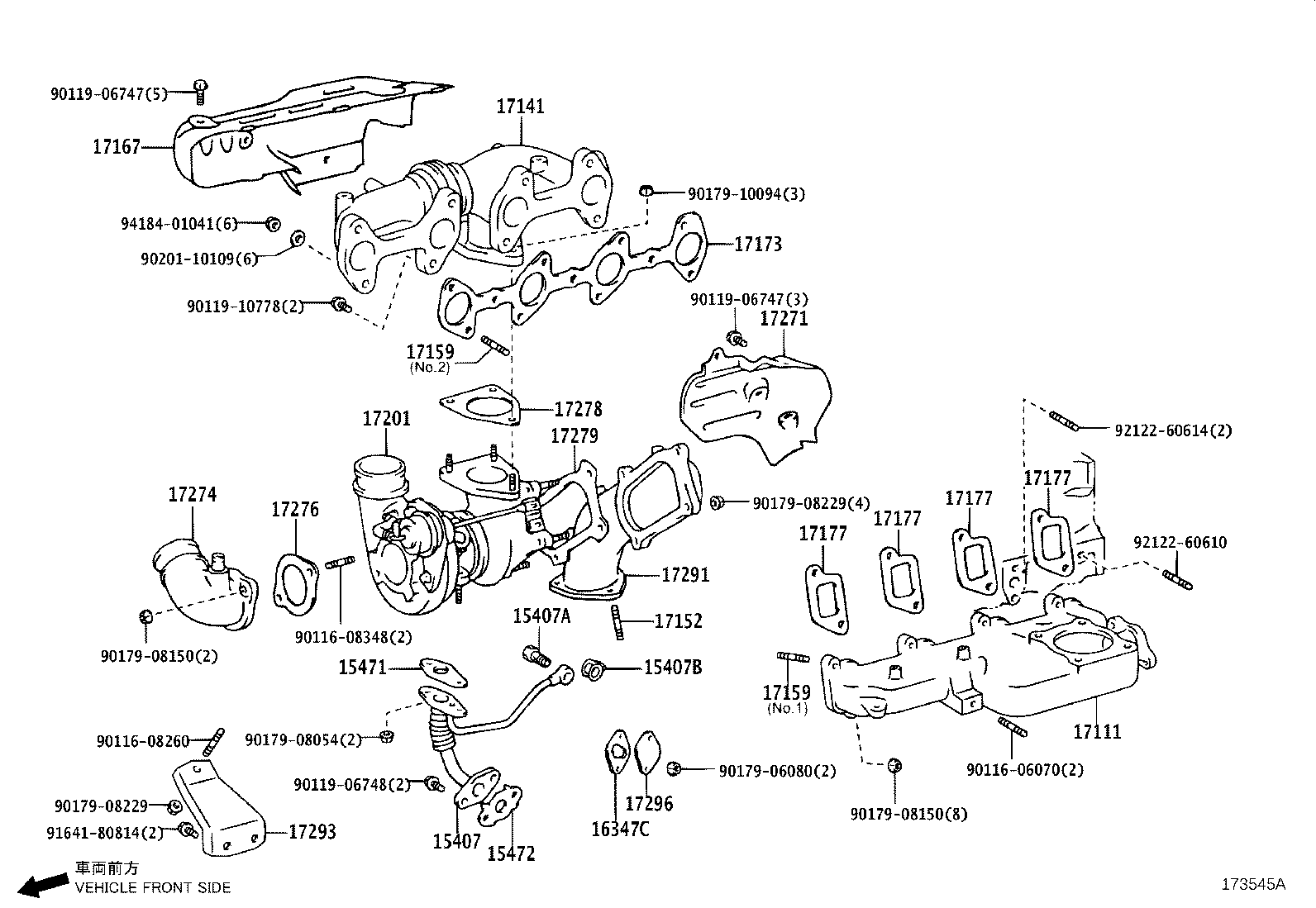

Manifold

44 part groups · 3 illustrations

PNC	Description
04175	Gasket Kit, Turbocharger
12216C	Plate, Oil Baffle
15407	Pipe Sub-assy, Turbo Oil Inlet
15407A	Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B	Gasket(FOR TURBO OIL INLET PIPE)
15471	Gasket, Turbo Oil Inlet
15472	Gasket, Turbo Oil Outlet, NO.1
16347C	Gasket(FOR TURBO WATER PIPE)
17021A	Bolt, Stud(FOR BEARING HOUSING)
17021B	Bolt, Stud
17025A	Bolt, Stud(FOR TURBINE HOUSING)
17104	Manifold Sub-assy, Exhaust, RH
17105	Manifold Sub-assy, Exhaust, LH
17111	Manifold, Intake
17118	Stay, Manifold
17119	Stay, Manifold, NO.2
17125	Stay, Surge Tank, NO.1
17126	Stay, Surge Tank, NO.2
17129	Tank, Intake Air Surge
17141	Manifold, Exhaust
17141J	Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17152	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167	Insulator, Exhaust Manifold Heat, NO.1
17173	Gasket, Exhaust Manifold TO Head
17173A	Gasket, Exhaust Manifold TO Head, LH
17176	Gasket, Air Surge Tank TO Intake Manifold
17177	Gasket, Intake Manifold TO Head, NO.1
17178	Gasket, Intake Manifold TO Head, NO.2

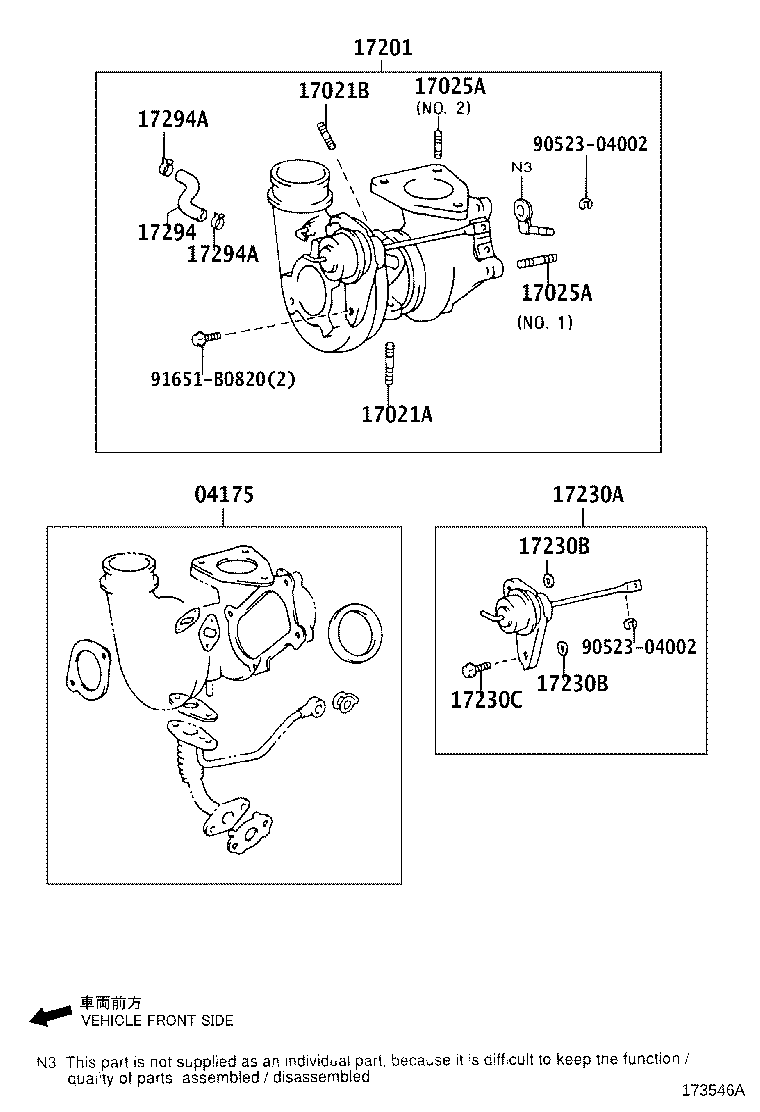

17201	Turbocharger Sub-assy
17230A	Repair Actuaor Assy, W/Bracket
17230B	Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C	Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271	Insulator, Turbo, NO.1
17274	Elbow, Compressor Inlet
17276	Gasket, Compressor Inlet
17278	Gasket, Turbo TO Exhaust Manifold
17279	Gasket, Turbine Outlet Elbow
17291	Elbow, Turbine Outlet
17293	Stay, Turbocharger
17294	Hose, Actuator
17294A	Clip(FOR ACTUATOR HOSE)
17296	Plate, Bearing Housing, Side
22267A	Bracket, Throttle Body

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
