Toyota 4Runner

2002-11 → 2009-08 · chassis GRN21#,KZN215 · catalogue 671370 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

22 part groups · 3 illustrations

Illustrations

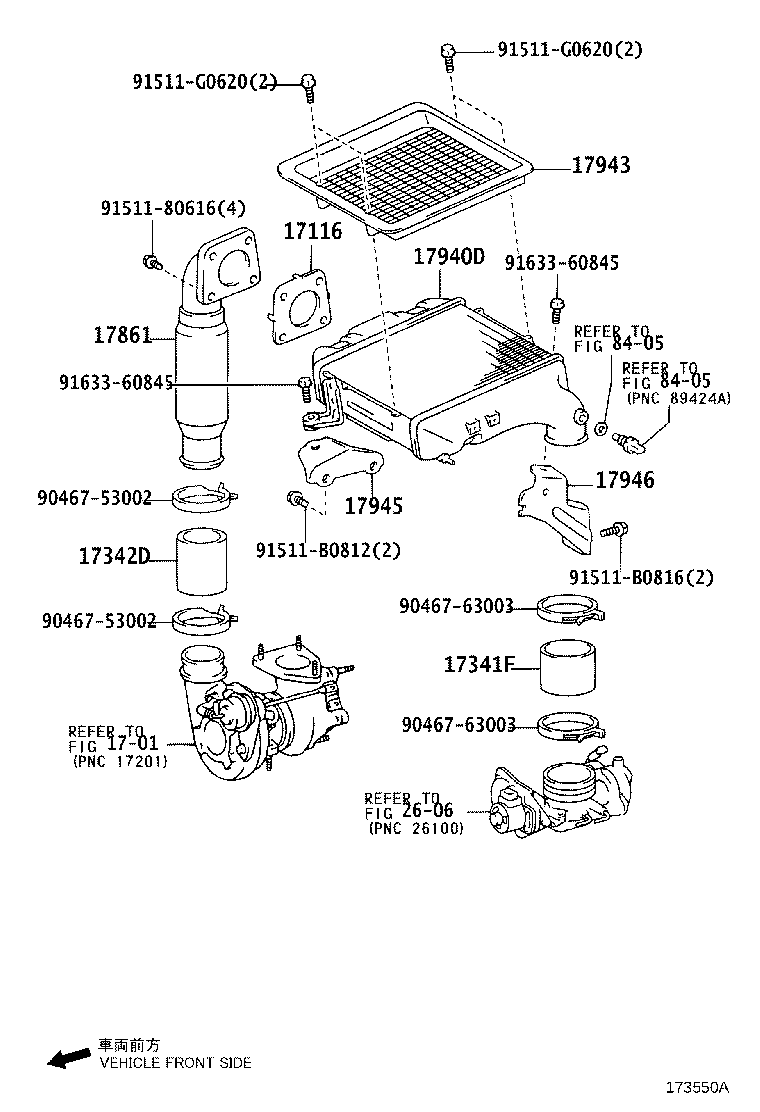

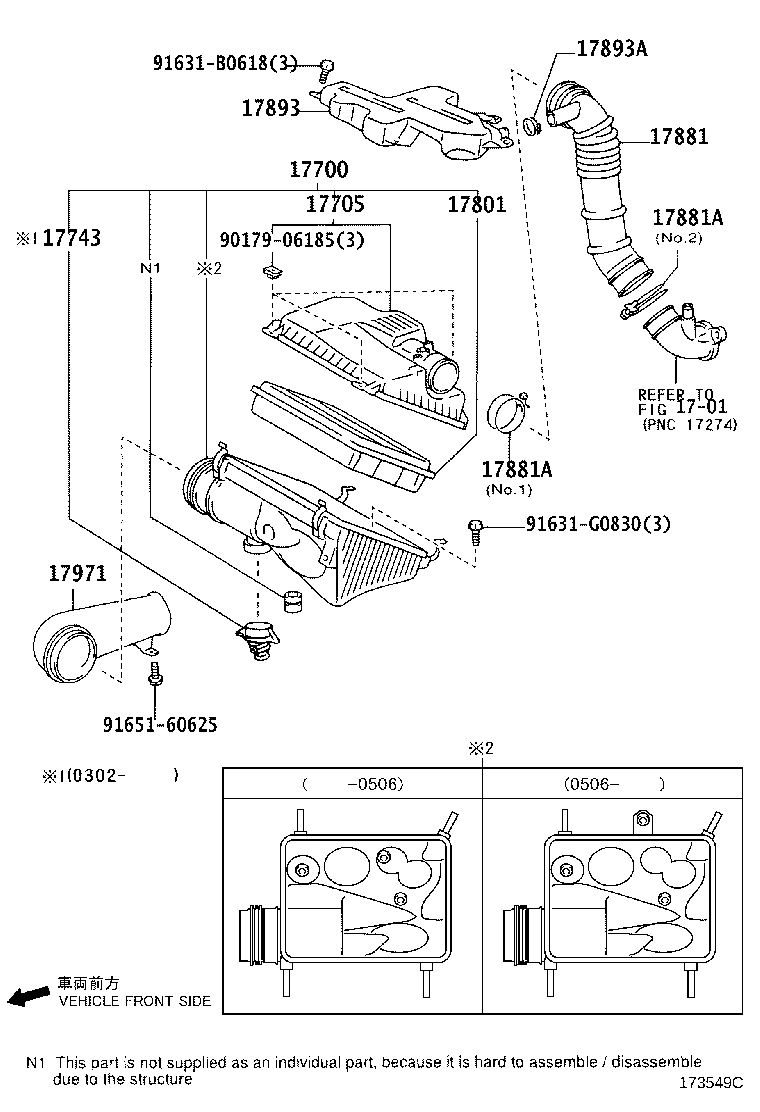

Figure 17A115 17A115 2002-11 → — Figure 173549C 173549C 2002-11 → — Figure 173550A 173550A 2002-11 → —

Part groups

PNCDescription
17116 Gasket, Intake Flange
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17743 Valve, Dust Relief
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17971 Inlet, Cool Air, NO.1
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
