Toyota 4Runner
2002-11 → 2009-08 · chassis GRN21#,KZN215 · catalogue 671370 · General
Supported model
Data version 2010-01

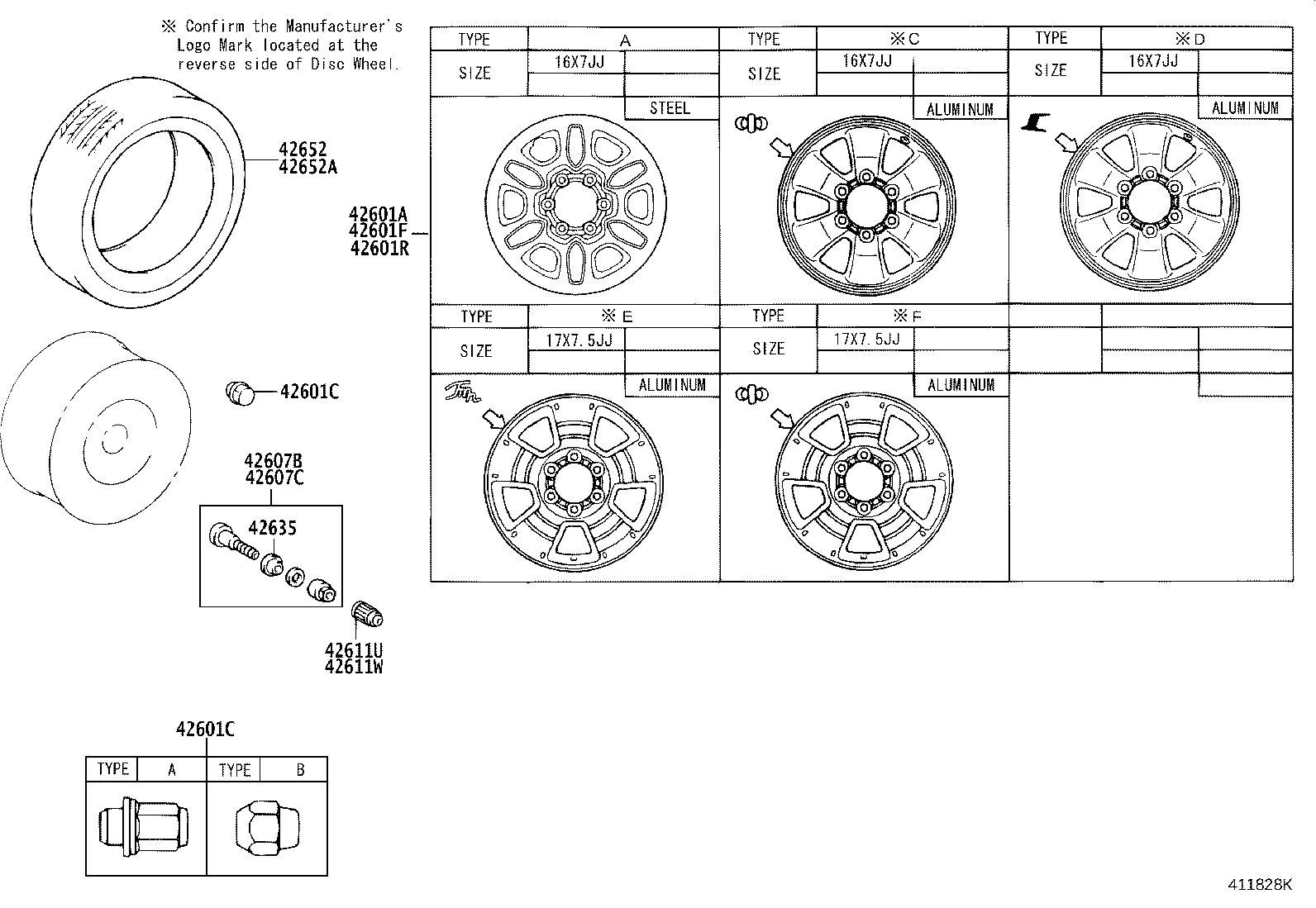

Disc Wheel & Wheel Cap
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42607B | Valve Sub-assy, Tire Pressure Balancer |
| 42607C | Valve Sub-assy, Tire Pressure Balancer (FOR SPARE) |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611U | Cap, Tire Valve |
| 42611W | Cap, Tire Valve (FOR SPARE) |
| 42635 | Grommet, Tire Valve |
| 42652 | Tire |
| 42652A | Tire (FOR SPARE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
