Toyota 4Runner

2002-11 → 2009-08 · chassis GRN21#,KZN215 · catalogue 671370 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

21 part groups · 2 illustrations

Illustrations

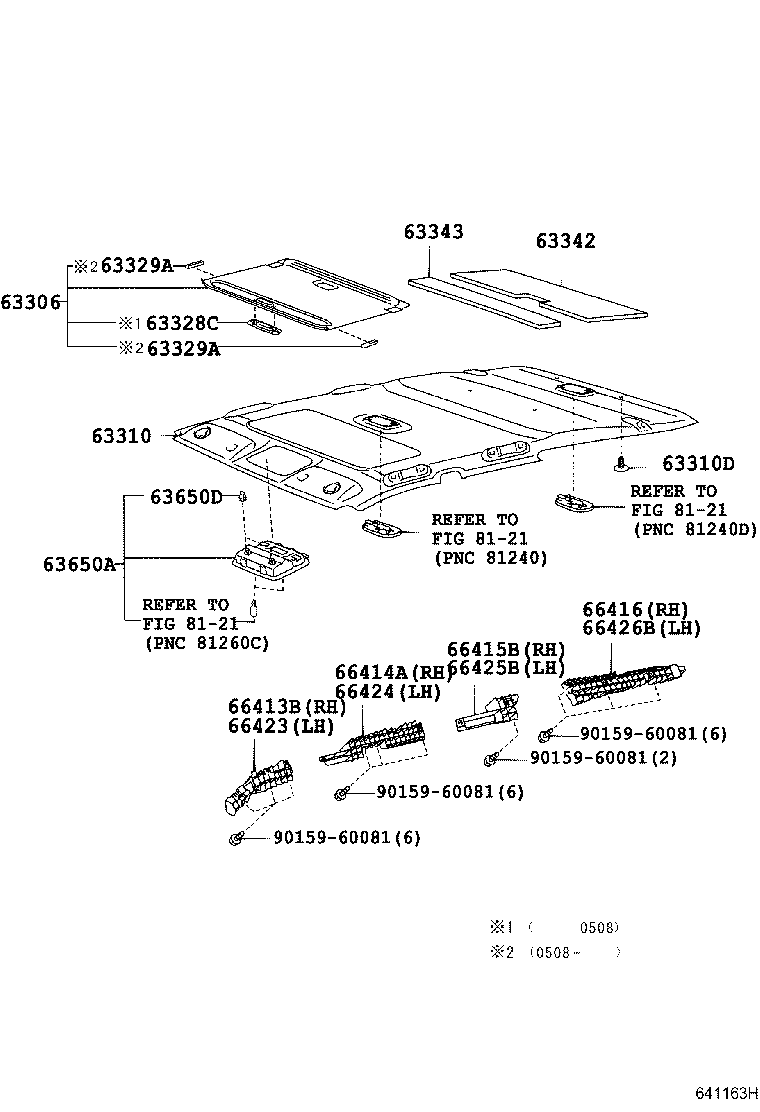

Figure 641162E 641162E 2002-11 → — Figure 641163H 641163H 2002-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63328C Knob, Sunshade Trim
63329A Stopper, Sunshade Lock
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351B Pad, Roof Headlining
63412B Retainer, Roof Console
63650A Box Assy, Roof Console
63650D Clip(FOR ROOF CONSOLE BOX)
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
