Toyota 4Runner

2002-11 → 2009-08 · chassis GRN21#,KZN215 · catalogue 671370 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 10 illustrations

Illustrations

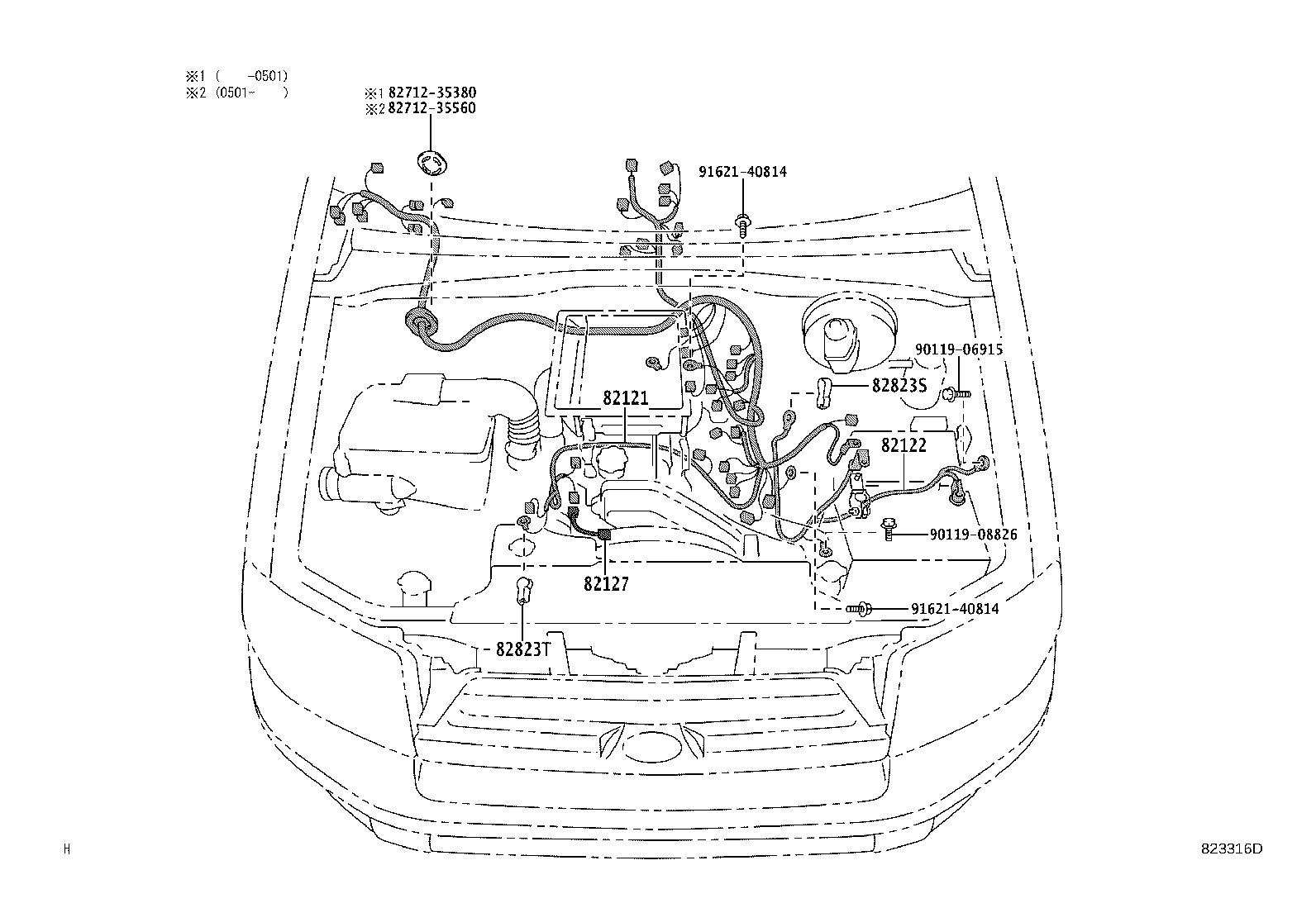

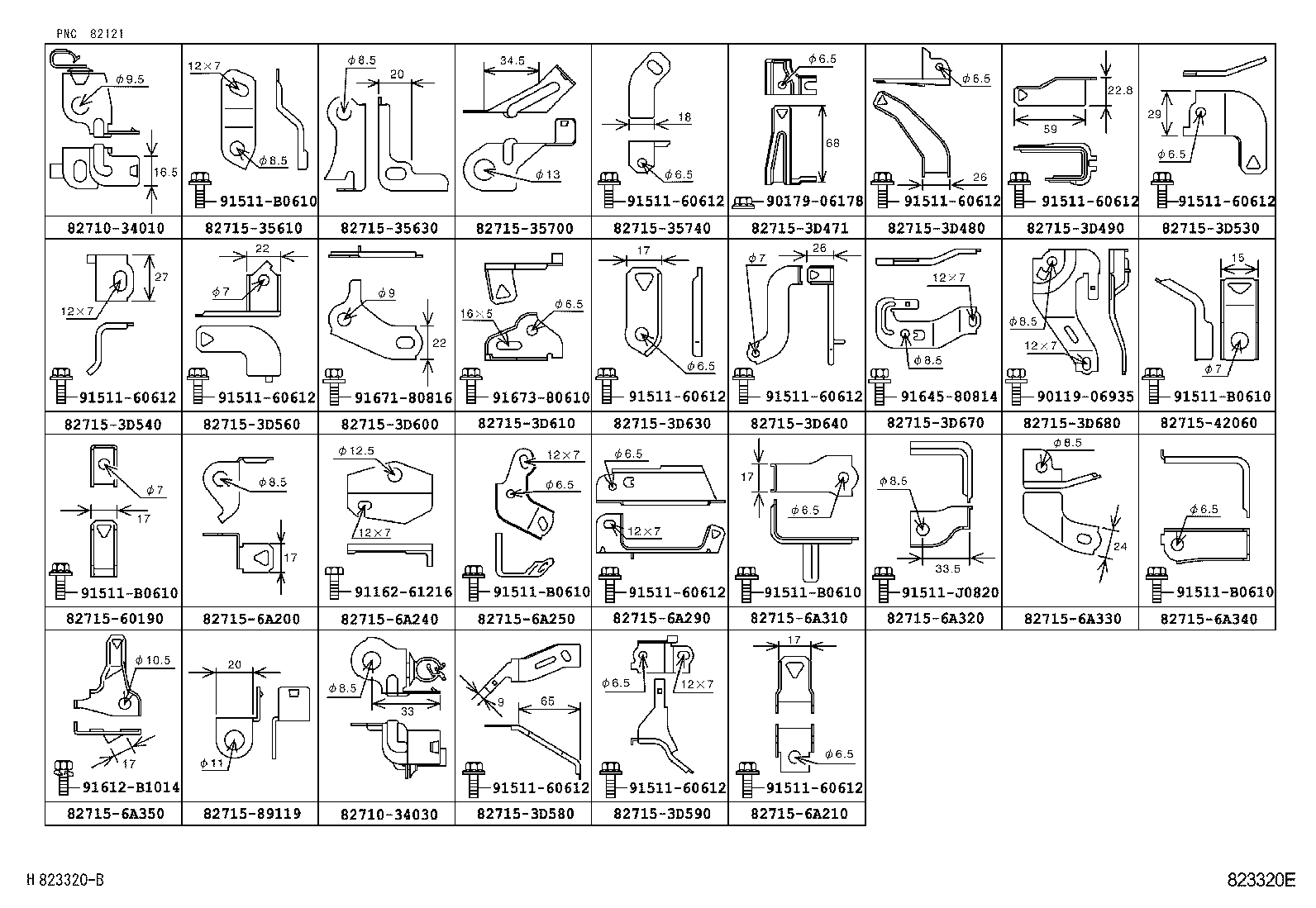

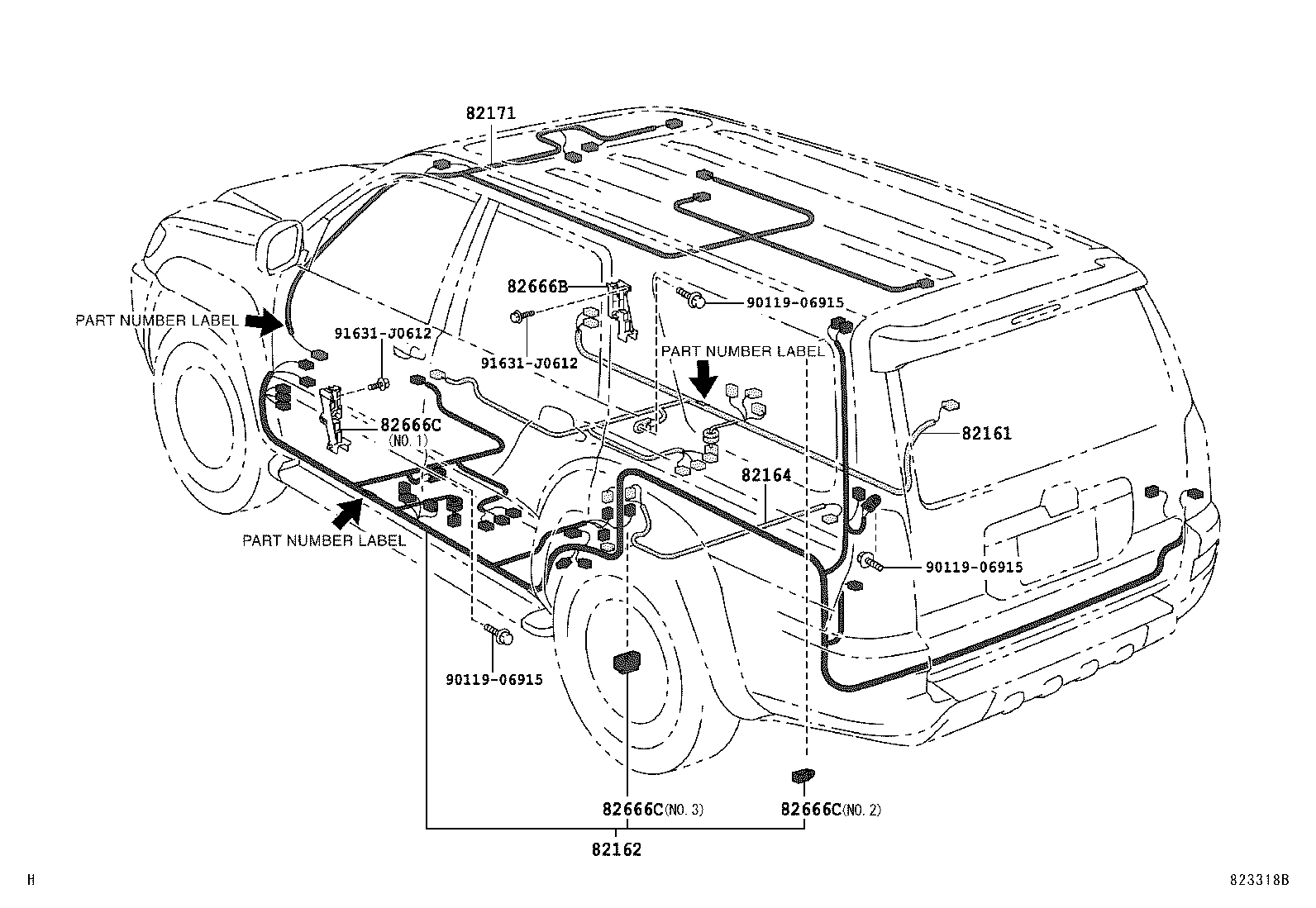

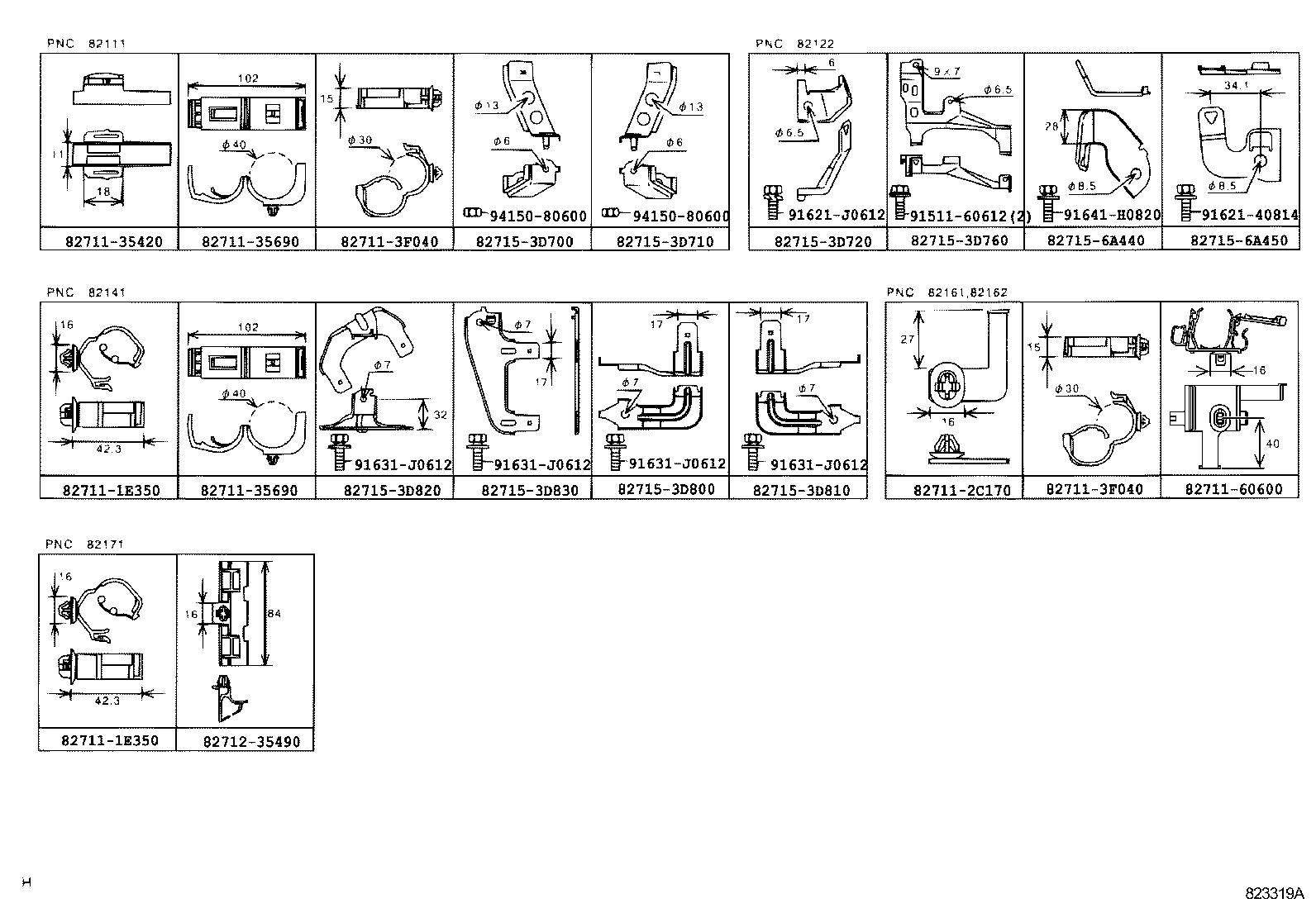

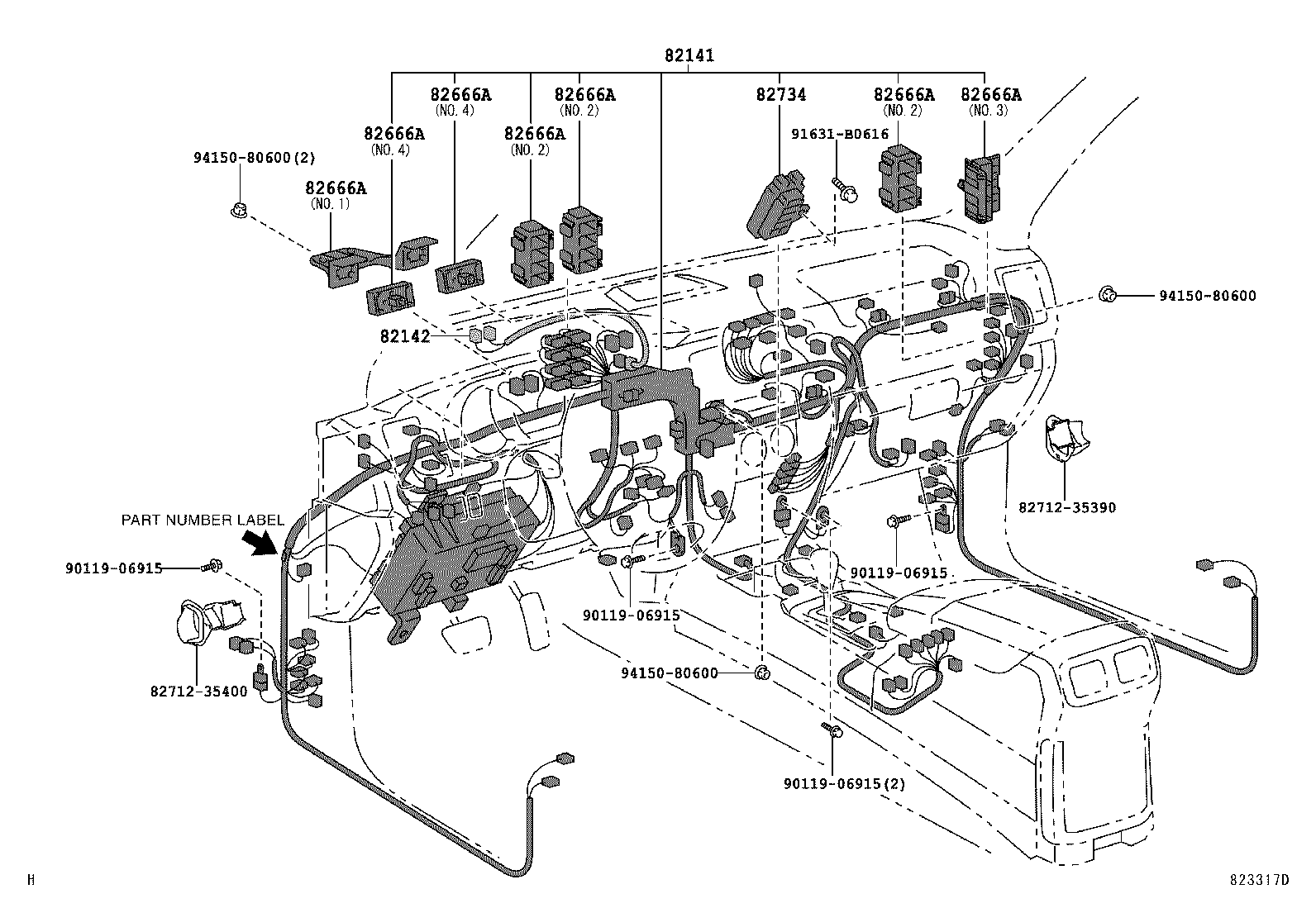

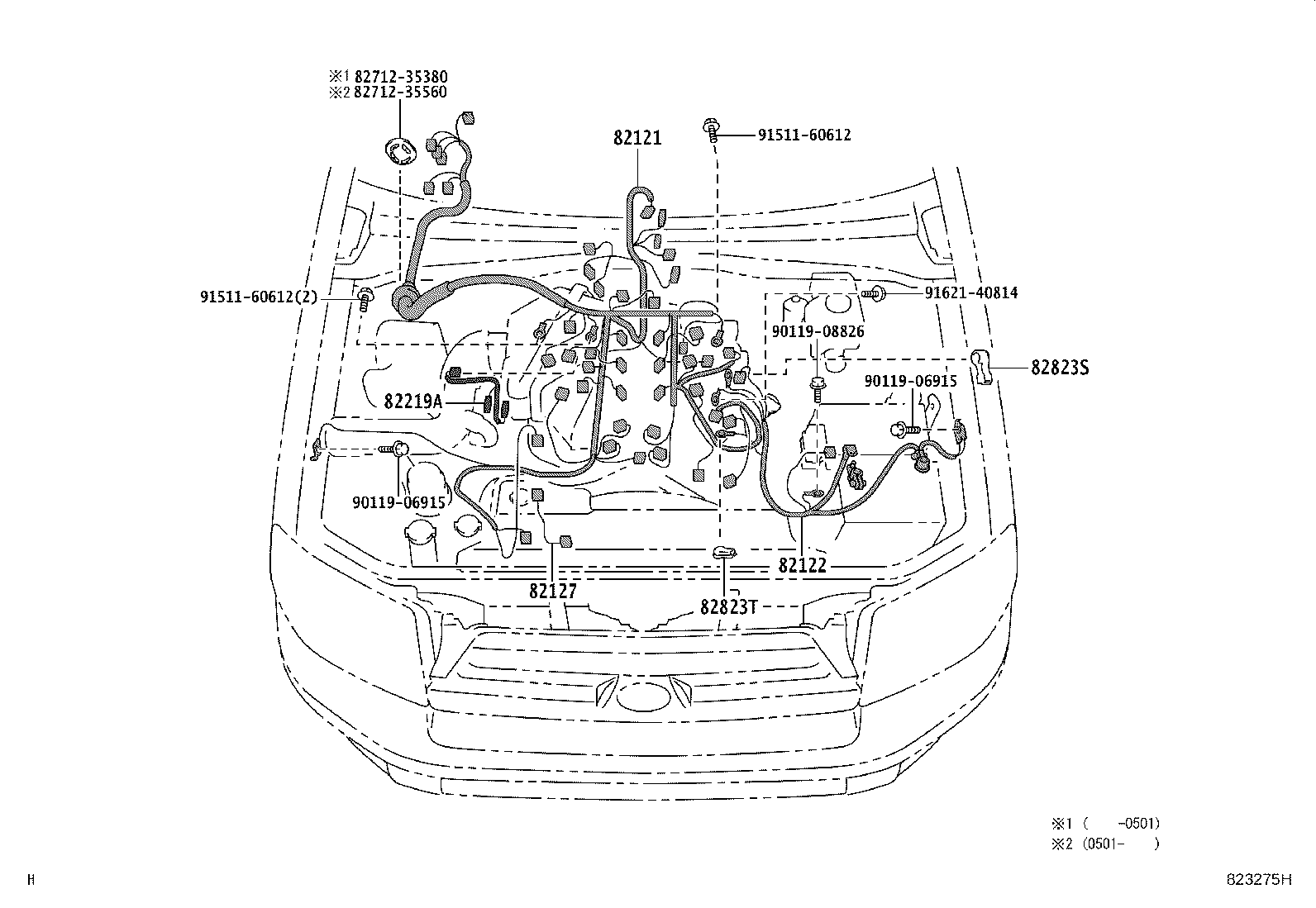

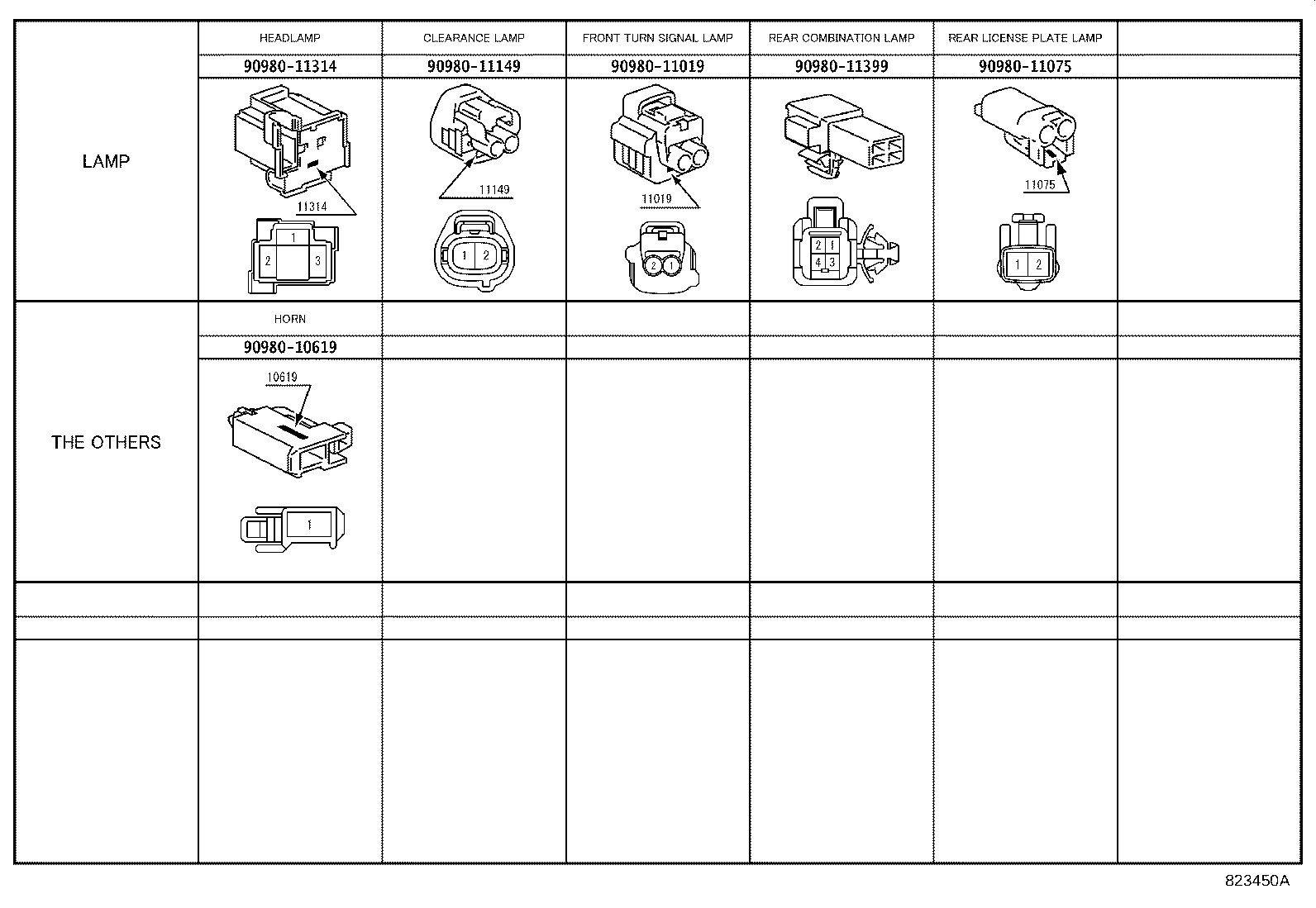

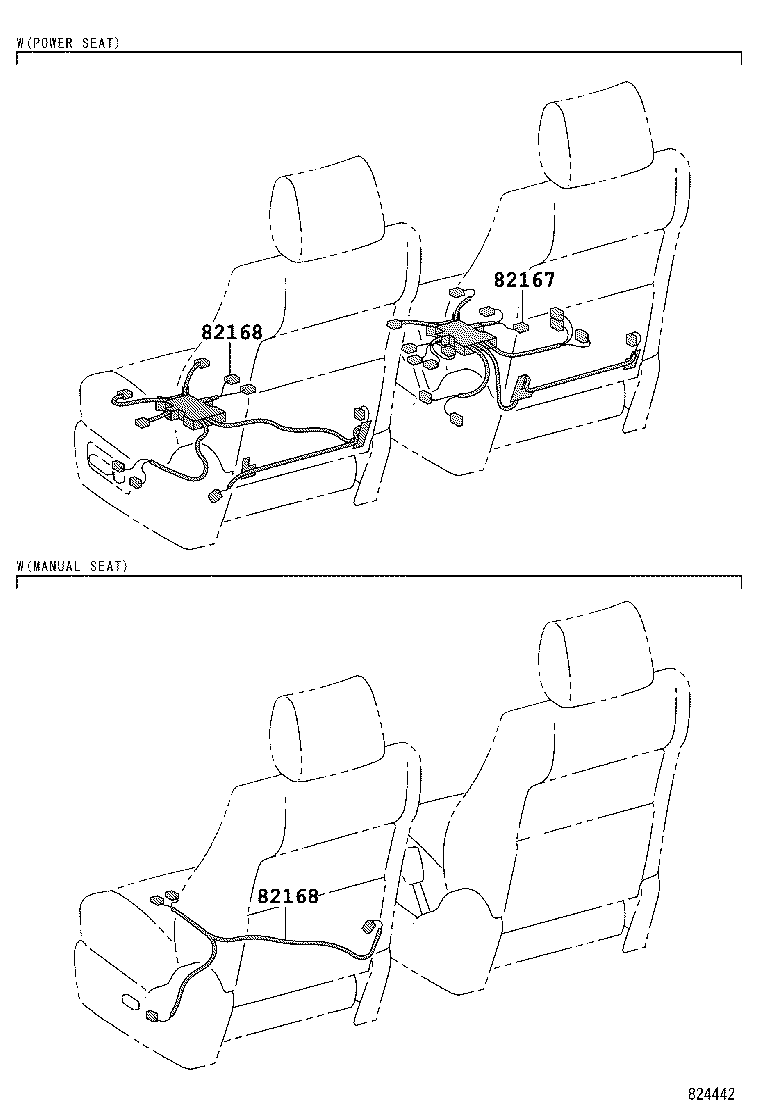

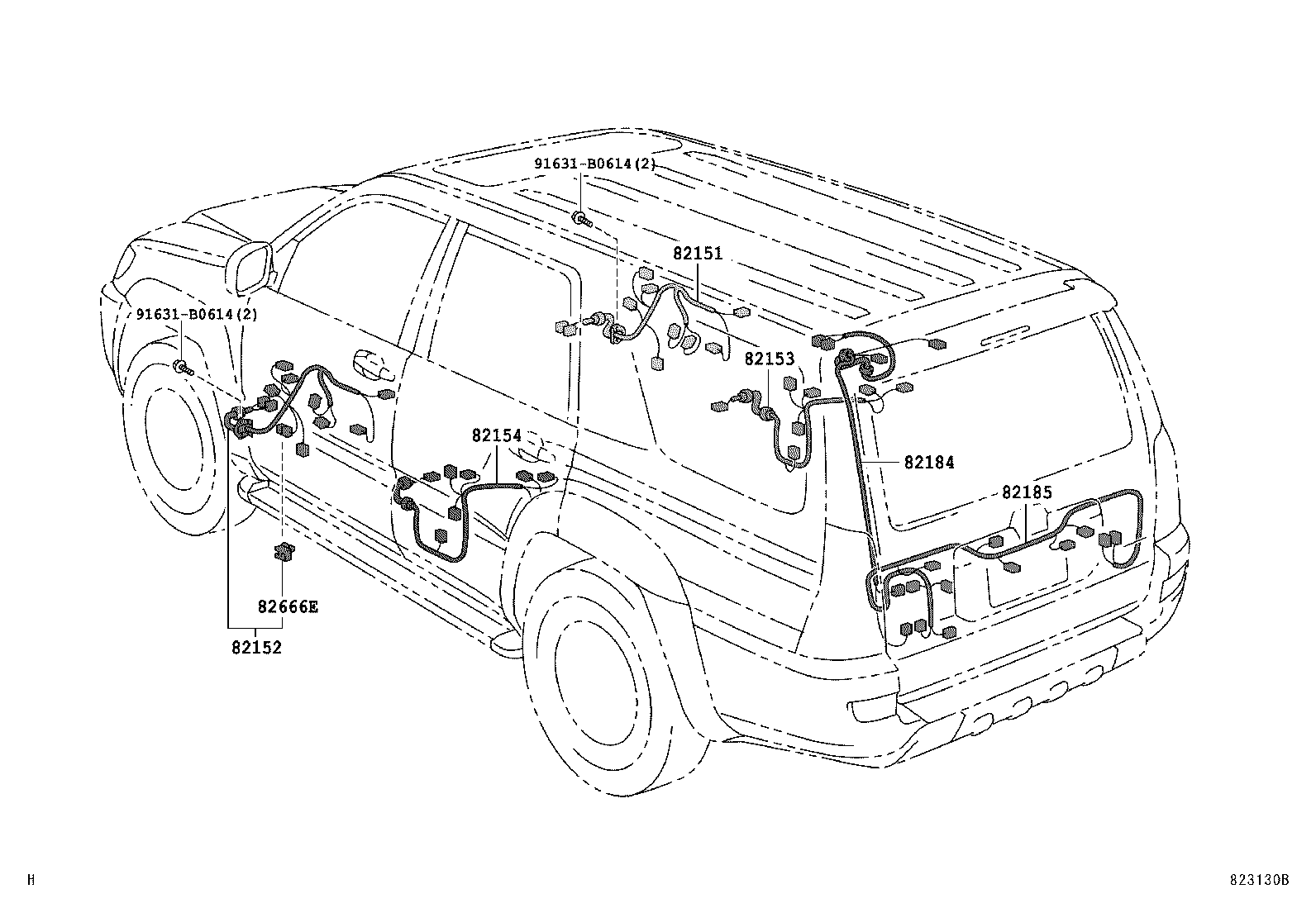

Figure 823315F 823315F 2002-11 → — Figure 823275H 823275H 2002-11 → — Figure 823316D 823316D 2002-11 → 2005-08 Figure 823317D 823317D 2002-11 → — Figure 823130B 823130B 2002-11 → — Figure 823318B 823318B 2002-11 → — Figure 824442 824442 2002-11 → — Figure 823319A 823319A 2002-11 → — Figure 823320E 823320E 2002-11 → — Figure 823450A 823450A 2002-11 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82127 Wire, Differential
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82219A Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
