Heating & Air Conditioning - Water Piping

5 part groups · 2 illustrations

Illustrations

Figure 875870A

875870A 2002-11 → —

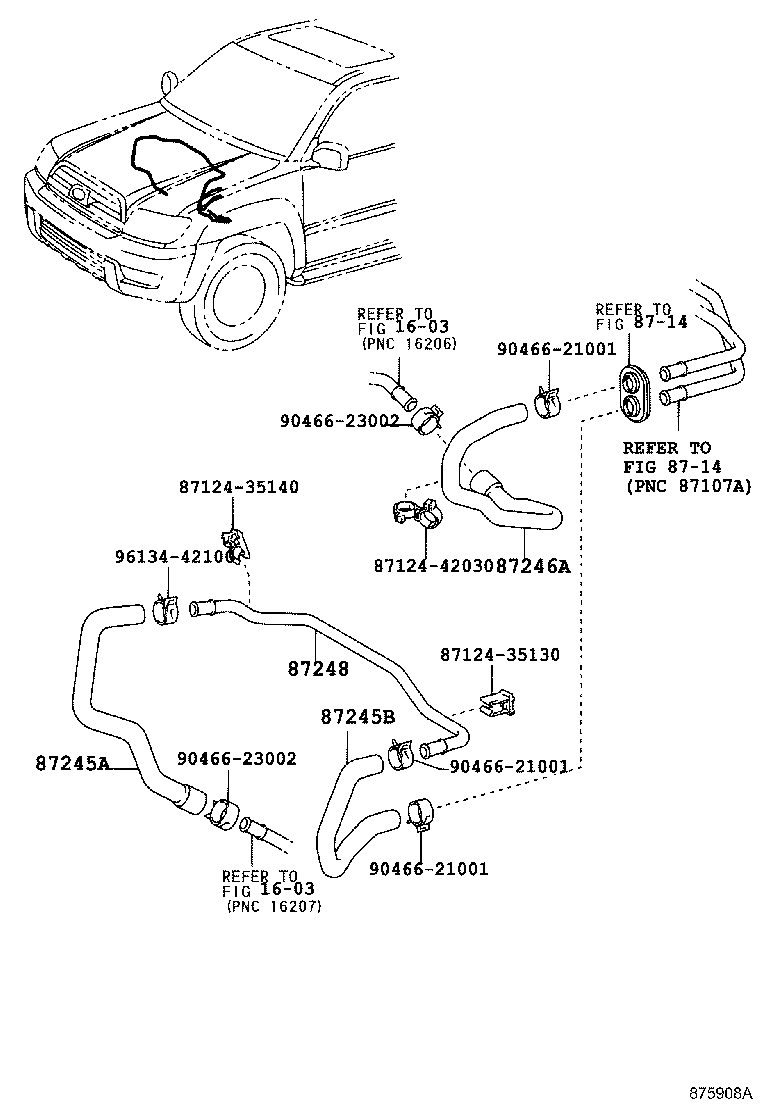

Figure 875908A

875908A 2002-11 → 2005-08

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87248	Pipe Sub-assy, Water
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
