Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

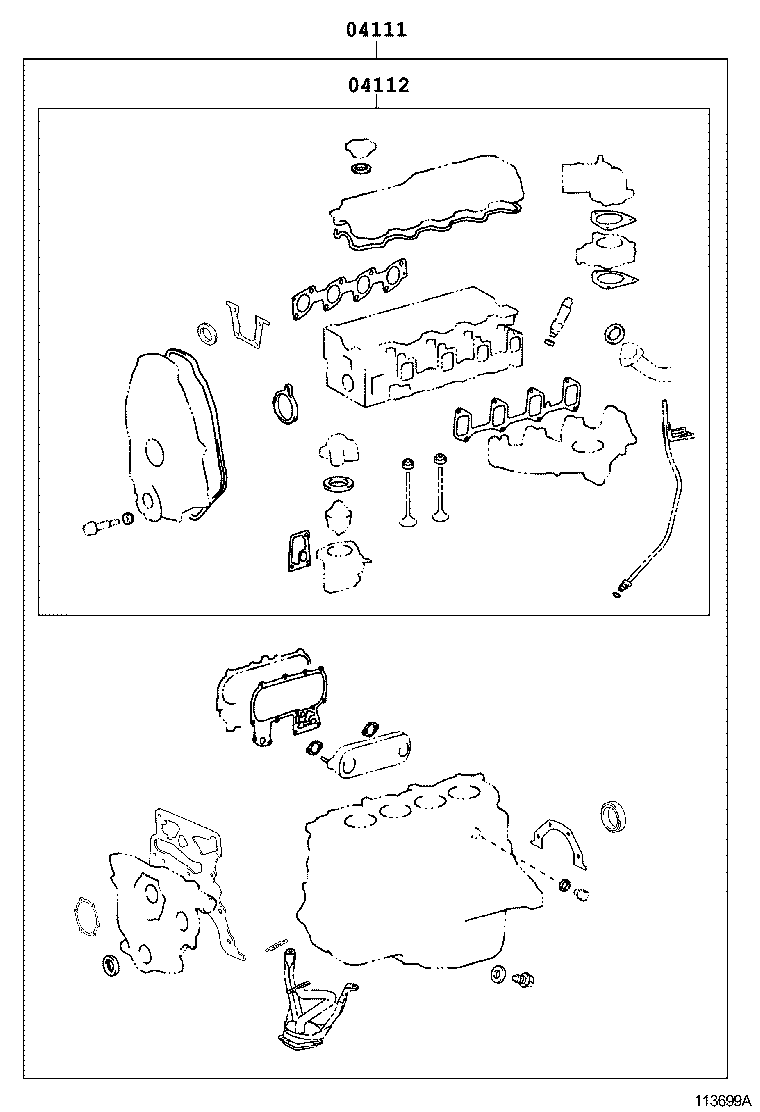

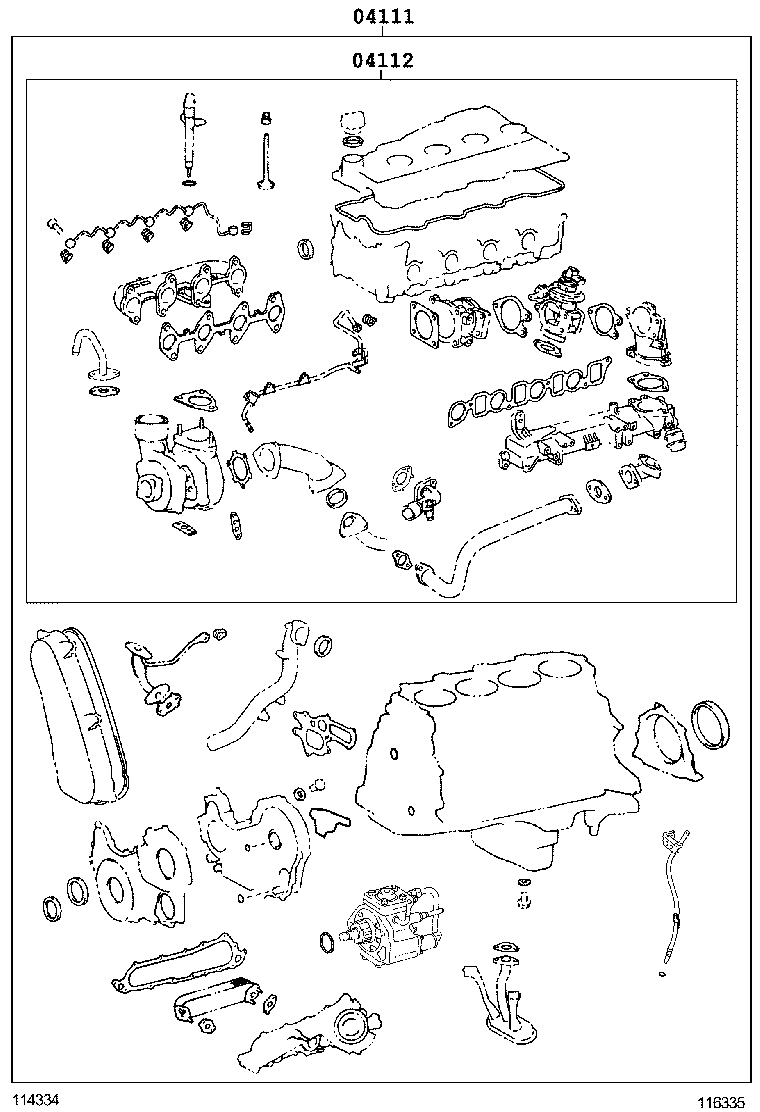

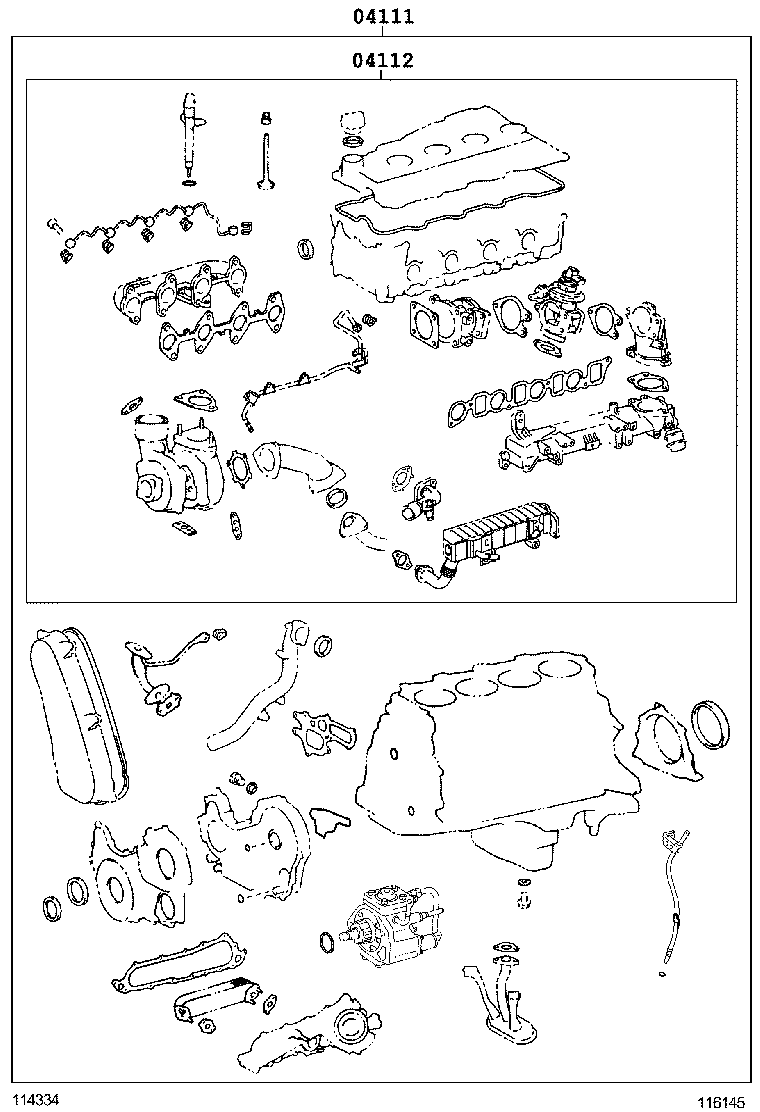

Figure 113579C 113579C 2005-07 → — Figure 113160 113160 2005-01 → — Figure 116145 116145 2009-08 → — Figure 116335 116335 2010-01 → — Figure 113699A 113699A 2006-05 → — Figure 115047A 115047A 2005-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
