Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

56 part groups · 24 illustrations

Illustrations

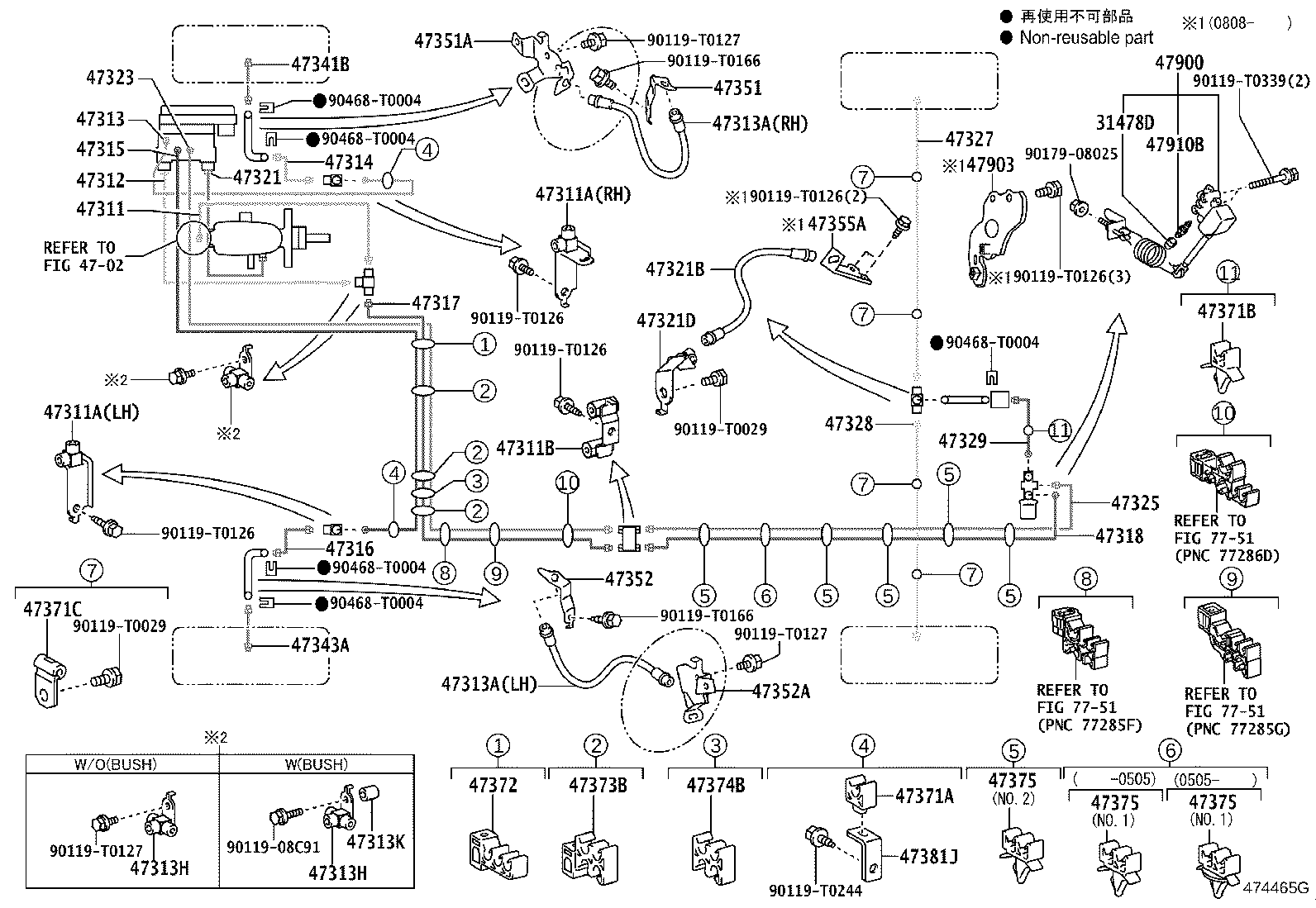

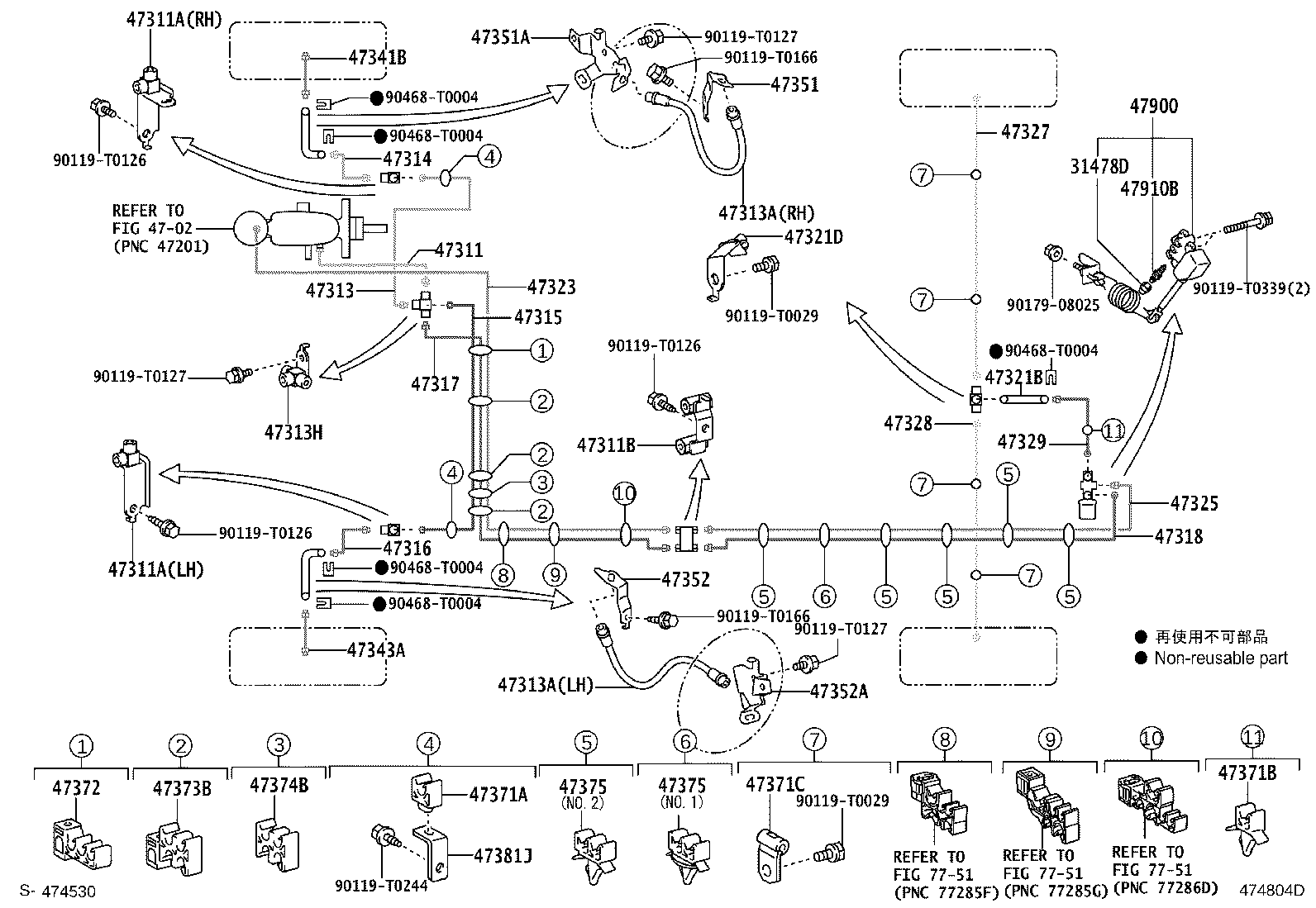

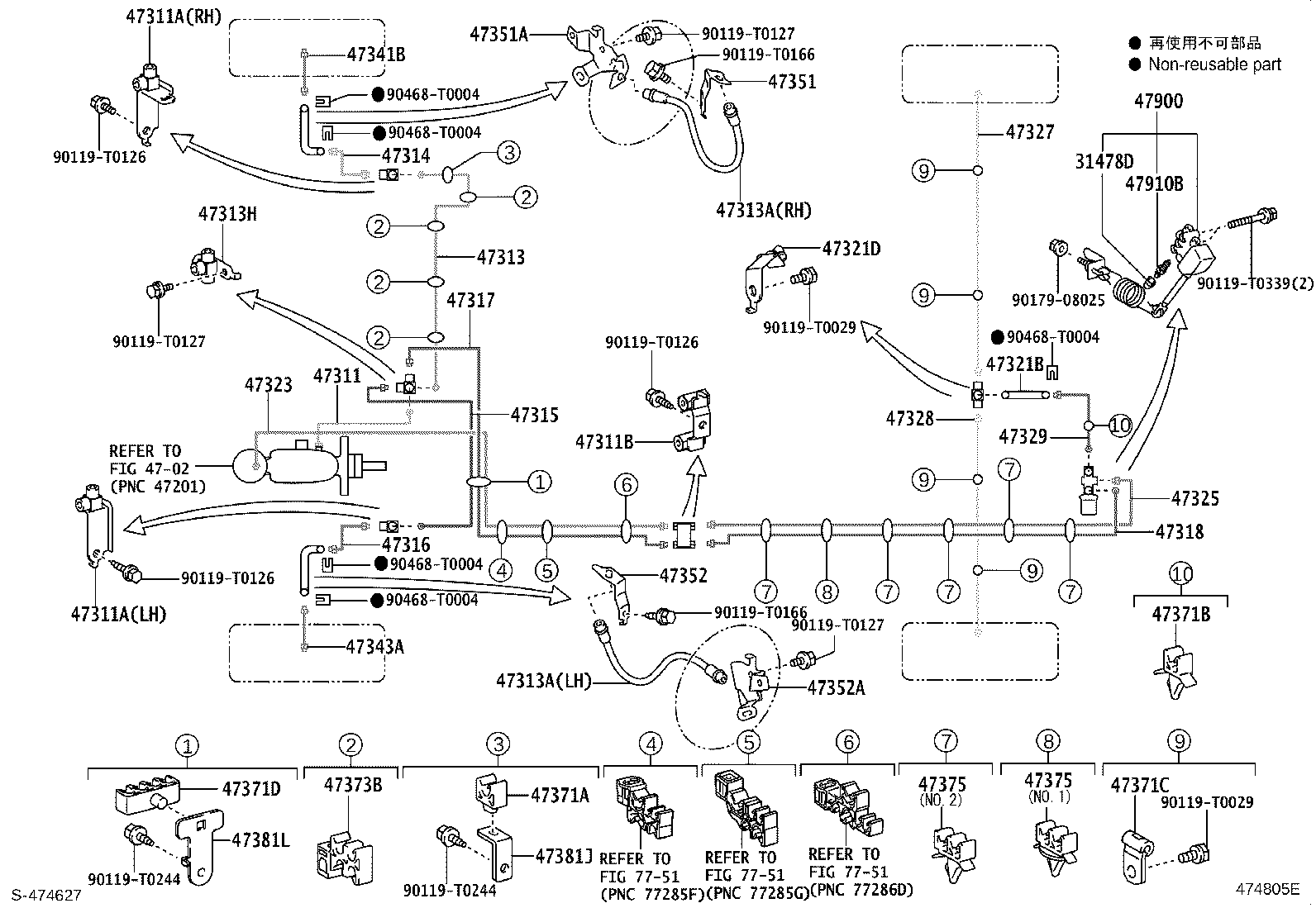

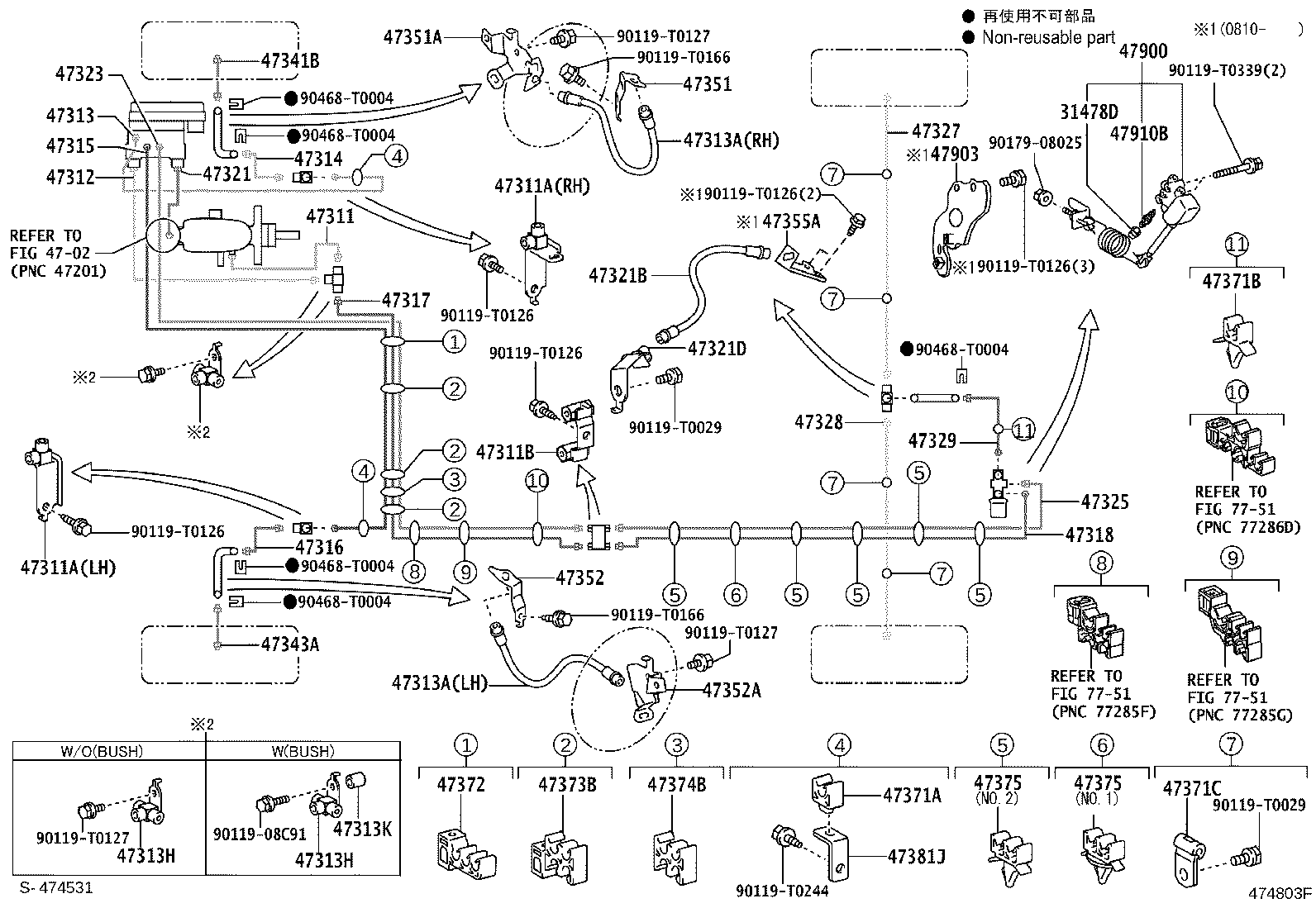

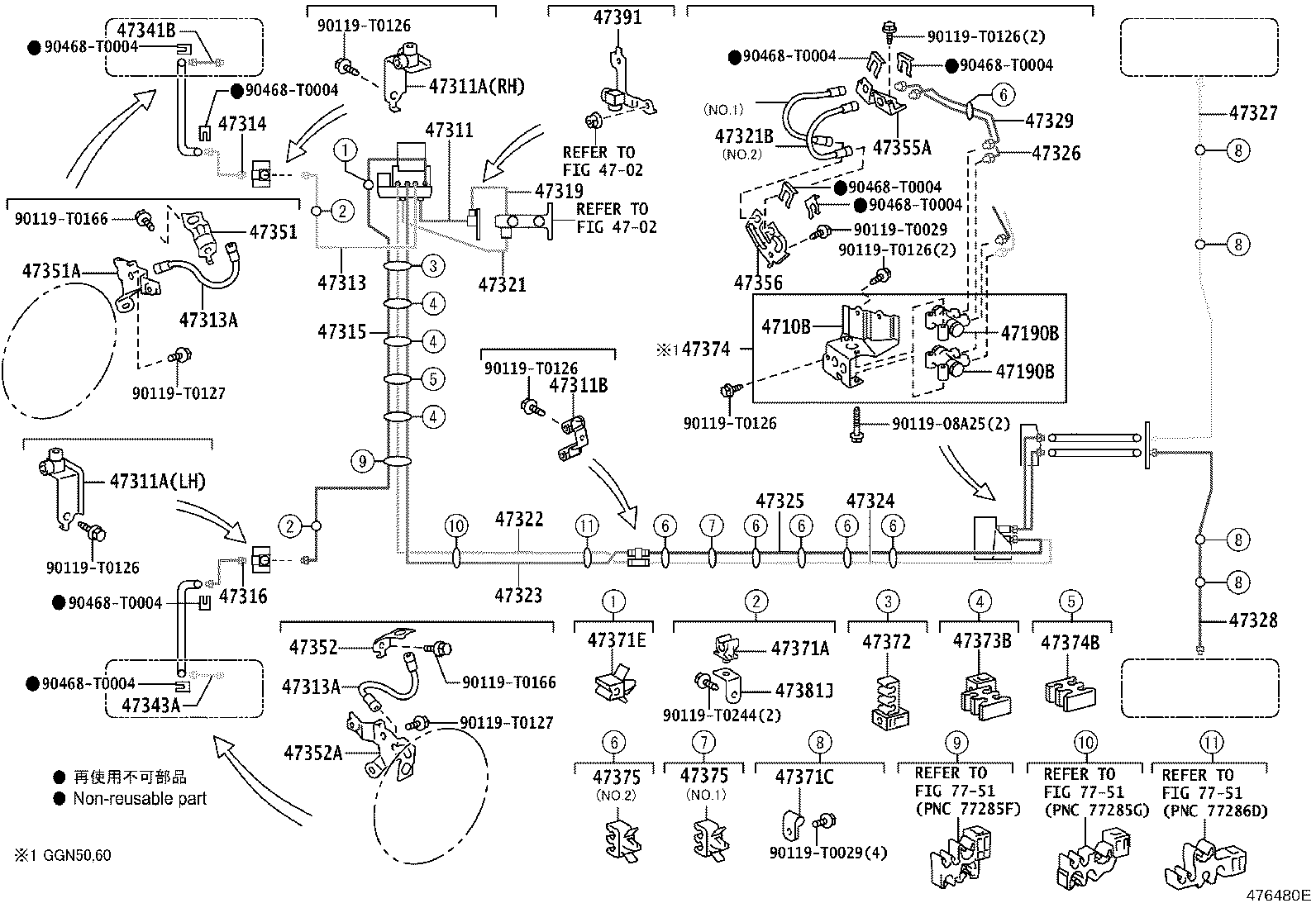

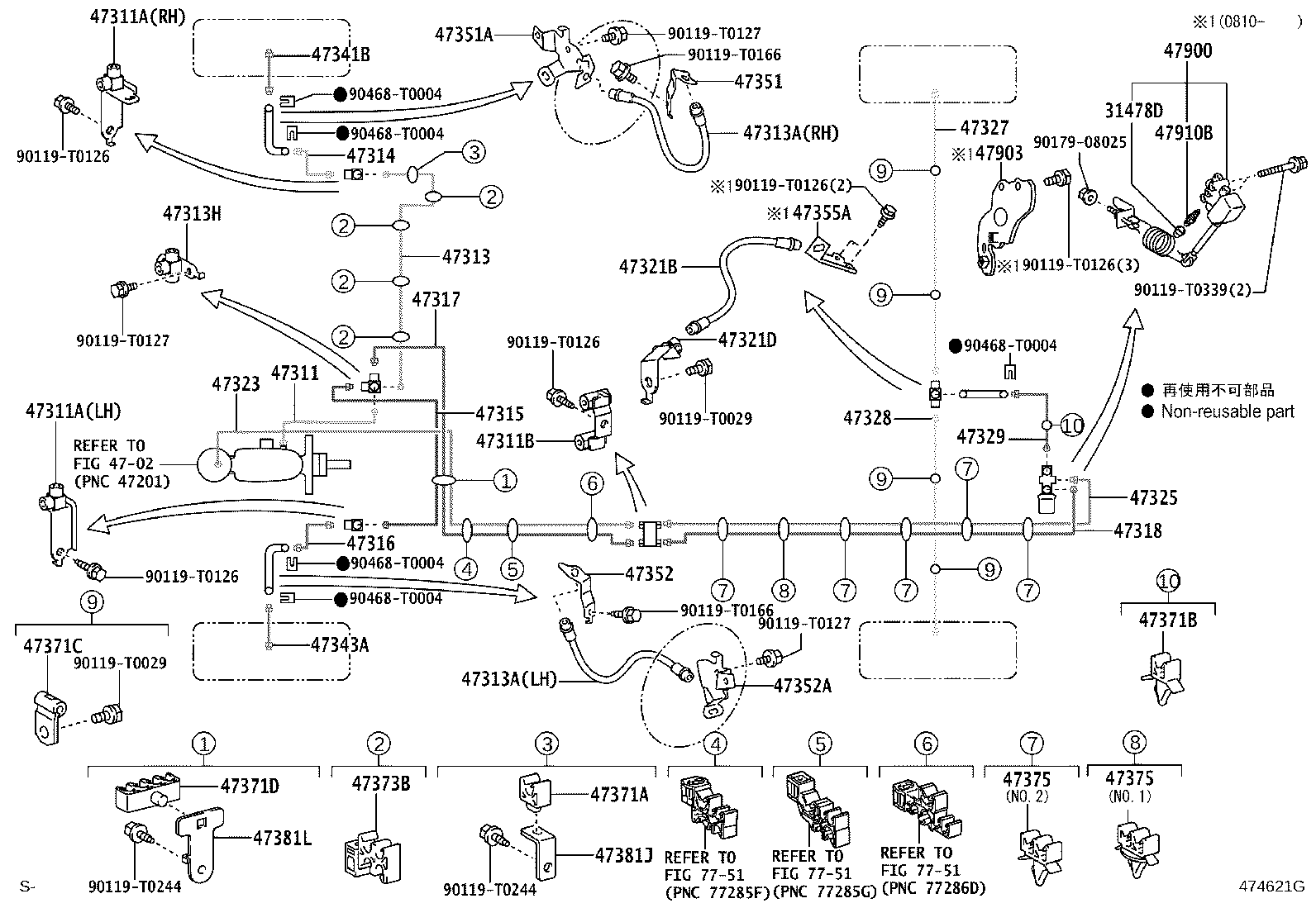

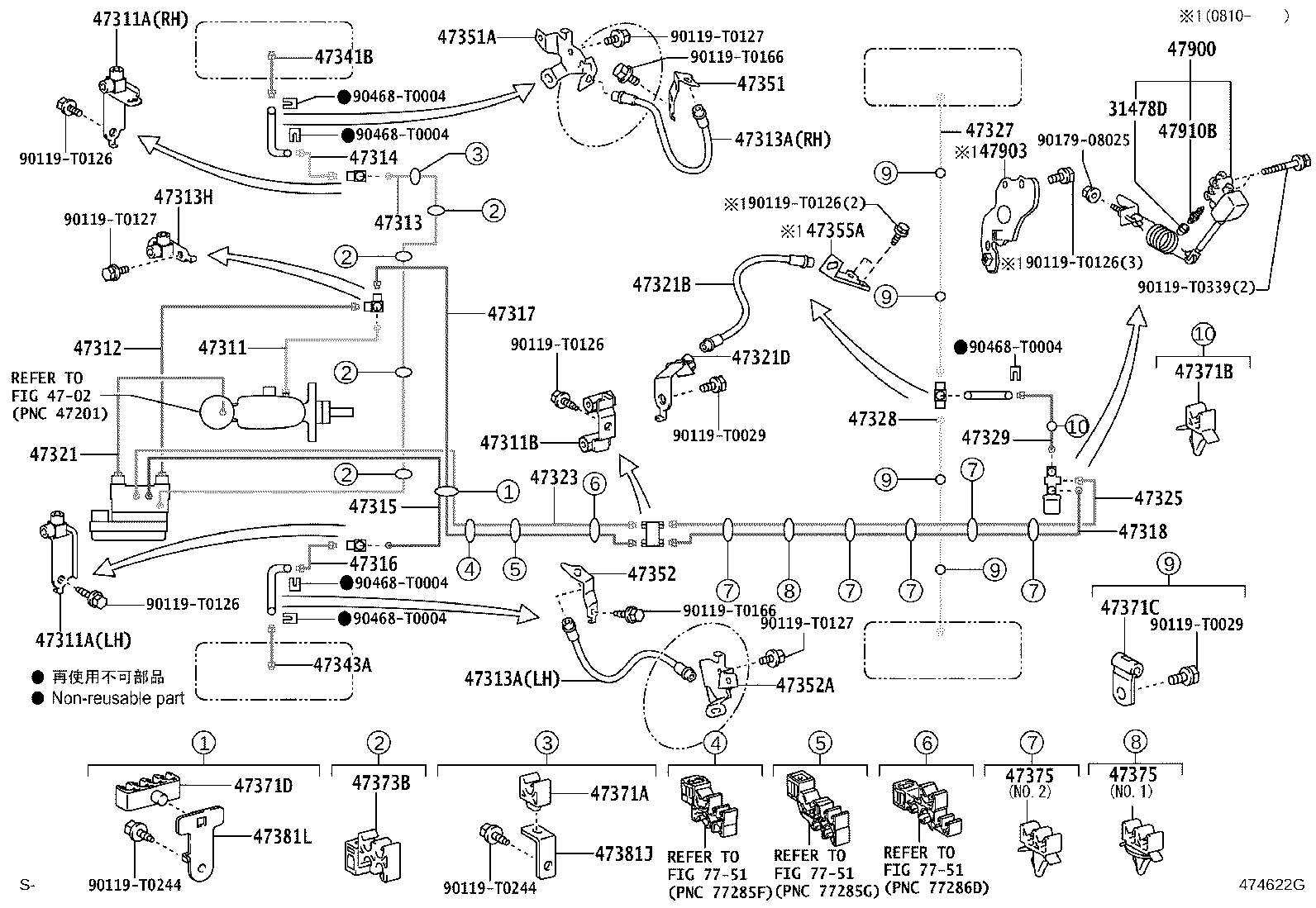

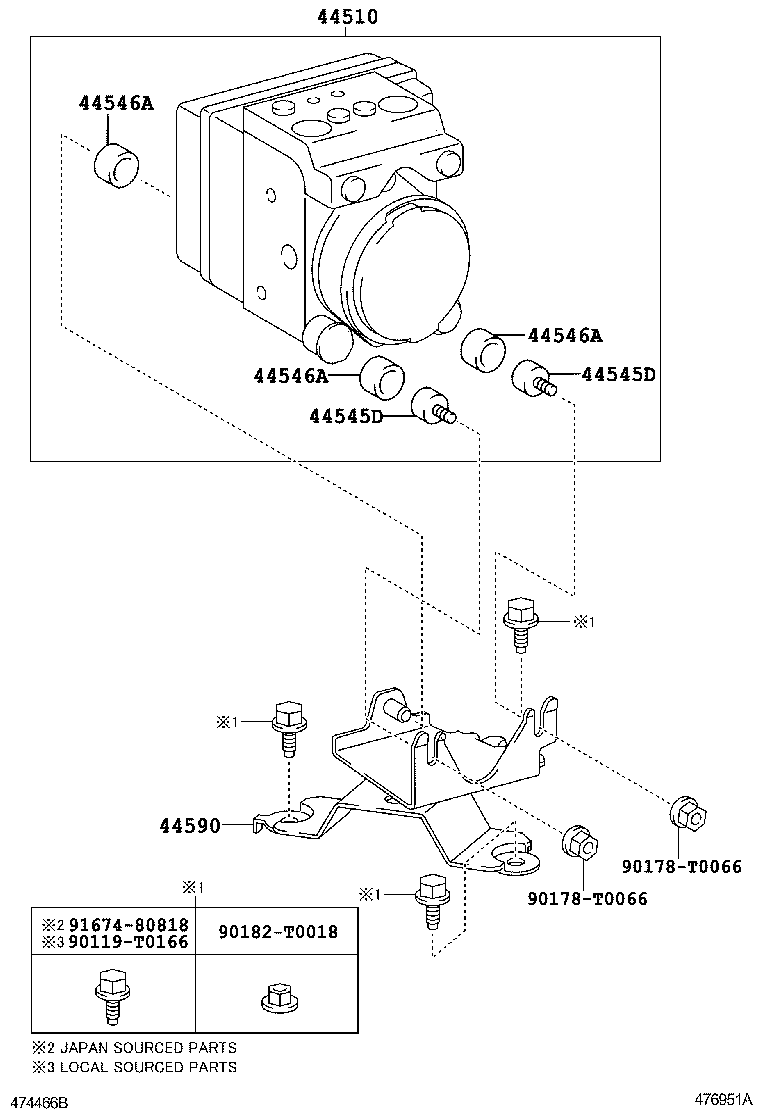

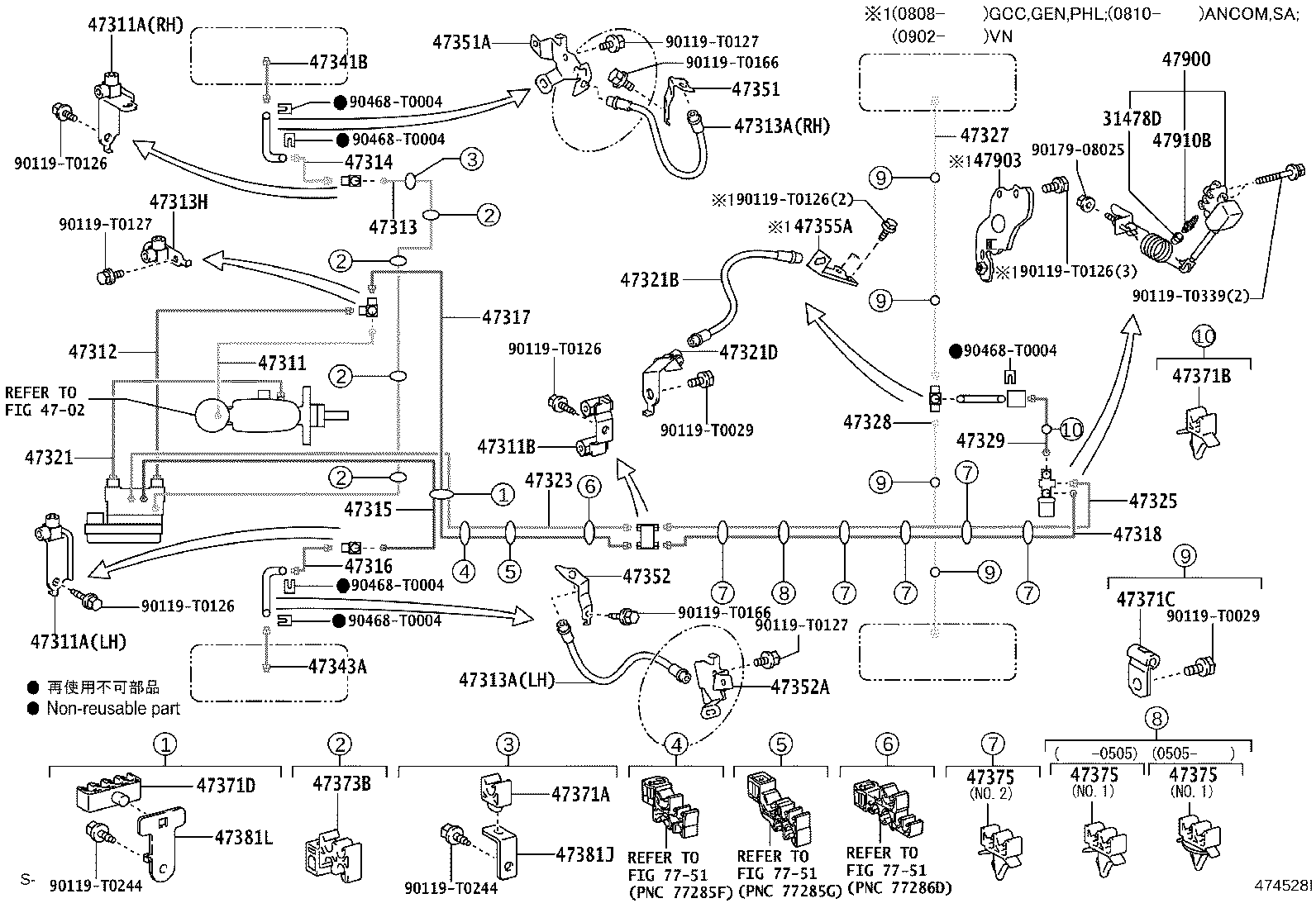

Figure 474620F 474620F 2005-07 → — Figure 474620F 474620F 2006-08 → — Figure 474621G 474621G 2005-09 → — Figure 474621G 474621G 2008-10 → 2009-10 Figure 474804D 474804D 2005-11 → — Figure 474805E 474805E 2005-11 → — Figure 474465G 474465G 2005-01 → 2008-08 Figure 474465G 474465G 2005-01 → — Figure 474465G 474465G 2011-06 → — Figure 474803F 474803F 2005-11 → — Figure 474803F 474803F 2009-08 → 2011-06 Figure 474528I 474528I 2005-04 → — Figure 474622G 474622G 2005-09 → — Figure 474622G 474622G 2009-10 → — Figure 476480E 476480E 2008-08 → — Figure 476480E 476480E 2008-10 → — Figure 476480E 476480E 2010-10 → — Figure 474093B 474093B 2005-01 → 2008-08 Figure 474093B 474093B 2005-01 → — Figure 474093B 474093B 2005-01 → — Figure 476951A 476951A 2005-04 → — Figure 476481 476481 2008-08 → — Figure 476481 476481 2008-10 → — Figure 476481 476481 2010-10 → —

Part groups

PNCDescription
31478D Cap, Bleeder Plug(FOR LSPV)
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
4710B Bracket Sub-assy, Blend Proportioning Valve
47190B Valve Assy, Blend Proportioning
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313K Bush, Front Brake Tube, Way NO.3
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47321B Hose, Flexible(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47341B Tube, Wheel Cylinder, Front RH NO.1
47343A Tube, Wheel Cylinder, Front LH NO.1
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351A Bracket, Flexible Hose, Front RH NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47352A Bracket, Flexible Hose, Front LH NO.1
47355A Bracket, Flexible Hose, NO.5
47356 Bracket, Flexible Hose, NO.6
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374 Connector, Tube
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47381J Bracket, Brake Tube Clamp, NO.2
47381L Bracket, Brake Tube Clamp, NO.3
47391 Way, Brake Tube
47900 Valve Assy, Load Sensing W/Spring
47903 Bracket Sub-assy, Loadsensing Valve
47910B Plug, Bleeder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
