Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 10 illustrations

Illustrations

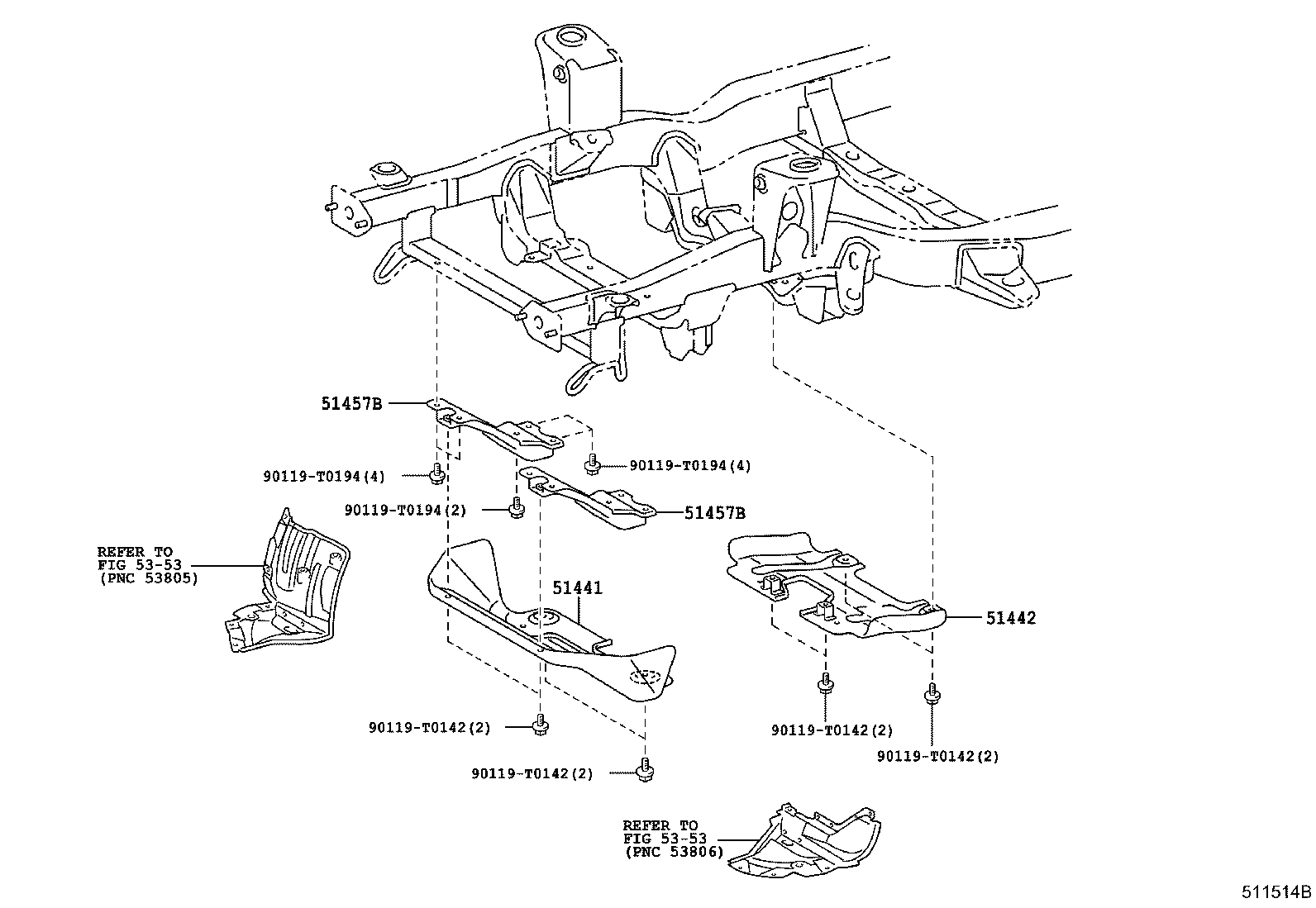

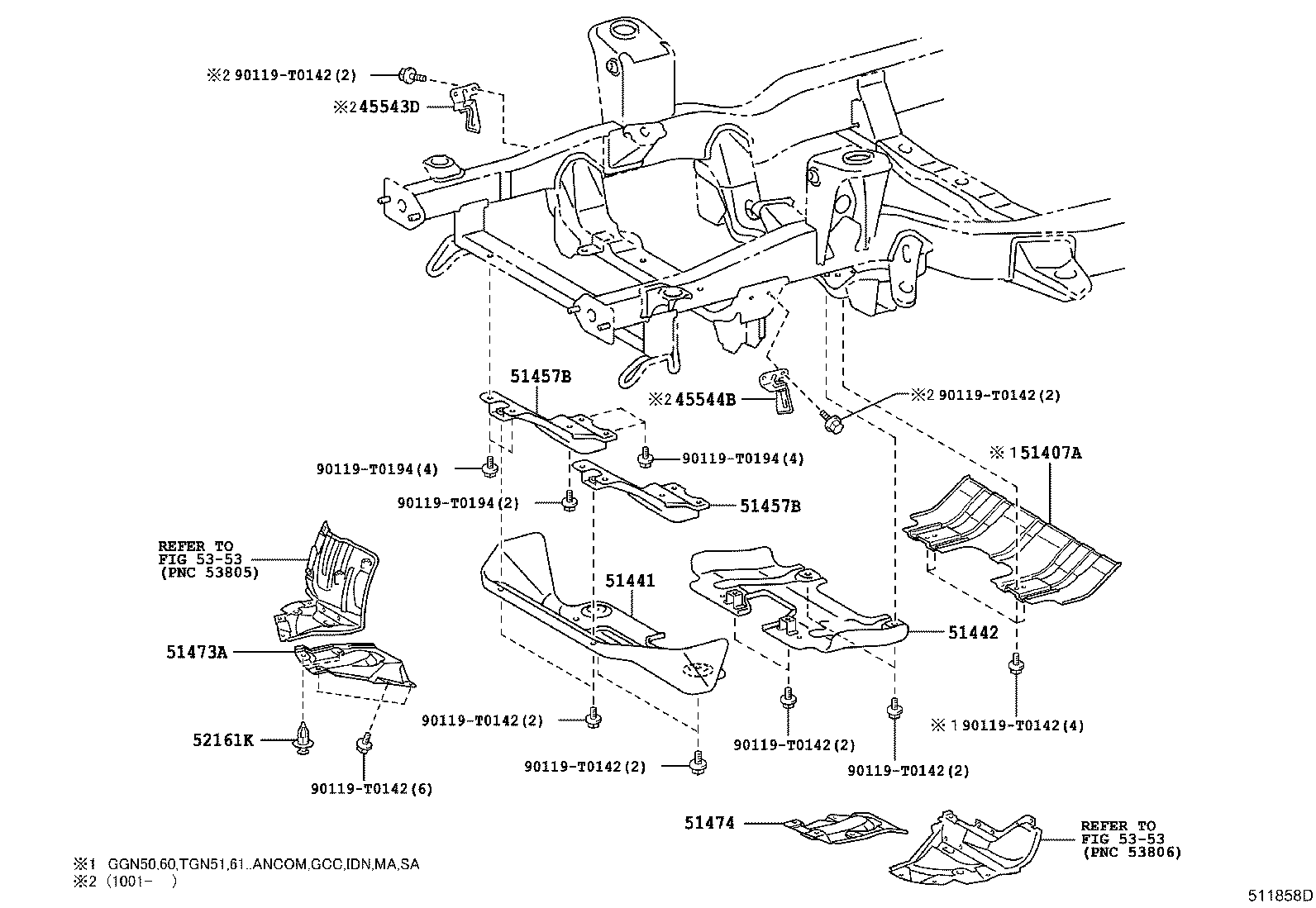

Figure 511292G 511292G 2005-01 → 2006-04 Figure 511292G 511292G 2005-01 → 2006-08 Figure 511292G 511292G 2005-01 → 2006-09 Figure 511292G 511292G 2005-01 → 2006-10 Figure 511292G 511292G 2005-01 → 2006-12 Figure 511514B 511514B 2006-04 → 2006-10 Figure 511858D 511858D 2006-08 → — Figure 511858D 511858D 2006-09 → — Figure 511858D 511858D 2006-10 → — Figure 511858D 511858D 2006-12 → —

Part groups

PNCDescription
45543D Protector, Steering Rack Boot, RH
45544B Protector, Steering Rack Boot, LH
51407A Cover Sub-assy, Engine Under, NO.3
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51457B Brace, Front Side Member TO Front Suspension Crossmember
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
52161K Piece, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
