Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 4 illustrations

Illustrations

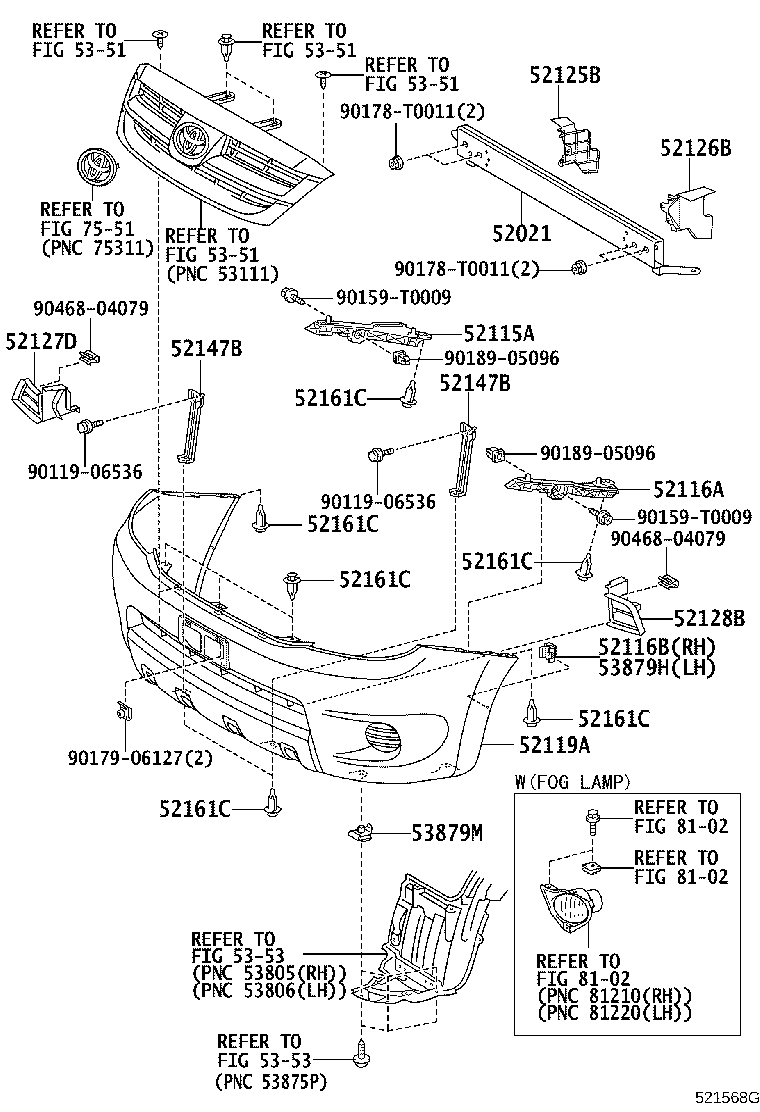

Figure 521323D 521323D 2005-01 → 2006-04 Figure 521323D 521323D 2005-01 → 2006-08 Figure 521568G 521568G 2006-04 → — Figure 521568G 521568G 2006-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52125B Extension, Front Bumper Reinforcement, RH
52126B Extension, Front Bumper Reinforcement, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52142C Stay, Front Bumper, LH
52147B Bracket, Front Bumper Mounting
52161C Piece, Front Bumper
53851K Pad, Front Wheel Opening Extension, RH
53852H Pad, Front Wheel Opening Extension, LH
53879H Retainer, Front Fender Liner
53879M Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
