Toyota Fortuner
2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General
Supported model
Data version 2012-04
Front Floor Panel & Front Floor Member
42 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

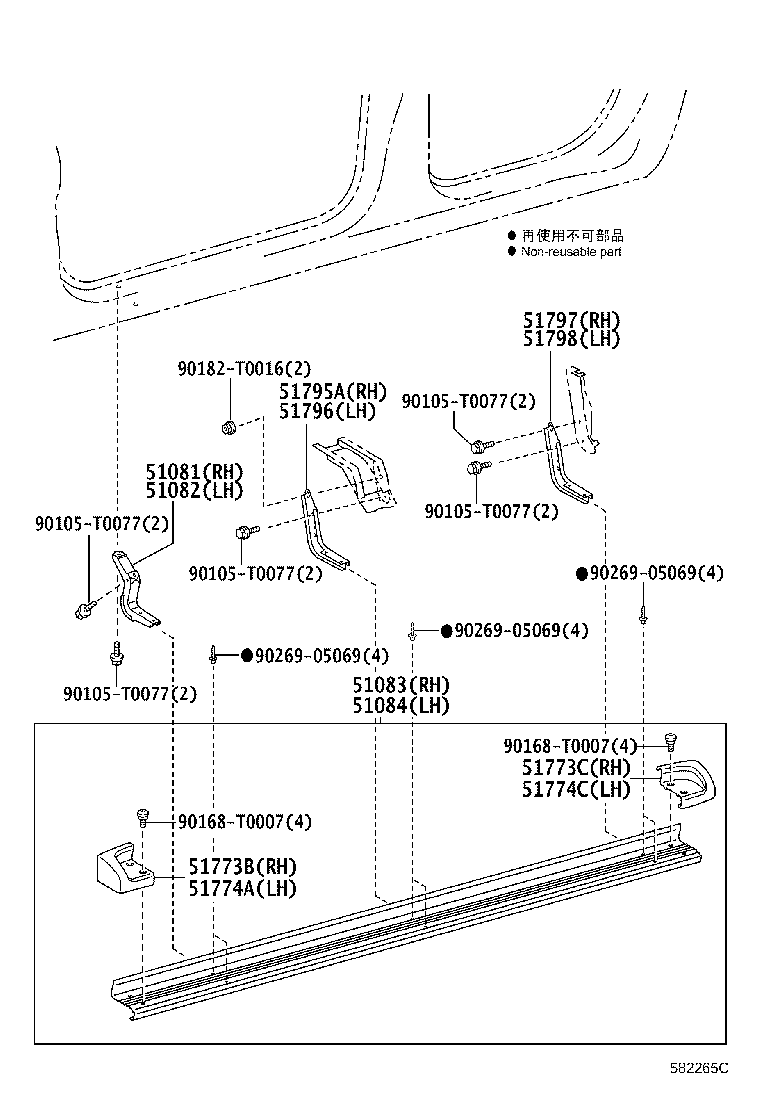

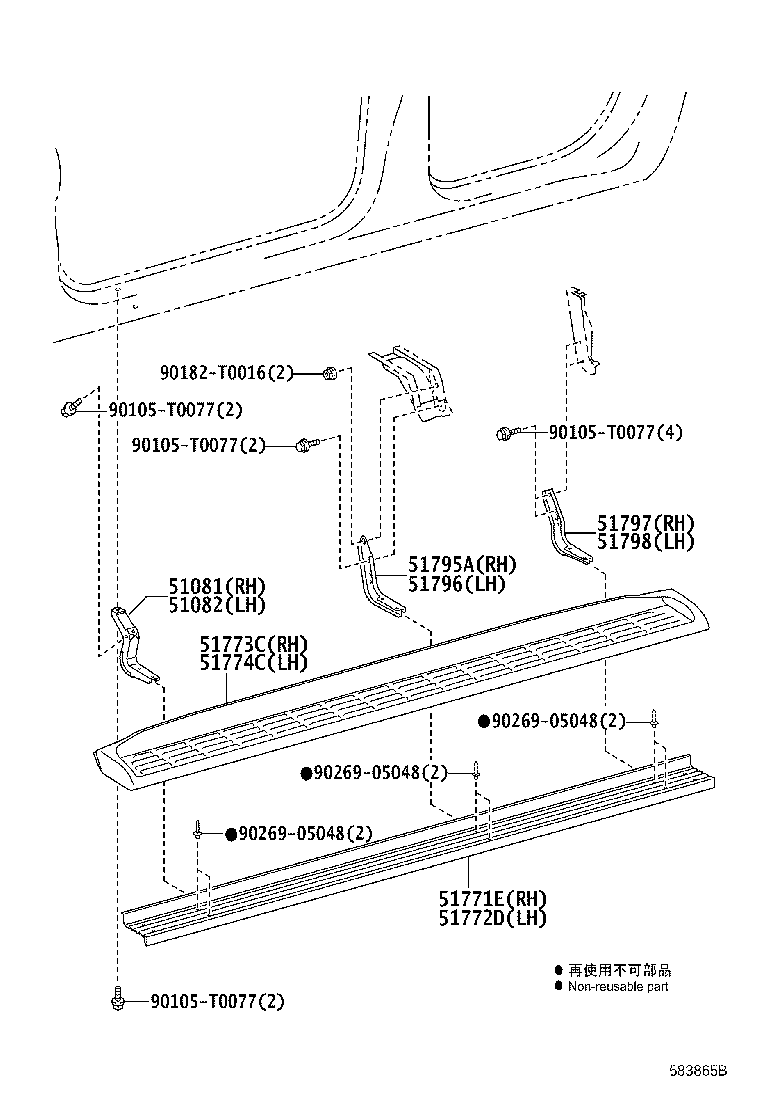

| 51081 | Stay Sub-assy, Side Step, NO.1 RH |
| 51082 | Stay Sub-assy, Side Step, NO.1 LH |
| 51083 | Step Sub-assy, RH |
| 51084 | Step Sub-assy, LH |
| 51771E | Plate, Step, RH |
| 51772D | Plate, Step, LH |
| 51773B | Cover, Side Door Step Plate, Front RH |
| 51773C | Cover, Step Plate, RH |
| 51774A | Cover, Side Door Step Plate, Front LH |
| 51774C | Cover, Step Plate, LH |
| 51795A | Bracket, Side Step, NO.2 RH |
| 51796 | Bracket, Side Step, NO.2 LH |
| 51797 | Bracket, Side Step, NO.3 RH |
| 51798 | Bracket, Side Step, NO.3 LH |
| 57213H | Bracket, Body Mounting, NO.2 RH |
| 57214B | Bracket, Body Mounting, NO.2 LH |

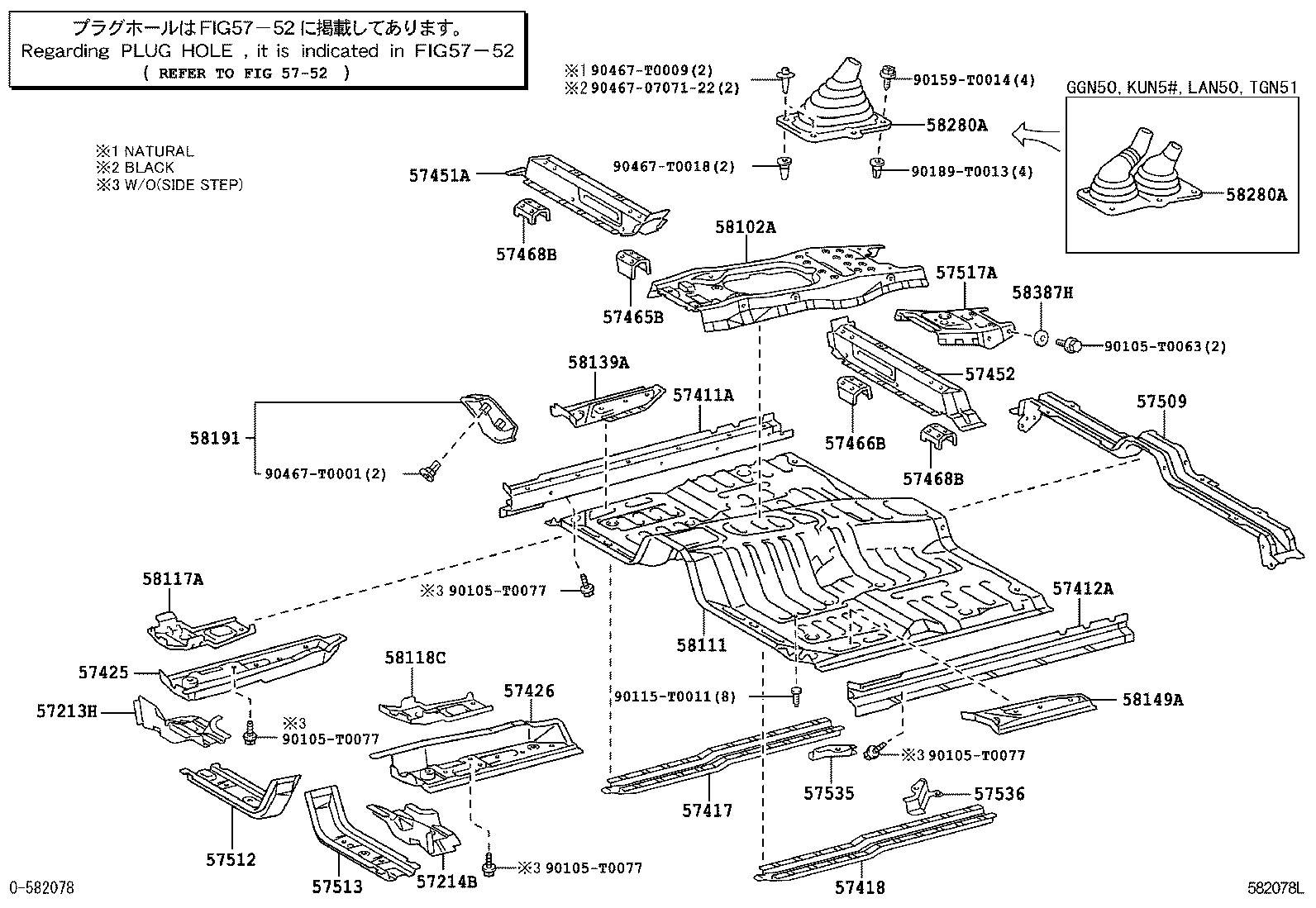

| 57411A | Member, Floor Side, Inner RH |
| 57412A | Member, Floor Side, Inner LH |
| 57417 | Reinforcement, Front Floor Under, RH |
| 57418 | Reinforcement, Front Floor Under, LH |
| 57425 | Reinforcement, Front Floor, NO.2 RH |
| 57426 | Reinforcement, Front Floor, NO.2 LH |
| 57451A | Member, Front Floor Cross, RH |
| 57452 | Member, Front Floor Cross, LH |
| 57465B | Bracket, Front Seat, Inner |
| 57466B | Bracket, Front Seat, Inside LH |
| 57468B | Bracket, Front Seat, Rear |
| 57509 | Reinforcement Sub-assy, Front Floor, Center |
| 57512 | Reinforcement, Front Floor, RH |
| 57513 | Reinforcement, Front Floor, LH |
| 57517A | Retainer, Front Floor Reinforcement, Rear |
| 57535 | Brace, Front Floor, RH |
| 57536 | Brace, Front Floor, LH |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58111 | Pan, Front Floor |
| 58117A | Reinforcement, Front Floor Side, RH |
| 58118C | Reinforcement, Front Floor Side, LH |
| 58139A | Plate, Front Floor Side, Rear RH |
| 58149A | Plate, Front Floor Side, Rear LH |
| 58191 | Footrest, Front Floor |
| 58280A | Boot Assy, Shift Lever |
| 58387H | Plate, Rear Floor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
