Toyota Fortuner
2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General
Supported model
Data version 2012-04

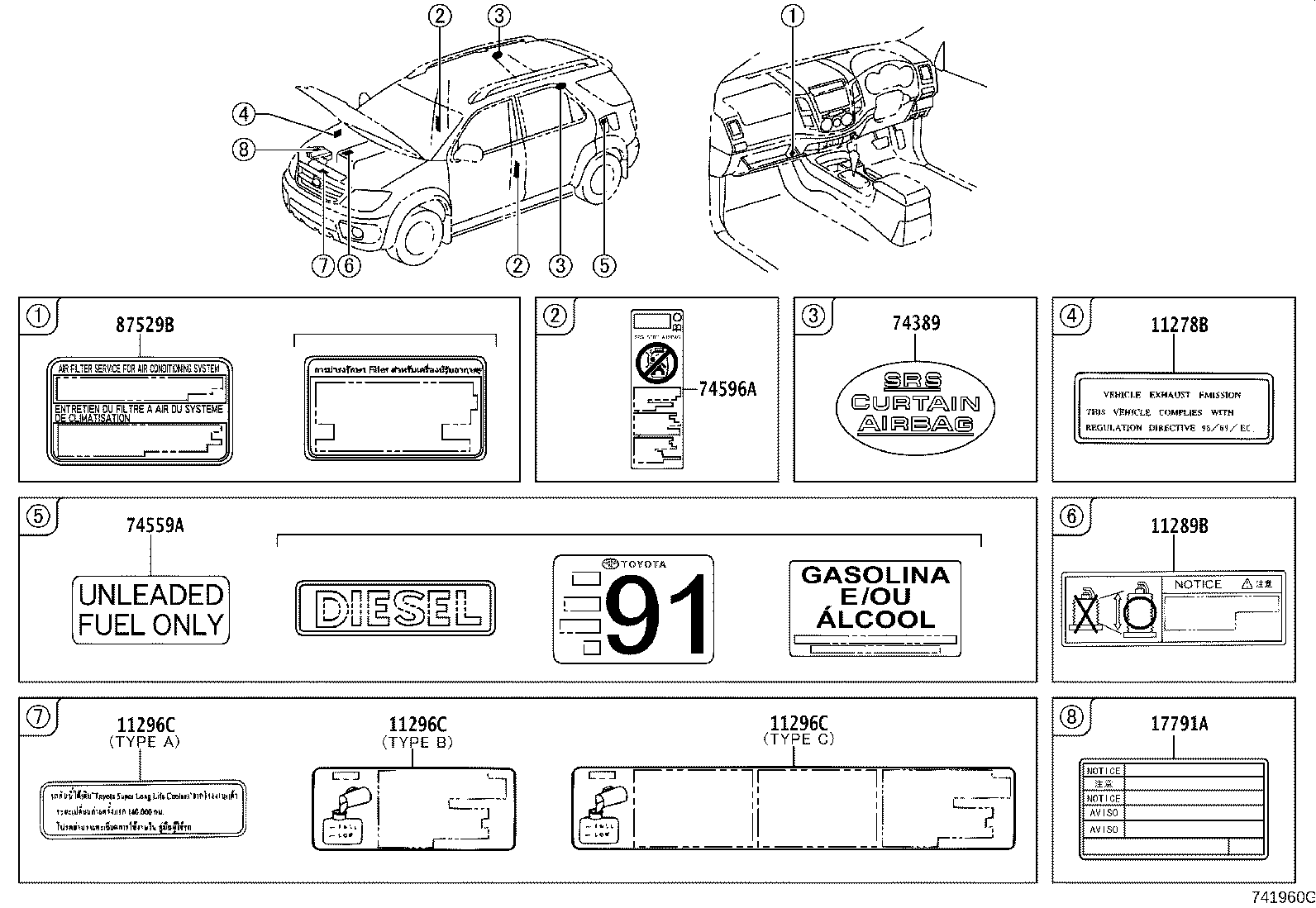

Caution Plate
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 17791A | Label, Maintenance Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 36369 | Label, Transfer Information |
| 41991A | Plate, Caution |
| 69339A | Plate, Child Protector Lock Caution |
| 74389 | Label, Airbag Caution |
| 74515A | Plate, Theft Warning |
| 74541 | Plate, Tire Pressure Caution |
| 74543C | Label, Rear Seat Information |
| 74559A | Plate, Fuel Caution |
| 74596A | Label, Side Airbag Caution |
| 74598C | Label, Passenger Airbag Caution |
| 82685 | Plate, Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
