Toyota Fortuner
2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General
Supported model
Data version 2012-04

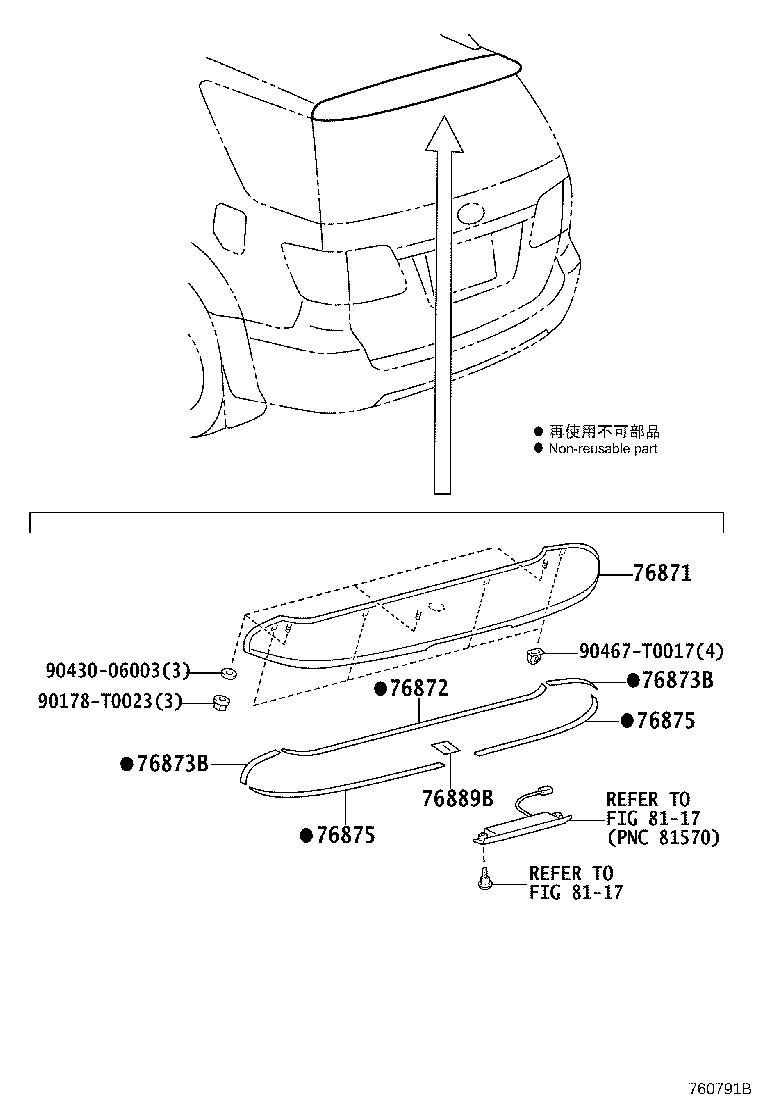

Spoiler & Side Mudguard
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53847C | Extension, Front Wheel Opening, RH |
| 53848B | Extension, Front Wheel Opening, LH |
| 53851W | Pad, Front Wheel Opening Extension, NO.1 |
| 53851X | Pad, Front Wheel Opening Extension, NO.1 |
| 61681E | Extension, Rear Wheel Opening, NO.1 RH |
| 61682D | Extension, Rear Wheel Opening, NO.1 LH |
| 61691C | Extension, Rear Wheel Opening, NO.2 RH |
| 61692F | Extension, Rear Wheel Opening, NO.2 LH |
| 61783B | Pad, Rear Wheel Opening Extension, NO.1 |
| 61784E | Pad, Rear Wheel Opening Extension, NO.2 |
| 75396D | Clip, Outside Moulding, NO.2 |
| 75741F | Moulding, Rear Door, Outside RH |
| 75742E | Moulding, Rear Door, Outside LH |
| 75767D | Pad, Rear Door Moulding,NO.1 |
| 76621D | Mudguard, Front Fender, RH |
| 76622D | Mudguard, Front Fender, LH |
| 76625G | Mudguard, Quarter Panel, Rear RH |
| 76626E | Mudguard, Quarter Panel, Rear LH |
| 76648 | Support, Rear Body Mudguard, RH |
| 76648C | Support, Rear Body Mudguard, LH |
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 77277V | Protector, Fuel Tank Filler Pipe, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
