Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 11 illustrations

Illustrations

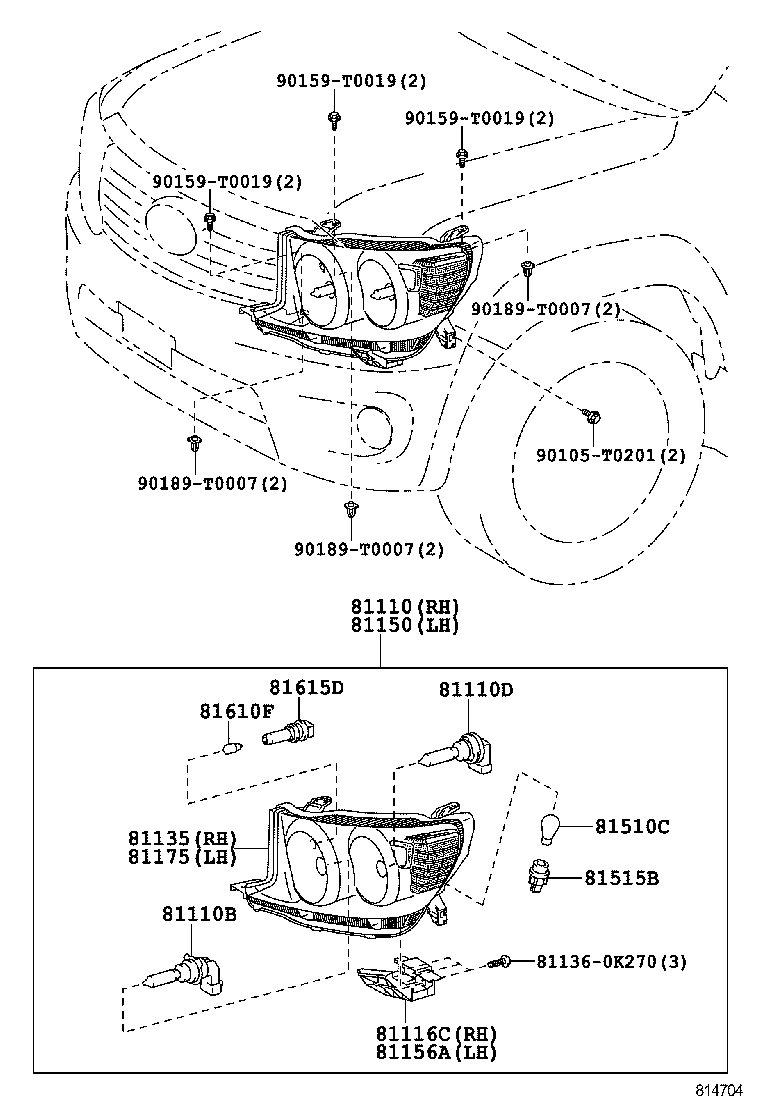

Figure 813165E 813165E 2005-01 → 2008-08 Figure 813165E 813165E 2005-01 → 2008-10 Figure 813165E 813165E 2005-08 → 2008-09 Figure 813165E 813165E 2006-02 → 2008-12 Figure 813165E 813165E 2006-02 → 2009-03 Figure 814704 814704 2008-08 → — Figure 814704 814704 2008-09 → — Figure 814704 814704 2008-10 → — Figure 814704 814704 2008-12 → — Figure 814704 814704 2009-02 → — Figure 814704 814704 2009-03 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81116C Bracket, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81150 Headlamp Assy, LH
81156A Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
