Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

24 part groups · 11 illustrations

Illustrations

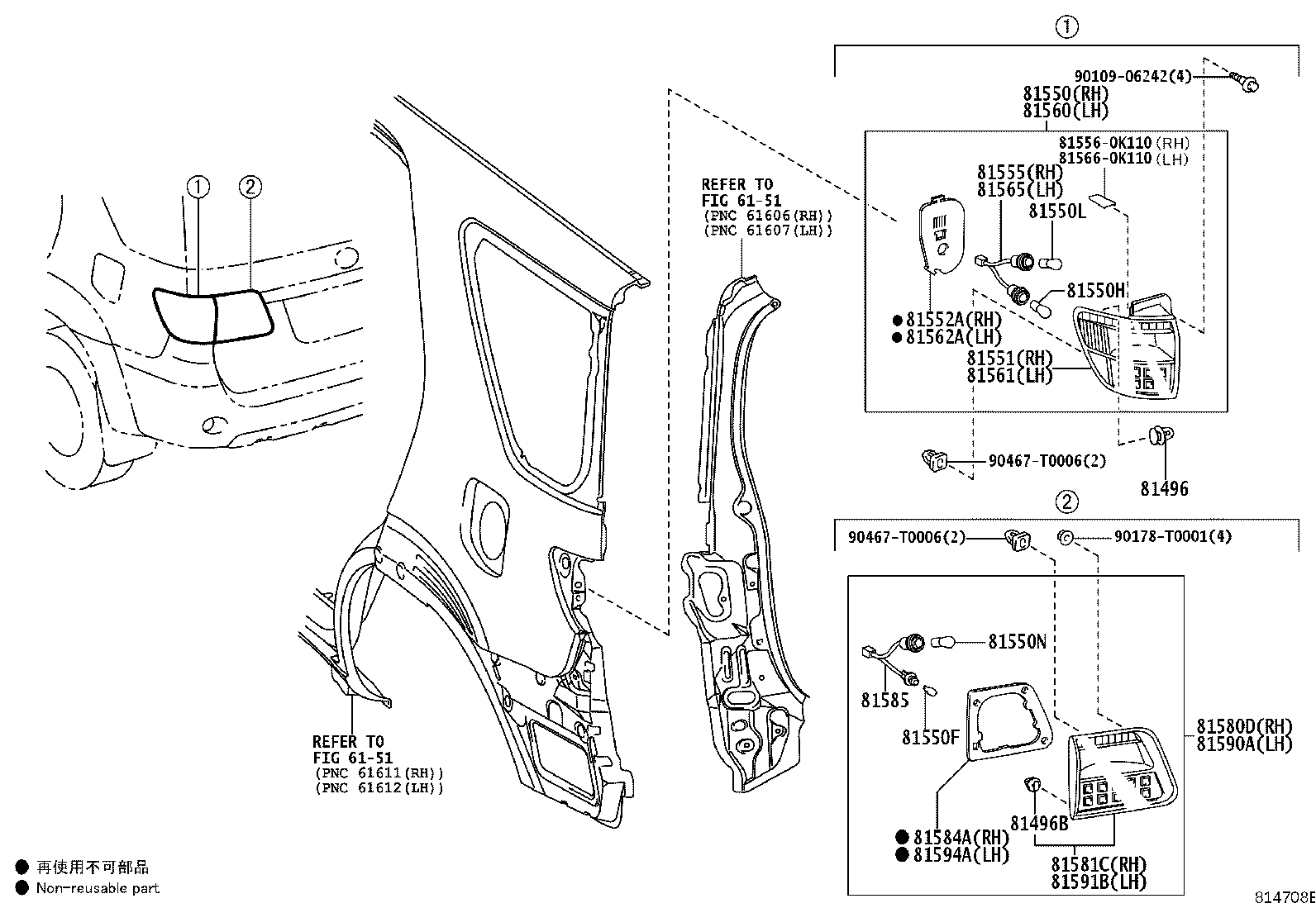

Figure 813154F 813154F 2005-01 → 2008-08 Figure 813154F 813154F 2005-01 → 2008-09 Figure 813154F 813154F 2005-01 → 2008-10 Figure 813154F 813154F 2005-01 → 2008-12 Figure 813154F 813154F 2005-01 → 2009-03 Figure 814708E 814708E 2008-08 → — Figure 814708E 814708E 2008-09 → — Figure 814708E 814708E 2008-10 → — Figure 814708E 814708E 2008-12 → — Figure 814708E 814708E 2009-02 → — Figure 814708E 814708E 2009-03 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81550 Lamp Assy, Rear Combination, RH
81550F Bulb, Taillamp
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81552C Gasket, Rear Combination Lamp
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81580F Socket Plug, Rear Lamp
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81590A Lamp Assy, Rear, LH
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
