Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 15 illustrations

Illustrations

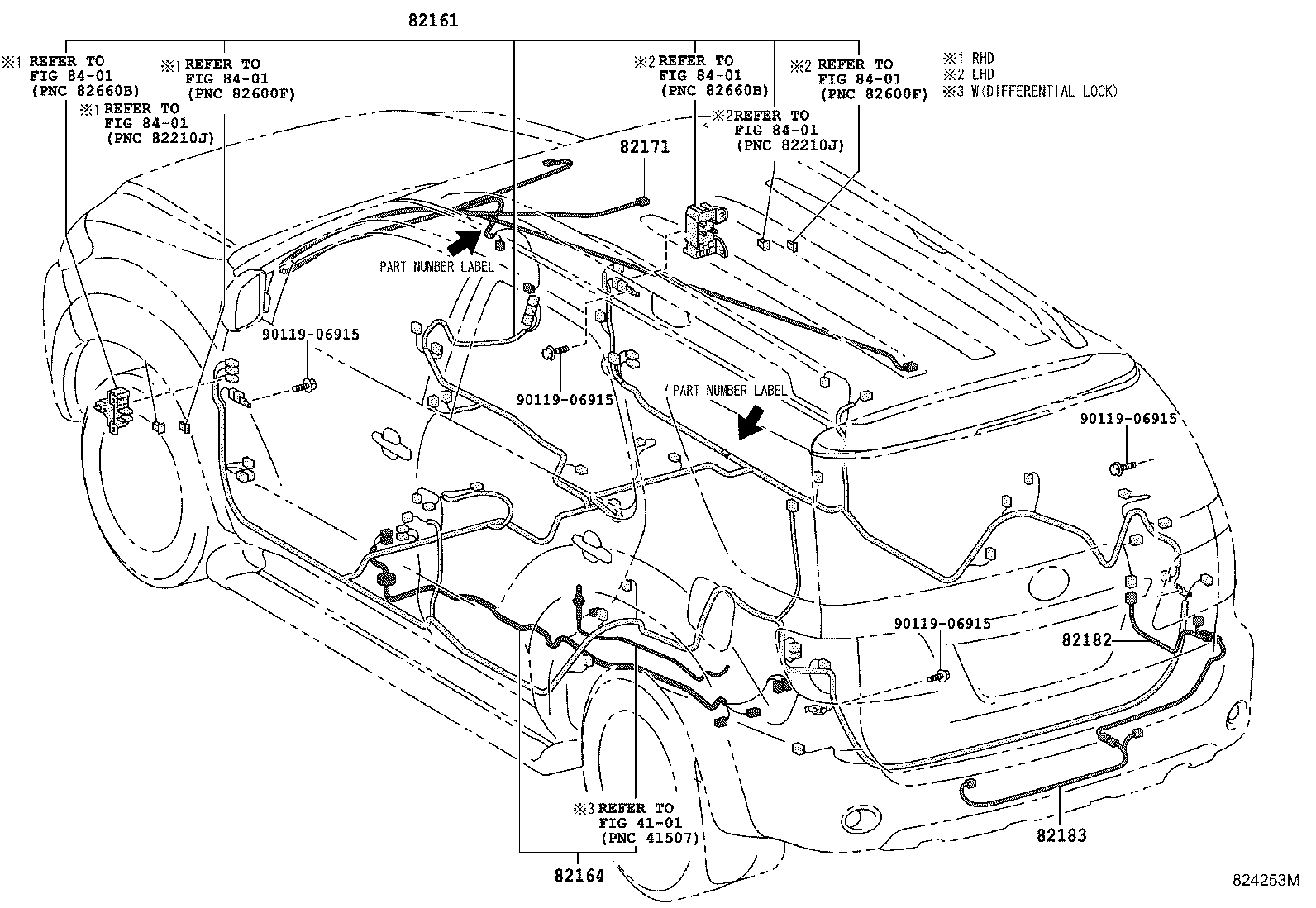

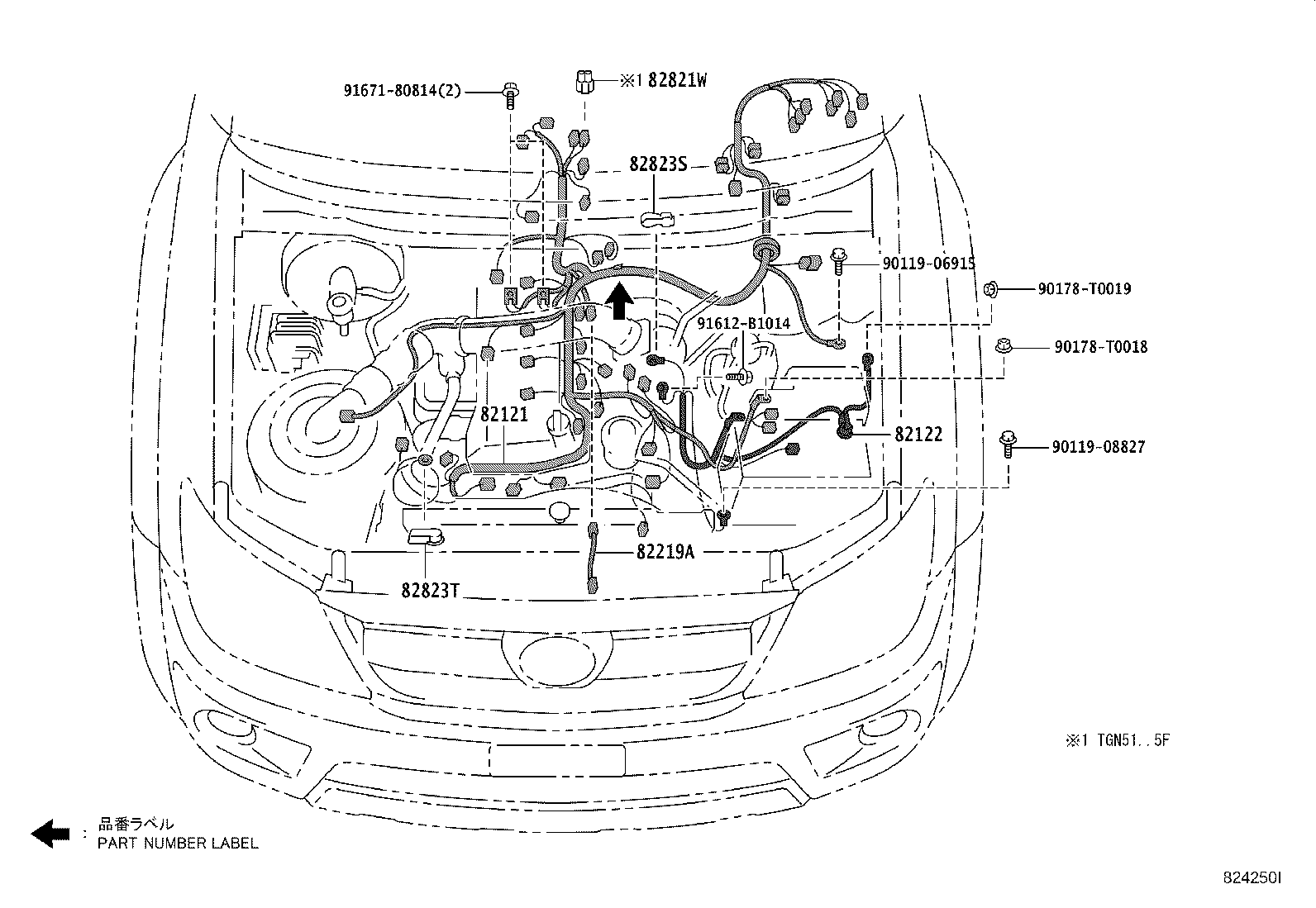

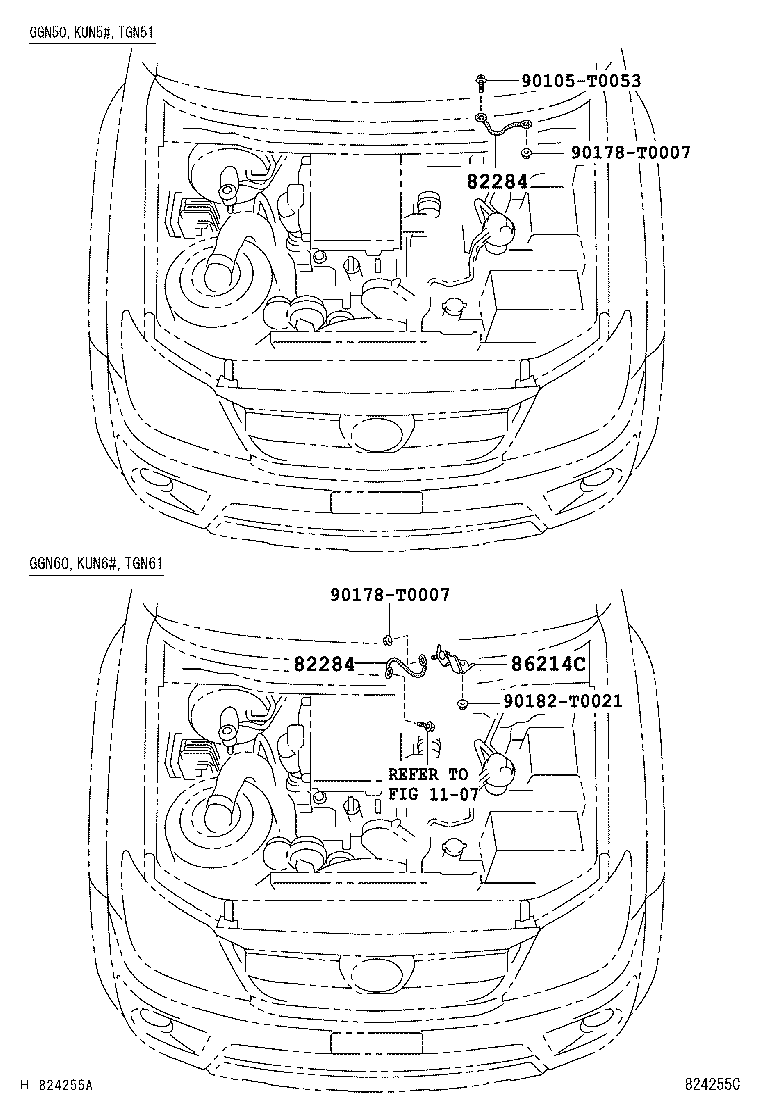

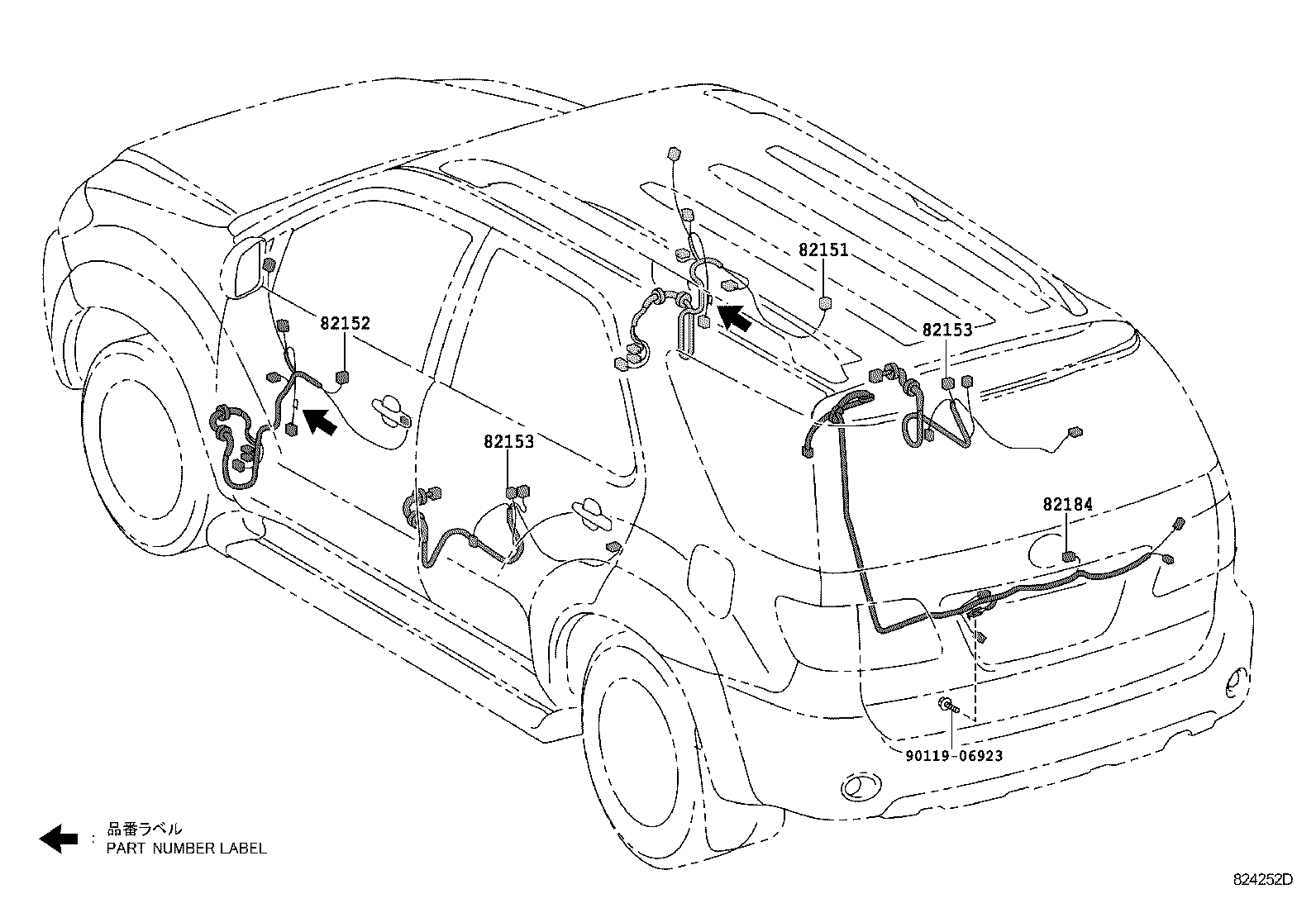

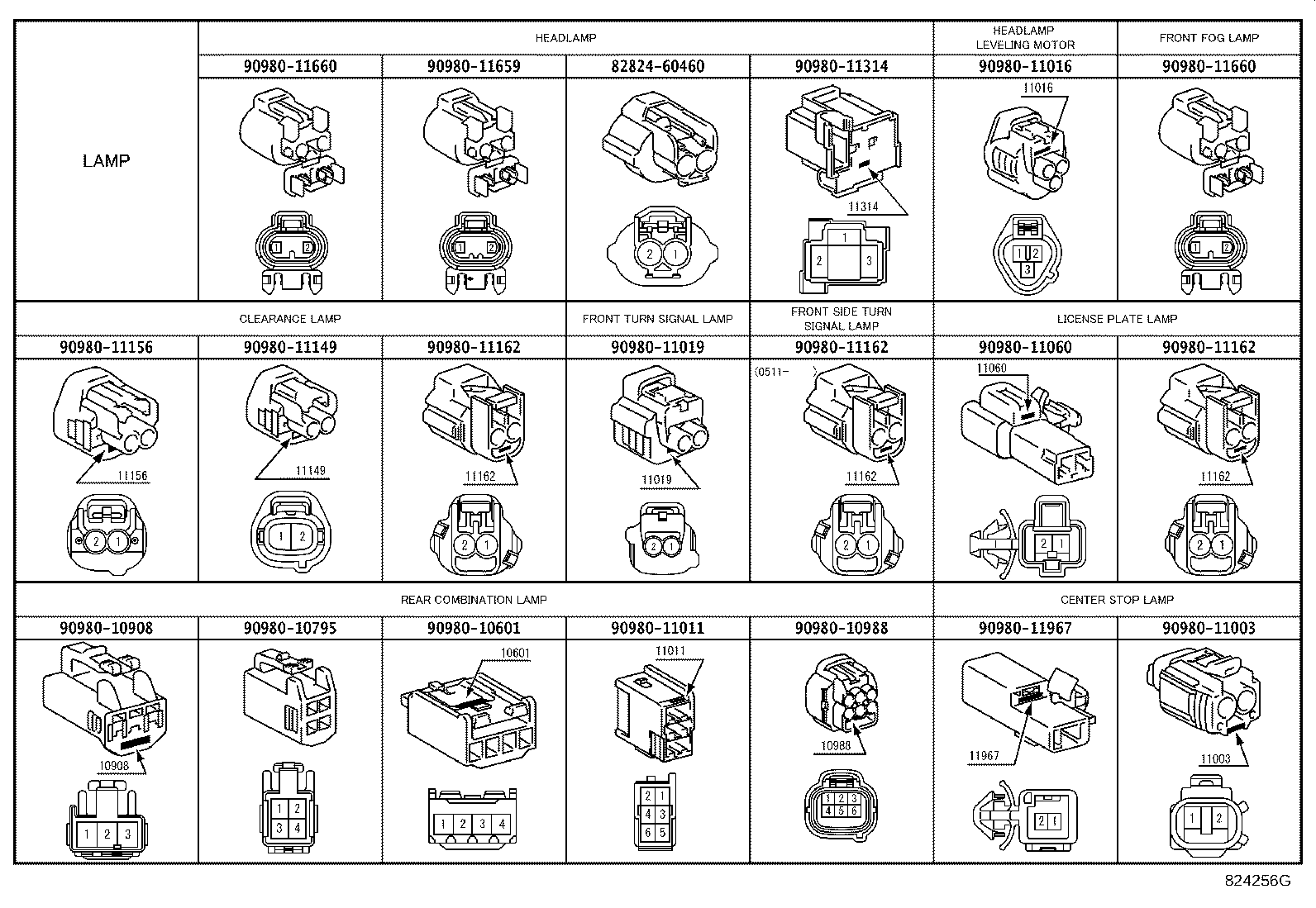

Figure 824248I 824248I 2005-01 → — Figure 824249I 824249I 2005-01 → — Figure 824250I 824250I 2005-01 → — Figure 824395I 824395I 2005-07 → — Figure 824542D 824542D 2006-05 → — Figure 824251C 824251C 2005-01 → — Figure 824321C 824321C 2005-04 → — Figure 824252D 824252D 2005-01 → — Figure 824253M 824253M 2005-01 → — Figure 826095 826095 2008-08 → — Figure 824396E 824396E 2005-01 → — Figure 824397I 824397I 2005-01 → — Figure 824255C 824255C 2005-01 → — Figure 824256G 824256G 2005-01 → — Figure 82E283 82E283 2005-01 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

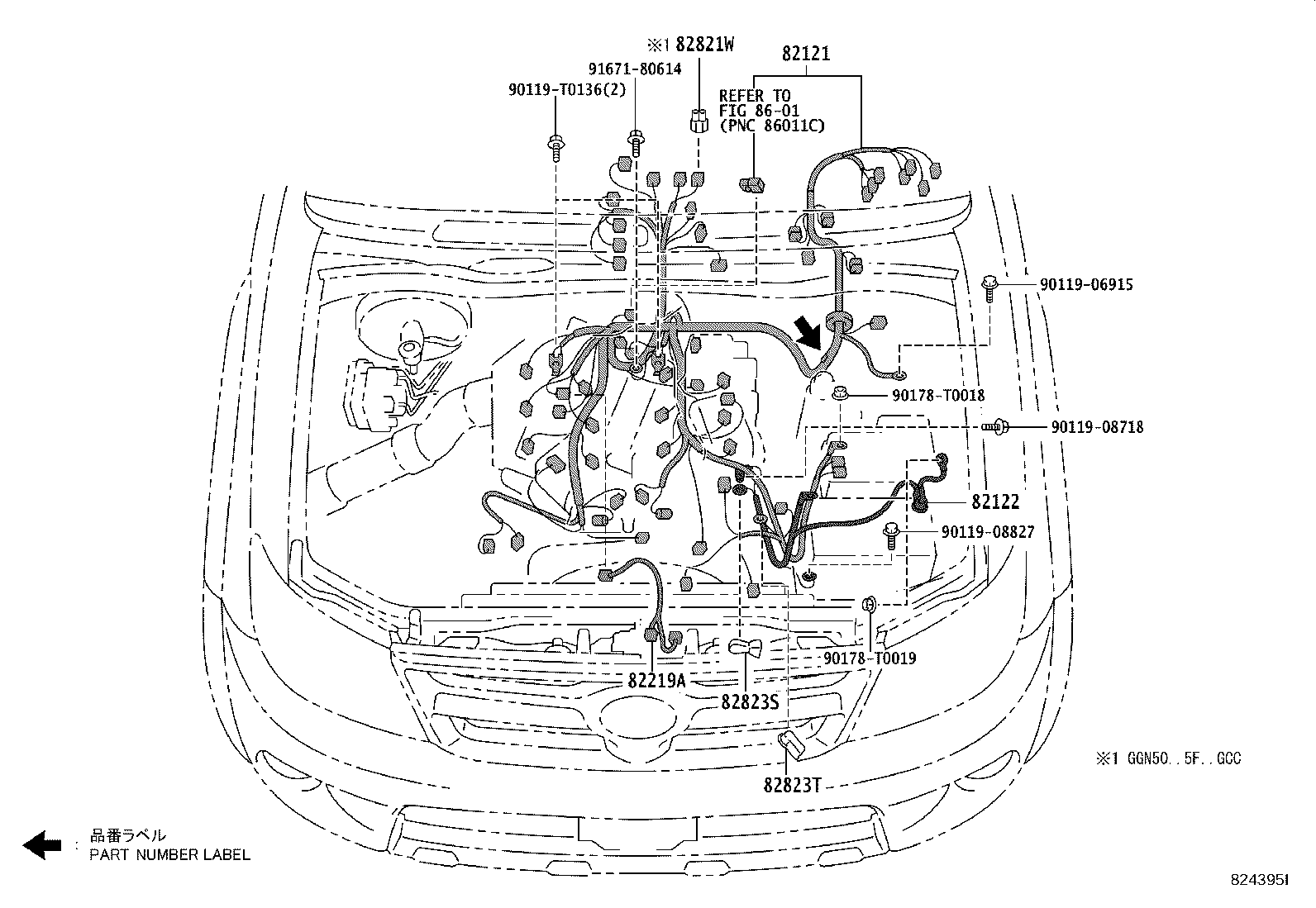

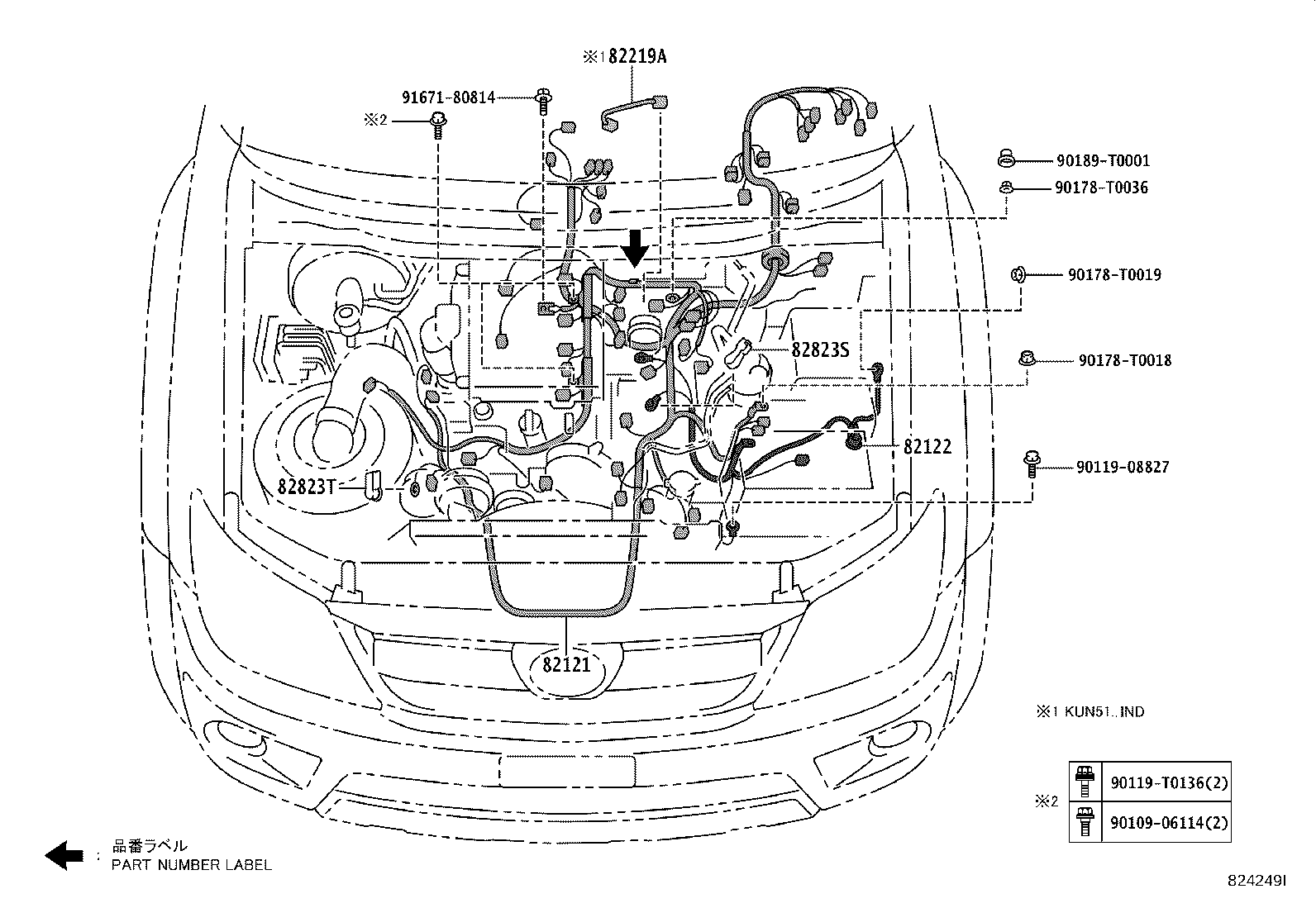

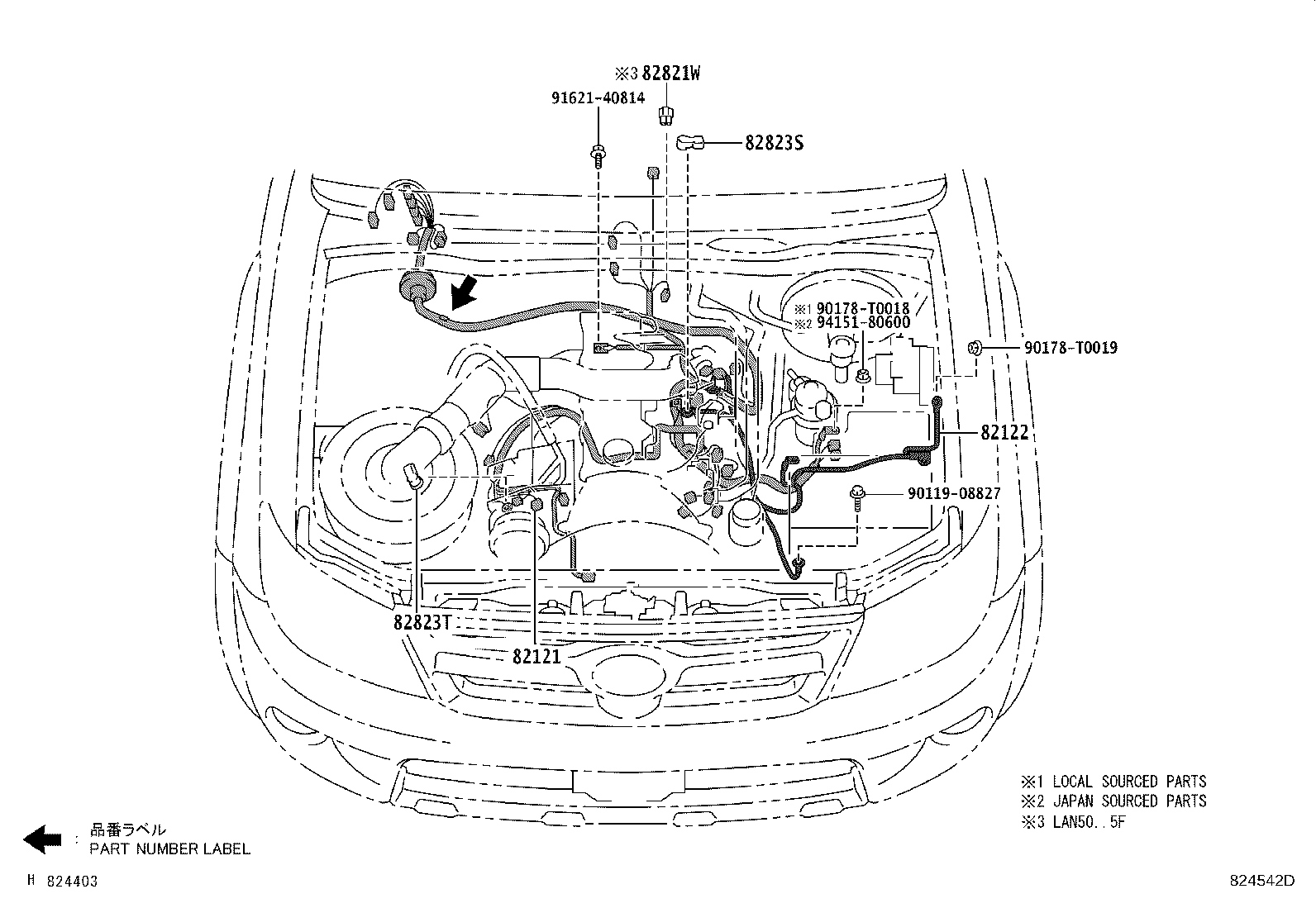

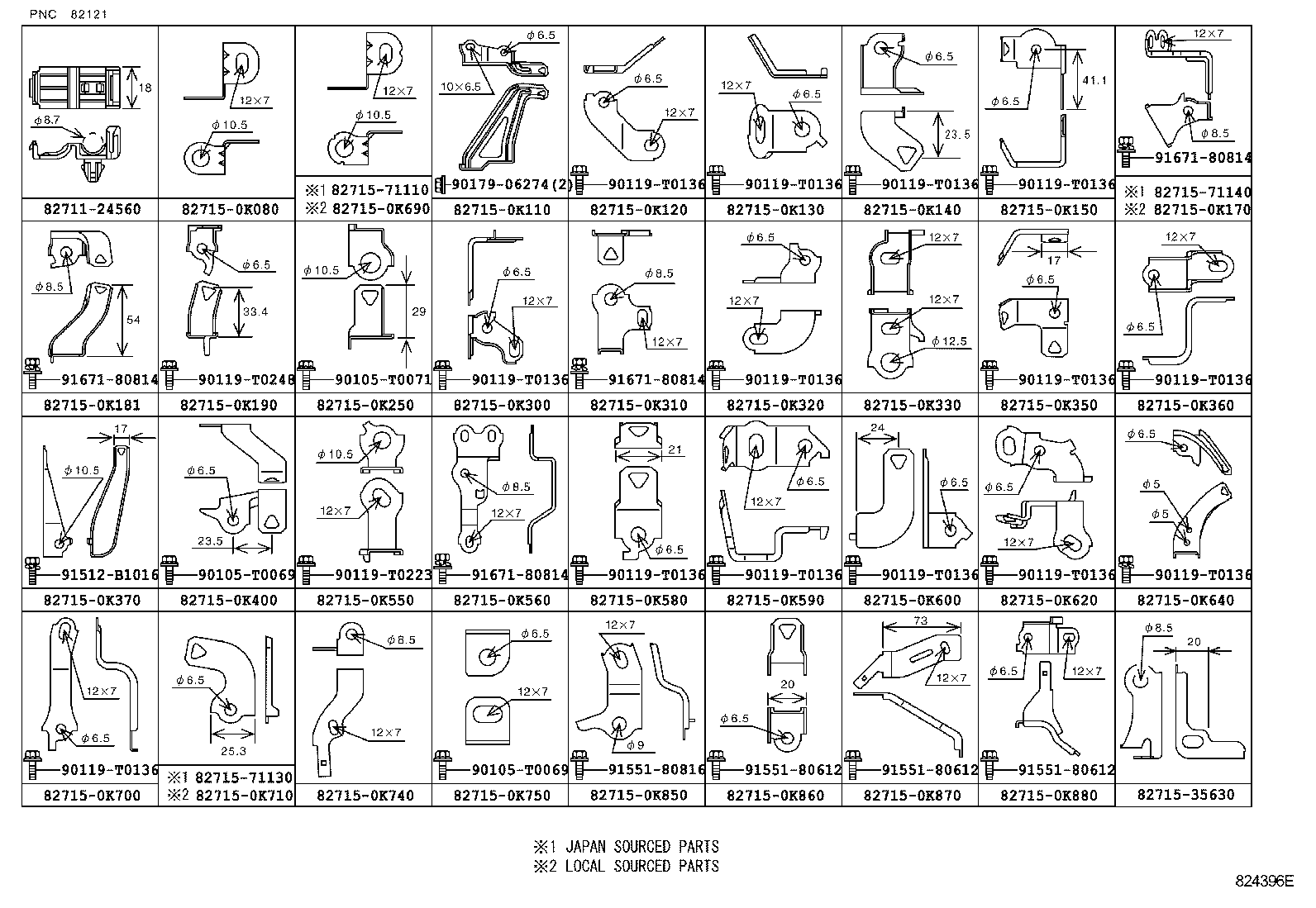

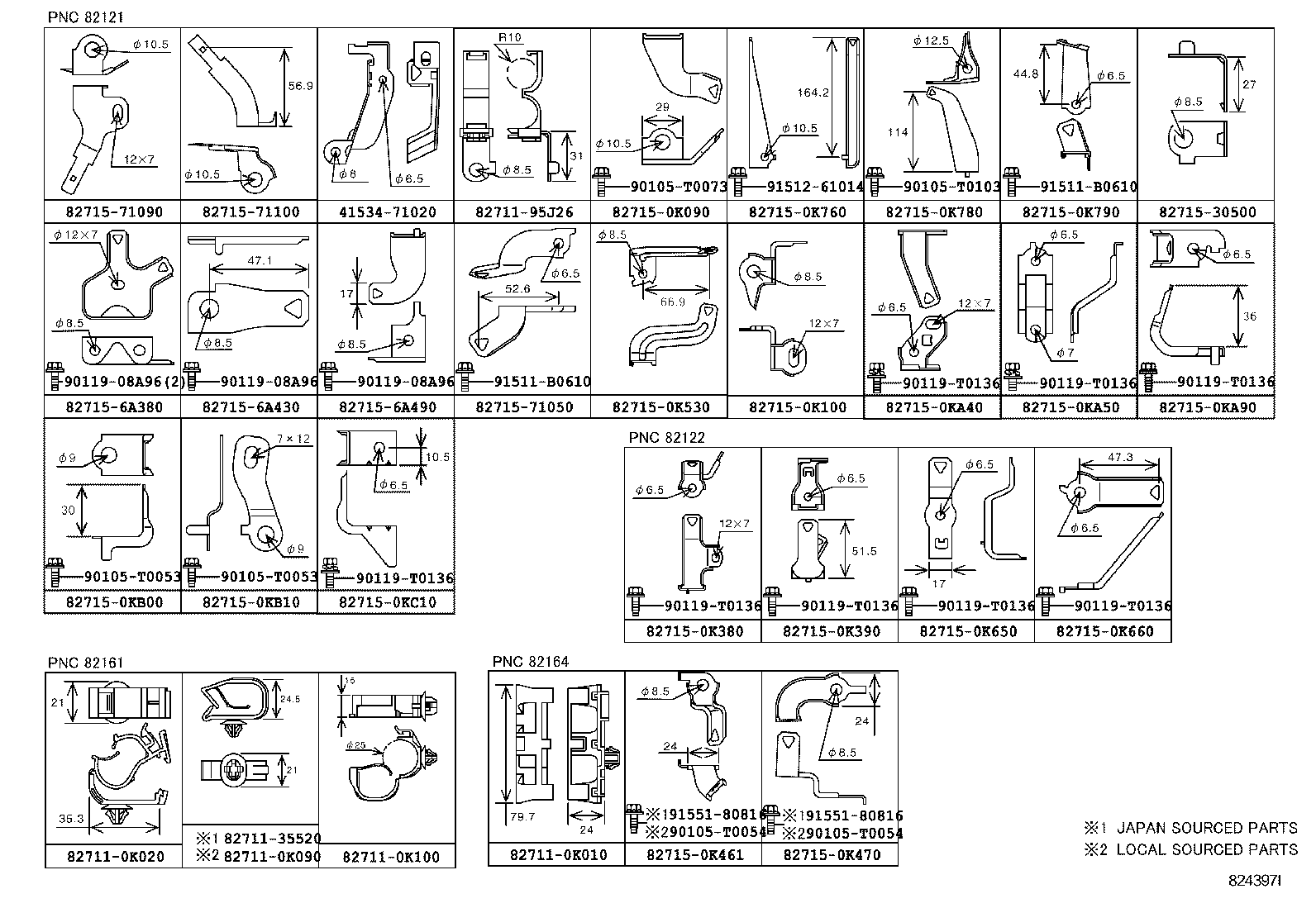

82121 Wire, Engine
82122 Wire, Engine, NO.2

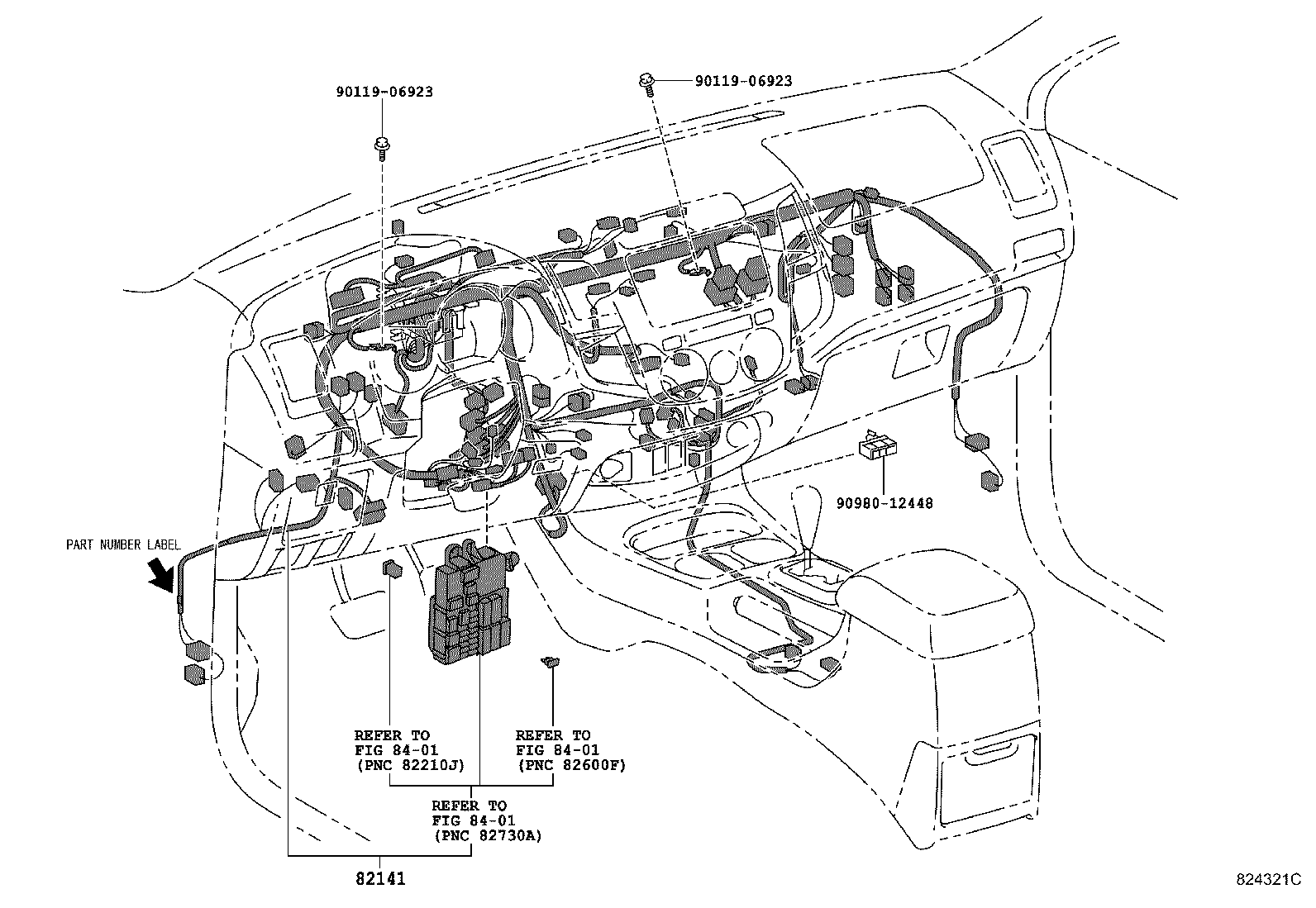

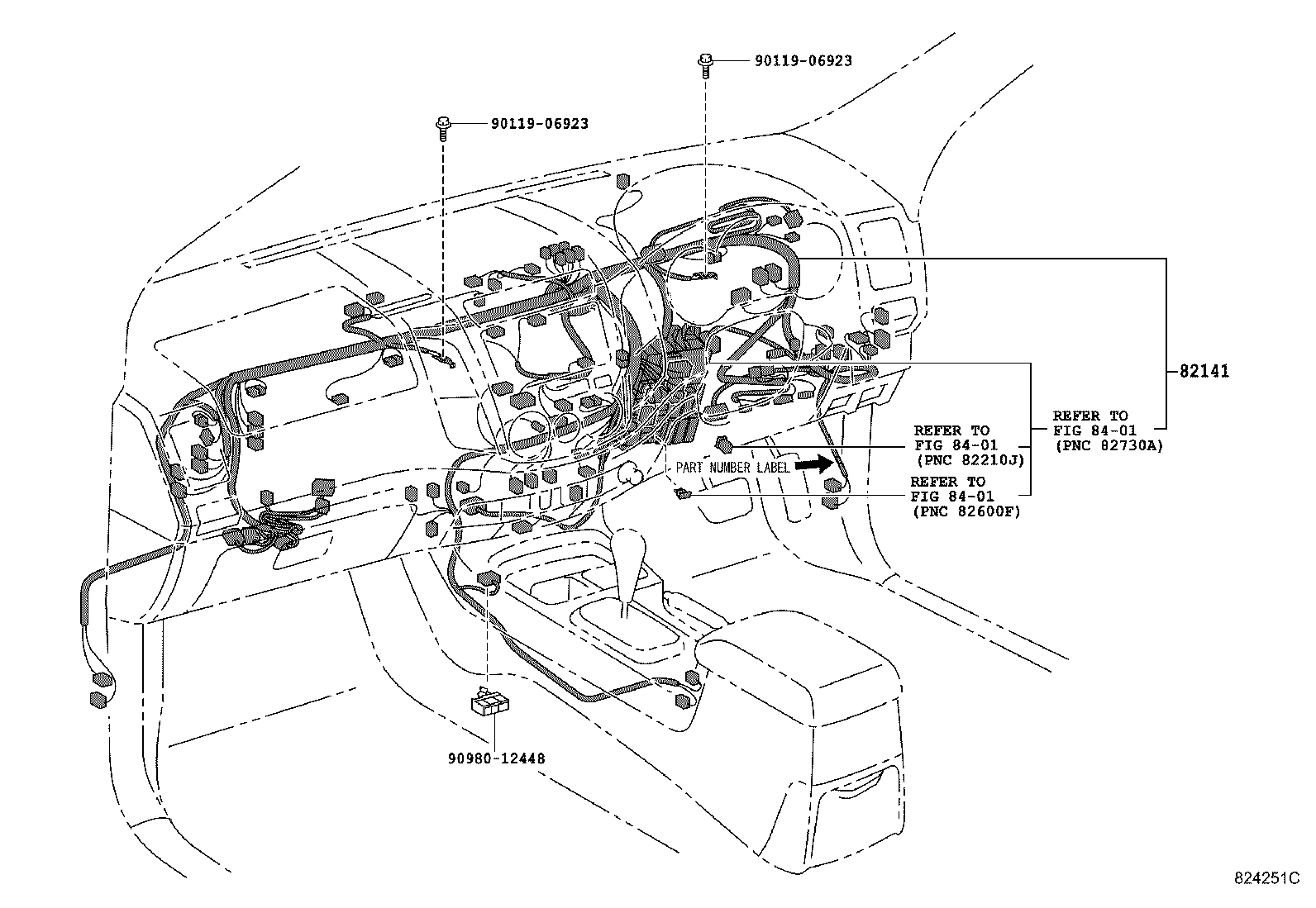

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82164 Wire, Frame
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82284 Wire, Earth
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
