Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

32 part groups · 38 illustrations

Illustrations

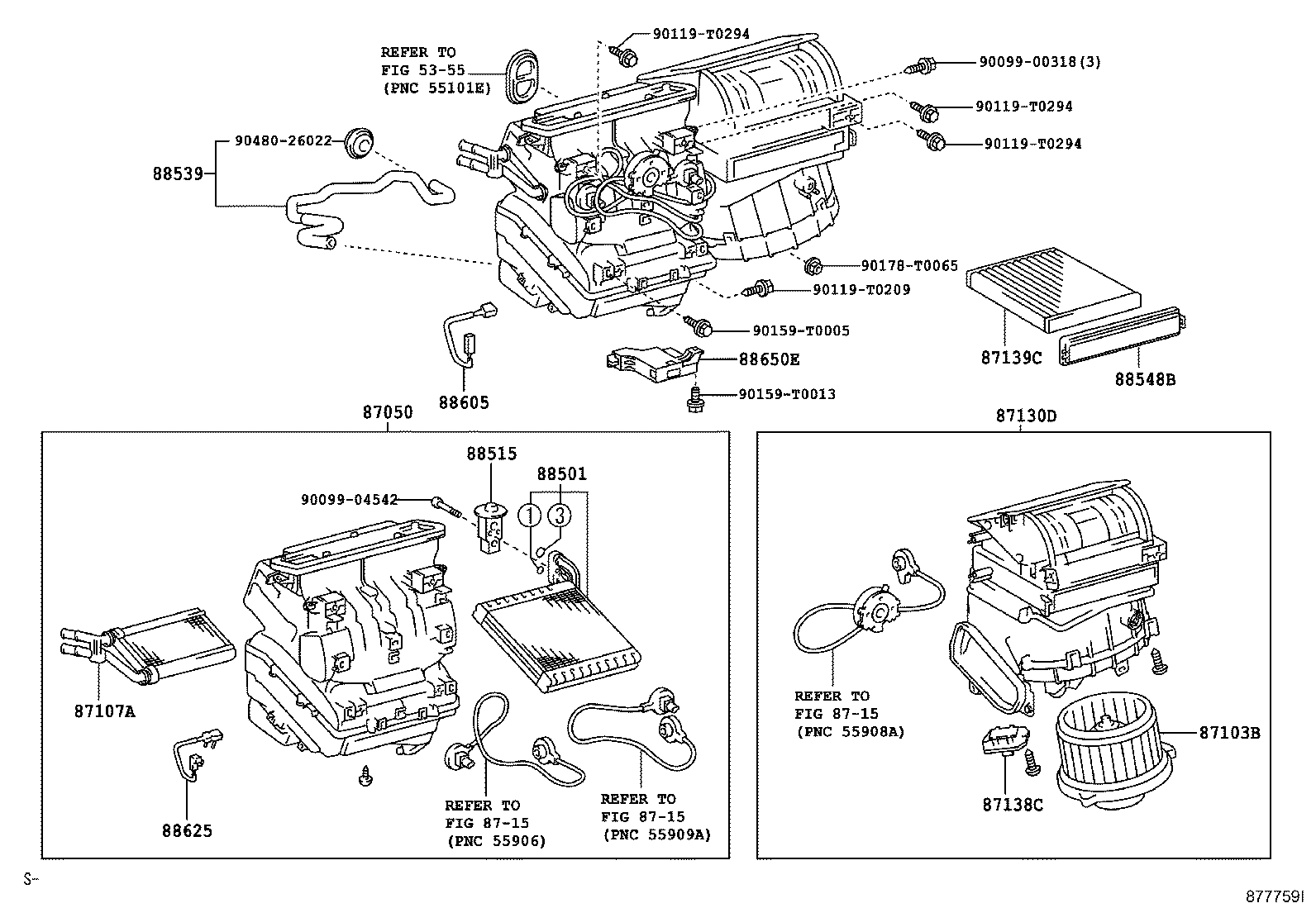

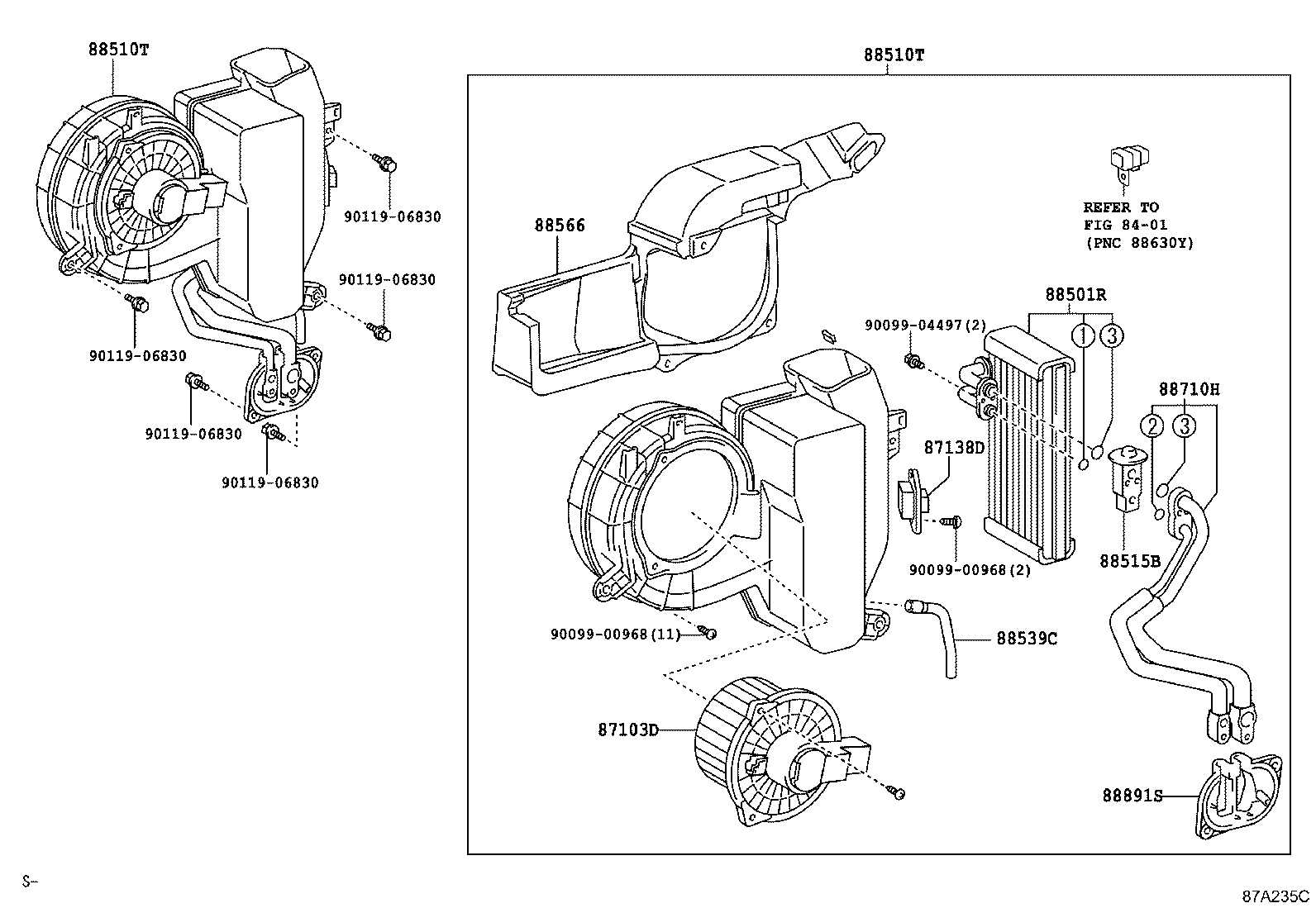

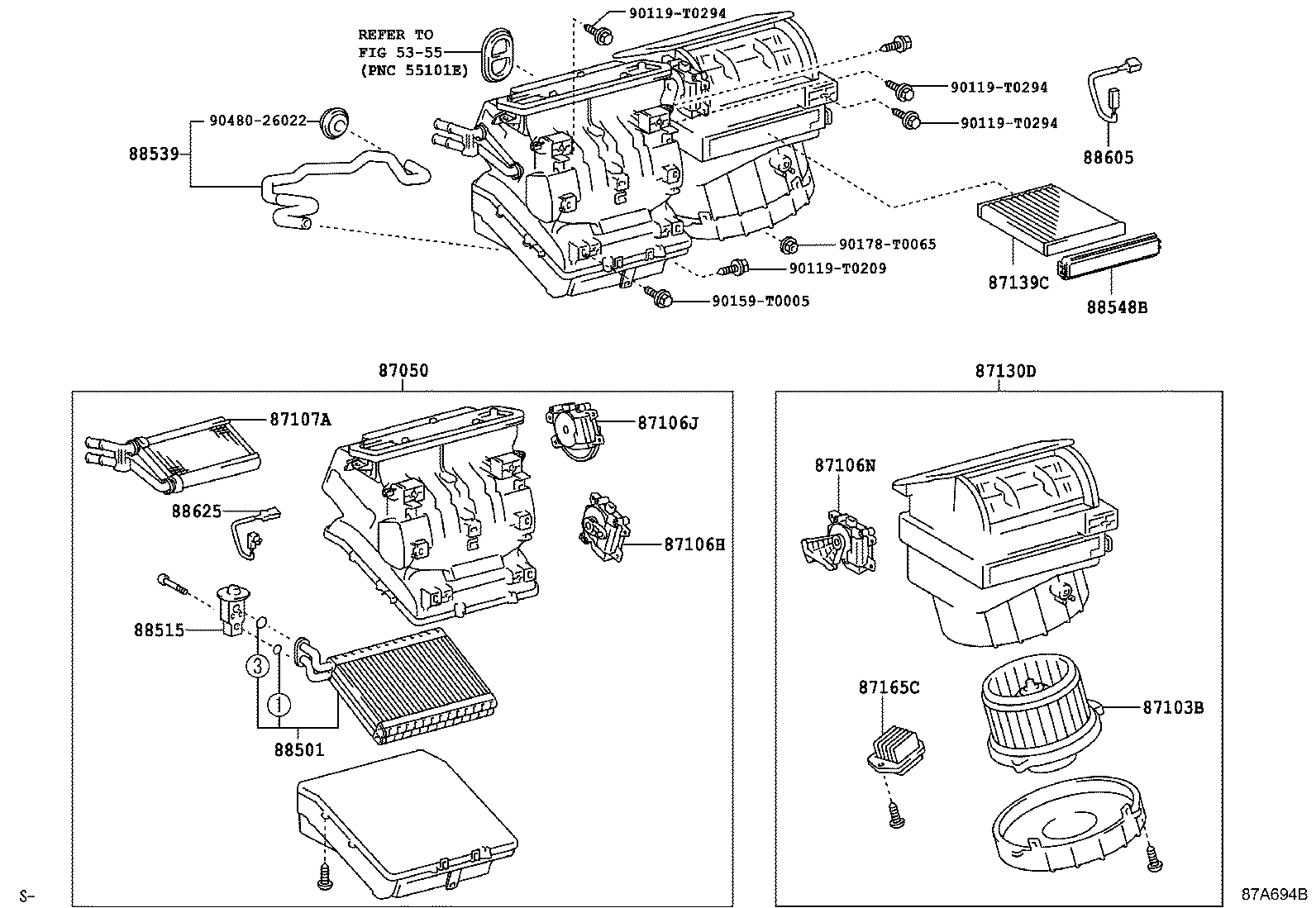

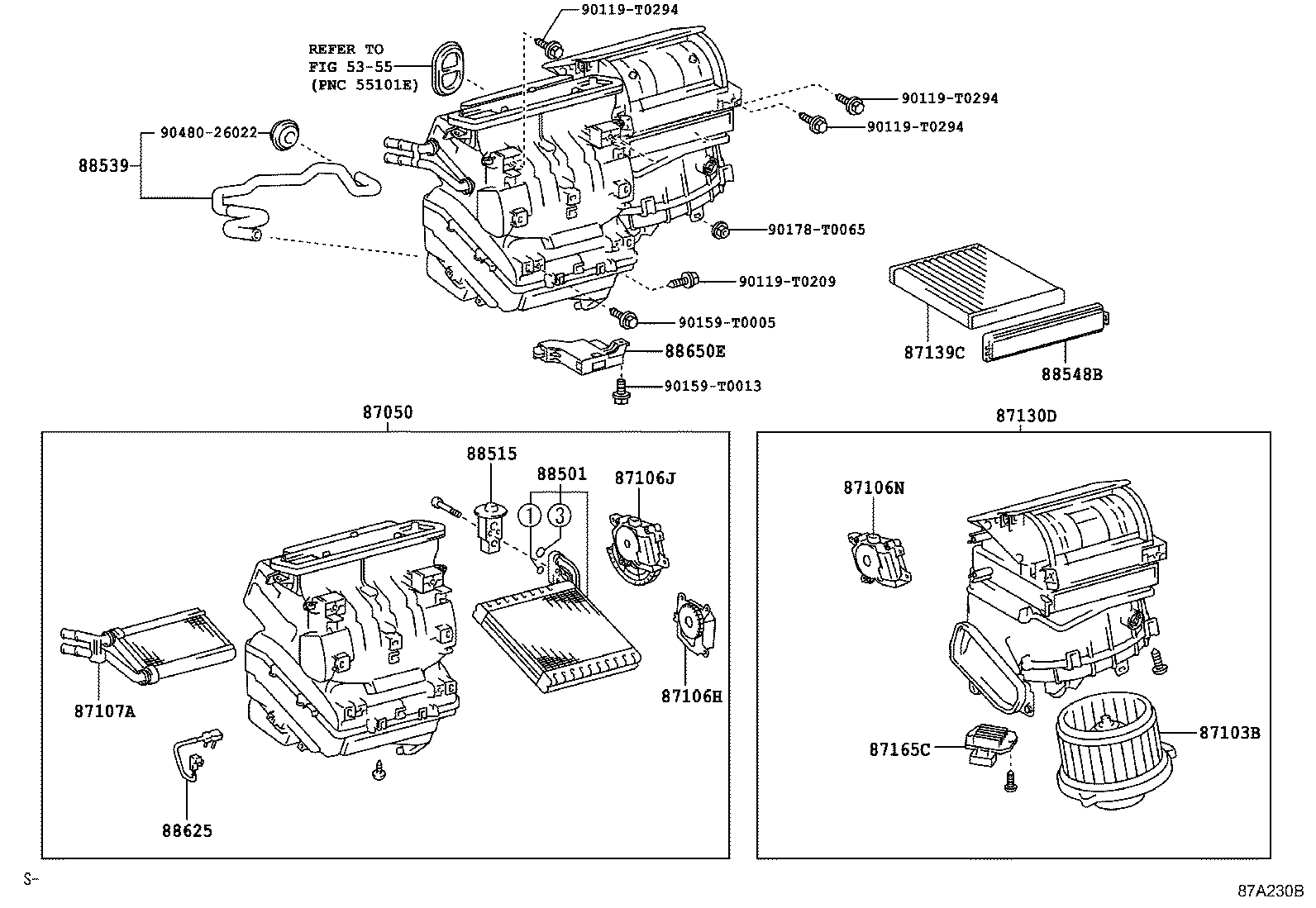

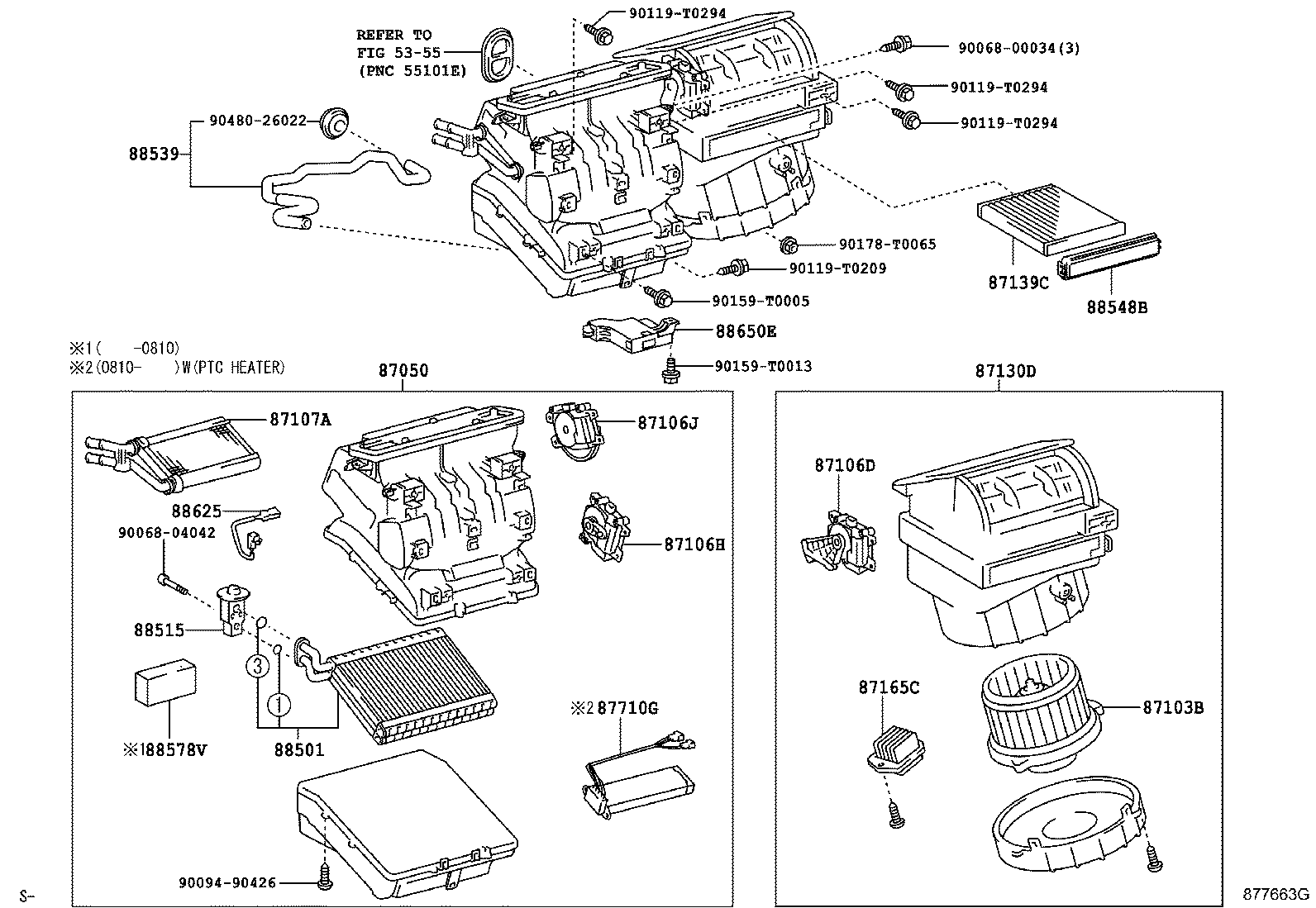

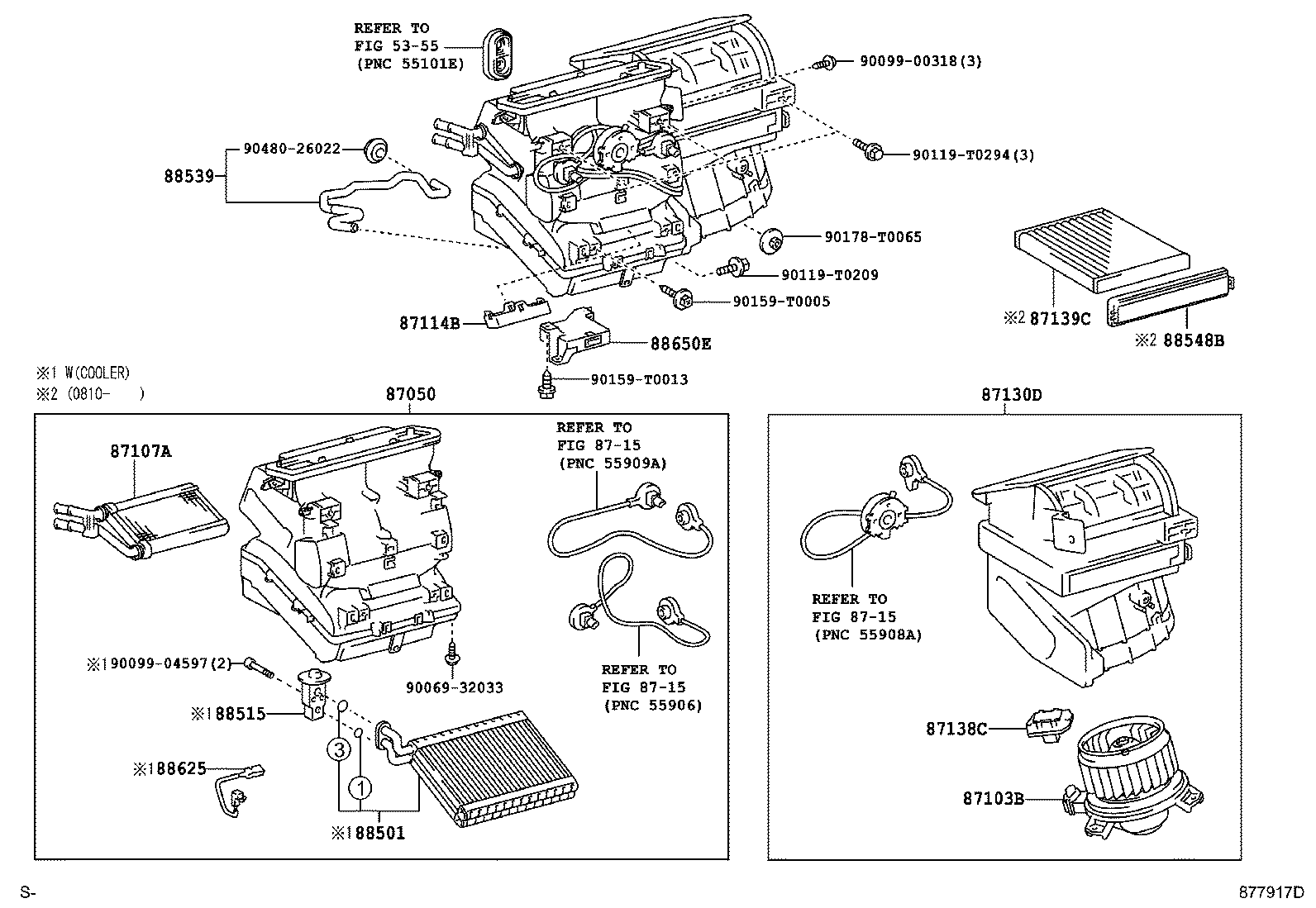

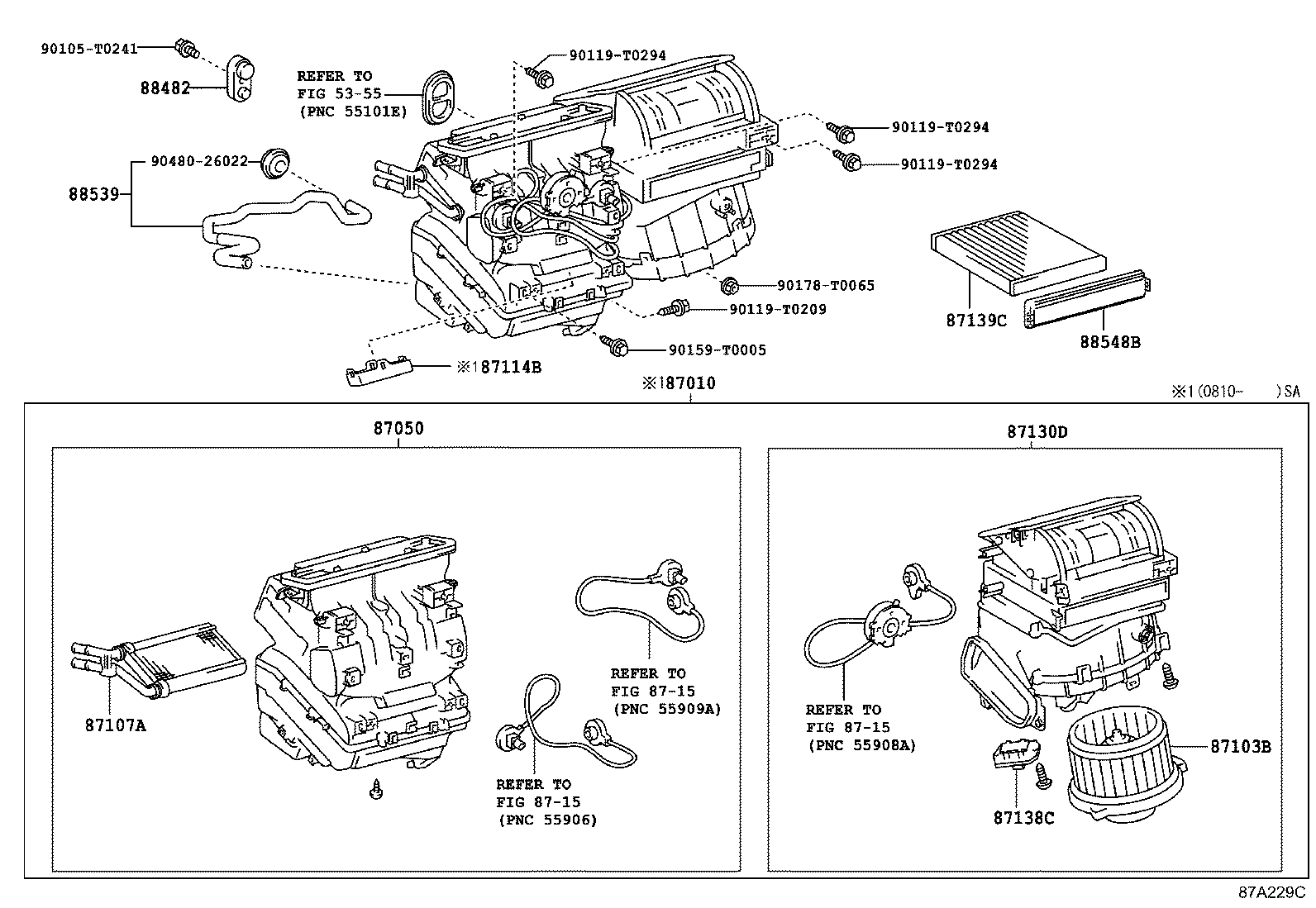

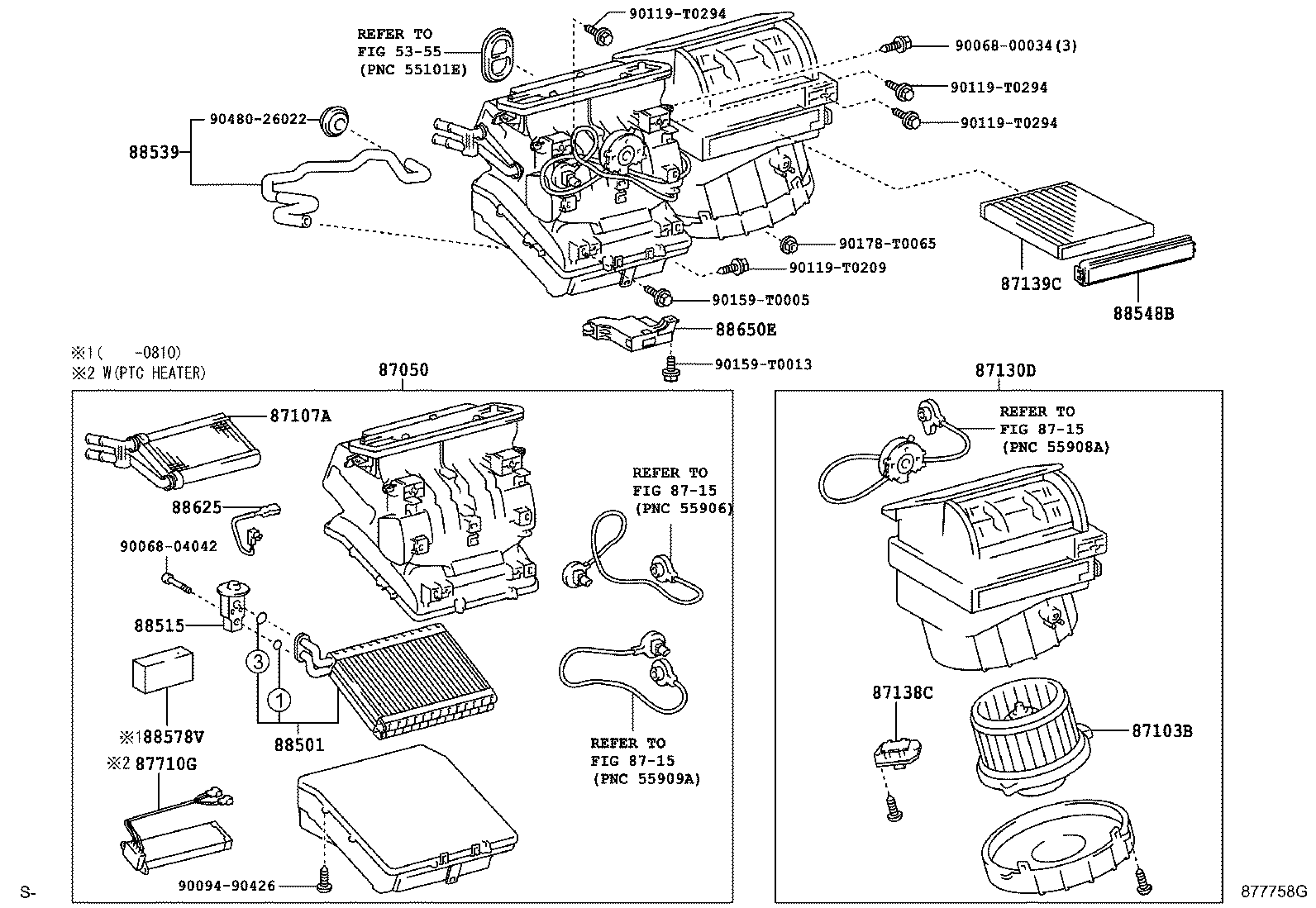

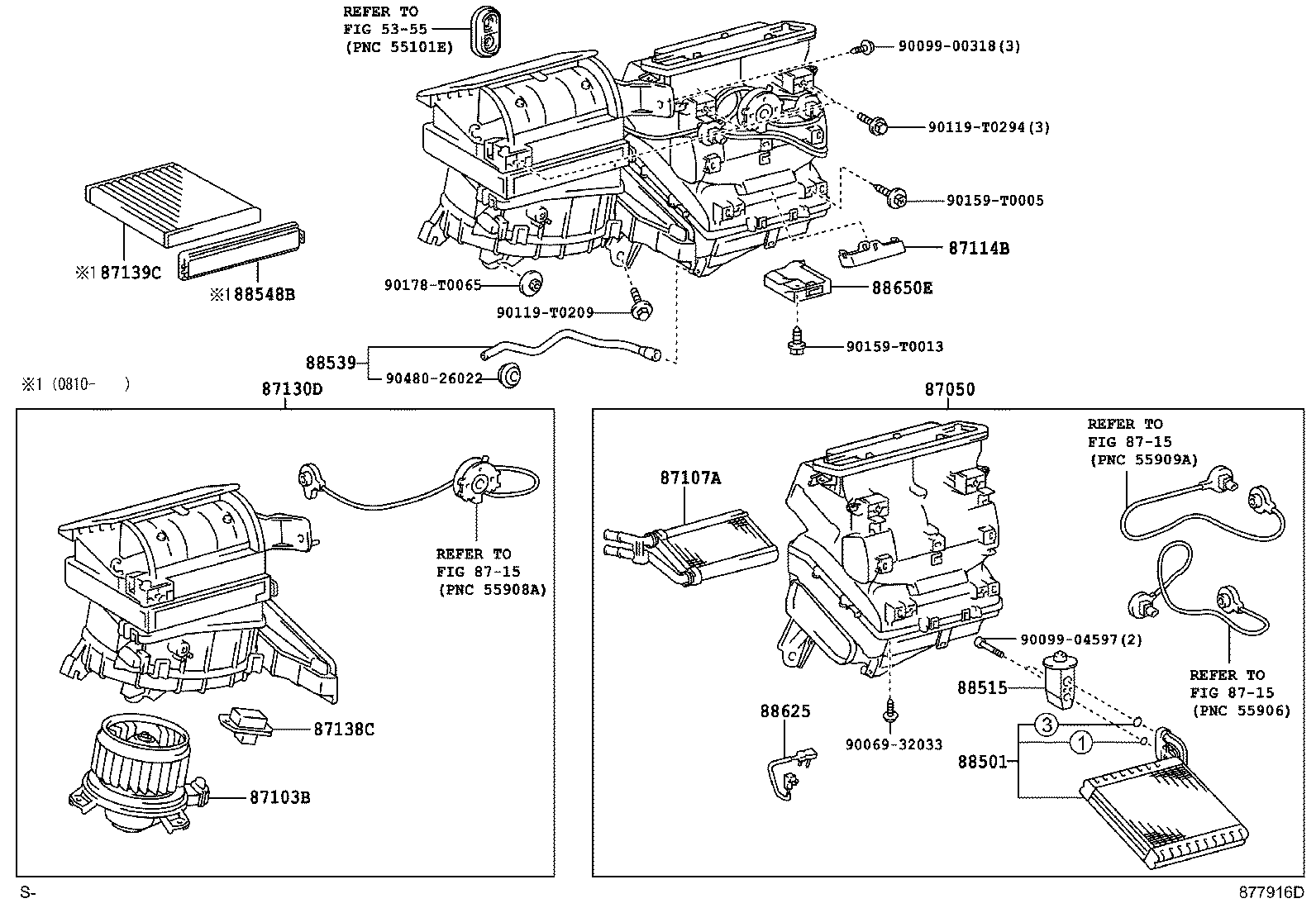

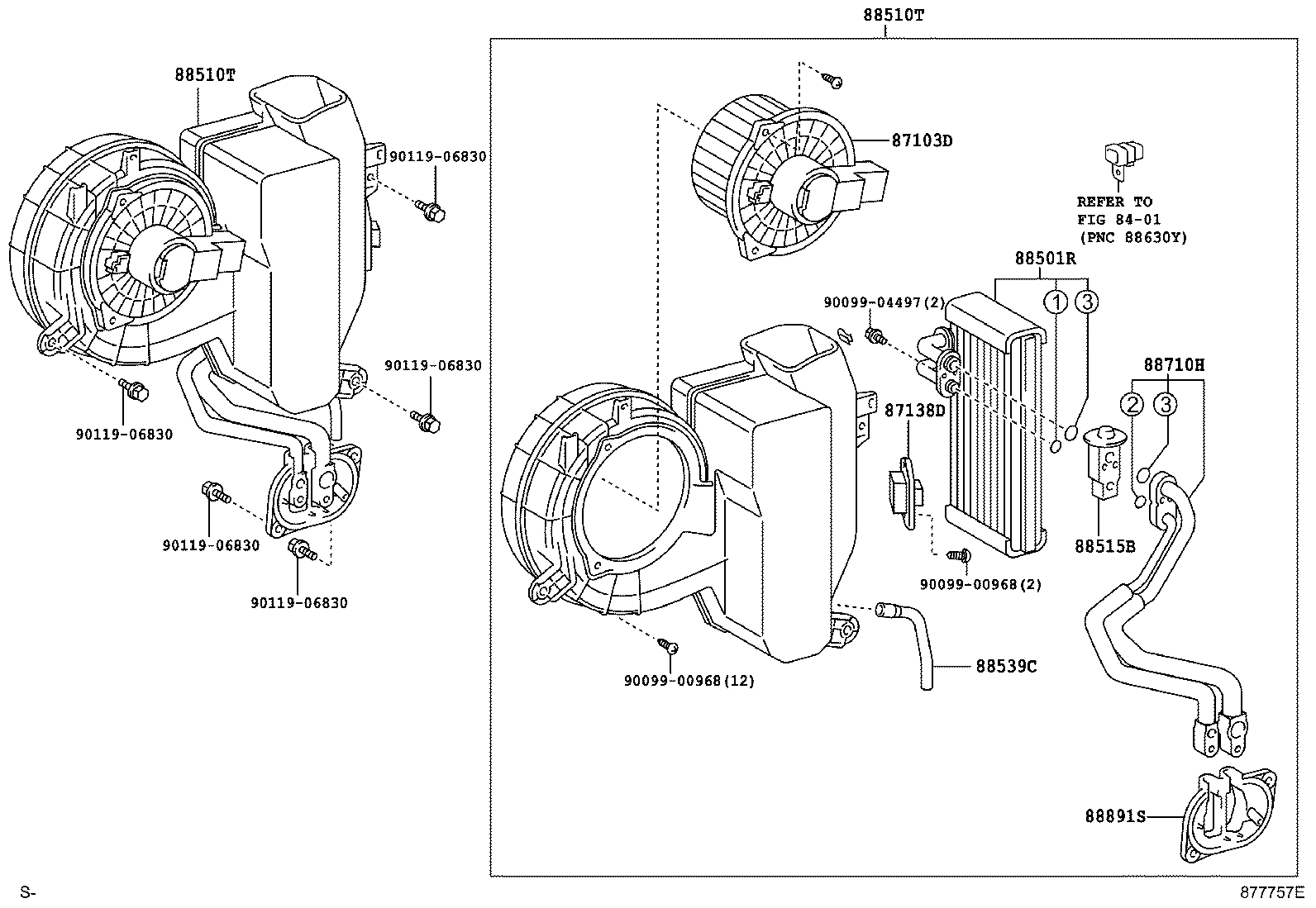

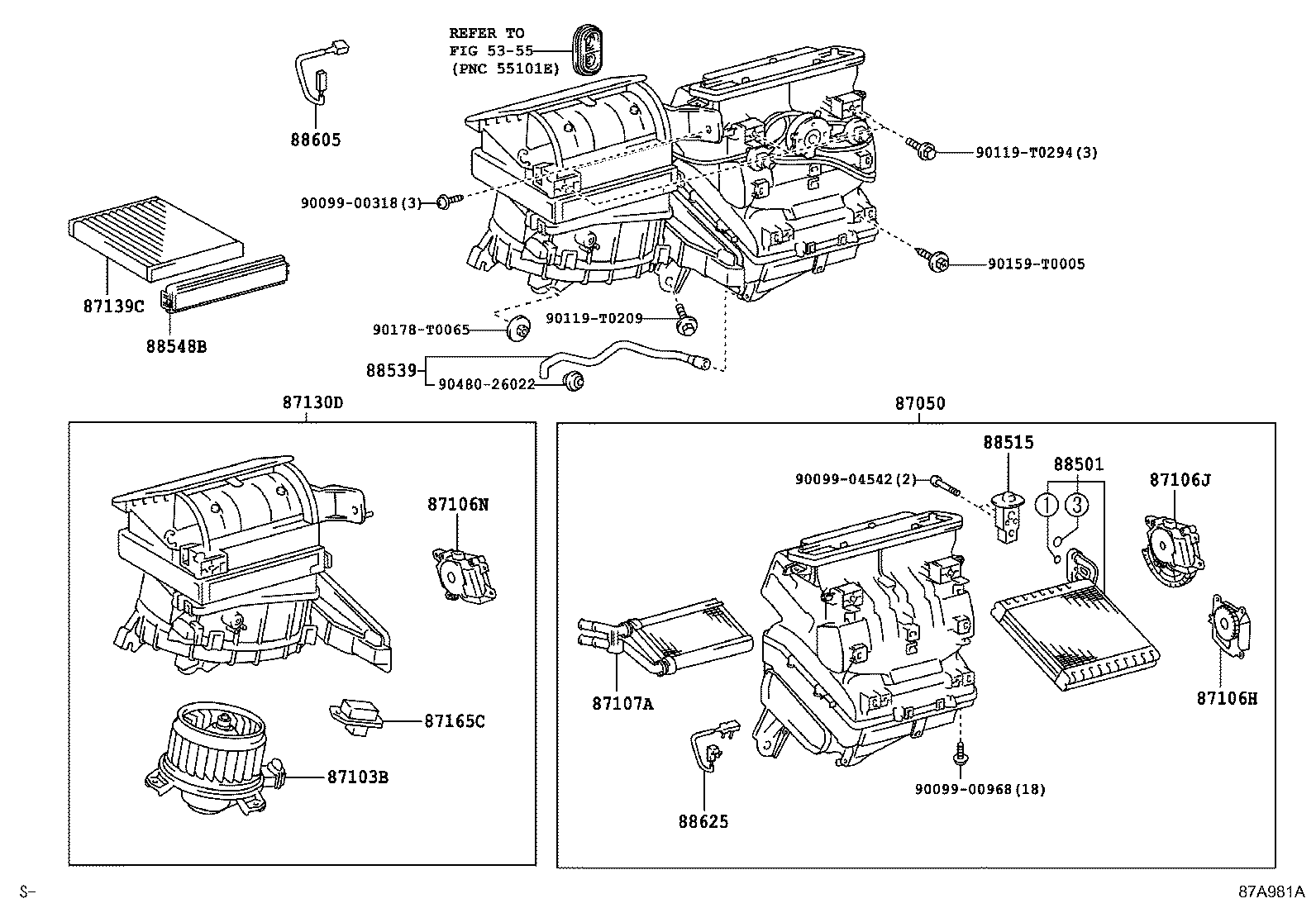

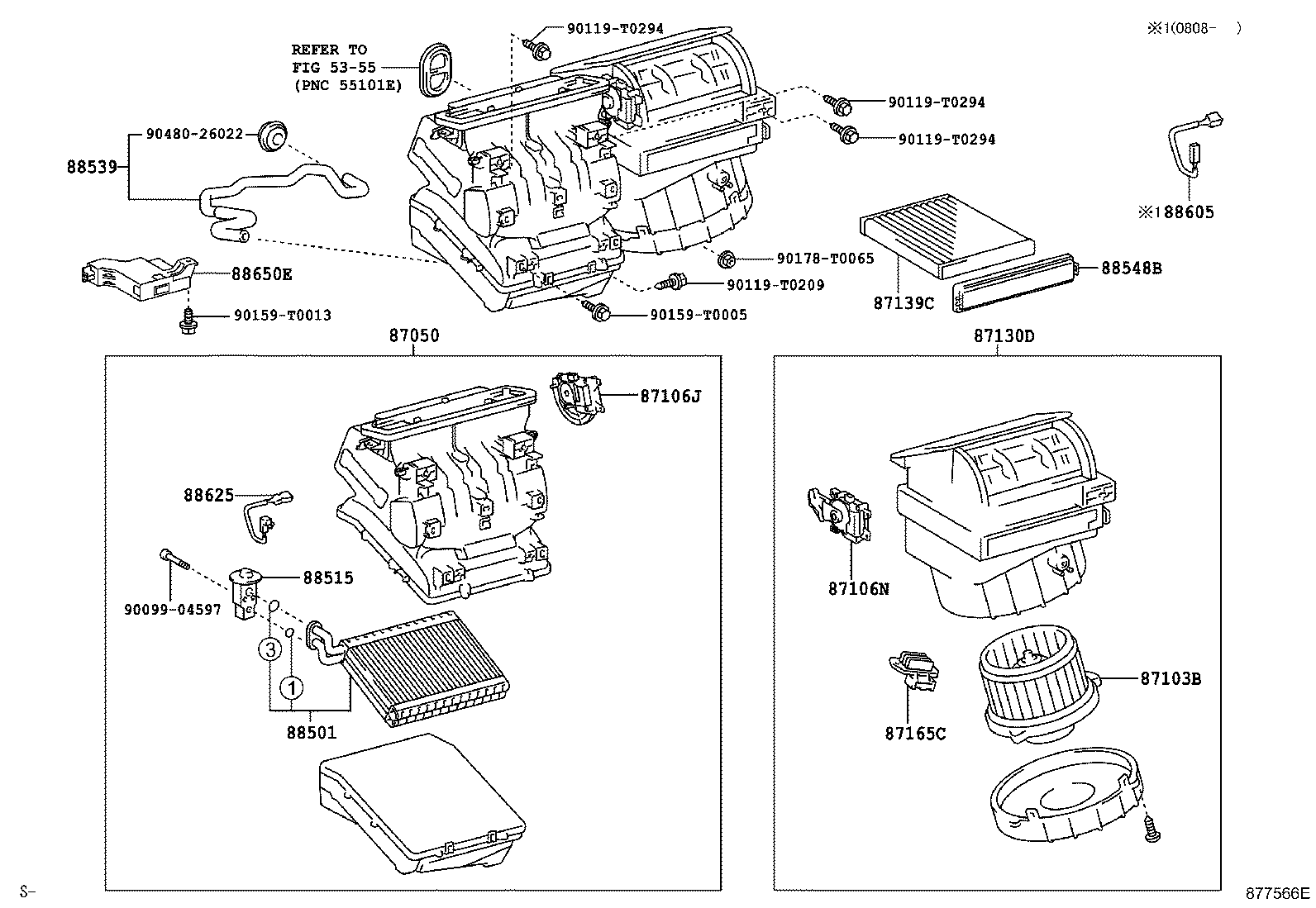

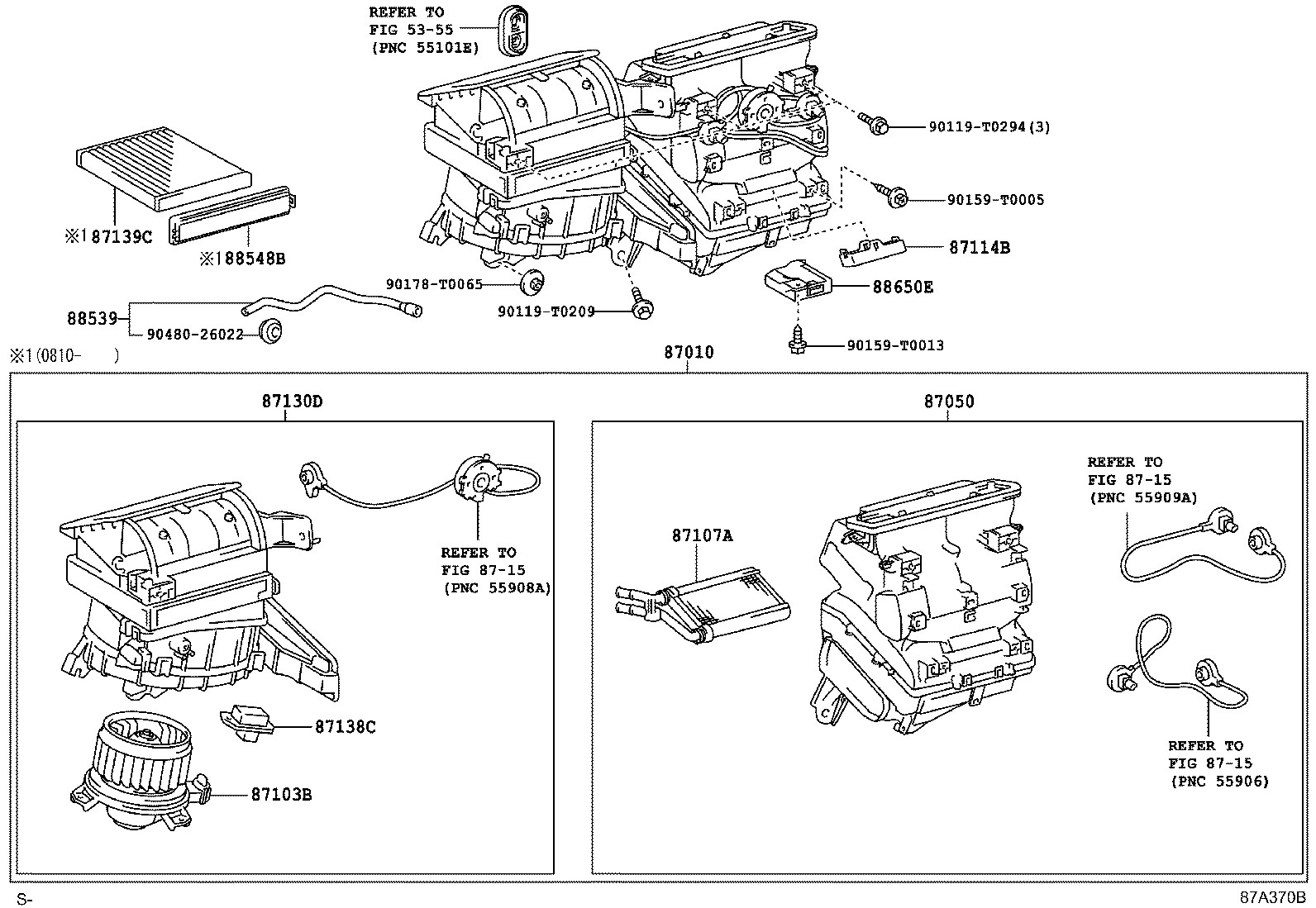

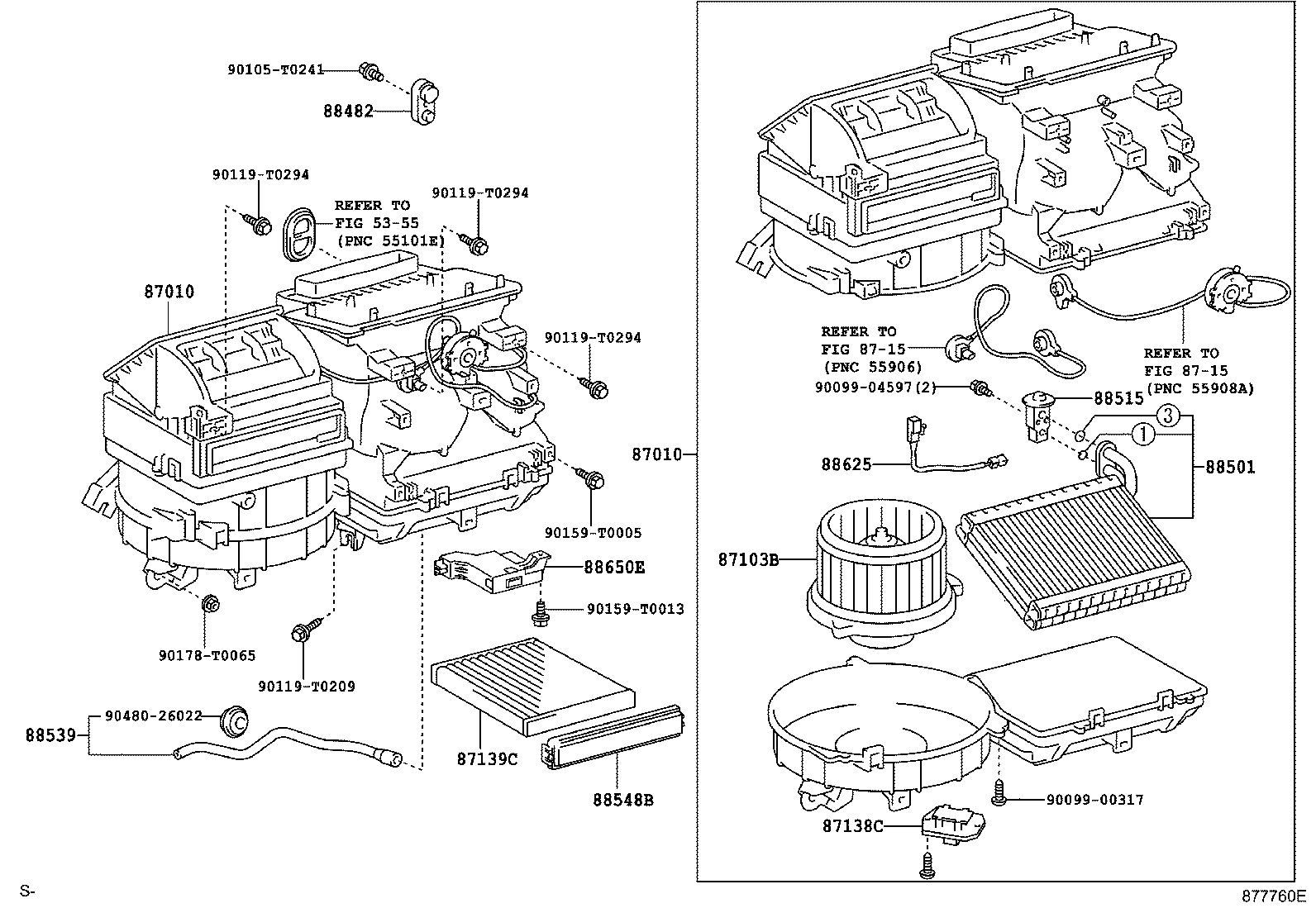

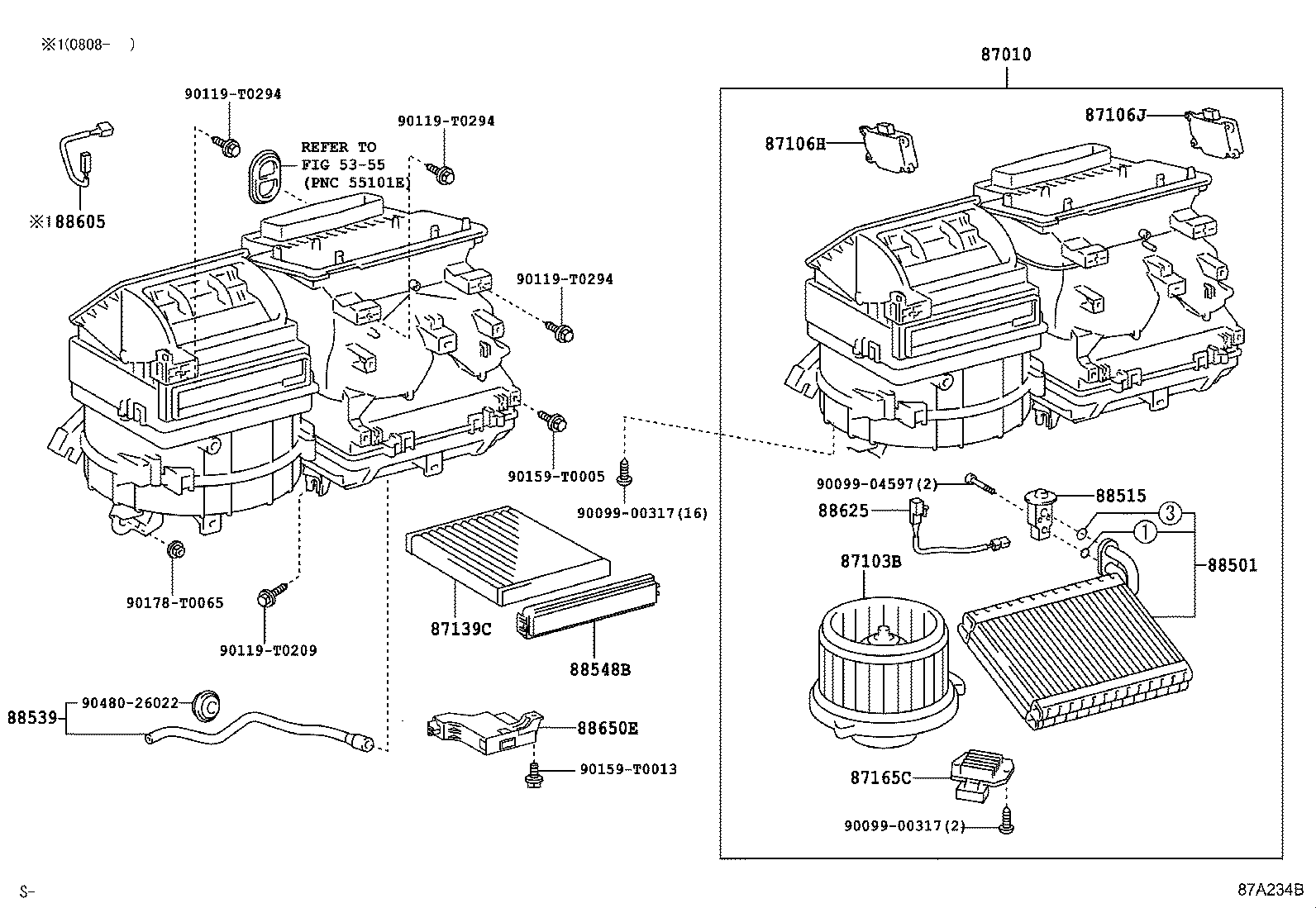

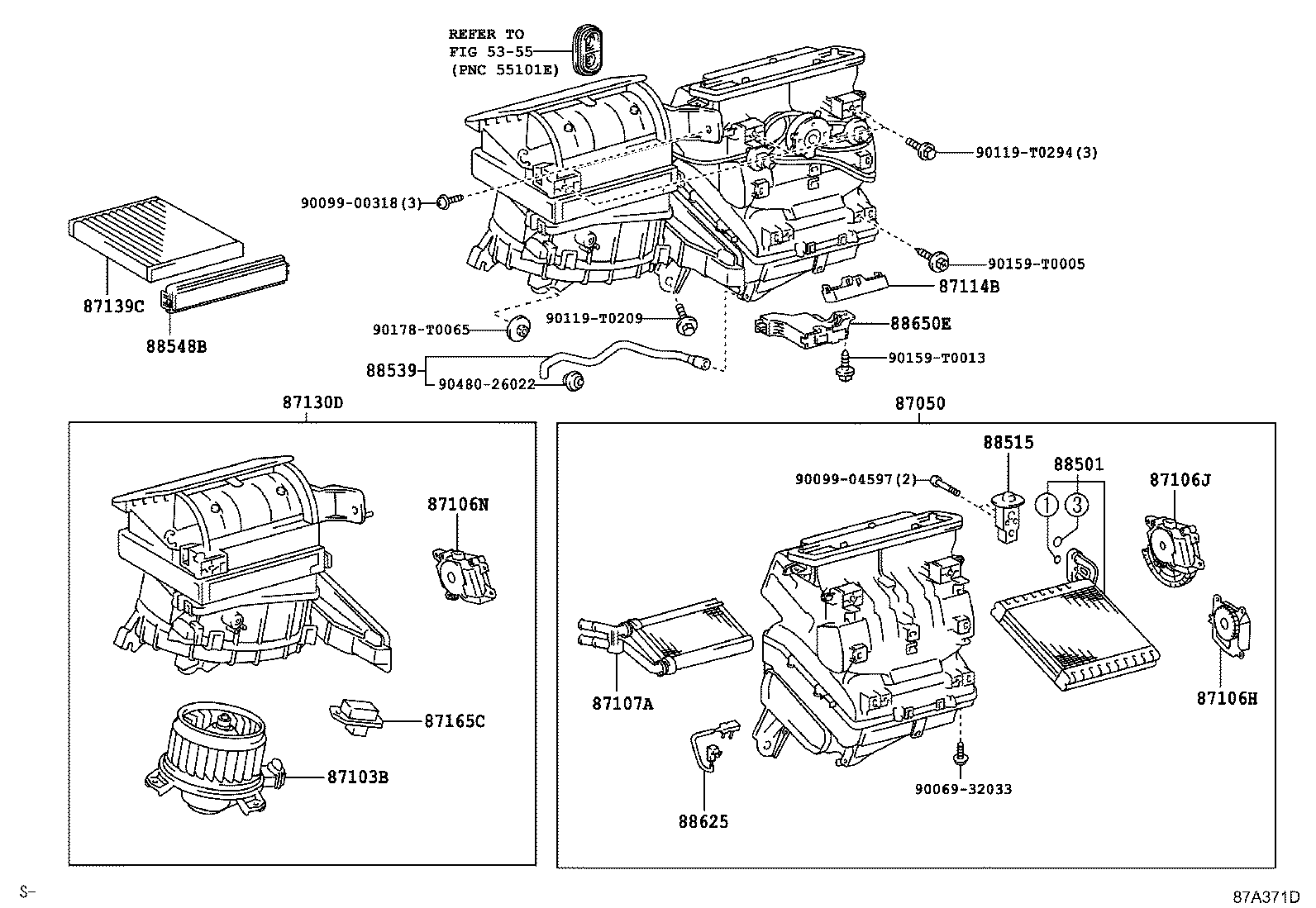

Figure 877384F 877384F 2005-01 → — Figure 877384F 877384F 2008-09 → — Figure 87A234B 87A234B 2005-01 → — Figure 87A234B 87A234B 2005-08 → — Figure 877566E 877566E 2005-04 → — Figure 877759I 877759I 2005-07 → — Figure 877759I 877759I 2009-02 → — Figure 877759I 877759I 2010-08 → — Figure 87A229C 87A229C 2005-07 → — Figure 87A229C 87A229C 2008-10 → — Figure 877760E 877760E 2005-08 → — Figure 877758G 877758G 2005-09 → — Figure 877663G 877663G 2005-09 → — Figure 877663G 877663G 2006-02 → — Figure 877663G 877663G 2008-10 → — Figure 877916D 877916D 2006-02 → — Figure 877916D 877916D 2009-08 → — Figure 877917D 877917D 2006-02 → — Figure 87A370B 87A370B 2006-05 → — Figure 87A230B 87A230B 2008-08 → — Figure 87A371D 87A371D 2008-10 → — Figure 87A371D 87A371D 2010-10 → — Figure 87A694B 87A694B 2009-02 → — Figure 87A981A 87A981A 2009-09 → — Figure 877757E 877757E 2005-01 → 2008-08 Figure 877757E 877757E 2005-01 → 2008-09 Figure 877757E 877757E 2005-01 → 2008-10 Figure 87A235C 87A235C 2008-08 → — Figure 87A235C 87A235C 2008-09 → — Figure 87A235C 87A235C 2008-10 → — Figure 87A235C 87A235C 2008-12 → — Figure 87A235C 87A235C 2009-02 → — Figure 87A235C 87A235C 2009-03 → — Figure 87A235C 87A235C 2009-09 → — Figure 87A235C 87A235C 2010-01 → — Figure 87A235C 87A235C 2010-08 → — Figure 877116C 877116C 2005-01 → — Figure 879480A 879480A 2006-02 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106D Servo Sub-assy, Damper, NO.1
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87130D Blower Assy
87138C Resistor, Blower
87138D Resistor, Blower (REAR)
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88548B Case, Air Filter
88566 Duct, Cooler Air, NO.1
88578V Packing, Cooling Unit, NO.3
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88710H Tube & Accessory Assy, Air Conditioner
88891S Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
