Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

42 part groups · 47 illustrations

Illustrations

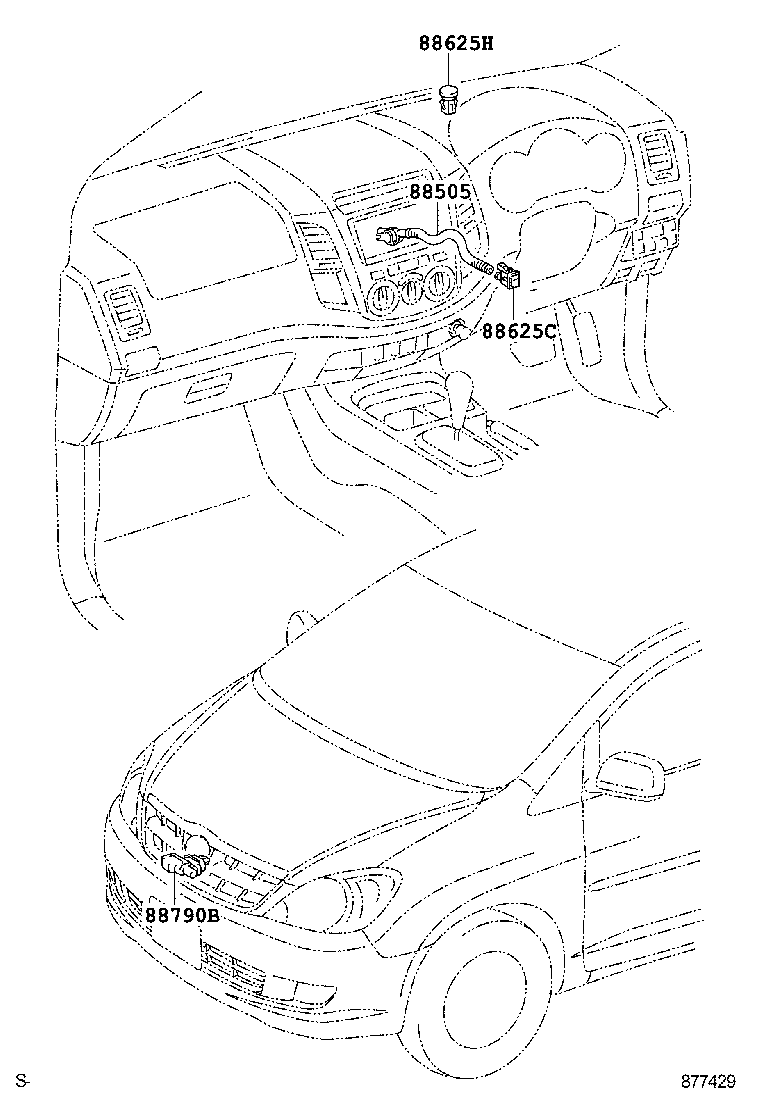

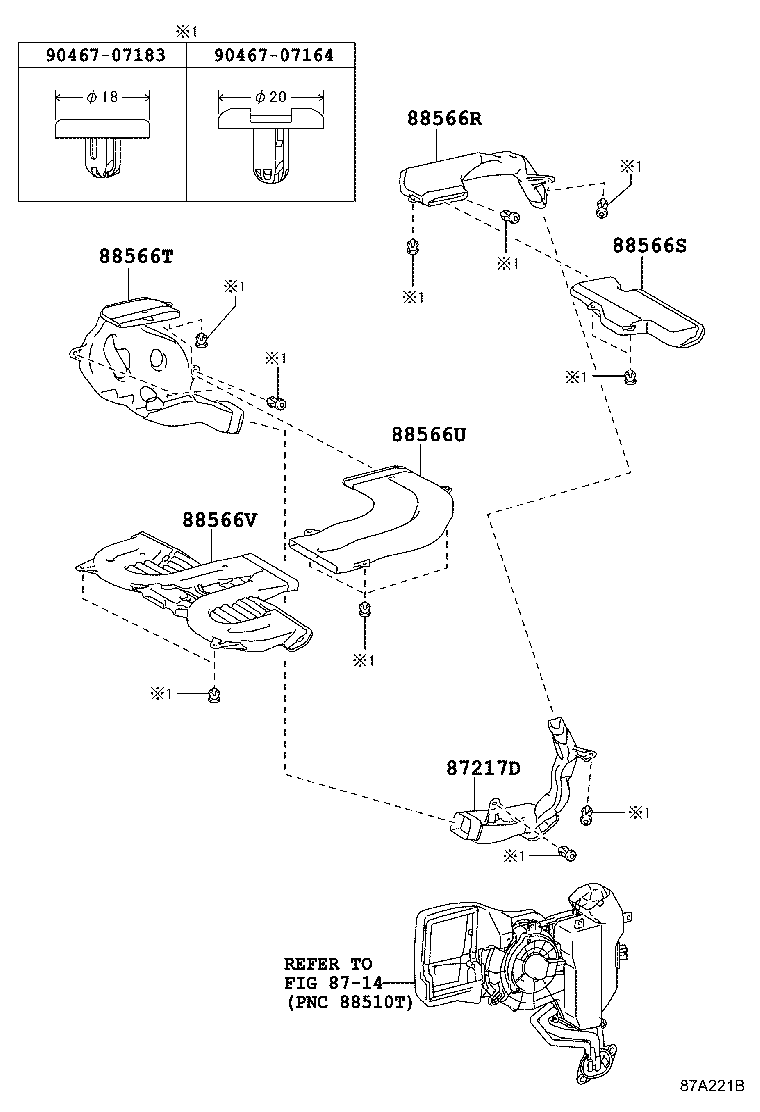

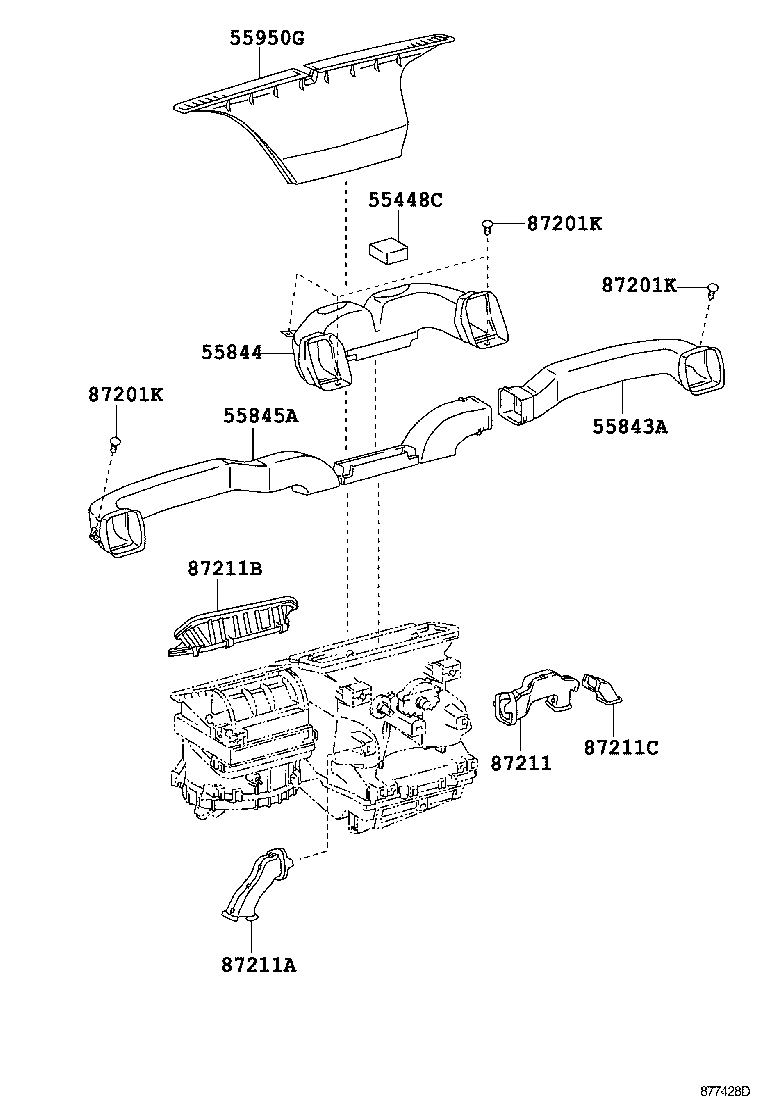

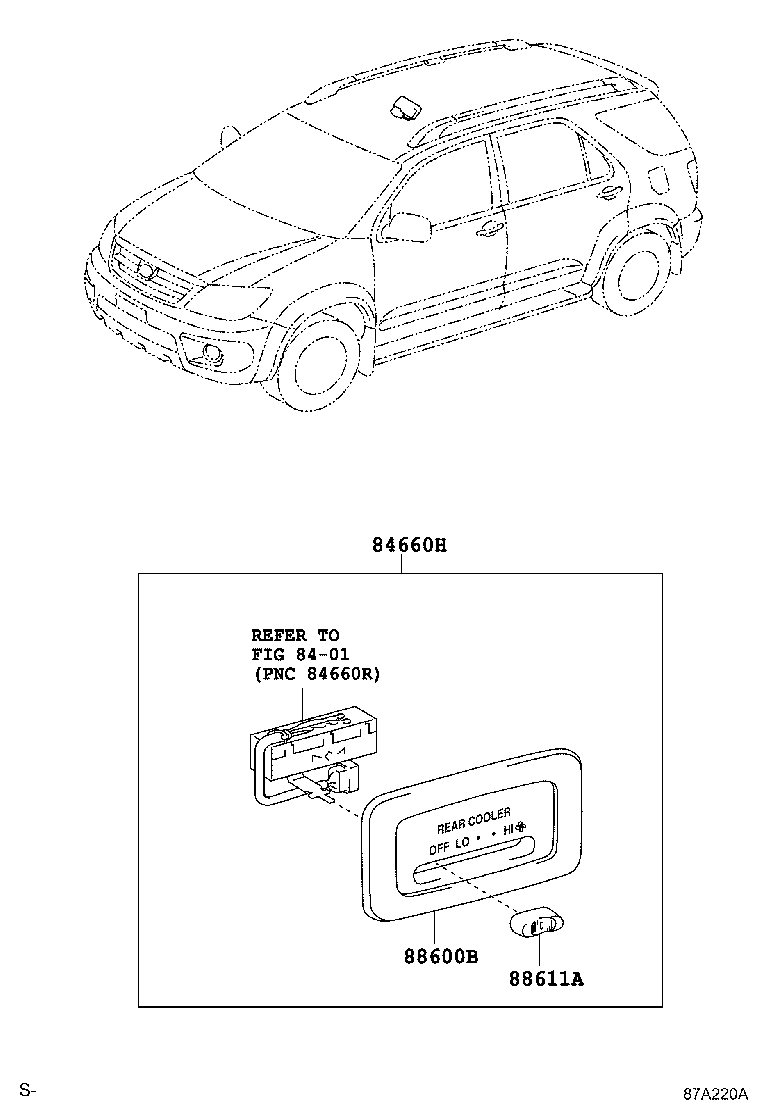

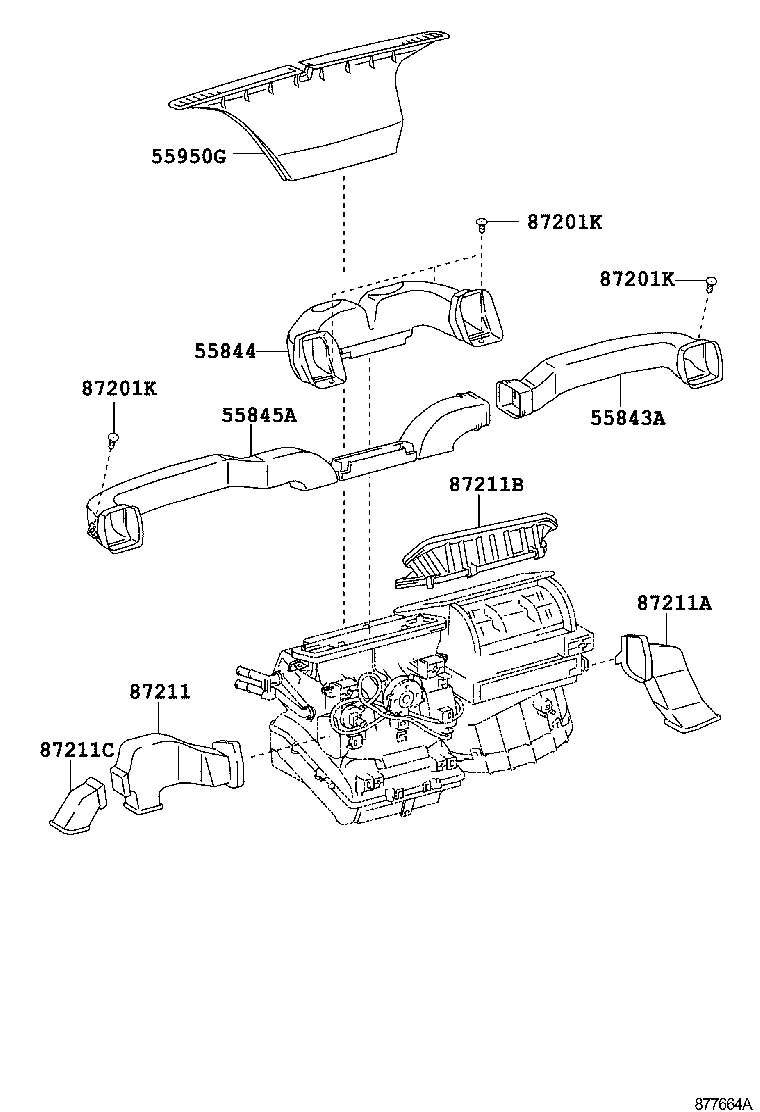

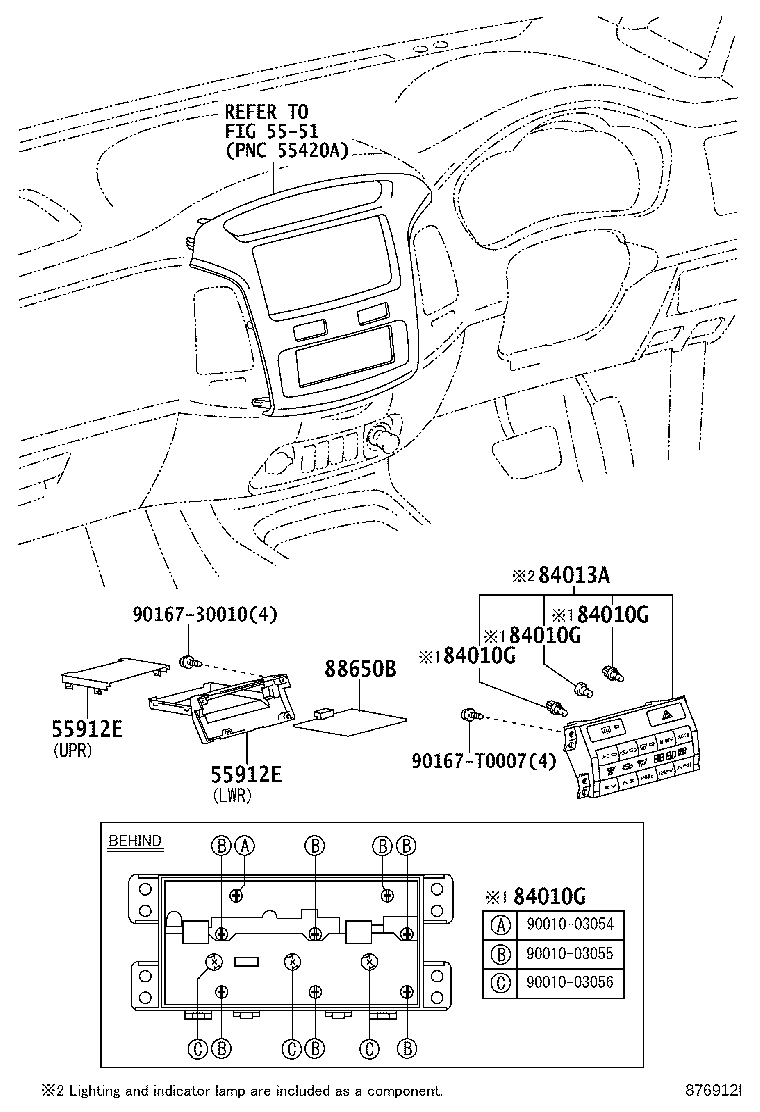

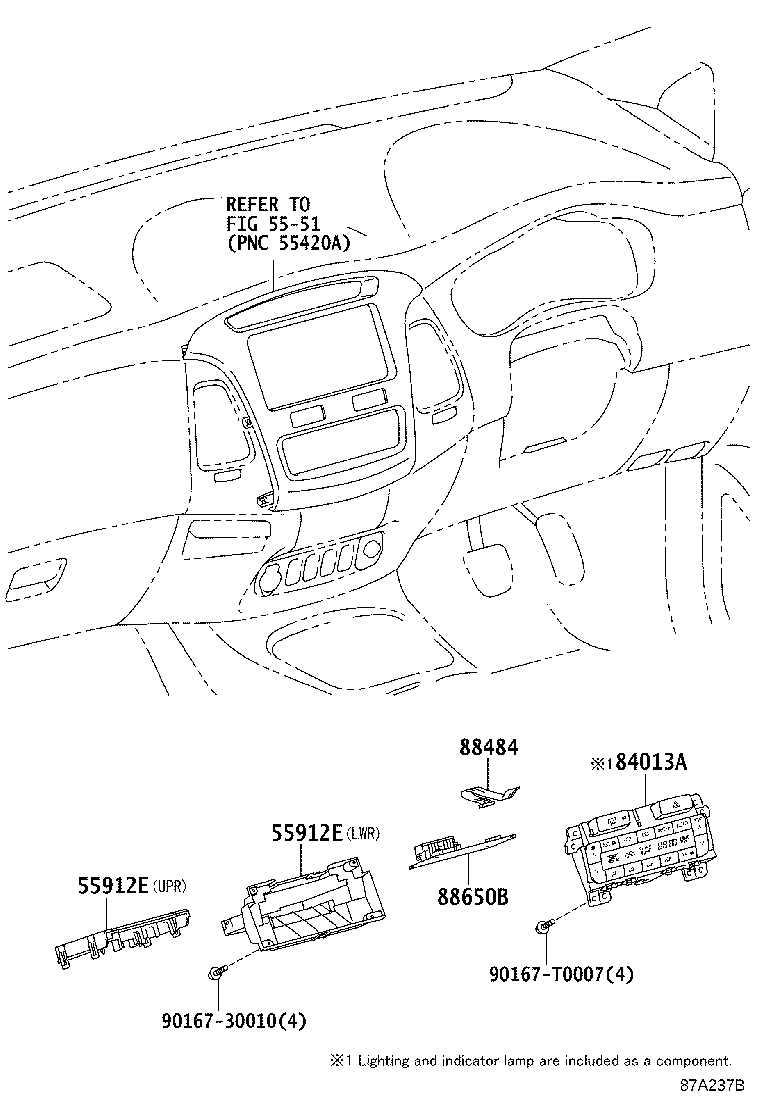

Figure 877427D 877427D 2005-01 → — Figure 876912I 876912I 2005-01 → 2008-08 Figure 876912I 876912I 2005-01 → 2008-12 Figure 876912I 876912I 2005-01 → 2009-03 Figure 876912I 876912I 2005-08 → 2008-09 Figure 876912I 876912I 2005-09 → 2008-10 Figure 87A237B 87A237B 2008-08 → — Figure 87A237B 87A237B 2008-09 → — Figure 87A237B 87A237B 2008-10 → — Figure 87A237B 87A237B 2008-12 → — Figure 87A237B 87A237B 2009-02 → — Figure 87A237B 87A237B 2009-03 → — Figure 87A237B 87A237B 2009-09 → — Figure 87A237B 87A237B 2010-08 → — Figure 877461C 877461C 2005-01 → 2008-08 Figure 877461C 877461C 2005-08 → 2008-09 Figure 877461C 877461C 2005-09 → 2008-10 Figure 877461C 877461C 2006-02 → 2008-10 Figure 877461C 877461C 2006-02 → 2008-12 Figure 877461C 877461C 2006-02 → 2009-03 Figure 87A220A 87A220A 2008-08 → — Figure 87A220A 87A220A 2008-09 → — Figure 87A220A 87A220A 2008-10 → — Figure 87A220A 87A220A 2008-12 → — Figure 87A220A 87A220A 2009-02 → — Figure 87A220A 87A220A 2009-03 → — Figure 87A220A 87A220A 2009-09 → — Figure 87A220A 87A220A 2010-01 → — Figure 87A220A 87A220A 2010-08 → — Figure 877428D 877428D 2005-01 → — Figure 877664A 877664A 2005-01 → — Figure 877462A 877462A 2005-01 → 2008-08 Figure 877462A 877462A 2005-08 → 2008-09 Figure 877462A 877462A 2005-09 → 2008-10 Figure 877462A 877462A 2006-02 → 2008-10 Figure 877462A 877462A 2006-02 → 2008-12 Figure 877462A 877462A 2006-02 → 2009-03 Figure 87A221B 87A221B 2008-08 → — Figure 87A221B 87A221B 2008-09 → — Figure 87A221B 87A221B 2008-10 → — Figure 87A221B 87A221B 2008-12 → — Figure 87A221B 87A221B 2009-02 → — Figure 87A221B 87A221B 2009-03 → — Figure 87A221B 87A221B 2009-09 → — Figure 87A221B 87A221B 2010-01 → — Figure 87A221B 87A221B 2010-08 → — Figure 877429 877429 2005-01 → —

Part groups

PNCDescription
55448C Cushion, Instrument Panel, NO.1
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
55912E Base, Heater Control, Lower
55950G Nozzle Assy, Defroster
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
84010G Bulb, Integration Control & Panel
84013A Panel Sub-assy, Integration
84660H Switch Assy, Cooler Control
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
87217D Duct, Air, Rear Side NO.1
88484 Wire, Cooler, NO.1
88505 Duct Sub-assy,Air Conditioner
88566A Duct, Cooler Air, NO.1
88566R Duct, Air, Rear Roof NO.1
88566S Duct, Air, Rear Roof NO.2
88566T Duct, Air, Rear Roof NO.3
88566U Duct, Air, Rear Roof NO.4
88566V Duct, Air, Rear Roof NO.5
88570E Grille Assy, Air Outlet
88600B Panel Assy, Control
88611A Knob, Cooler Control Switch
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88650B Amplifier Assy, Airconditioner
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
