Heating & Air Conditioning - Water Piping

9 part groups · 10 illustrations

Illustrations

Figure 877378D

877378D 2005-07 → —

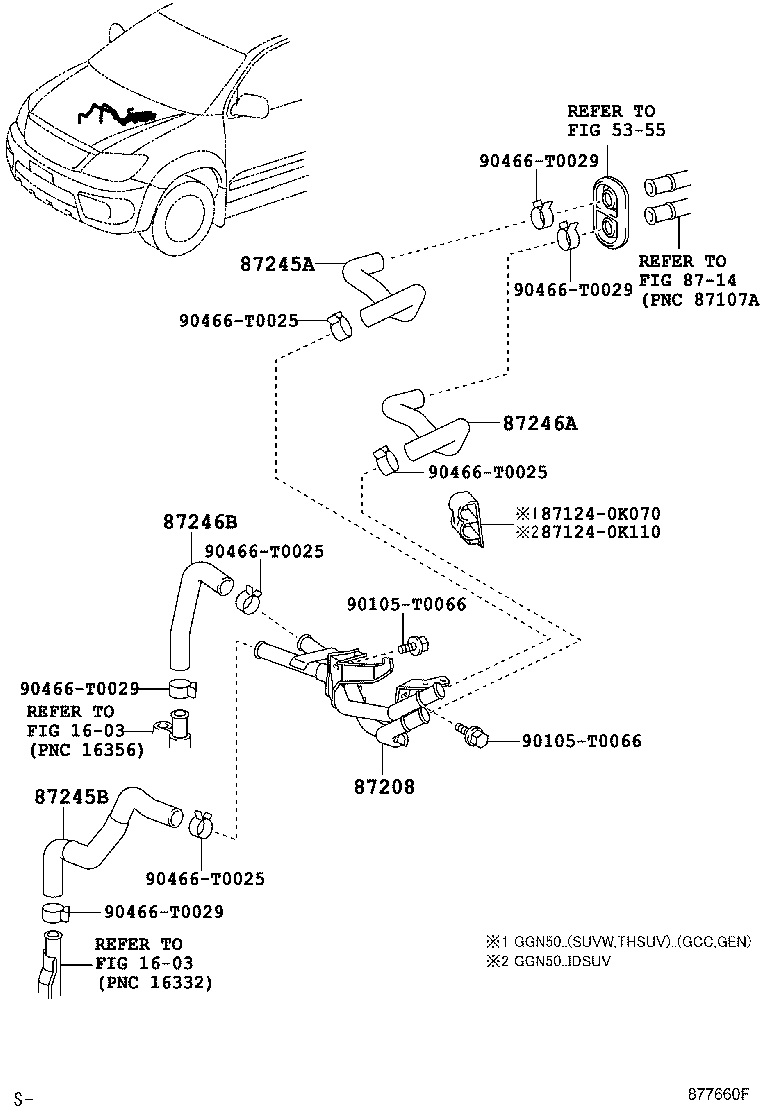

Figure 877660F

877660F 2005-07 → —

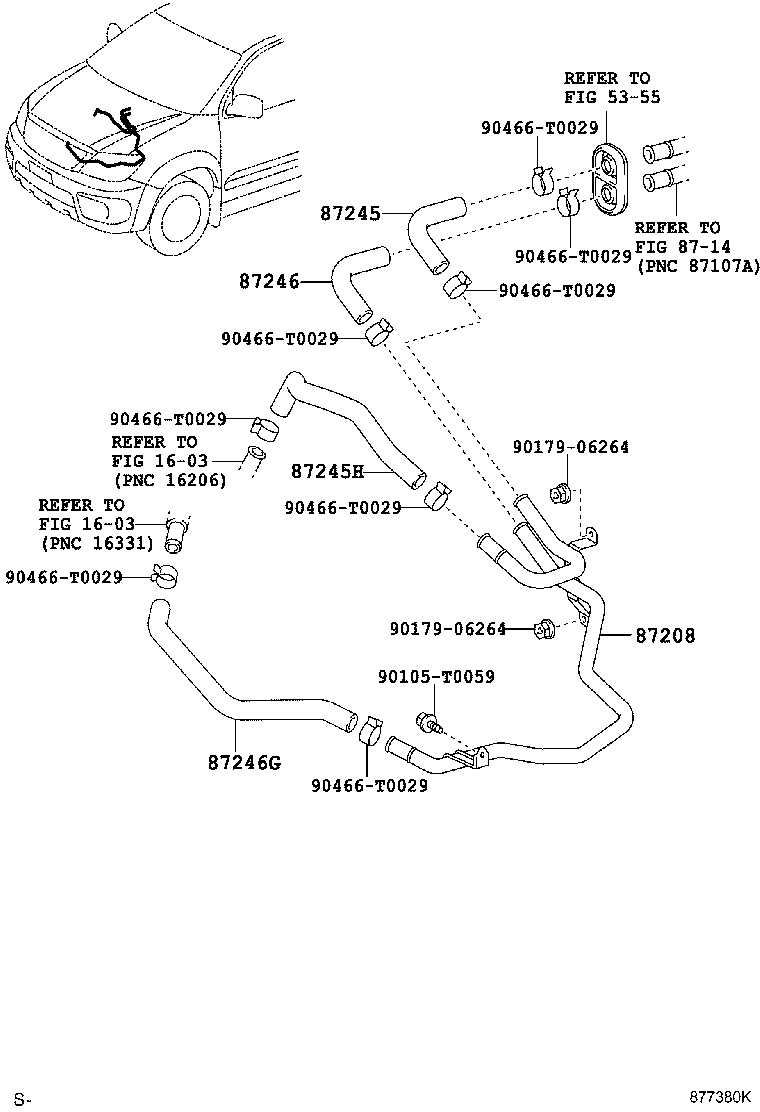

Figure 877380K

877380K 2005-09 → —

Figure 877380K

877380K 2010-08 → —

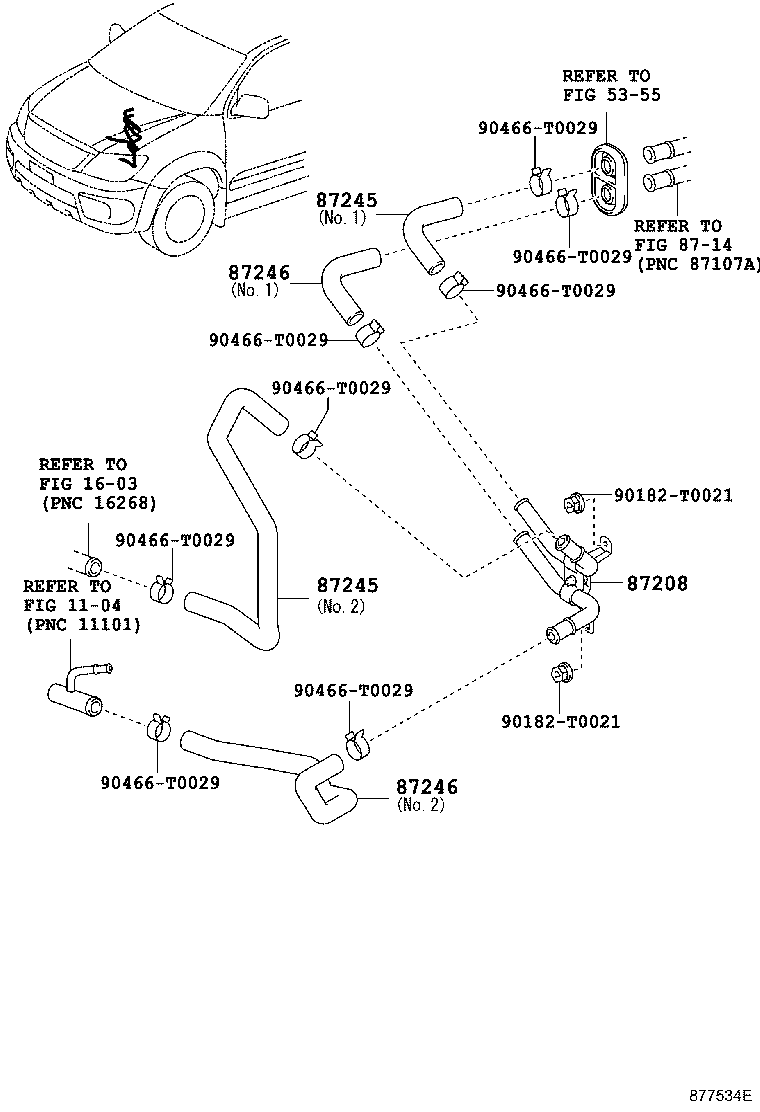

Figure 877534E

877534E 2005-09 → —

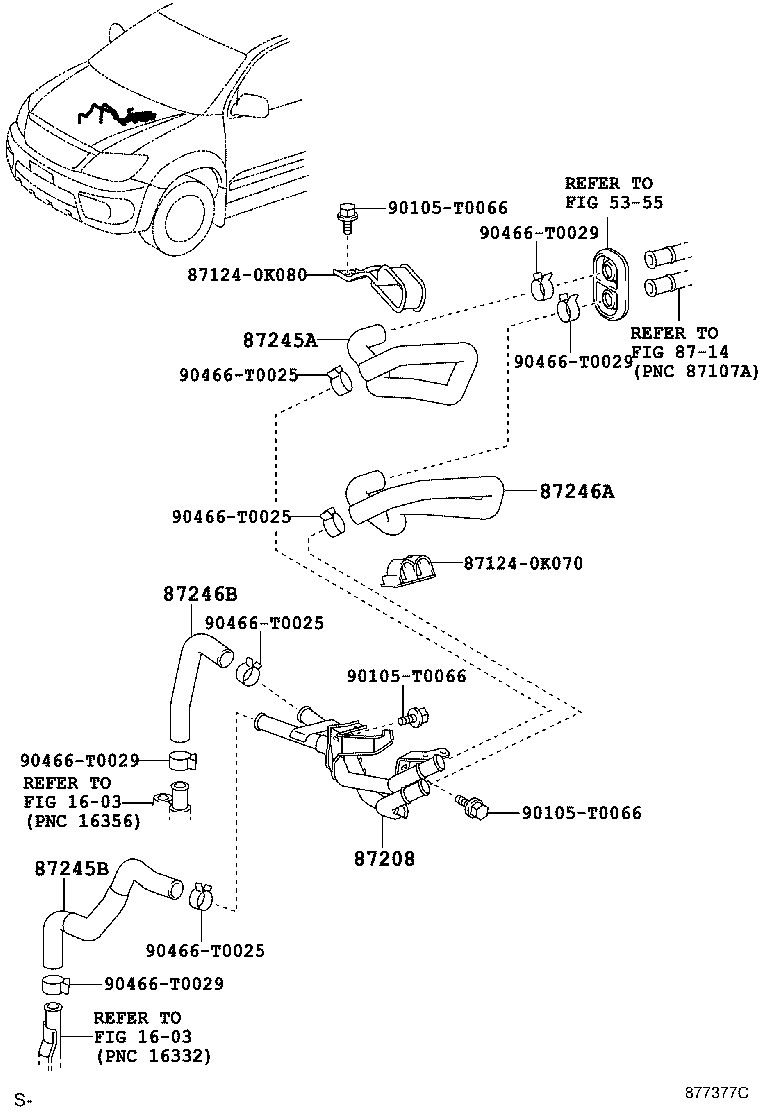

Figure 877377C

877377C 2005-11 → —

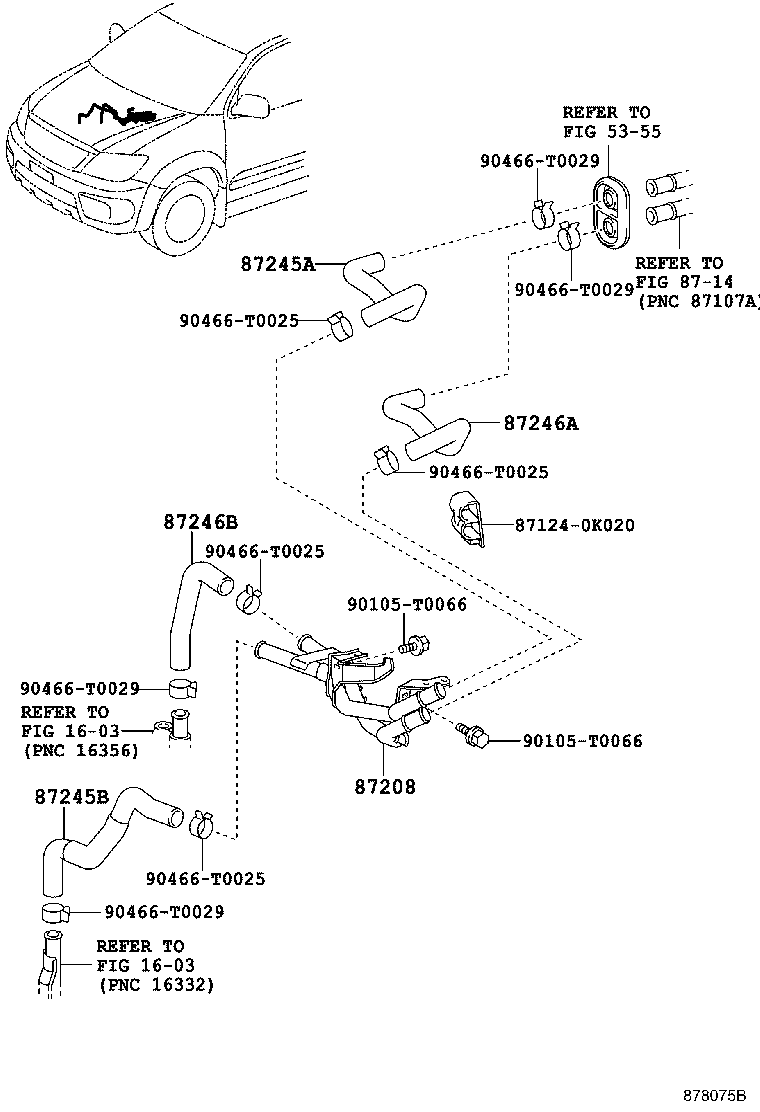

Figure 878075B

878075B 2006-02 → —

Figure 877904B

877904B 2005-11 → —

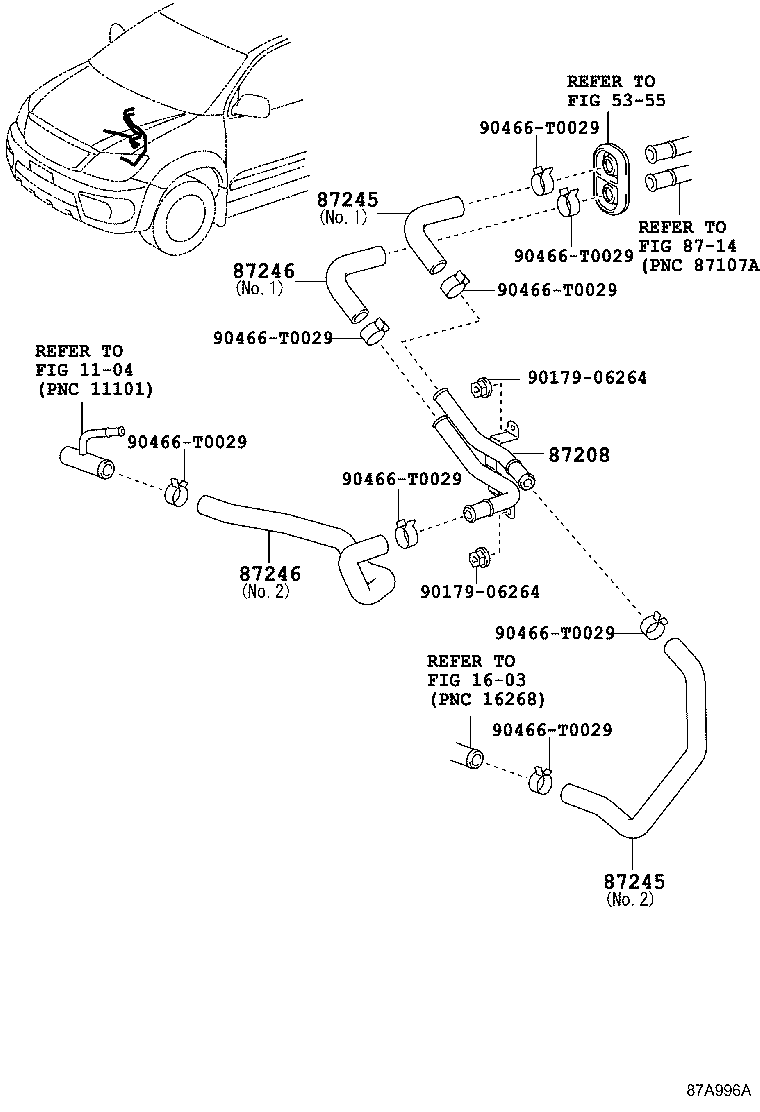

Figure 87A996A

87A996A 2009-08 → —

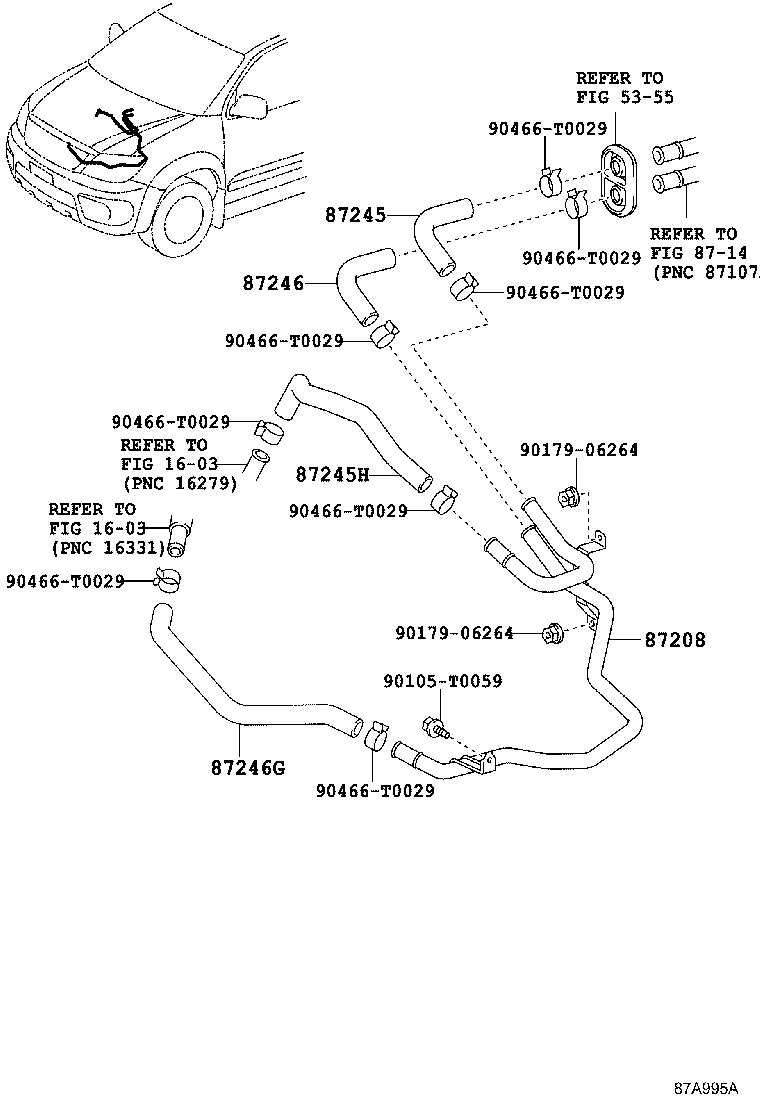

Figure 87A995A

87A995A 2009-09 → —

Part groups

PNC	Description
87208	Pipe Sub-assy, Heater Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245H	Hose, Heater Water, Inlet H
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246G	Hose, Heater Water, Outlet G

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
