Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

16 part groups · 33 illustrations

Illustrations

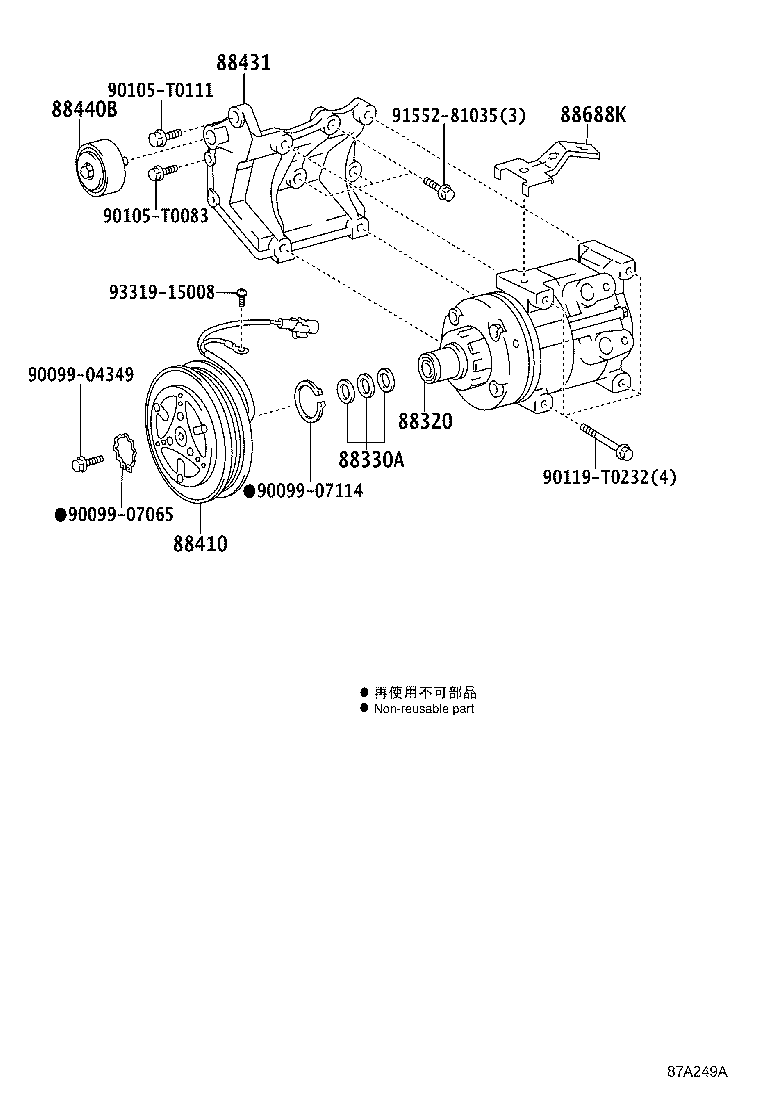

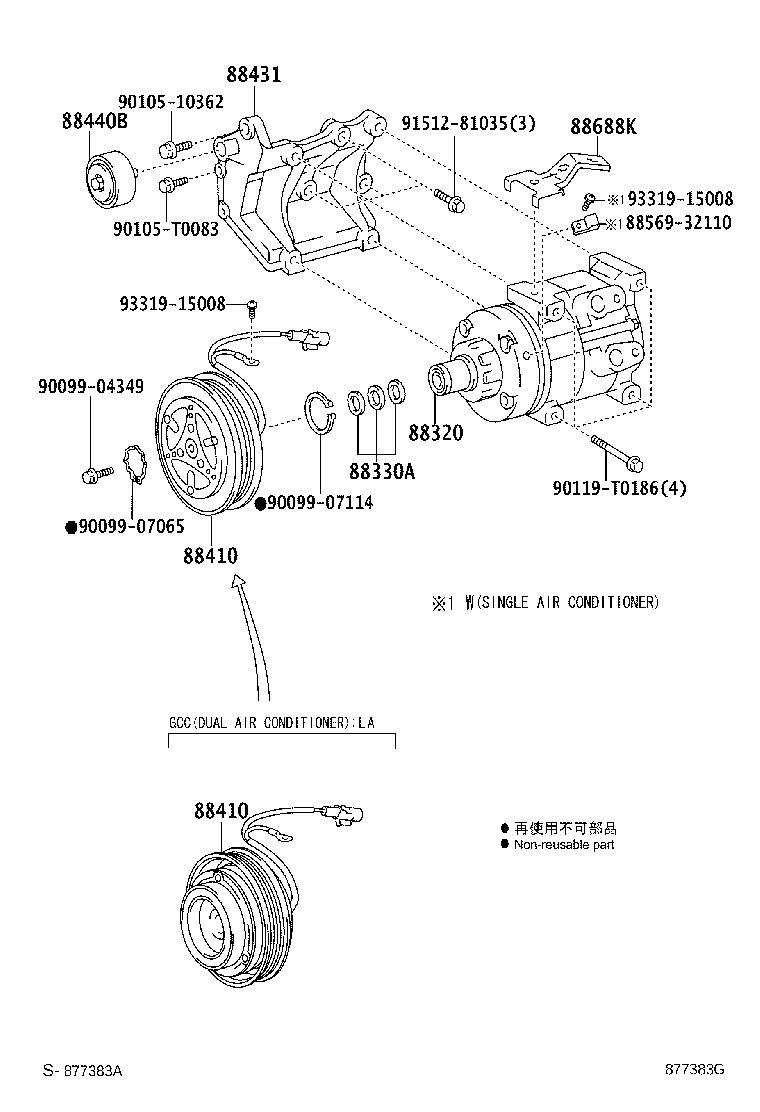

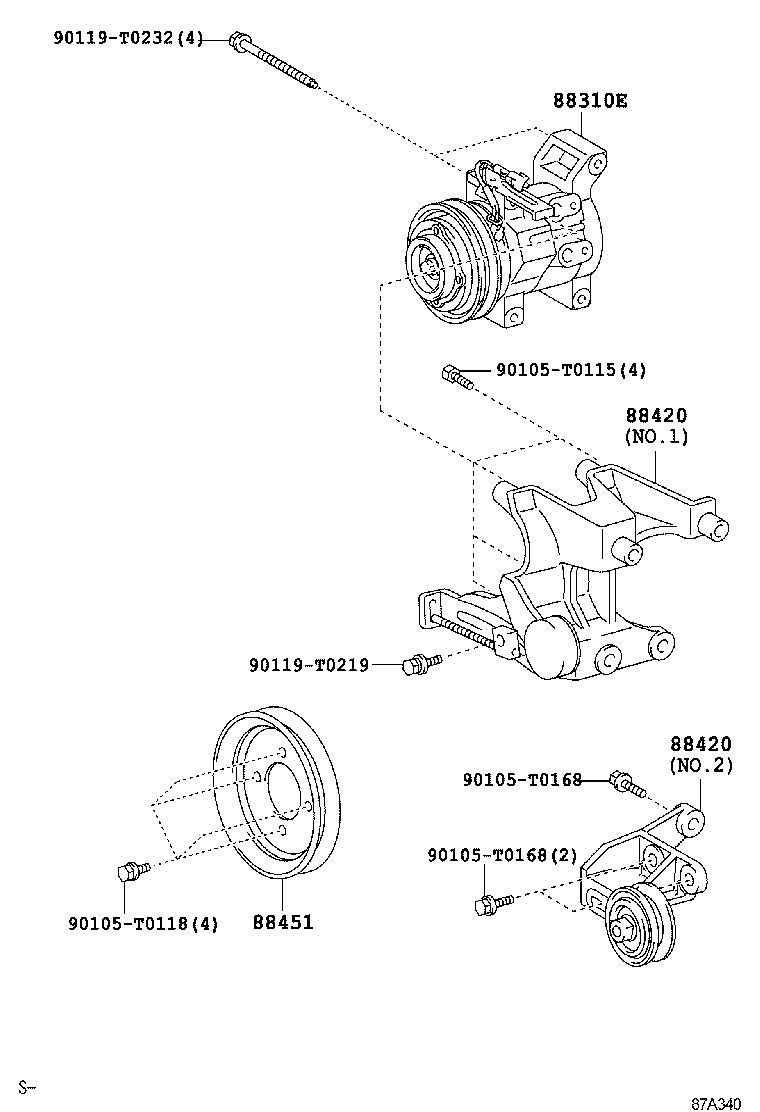

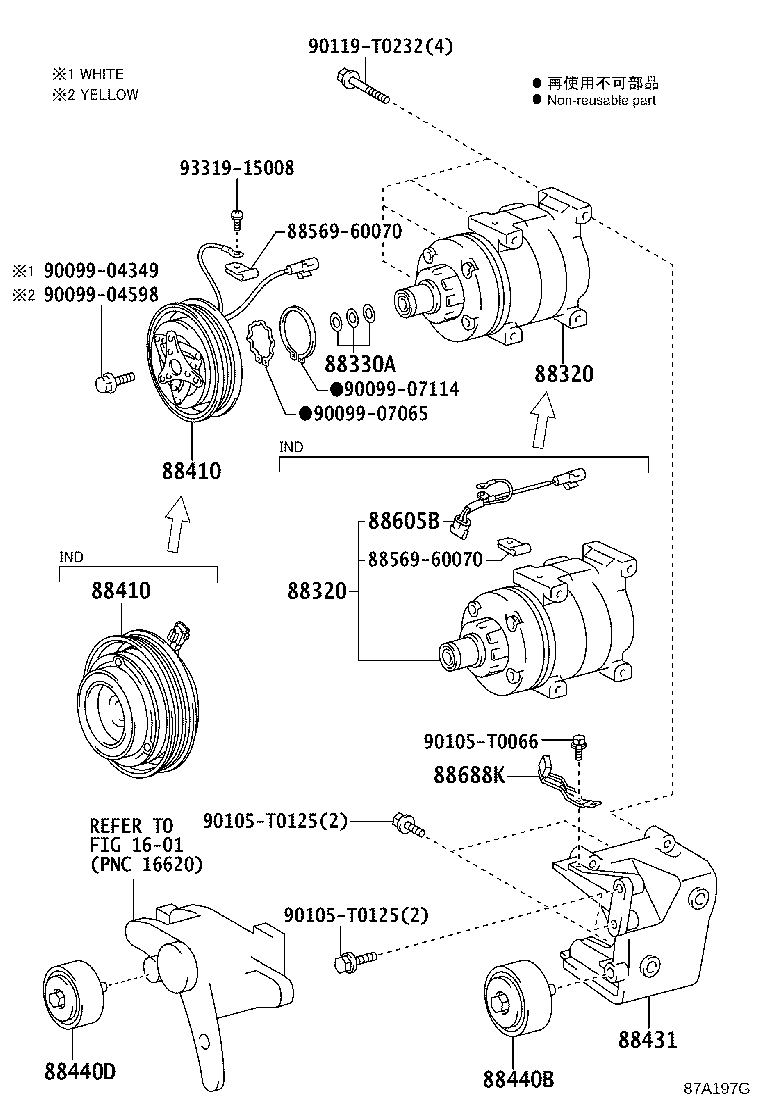

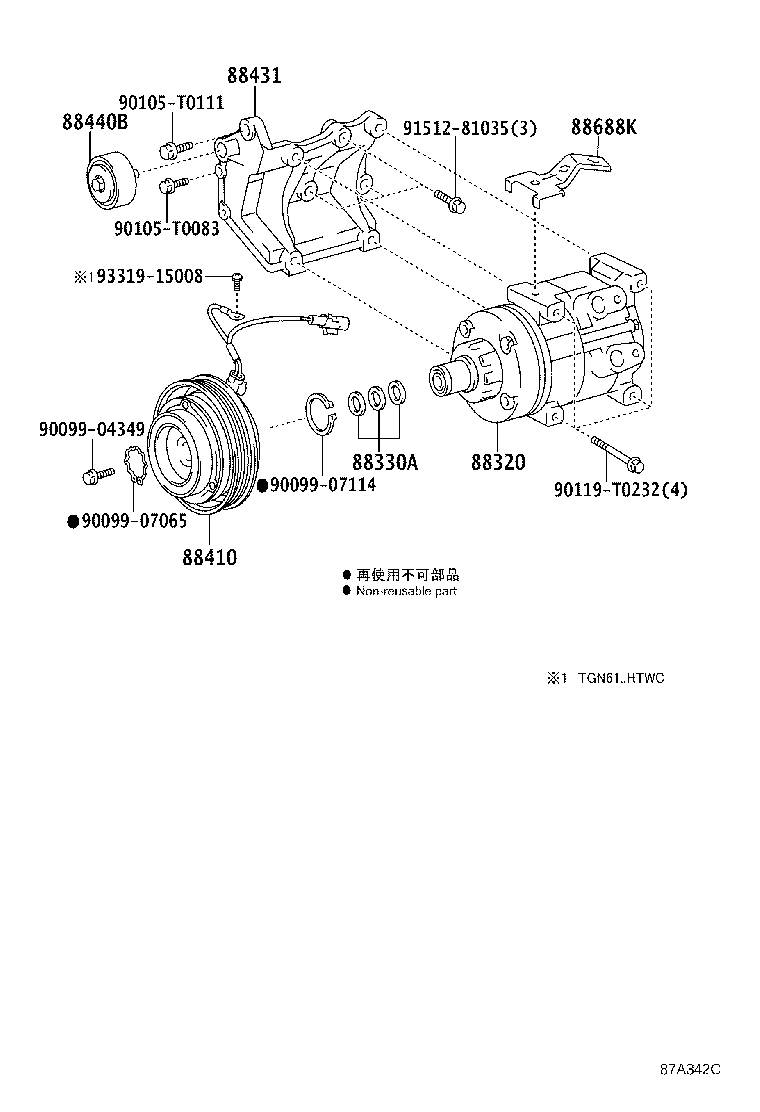

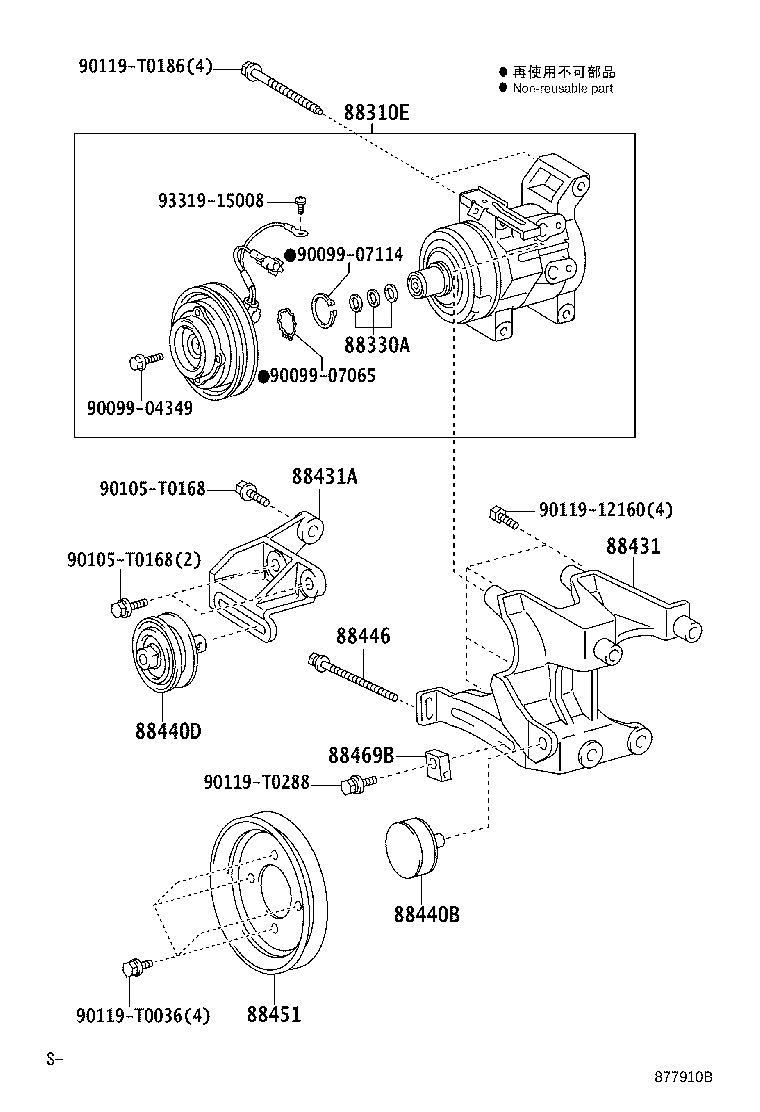

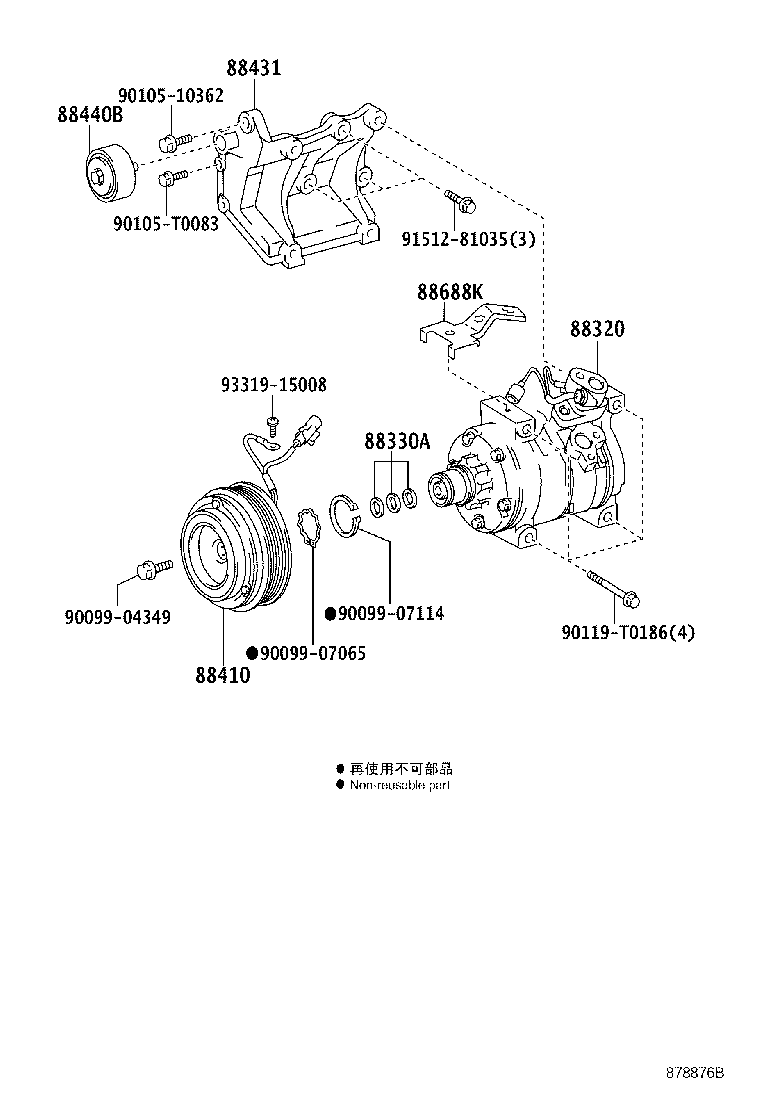

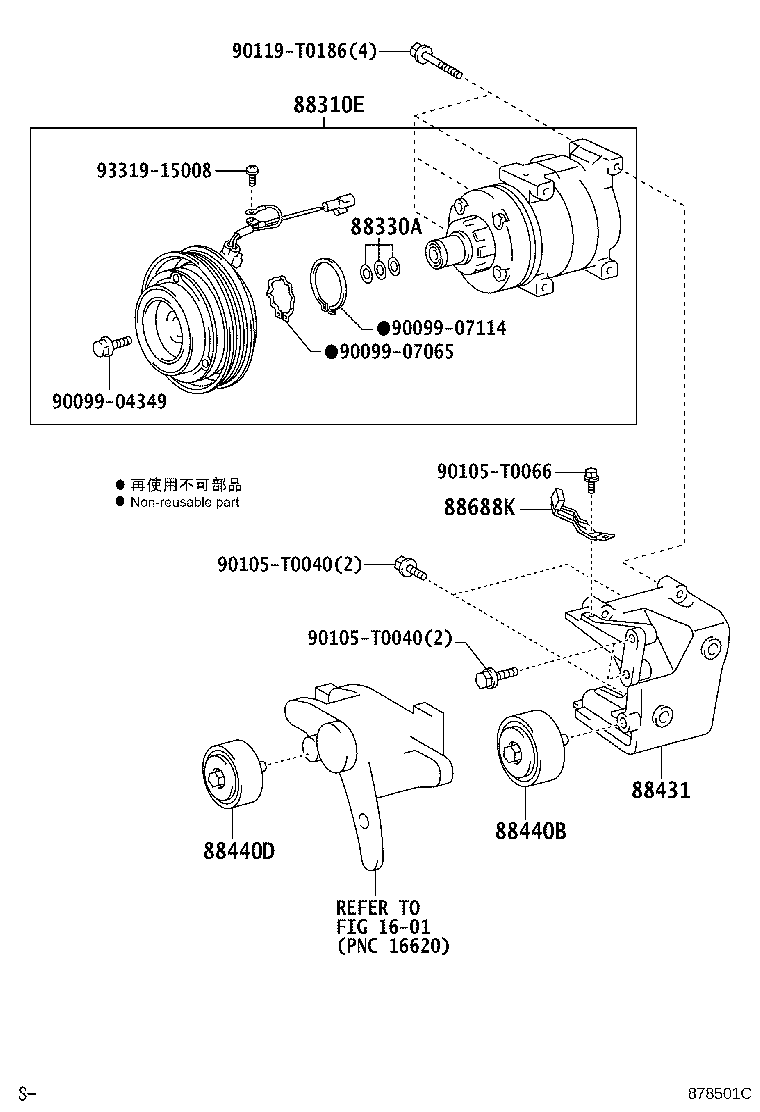

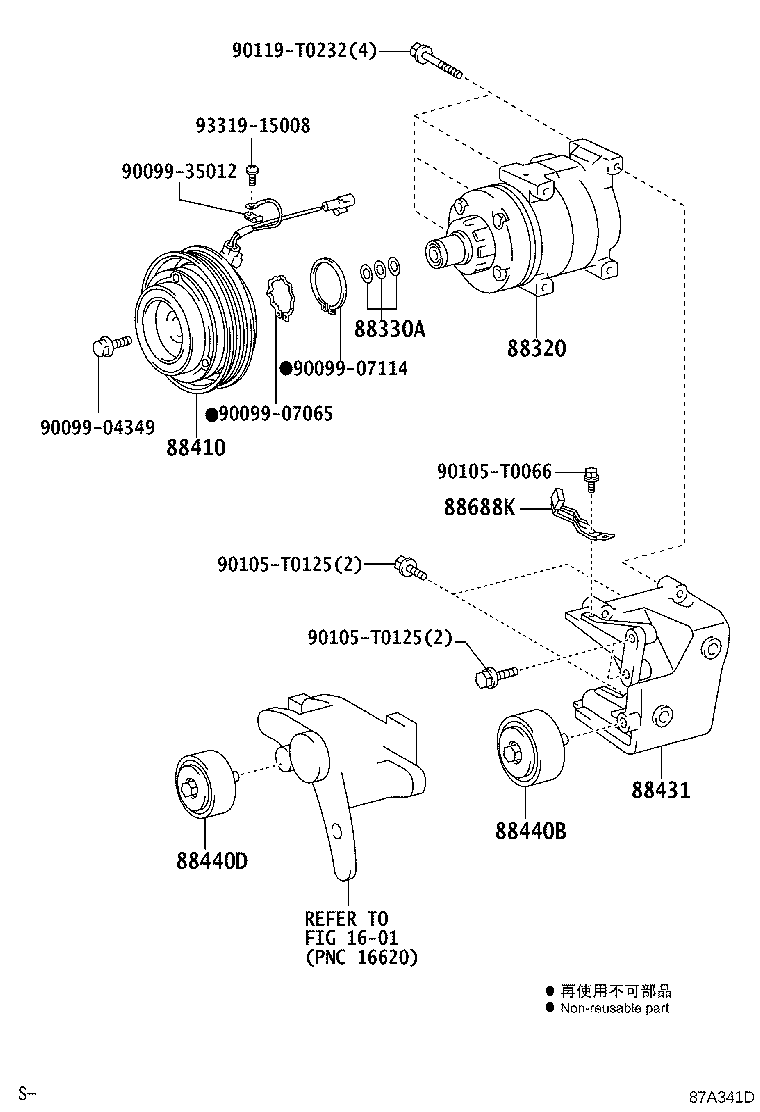

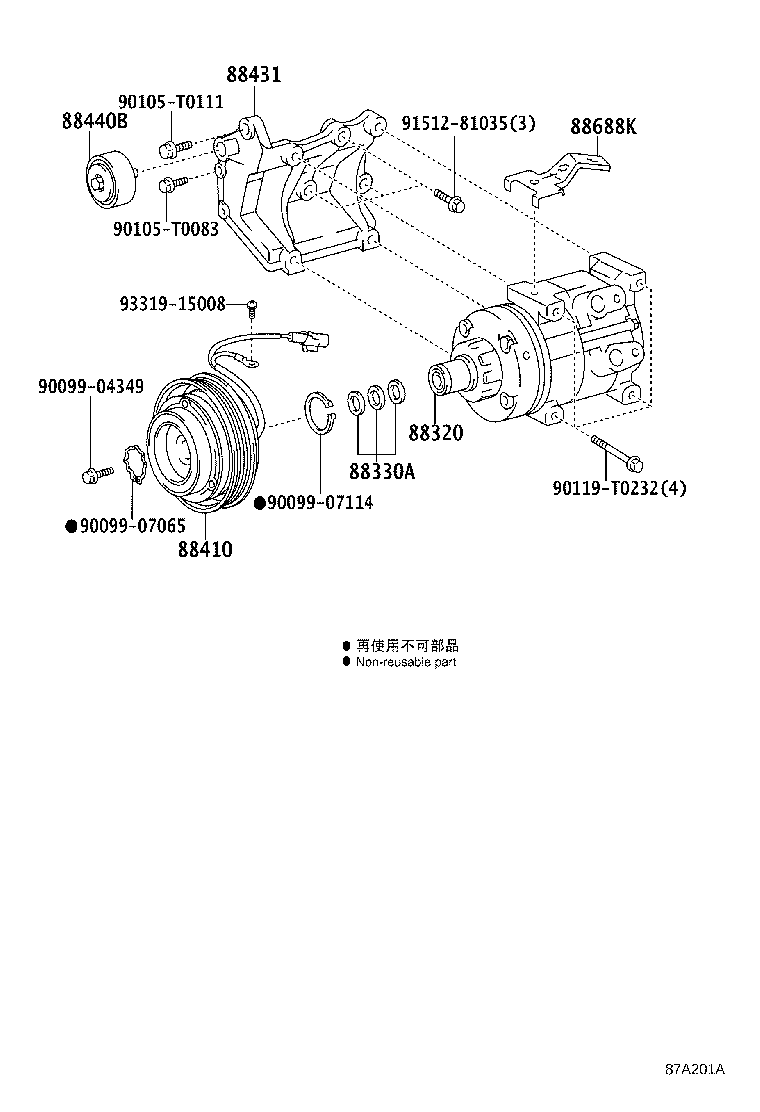

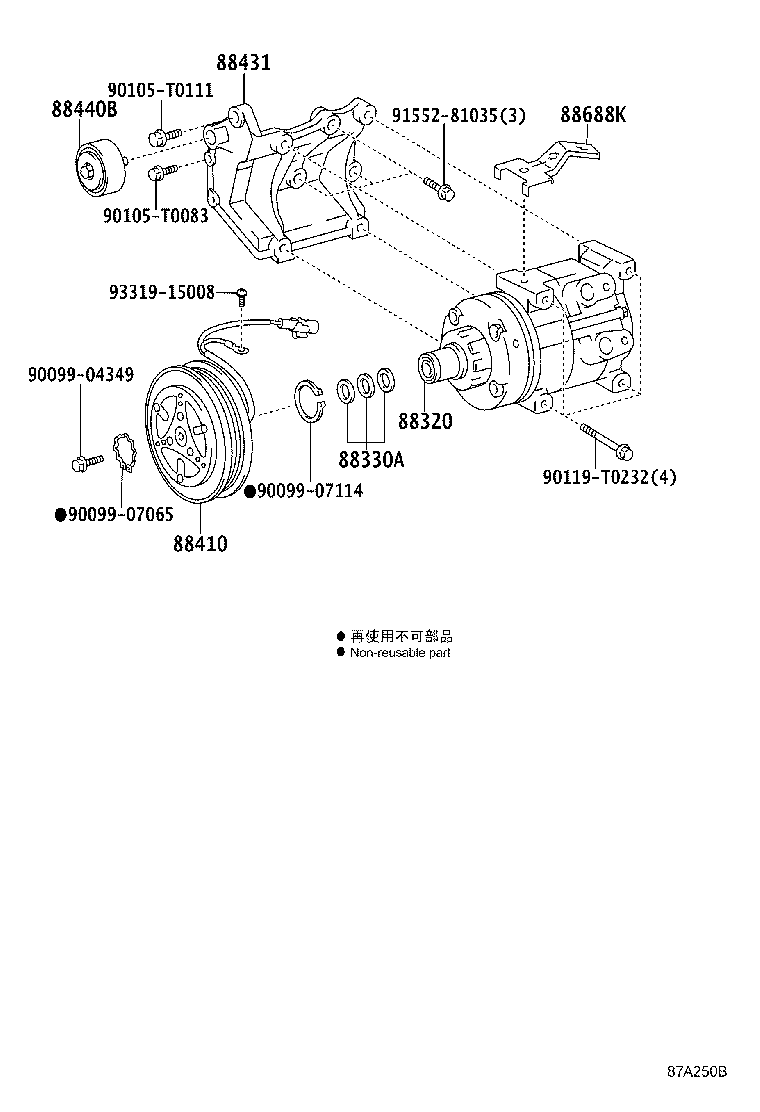

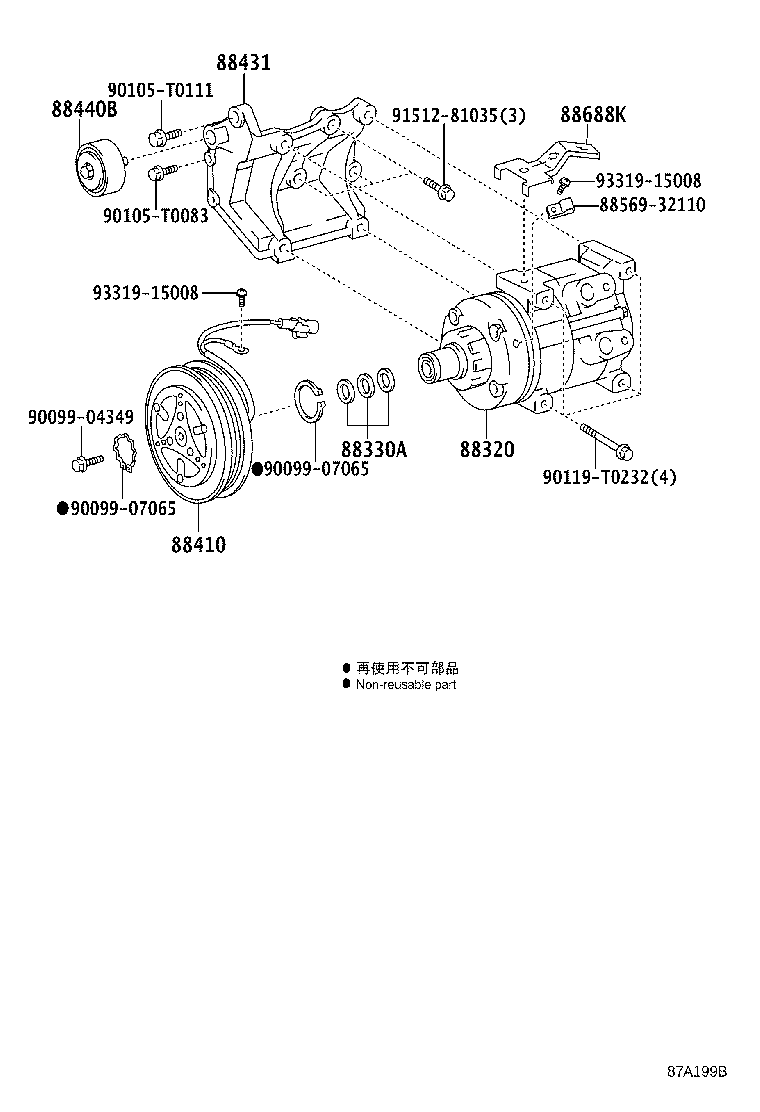

Figure 877382G 877382G 2005-01 → 2006-10 Figure 877382G 877382G 2005-01 → 2008-08 Figure 877382G 877382G 2005-01 → — Figure 878501C 878501C 2006-02 → 2008-10 Figure 877383G 877383G 2005-01 → 2007-08 Figure 877383G 877383G 2005-01 → 2008-08 Figure 877383G 877383G 2005-01 → 2008-09 Figure 877383G 877383G 2005-01 → 2008-10 Figure 878503A 878503A 2006-05 → 2008-10 Figure 877665F 877665F 2005-07 → 2008-08 Figure 878502A 878502A 2006-02 → 2008-10 Figure 878097 878097 2006-02 → 2008-12 Figure 878097 878097 2006-02 → 2009-03 Figure 877910B 877910B 2006-05 → 2008-10 Figure 878876B 878876B 2006-10 → 2008-08 Figure 878877B 878877B 2006-10 → 2008-08 Figure 87A197G 87A197G 2008-08 → — Figure 87A197G 87A197G 2008-09 → — Figure 87A199B 87A199B 2008-08 → — Figure 87A249A 87A249A 2008-08 → — Figure 87A200B 87A200B 2008-08 → — Figure 87A201A 87A201A 2008-08 → — Figure 87A202A 87A202A 2008-08 → — Figure 87A250B 87A250B 2008-09 → — Figure 87A339 87A339 2008-10 → — Figure 87A343D 87A343D 2008-10 → — Figure 87A341D 87A341D 2008-10 → — Figure 87A336F 87A336F 2008-10 → — Figure 87A340 87A340 2008-10 → — Figure 87A342C 87A342C 2008-10 → — Figure 87A338 87A338 2008-10 → — Figure 87A422B 87A422B 2008-12 → — Figure 87A422B 87A422B 2009-03 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88310E Compressor, W/Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
88446 Bolt, Idle Pulley
88451 Pulley, Crankshaft
88469B Collar
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
