Toyota 4Runner

2009-08 → present · chassis GRN28# · catalogue 671390 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

17 part groups · 2 illustrations

Illustrations

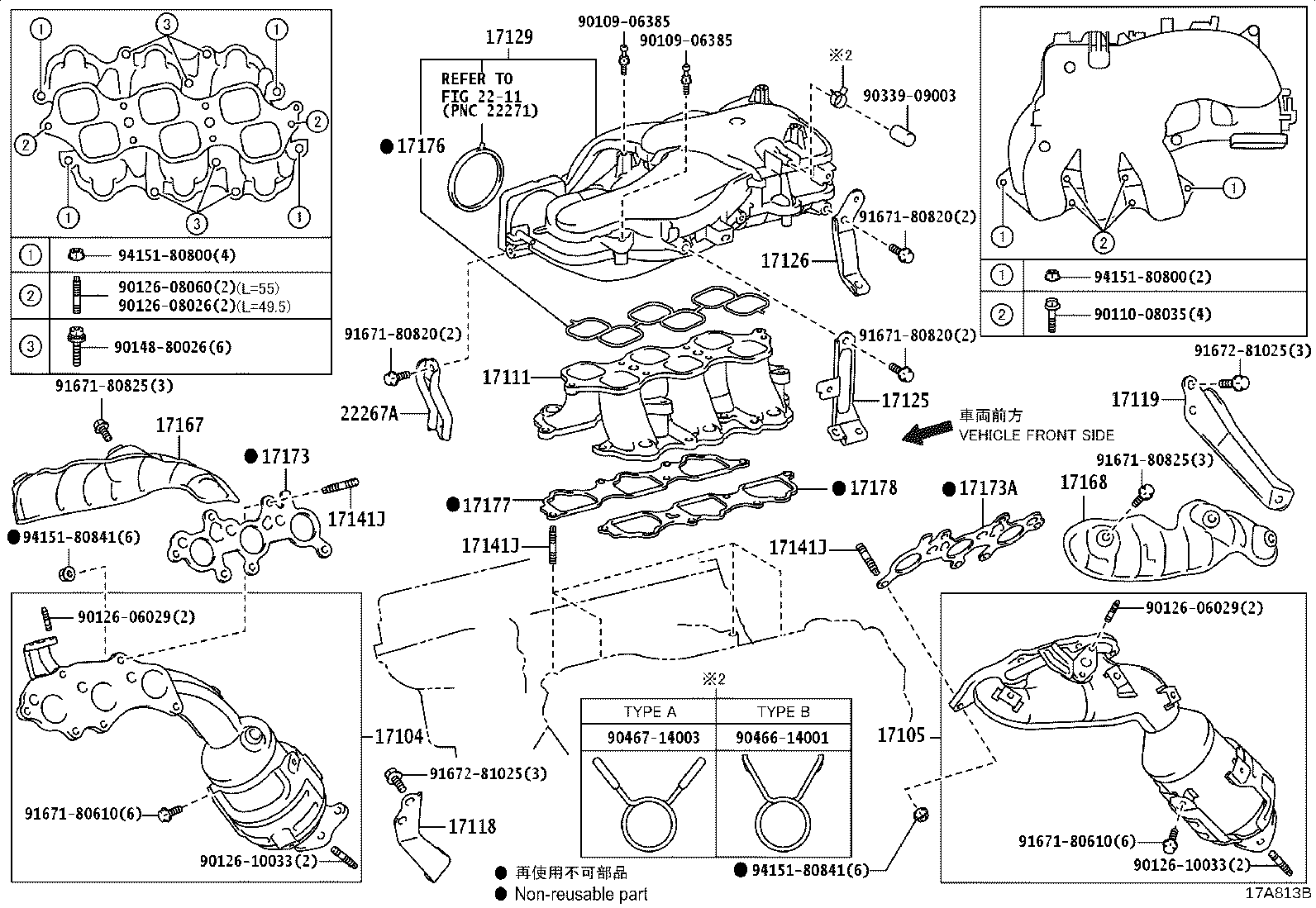

Figure 17A241C 17A241C 2009-08 → — Figure 17A813B 17A813B 2014-06 → —

Part groups

PNCDescription
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
22267A Bracket, Throttle Body
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
