Toyota 4Runner

2009-08 → present · chassis GRN28# · catalogue 671390 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 6 illustrations

Illustrations

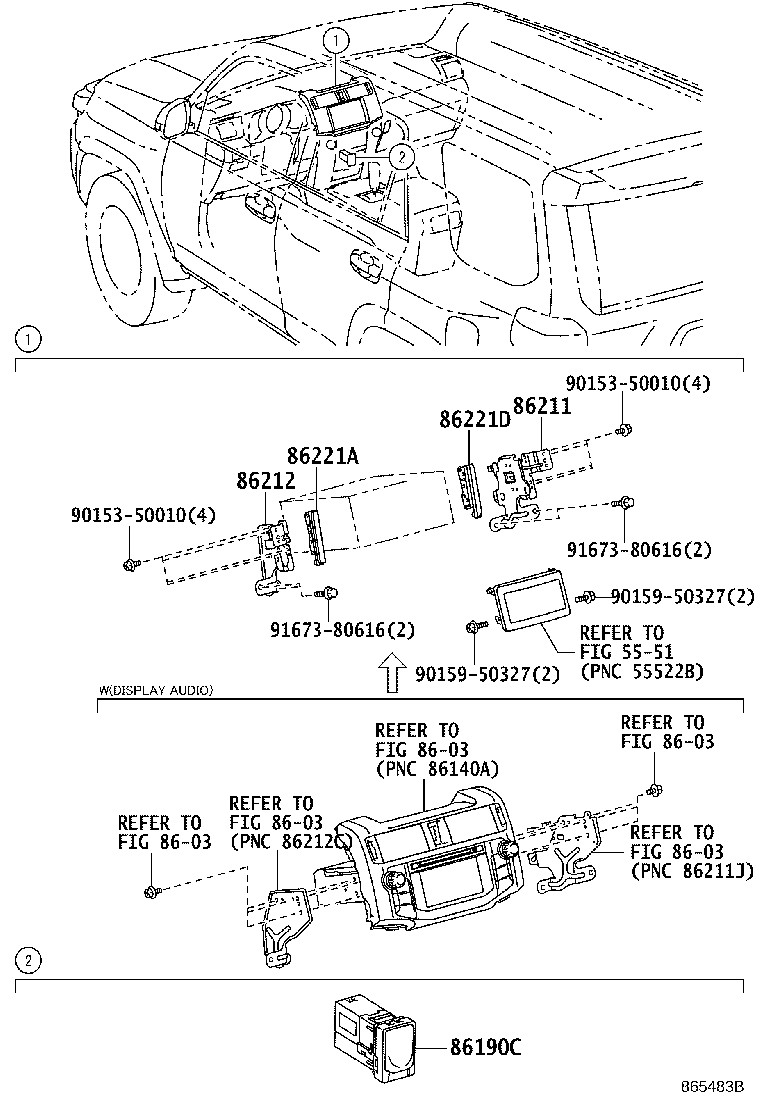

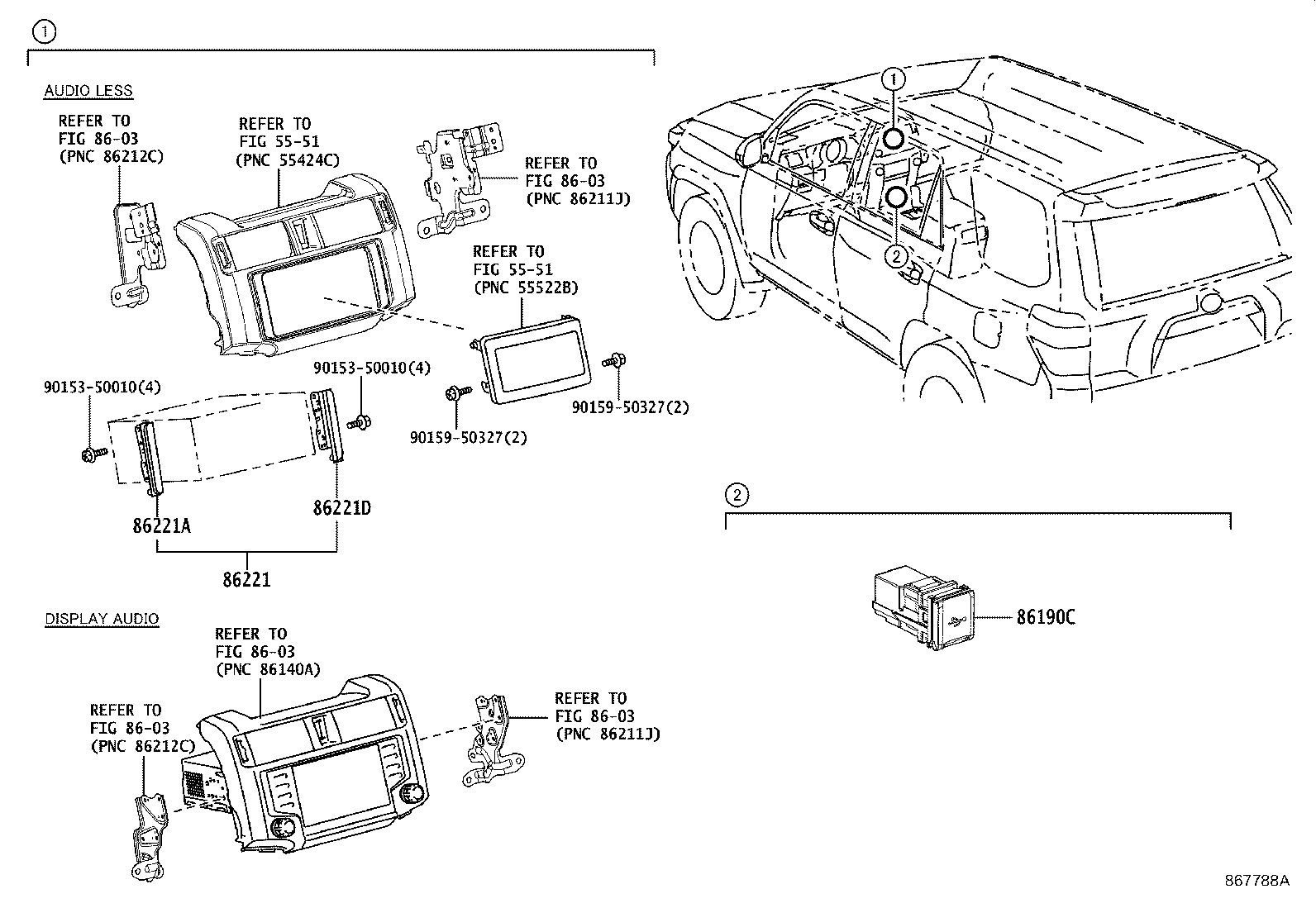

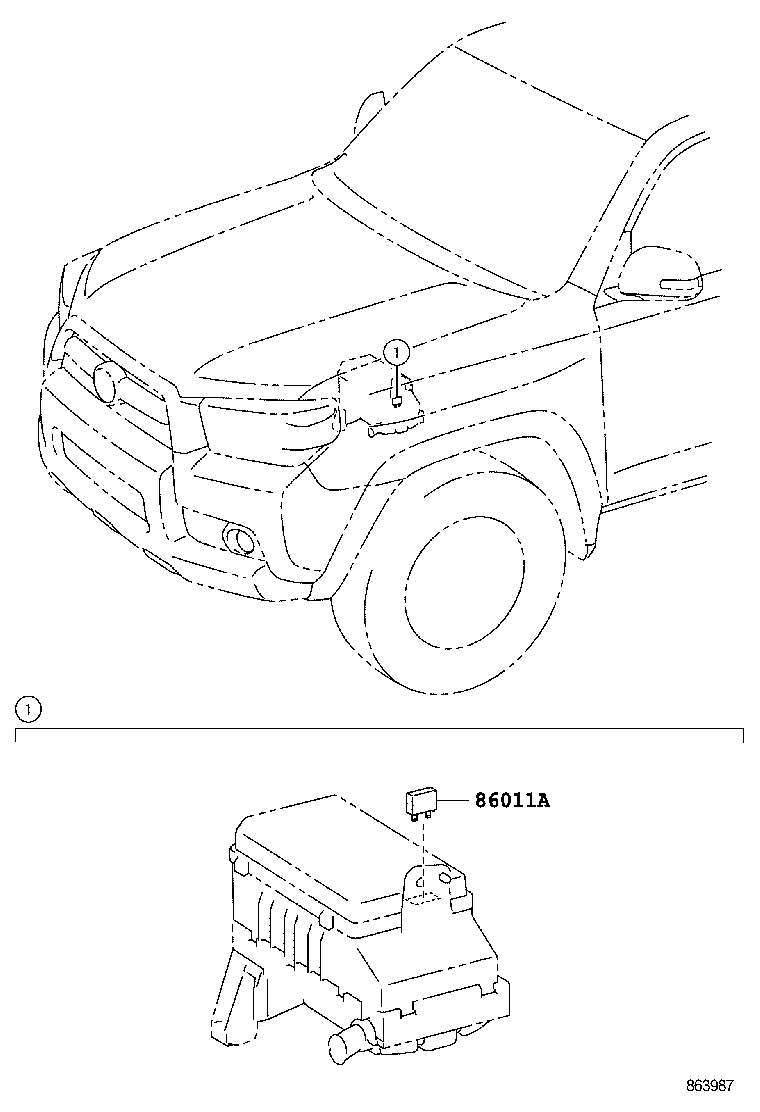

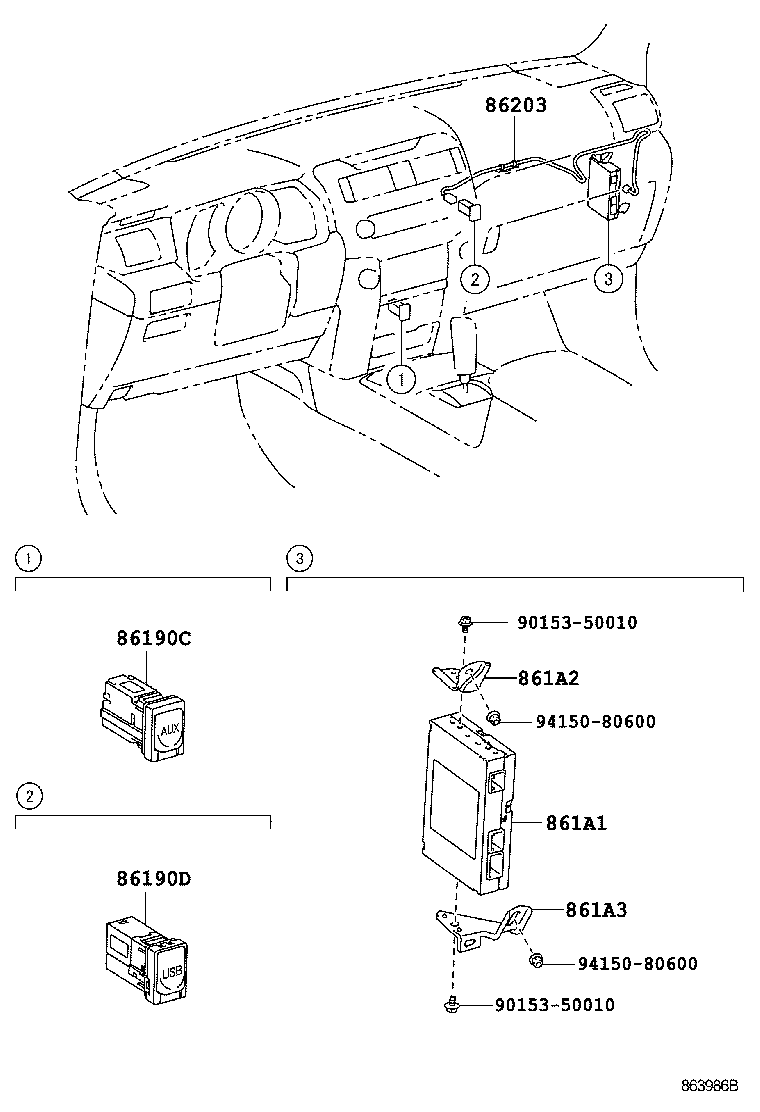

Figure 863985A 863985A 2009-08 → 2013-08 Figure 865483B 865483B 2013-08 → 2019-08 Figure 867788A 867788A 2019-08 → — Figure 863986B 863986B 2009-08 → 2013-08 Figure 863987 863987 2009-08 → — Figure 865580 865580 2013-08 → 2015-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
86190D Adapter Assy, Stereo Jack, NO.2
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221 Panel, Stereo Component
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
86723C Wire, Mobilephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
