Toyota 4Runner

2009-08 → present · chassis GRN28# · catalogue 671390 · General

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 2 illustrations

Illustrations

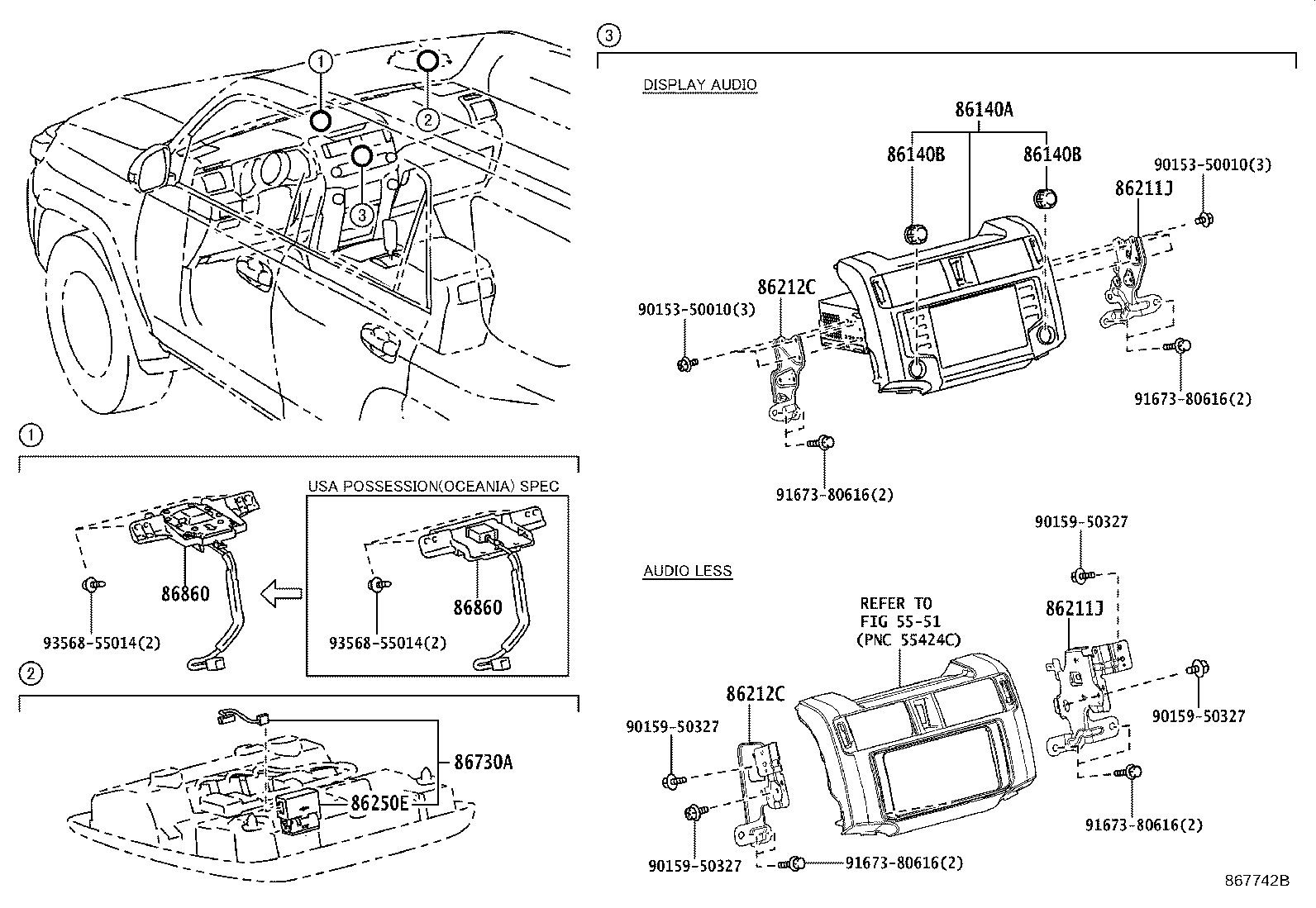

Figure 865485A 865485A 2013-08 → 2019-08 Figure 867742B 867742B 2019-08 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
