Toyota Fortuner

2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 4 illustrations

Illustrations

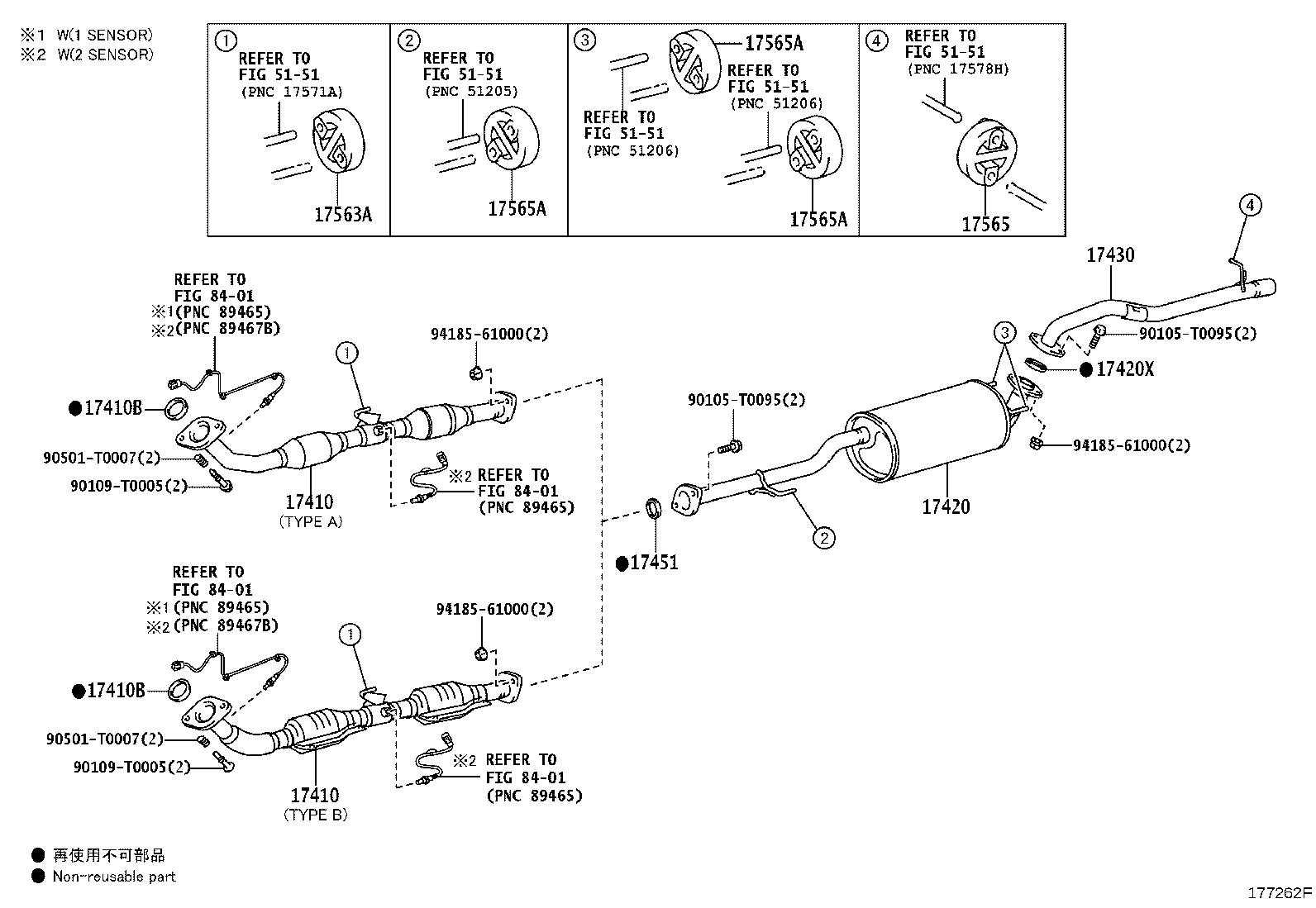

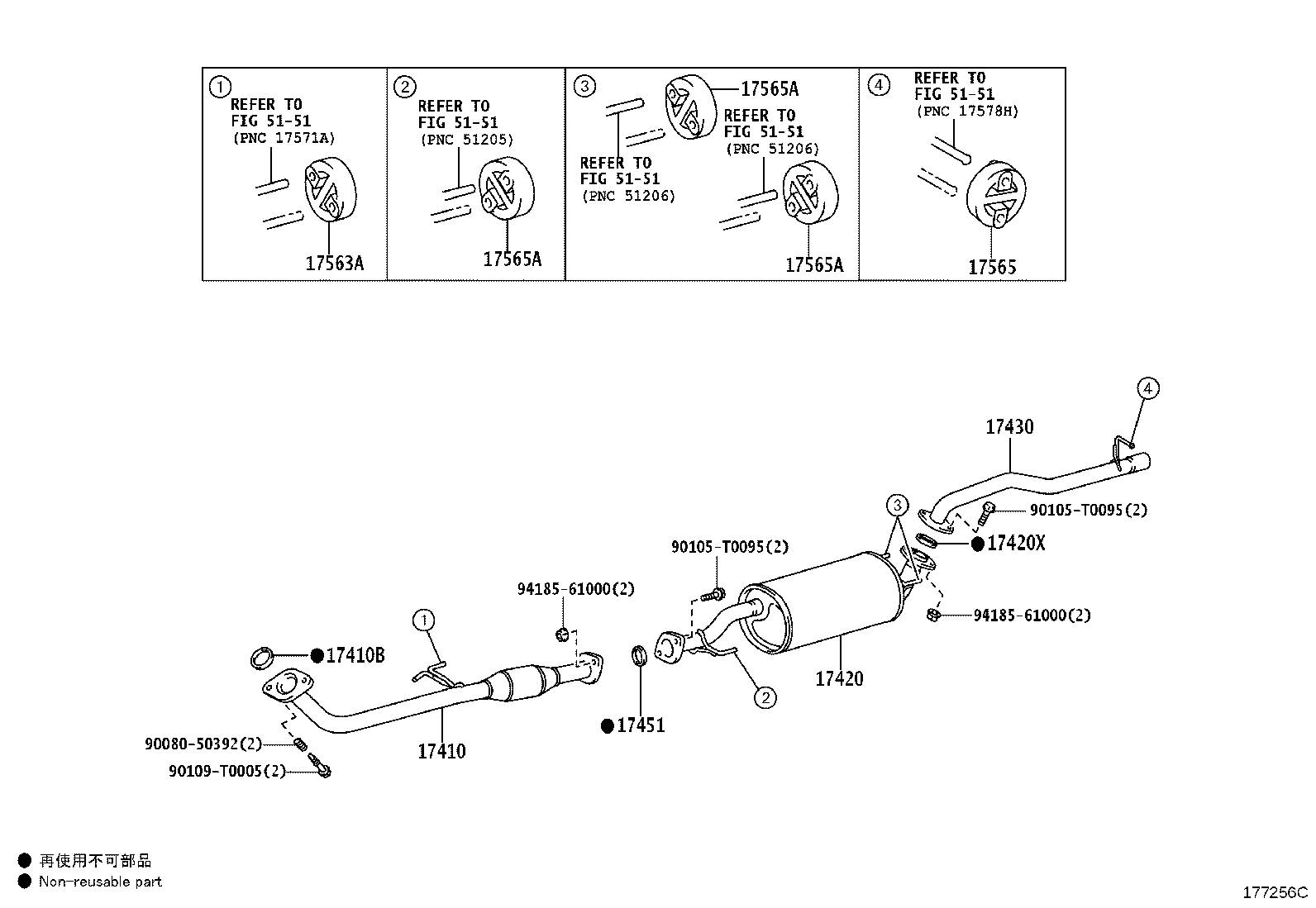

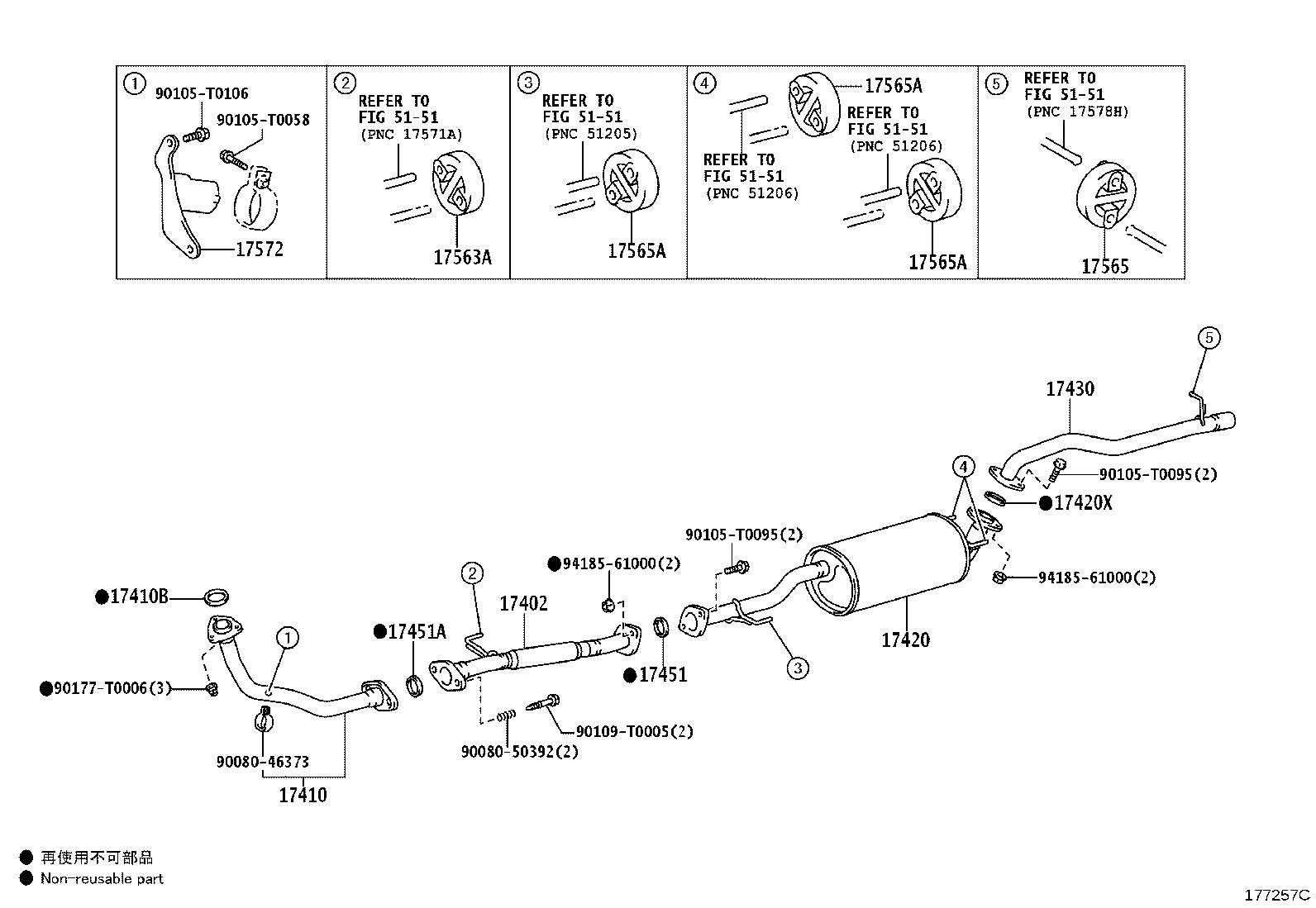

Figure 177255G 177255G 2011-07 → — Figure 177256C 177256C 2011-07 → — Figure 177257C 177257C 2011-07 → — Figure 177262F 177262F 2011-07 → —

Part groups

PNCDescription
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
