Toyota Fortuner

2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

14 part groups · 16 illustrations

Illustrations

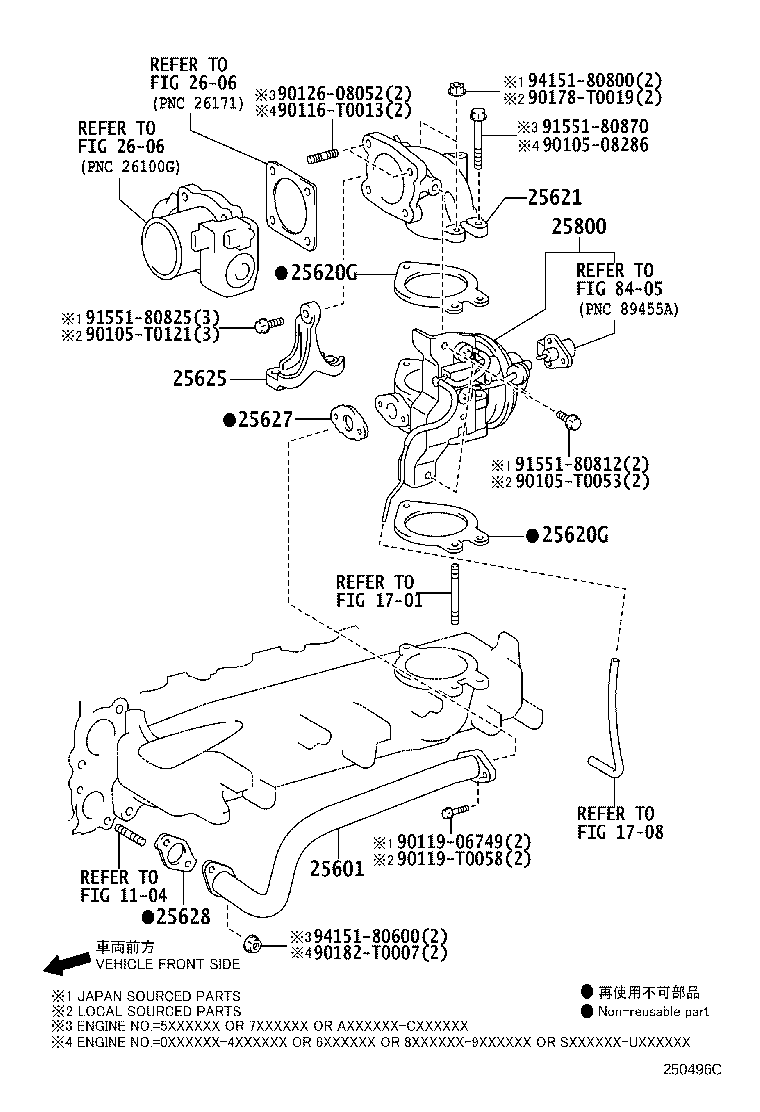

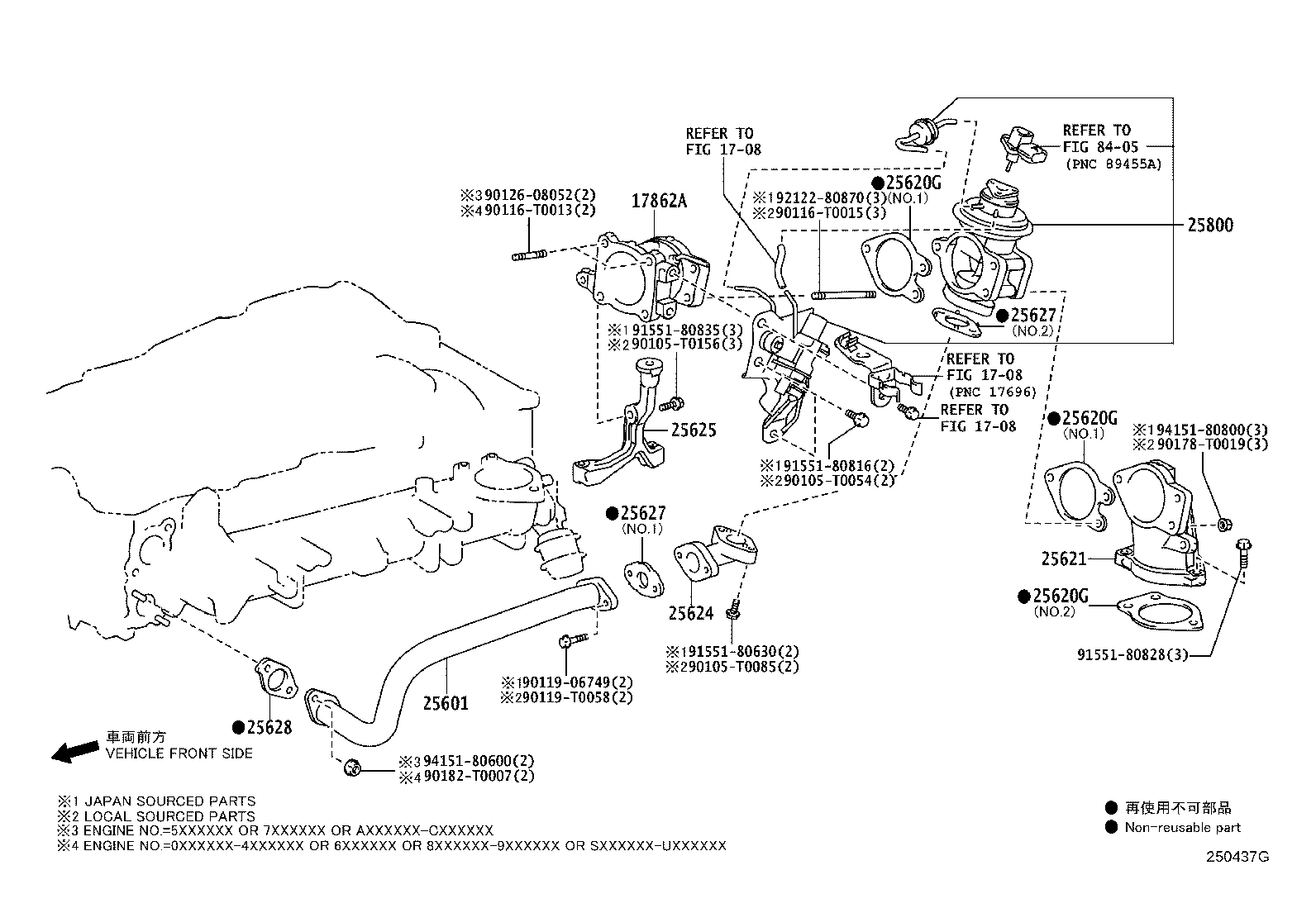

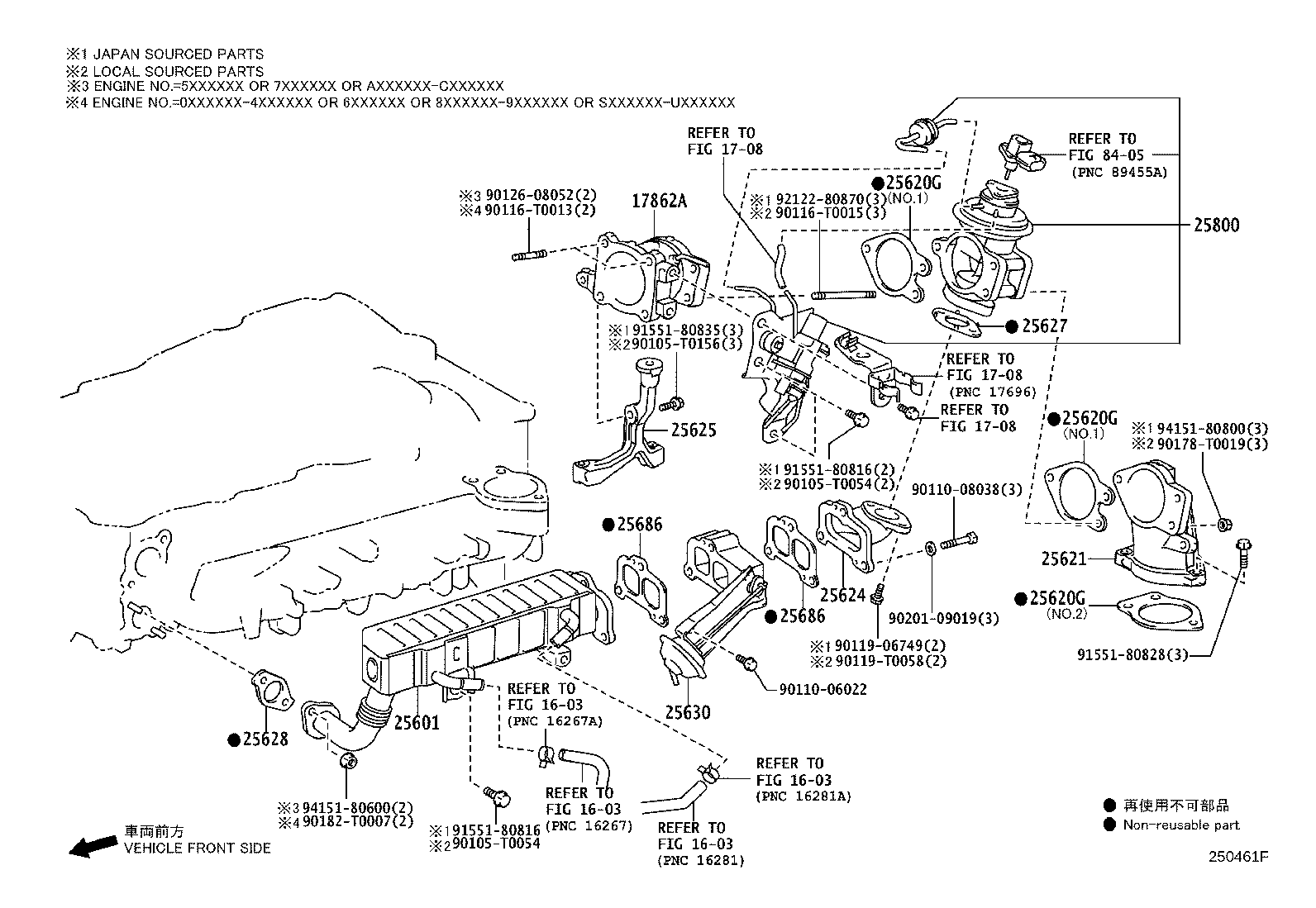

Figure 250436E 250436E 2011-07 → — Figure 250496C 250496C 2011-07 → 2012-08 Figure 250496C 250496C 2011-09 → 2012-10 Figure 250496C 250496C 2012-08 → — Figure 250437G 250437G 2011-07 → 2012-08 Figure 250437G 250437G 2012-02 → — Figure 250437G 250437G 2012-08 → — Figure 250437G 250437G 2012-10 → — Figure 250461F 250461F 2011-10 → 2012-10 Figure 250461F 250461F 2011-10 → — Figure 250461F 250461F 2011-10 → — Figure 250461F 250461F 2012-08 → — Figure 250461F 250461F 2013-11 → — Figure 250461F 250461F 2014-08 → — Figure 250461F 250461F 2014-10 → — Figure 250457H 250457H 2012-04 → —

Part groups

PNCDescription
17862A Connector, Intake Air, NO.2
22267C Bracket, Throttle Body
25601 Pipe Sub-assy, Egr, NO.1
25620G Gasket, Diesel Throttle
25621 Connector, Intake Air(FOR GASKET)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25686 Gasket, Egr Cooler, NO.2
25689 Insulator, Egr Cooler
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
