Toyota Fortuner

2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 18 illustrations

Illustrations

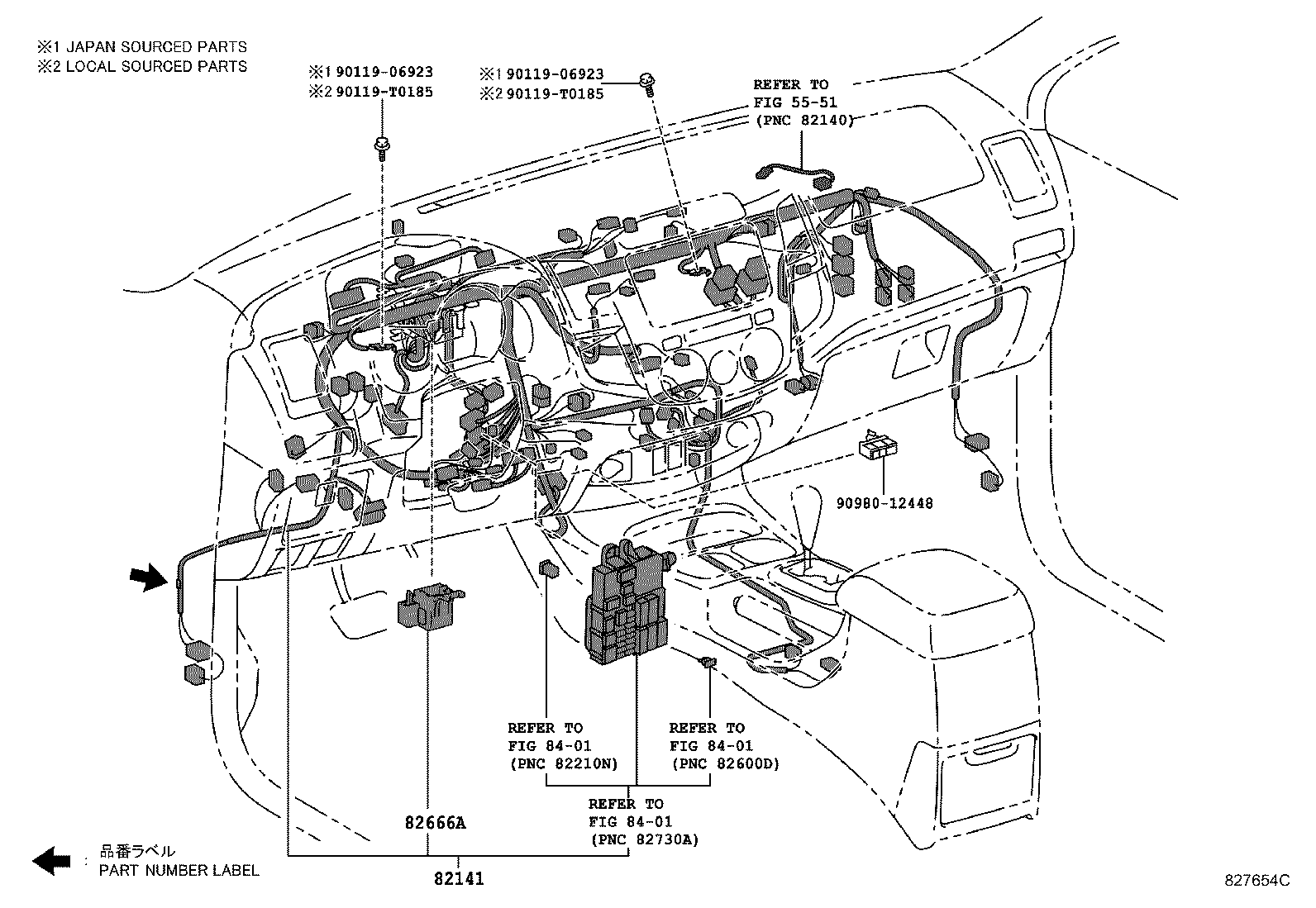

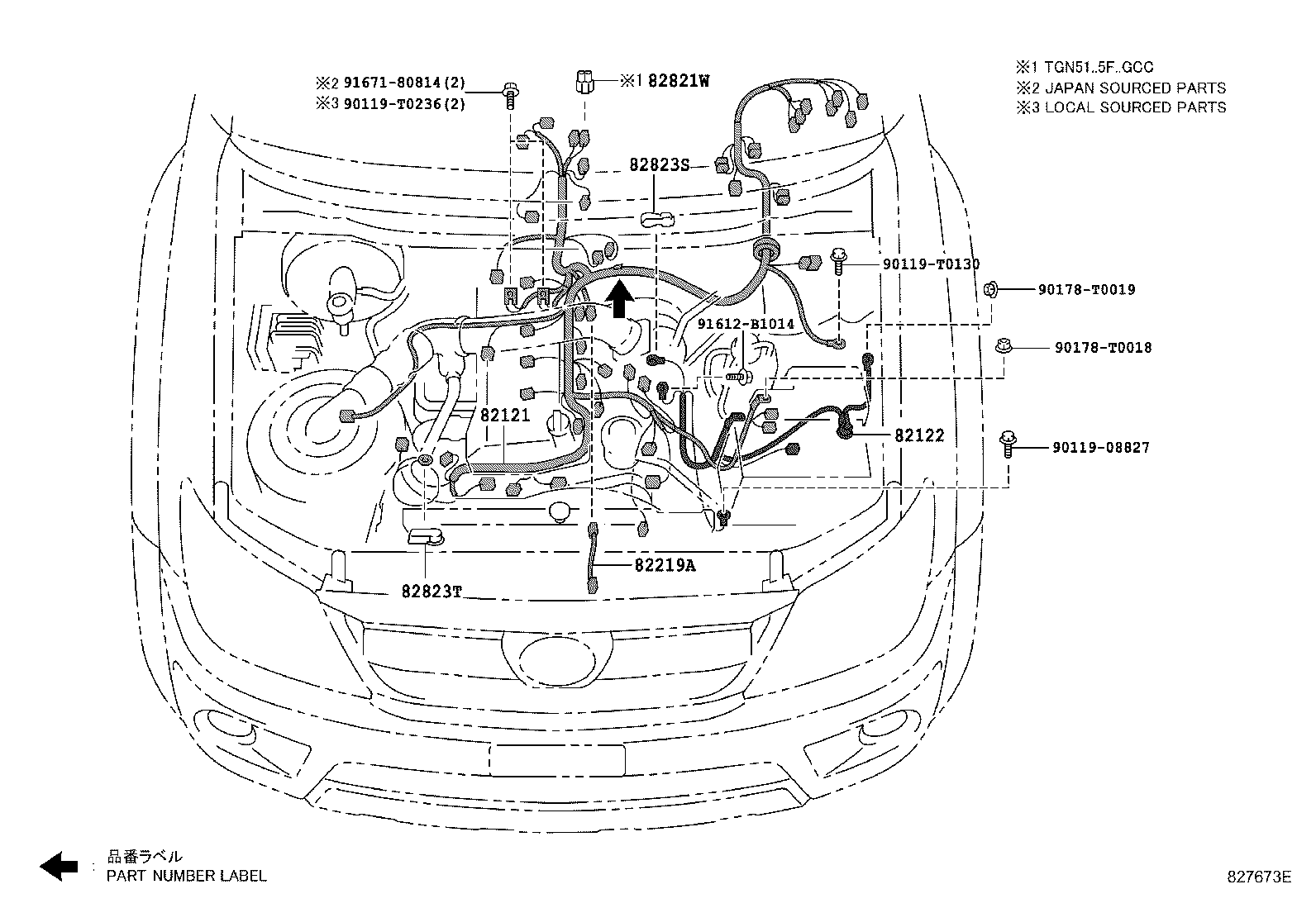

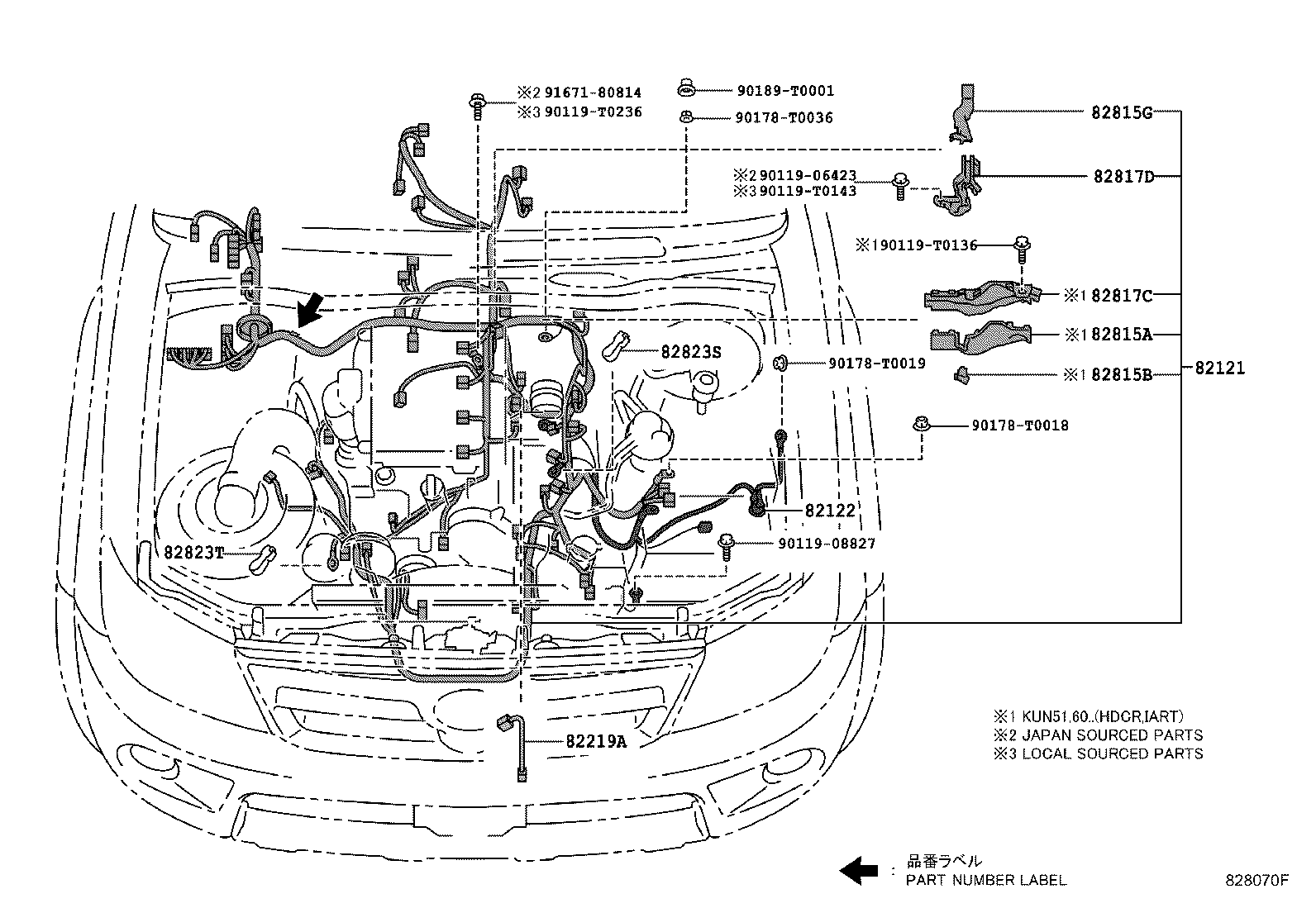

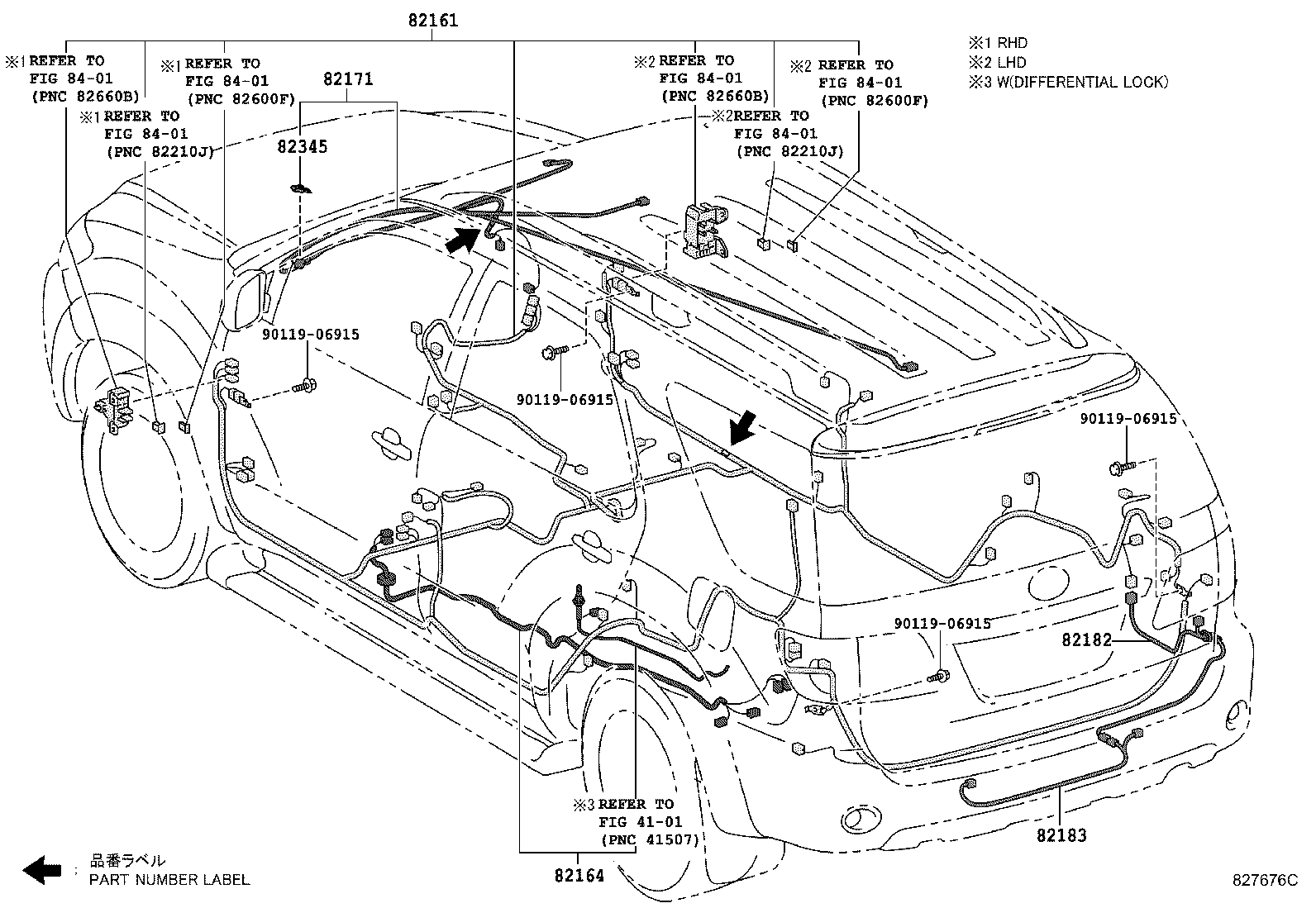

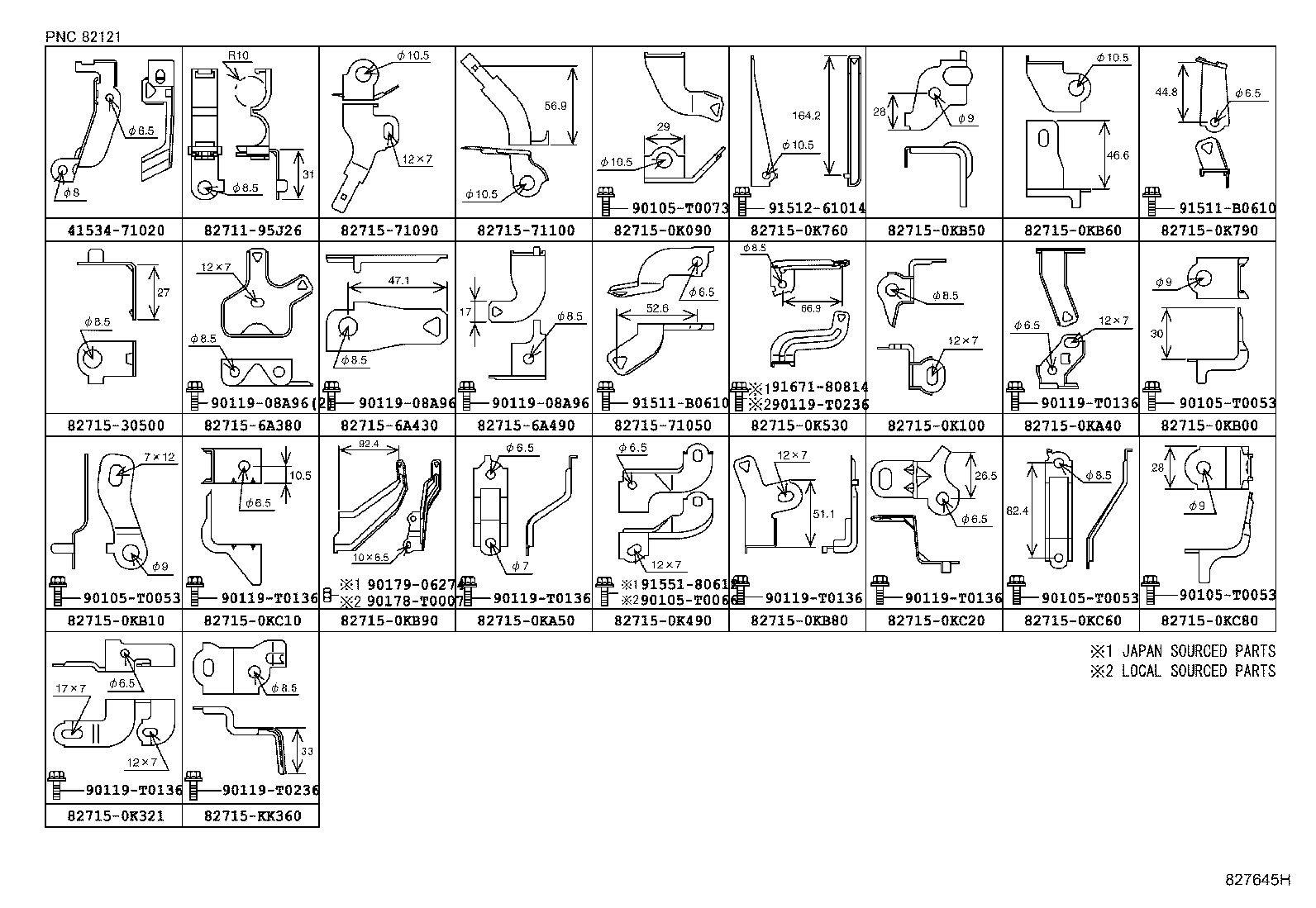

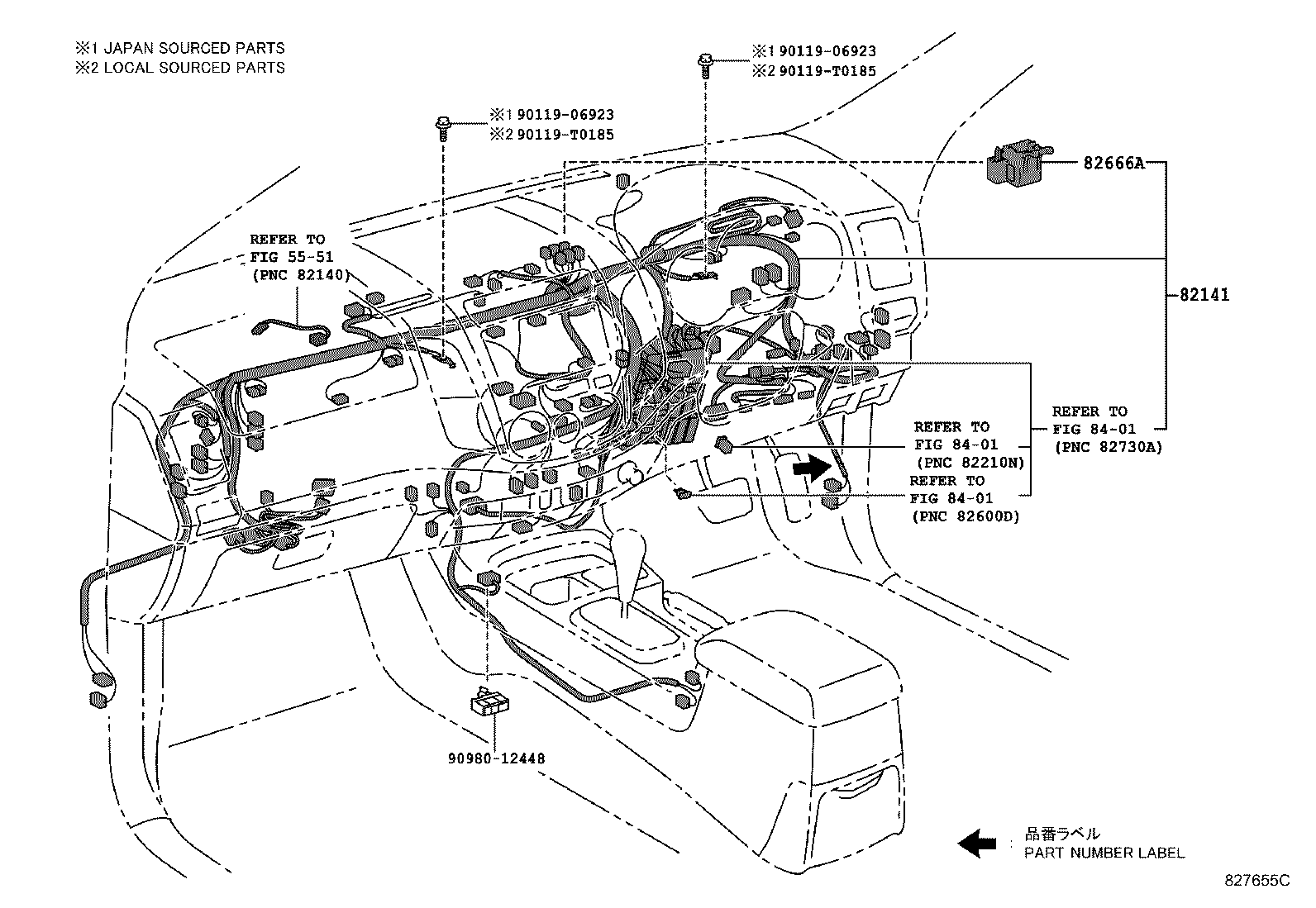

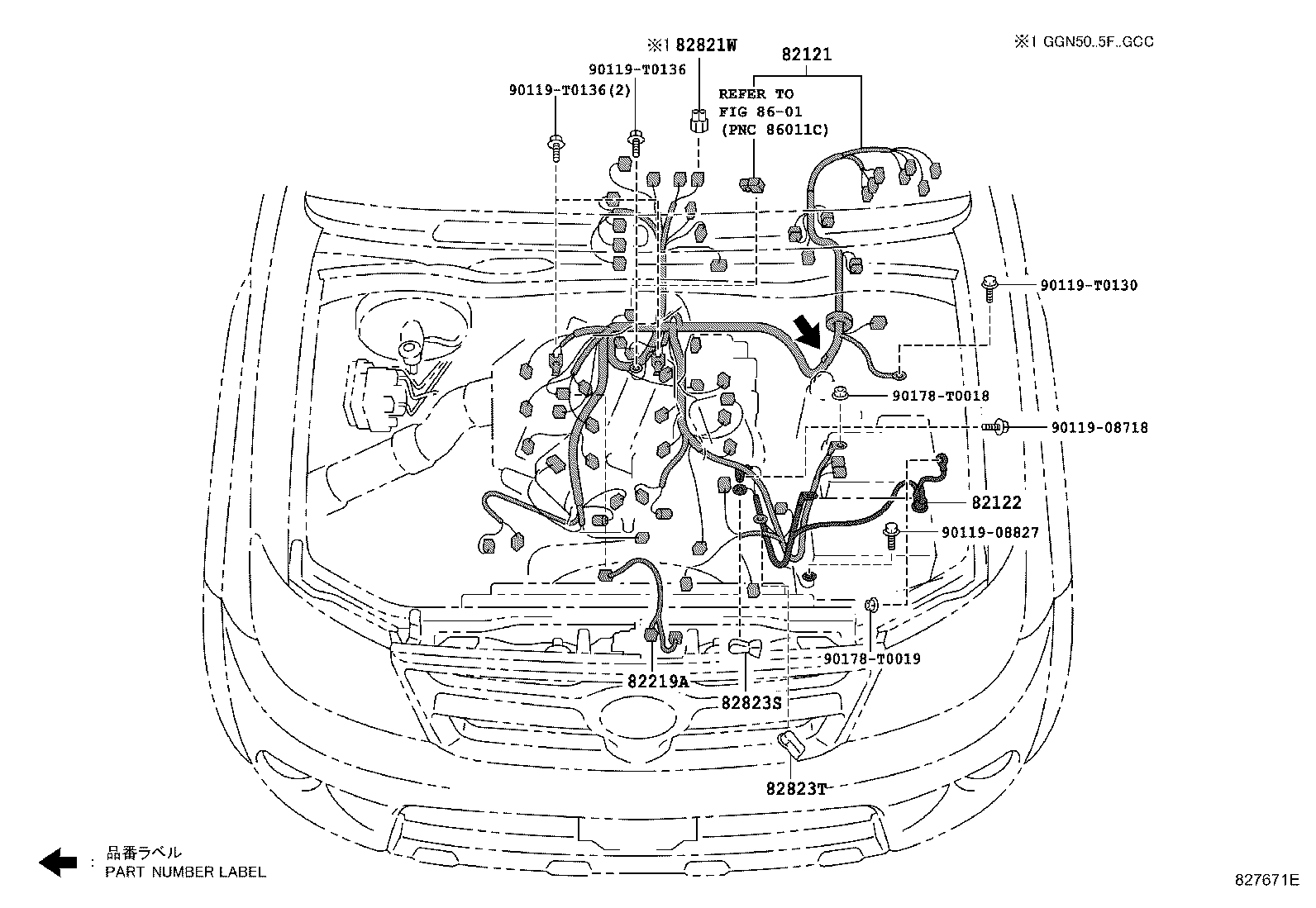

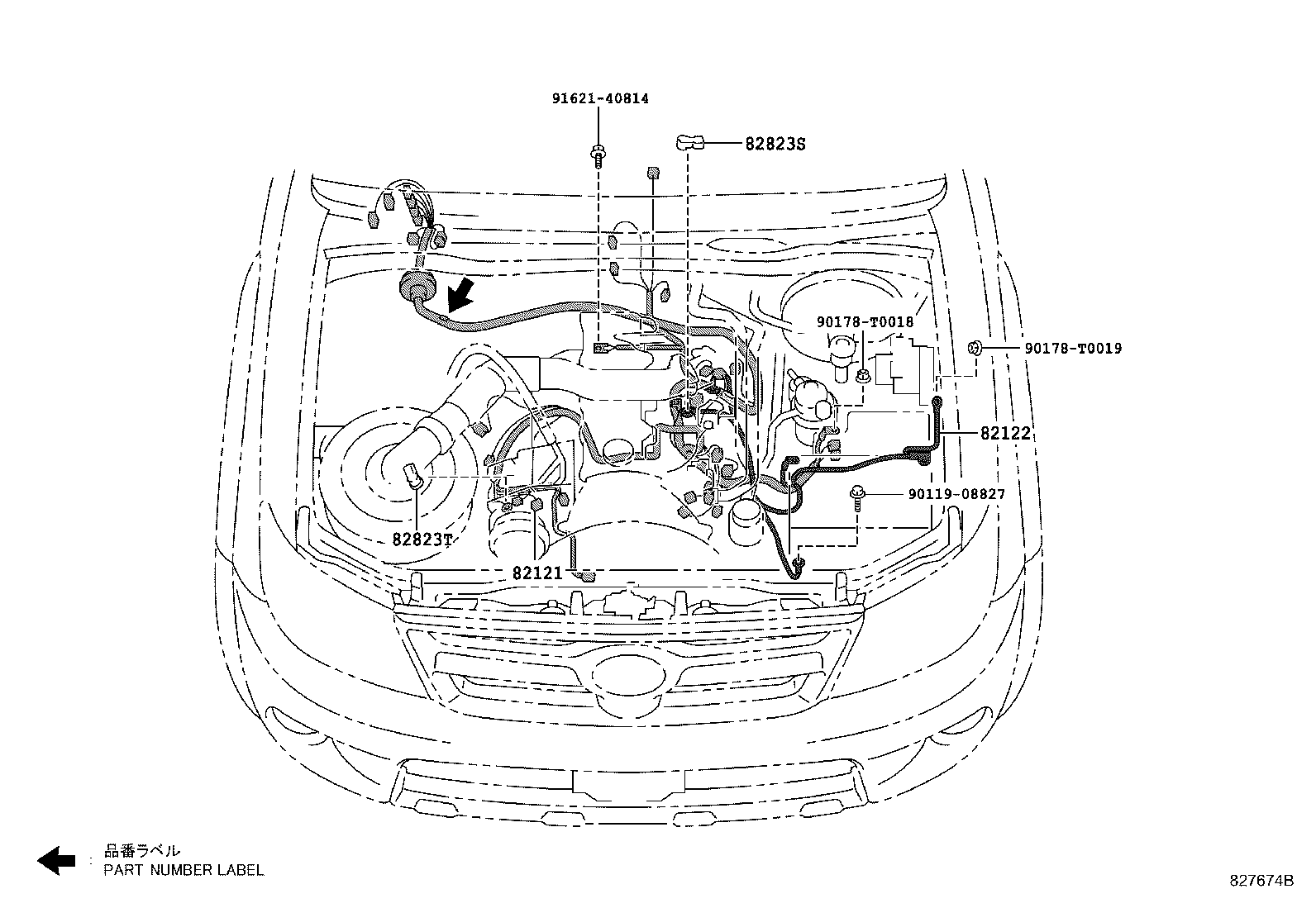

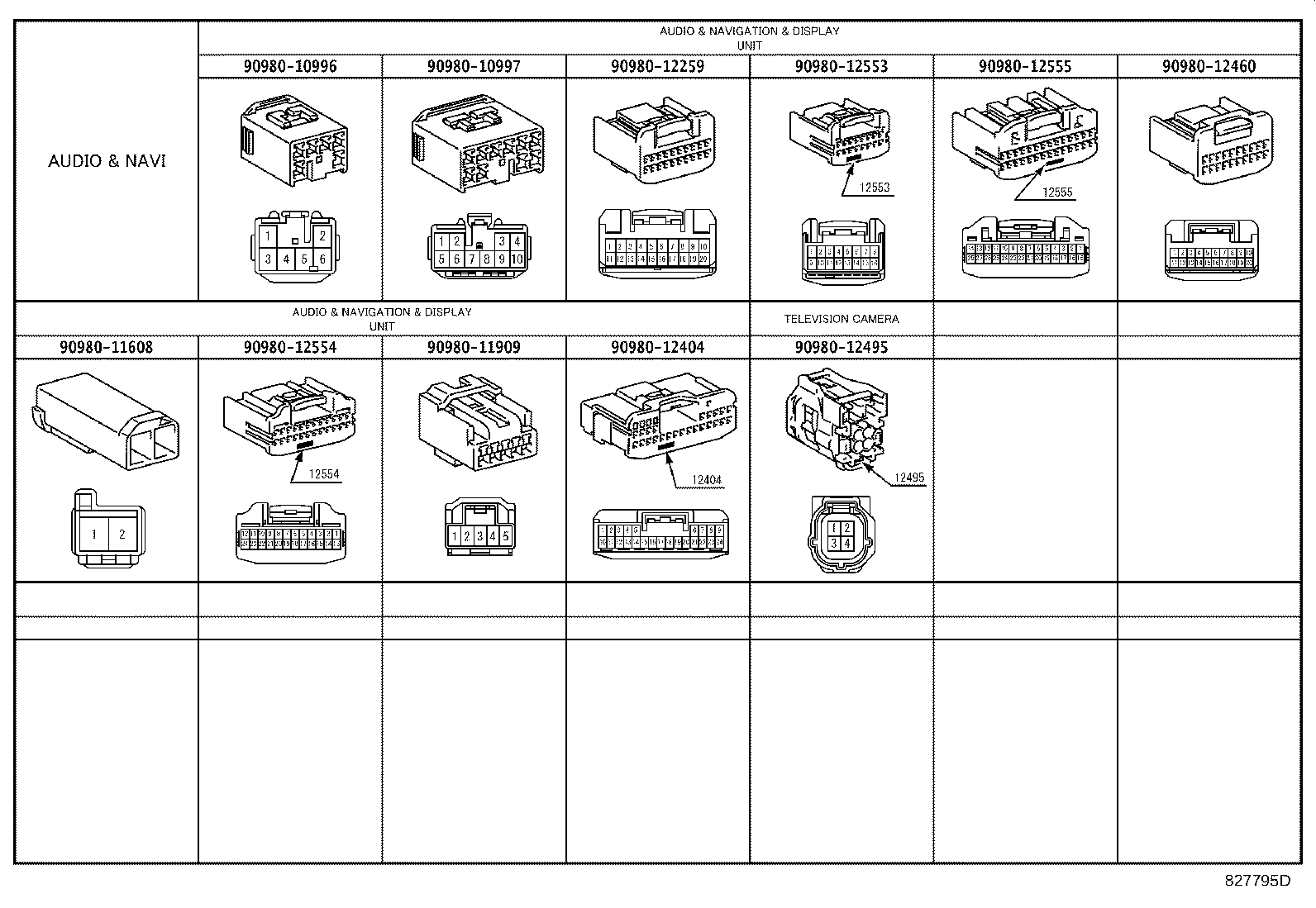

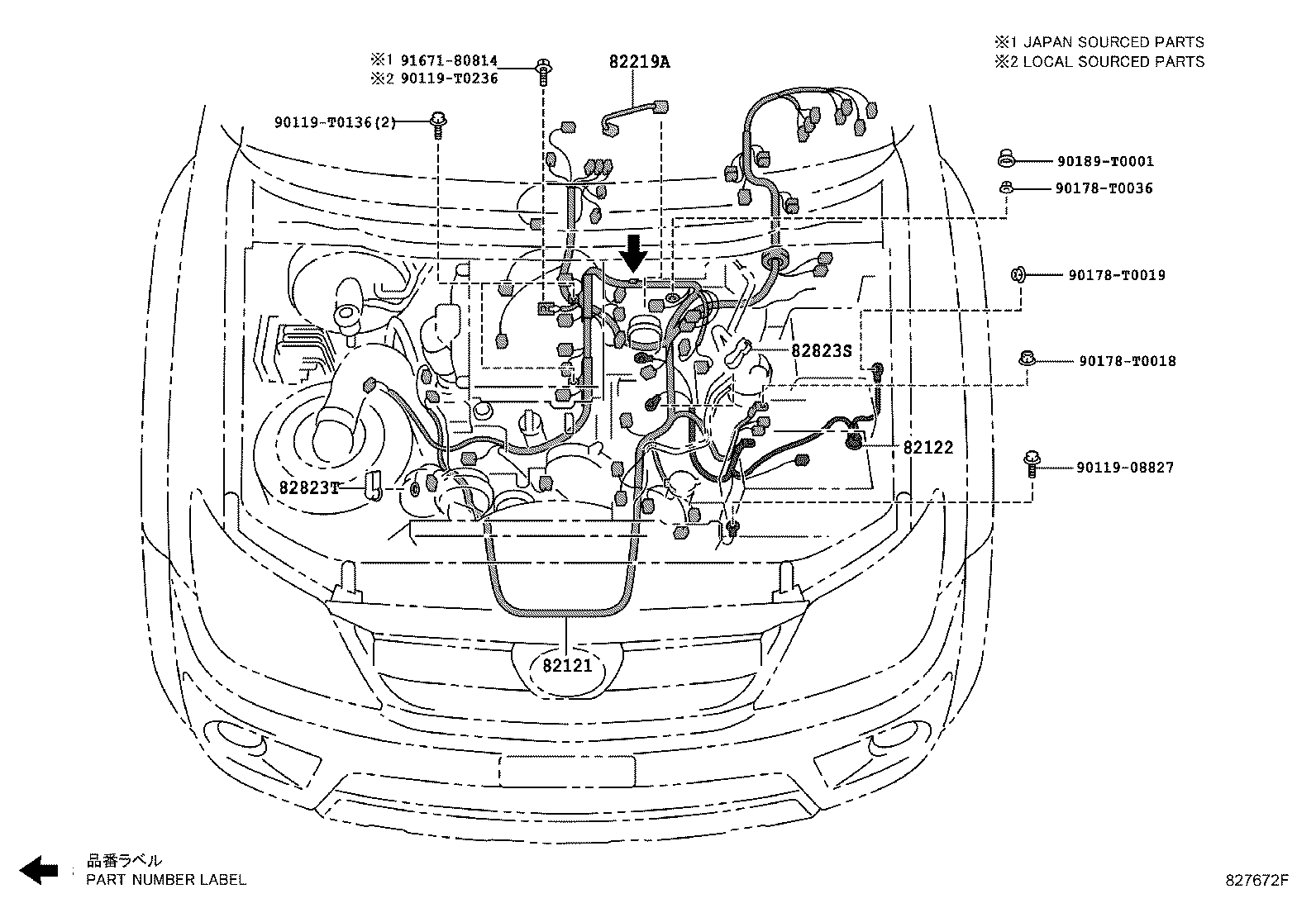

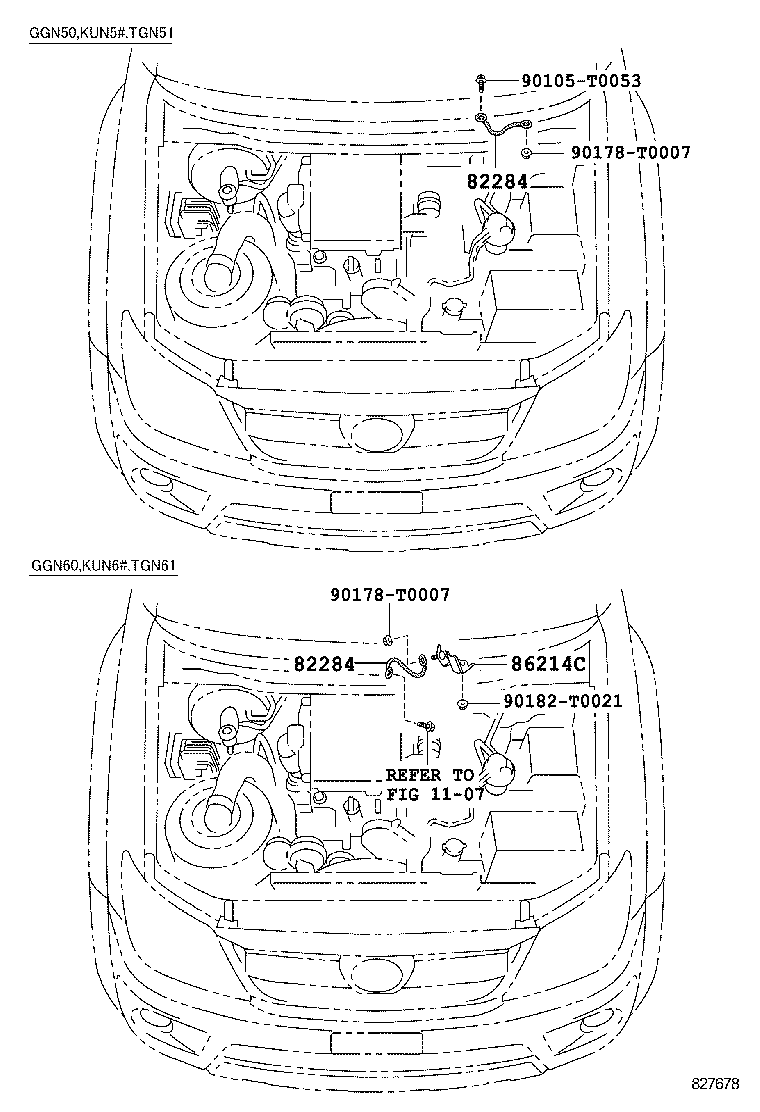

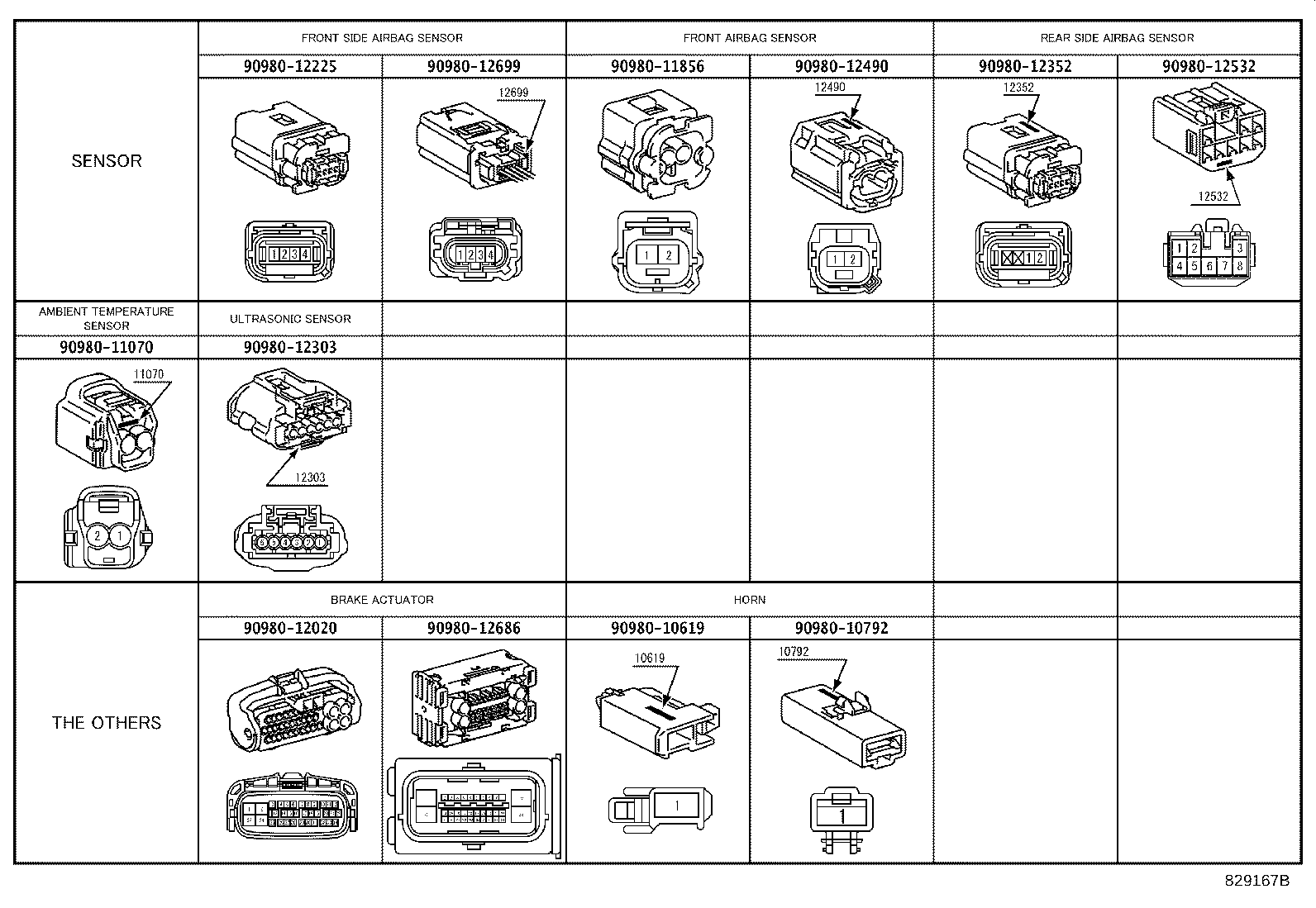

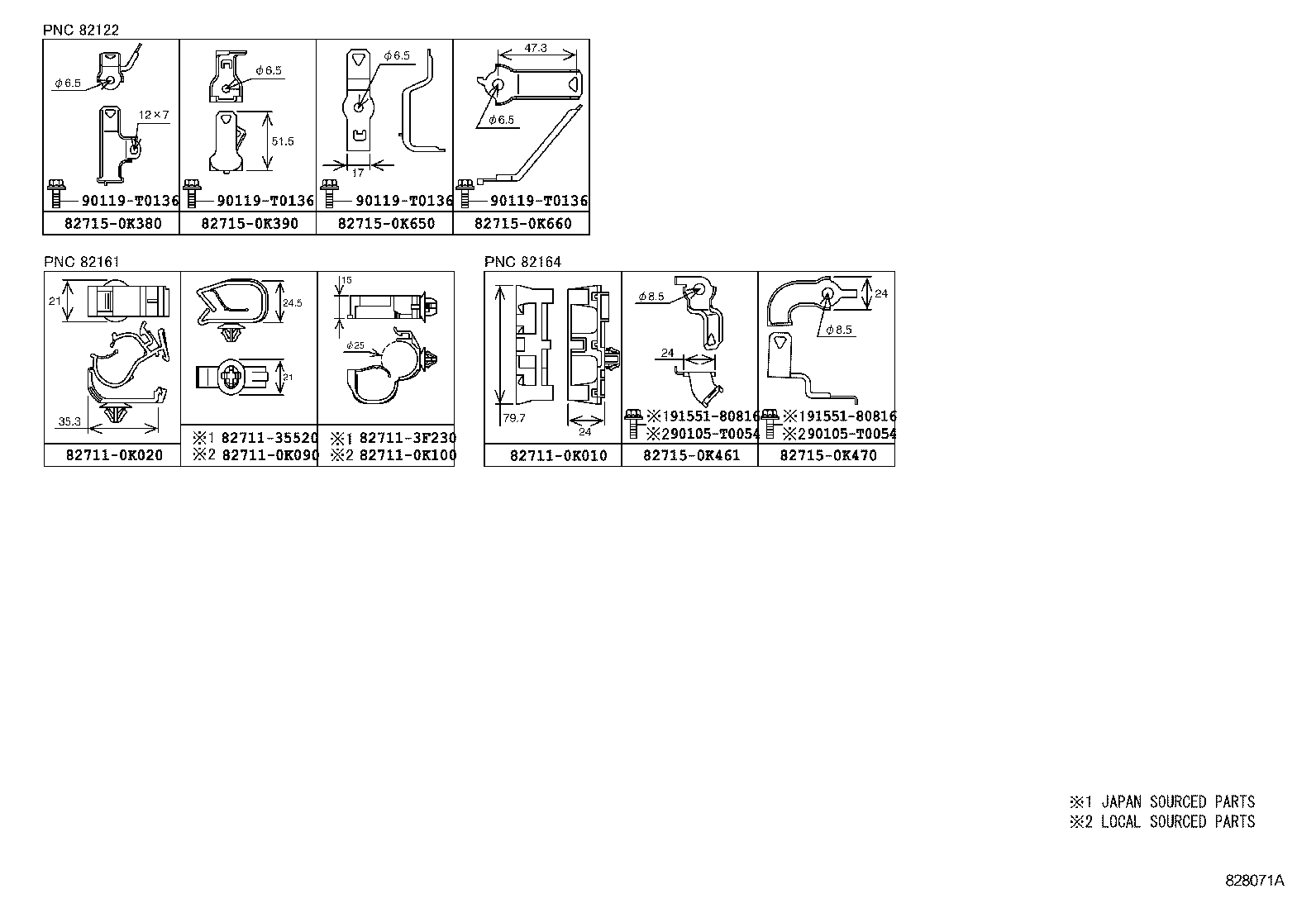

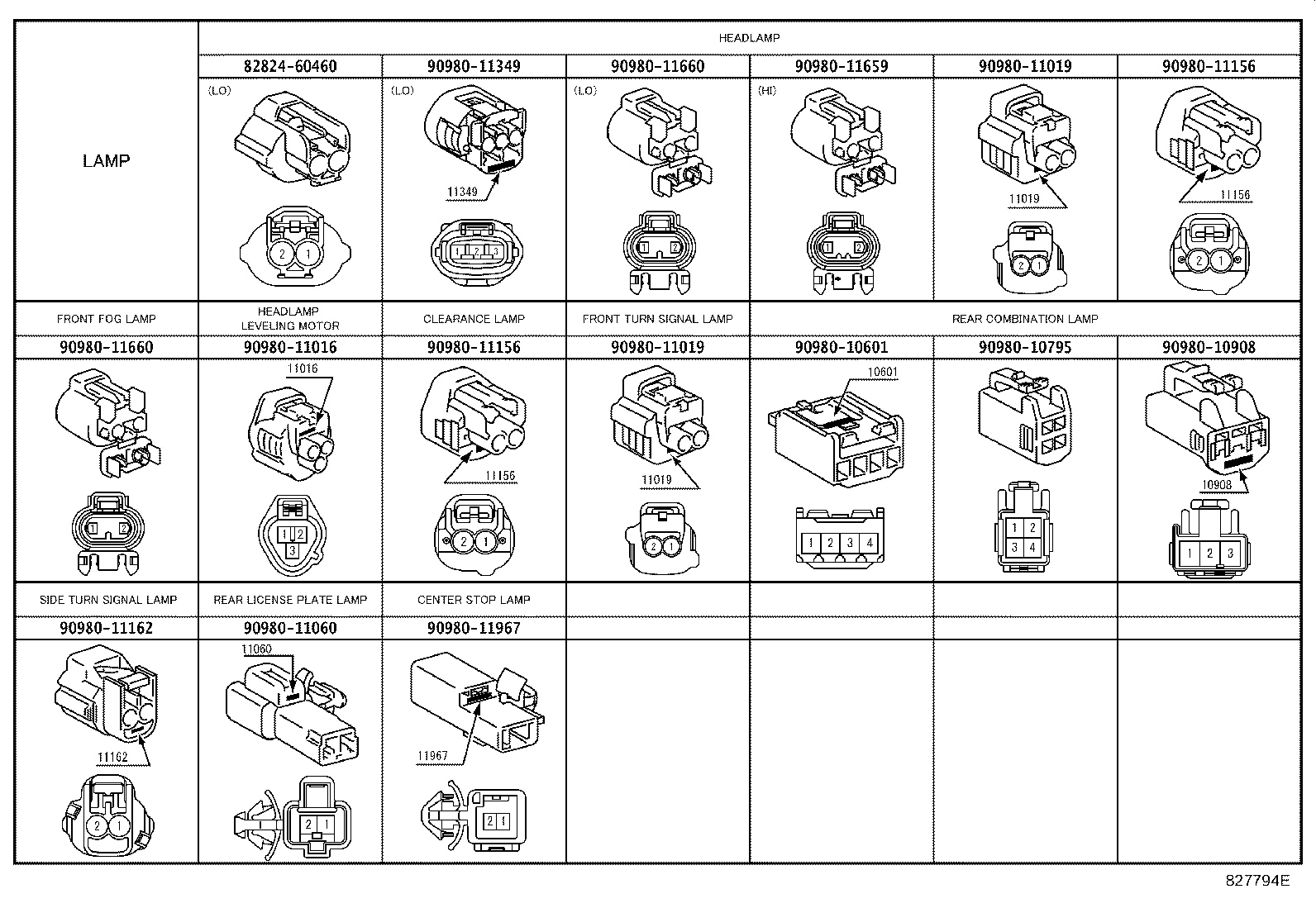

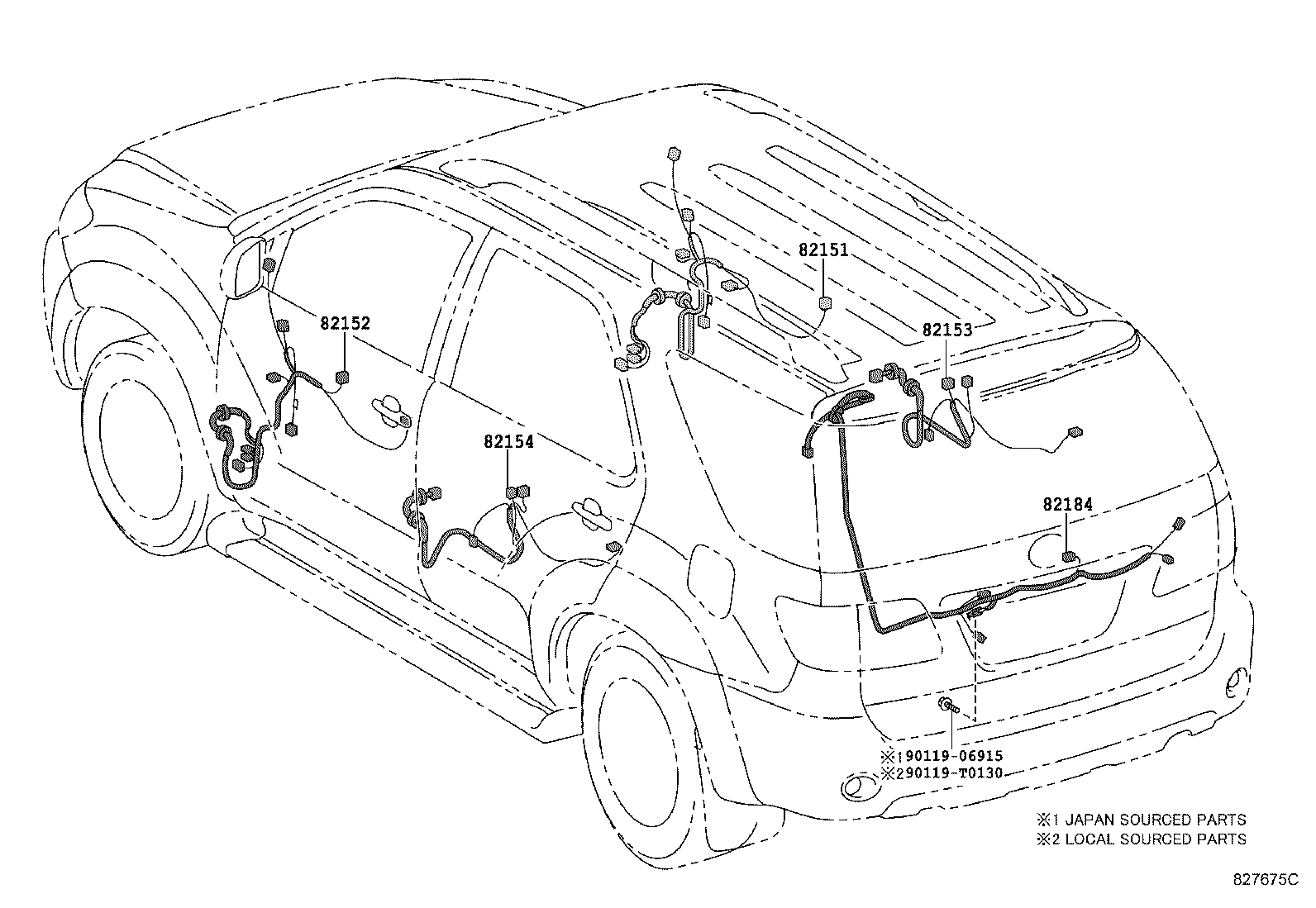

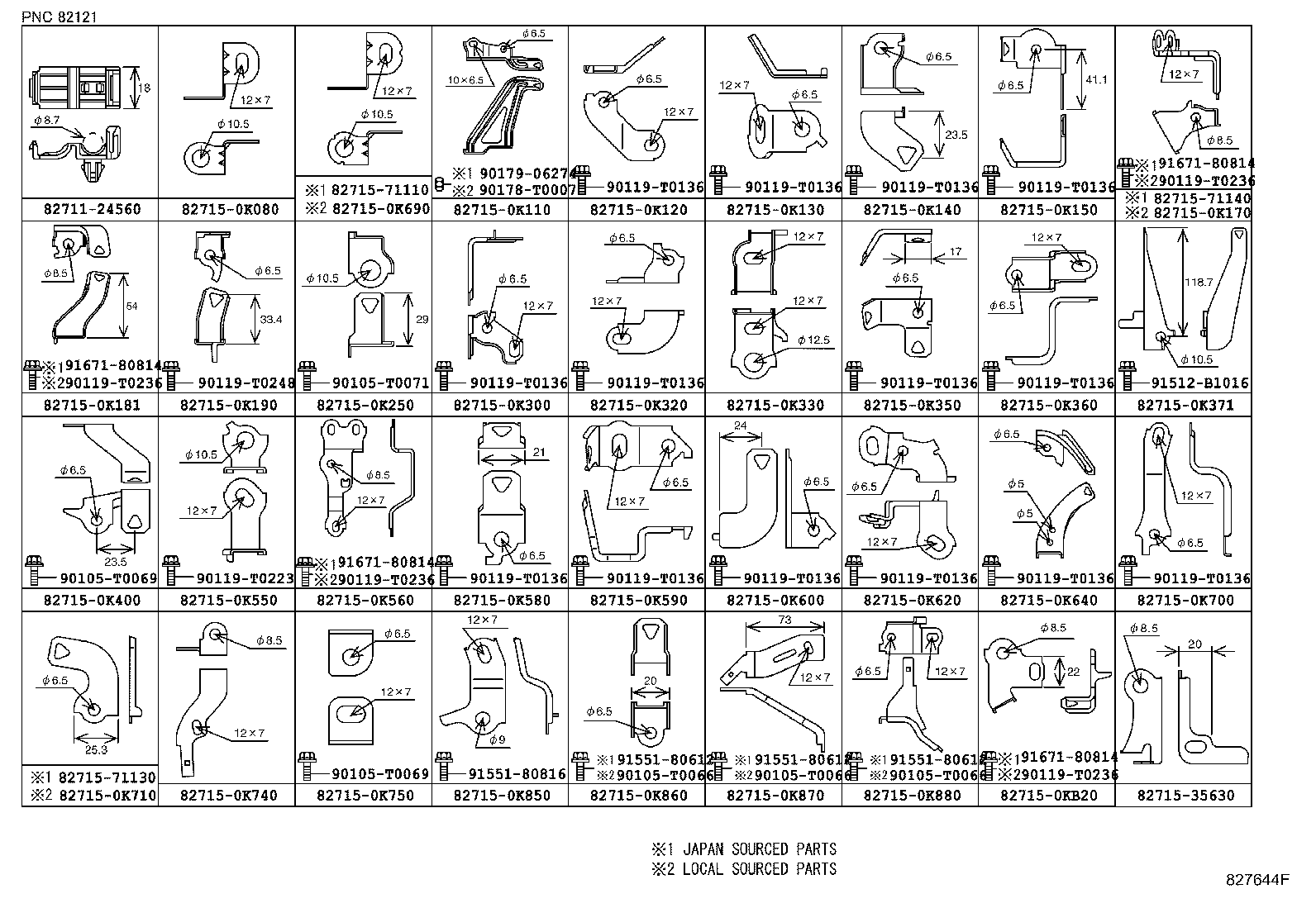

Figure 827670G 827670G 2011-07 → — Figure 827671E 827671E 2011-07 → — Figure 827672F 827672F 2011-07 → — Figure 827673E 827673E 2011-07 → — Figure 827674B 827674B 2011-08 → — Figure 828070F 828070F 2012-04 → — Figure 827654C 827654C 2011-07 → — Figure 827655C 827655C 2011-07 → — Figure 827675C 827675C 2011-07 → — Figure 827676C 827676C 2011-07 → — Figure 827677 827677 2011-07 → — Figure 827644F 827644F 2011-07 → — Figure 827645H 827645H 2011-07 → — Figure 828071A 828071A 2011-07 → — Figure 827678 827678 2011-07 → — Figure 827794E 827794E 2011-07 → — Figure 829167B 829167B 2011-07 → — Figure 827795D 827795D 2011-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82164 Wire, Frame
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82284 Wire, Earth
82345 Diode
82666A Holder, Connector NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821W Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
