Toyota Fortuner
2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General
Supported model
Data version 2022-11
Radio Receiver & Amplifier & Condenser
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

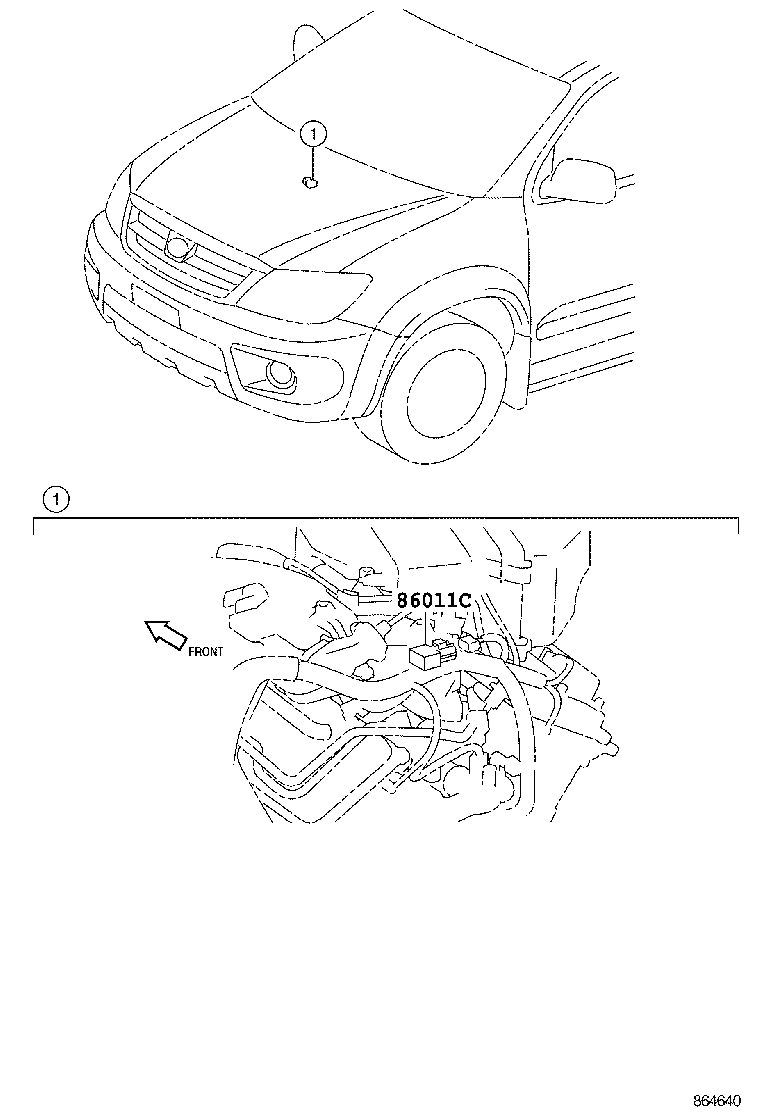

| 86011C | Filter, Noise |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 861A0 | Computer Assy, Multi-media Interface |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86211H | Bracket, Radio, NO.2 |
| 86212 | Bracket, Radio, NO.2 |
| 86723C | Wire, Mobilephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
