Toyota Fortuner

2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 13 illustrations

Illustrations

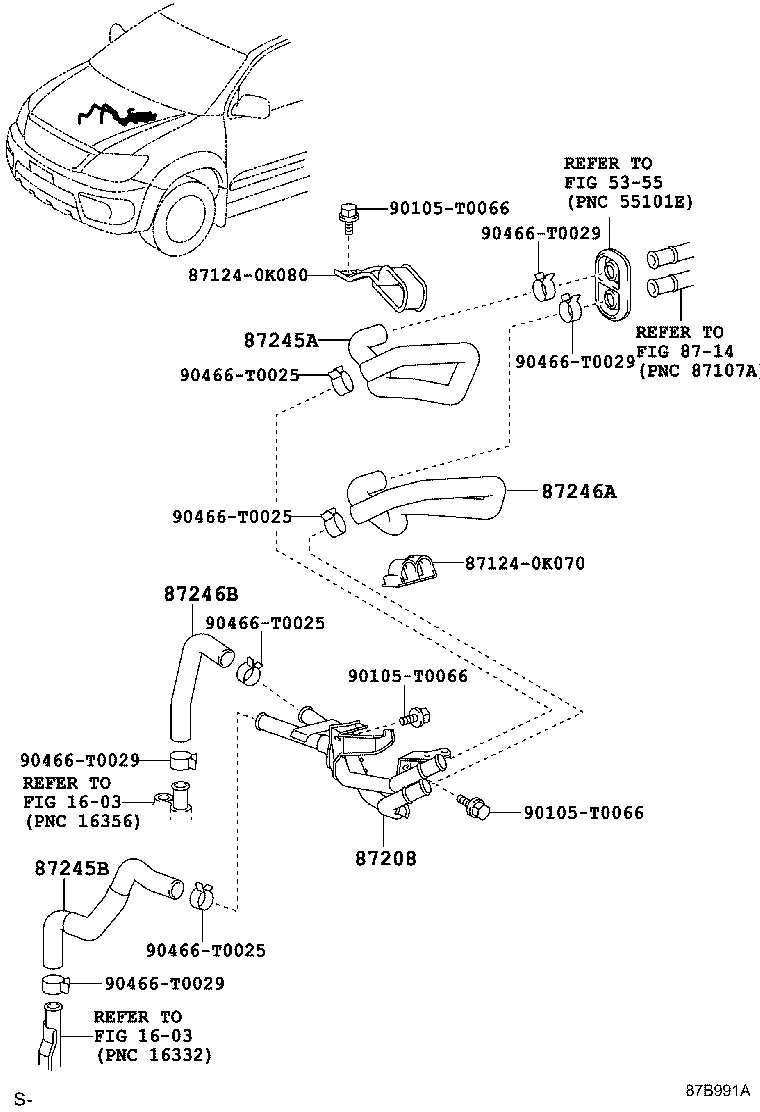

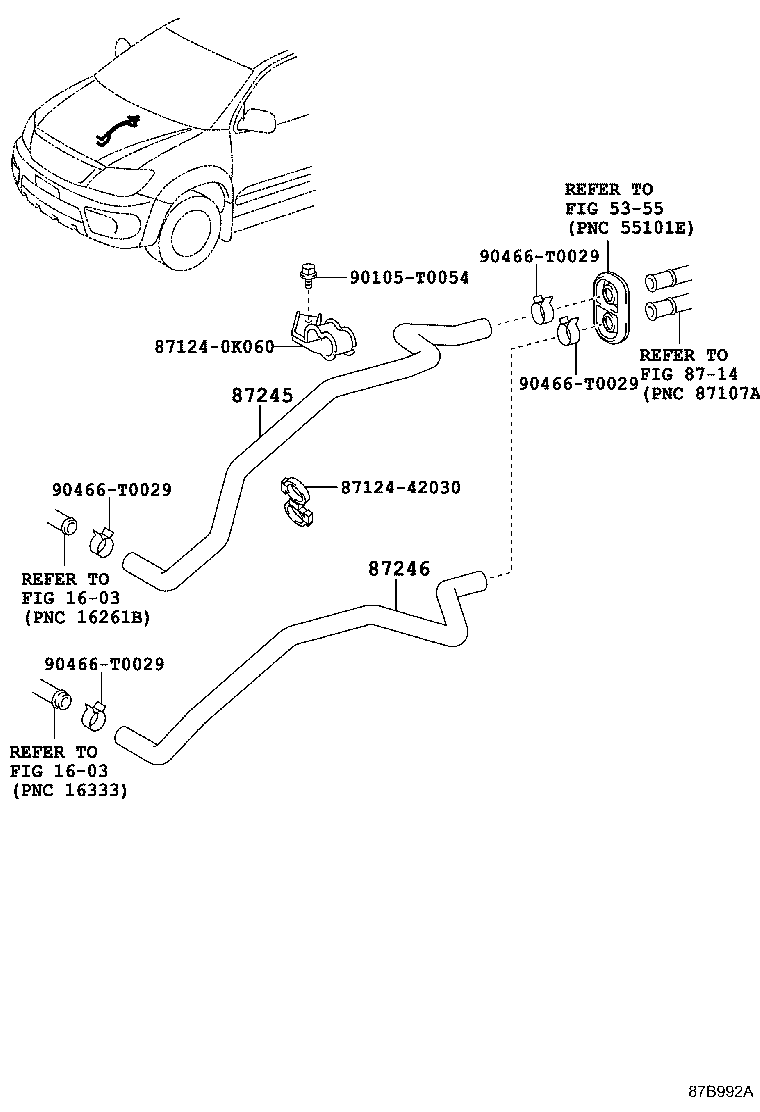

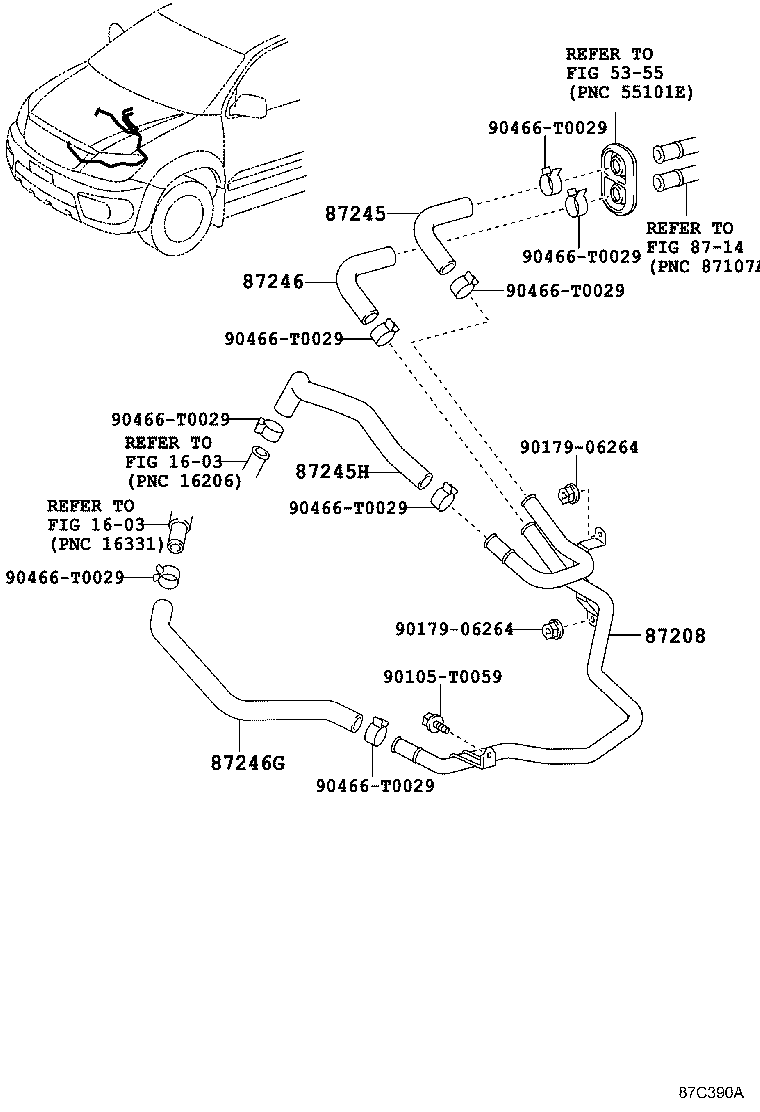

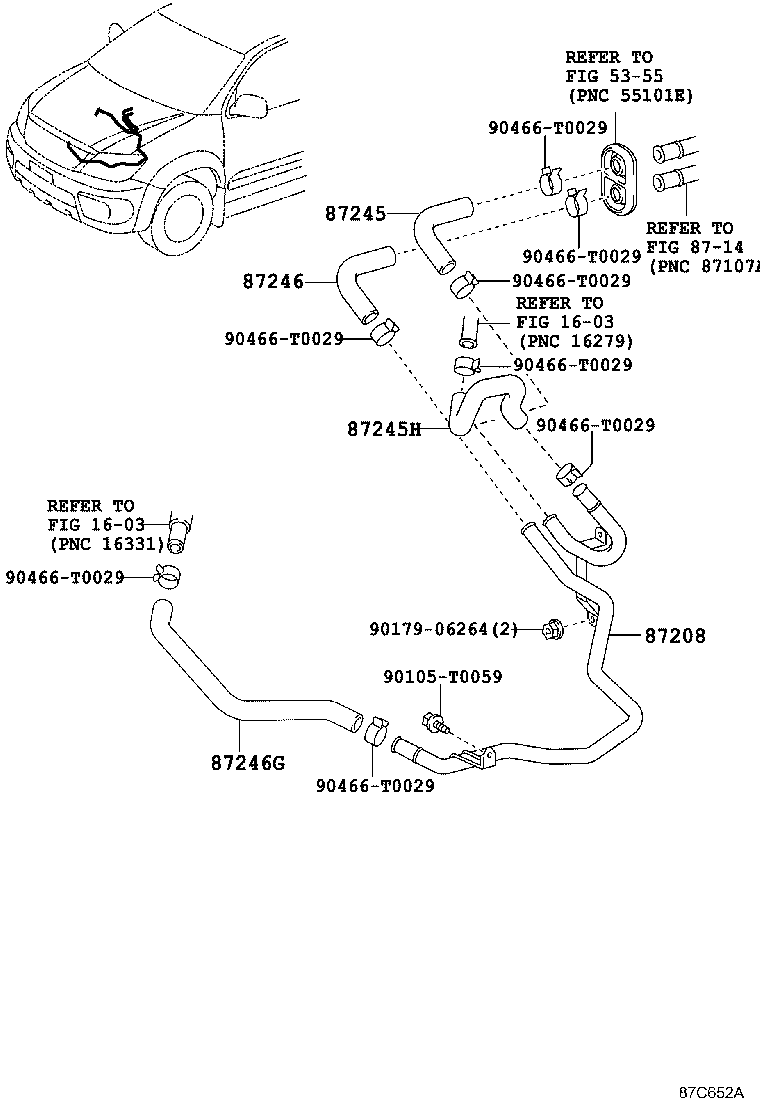

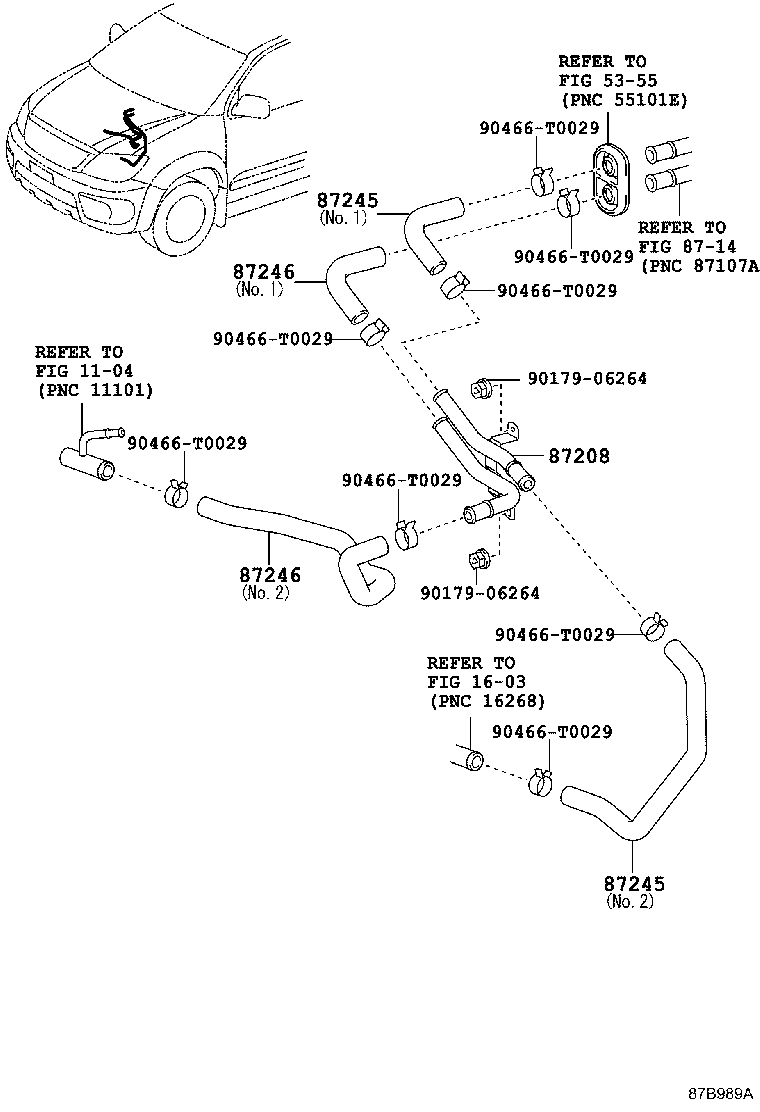

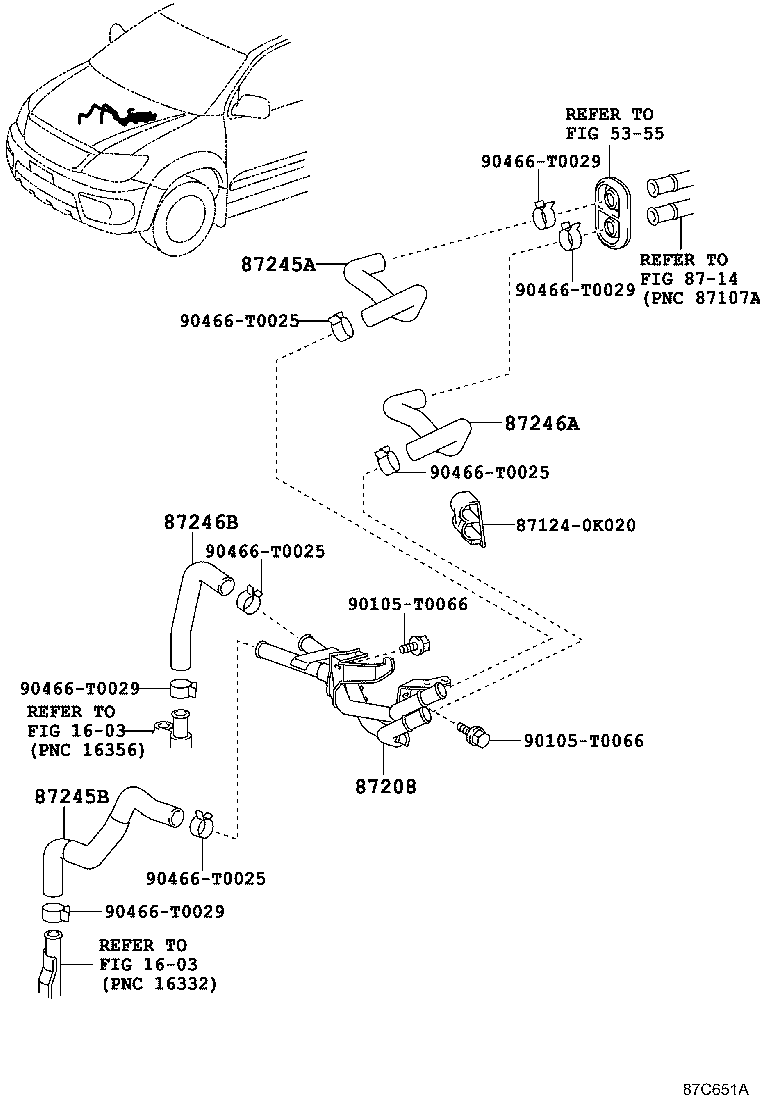

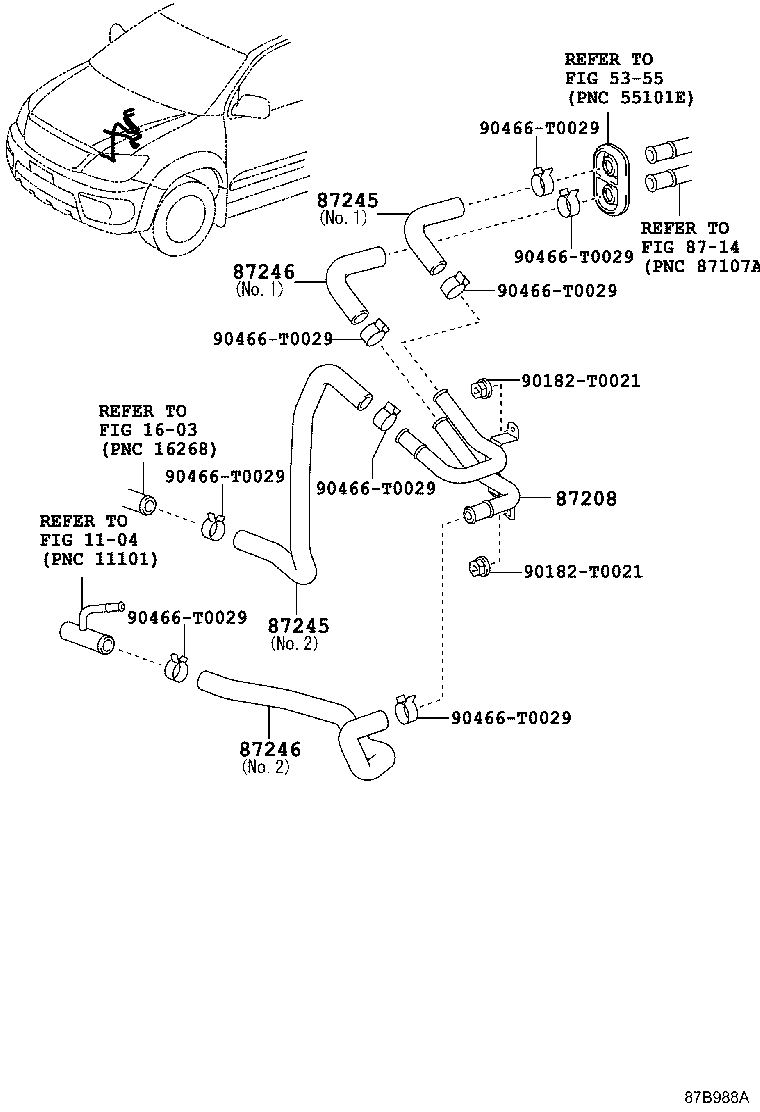

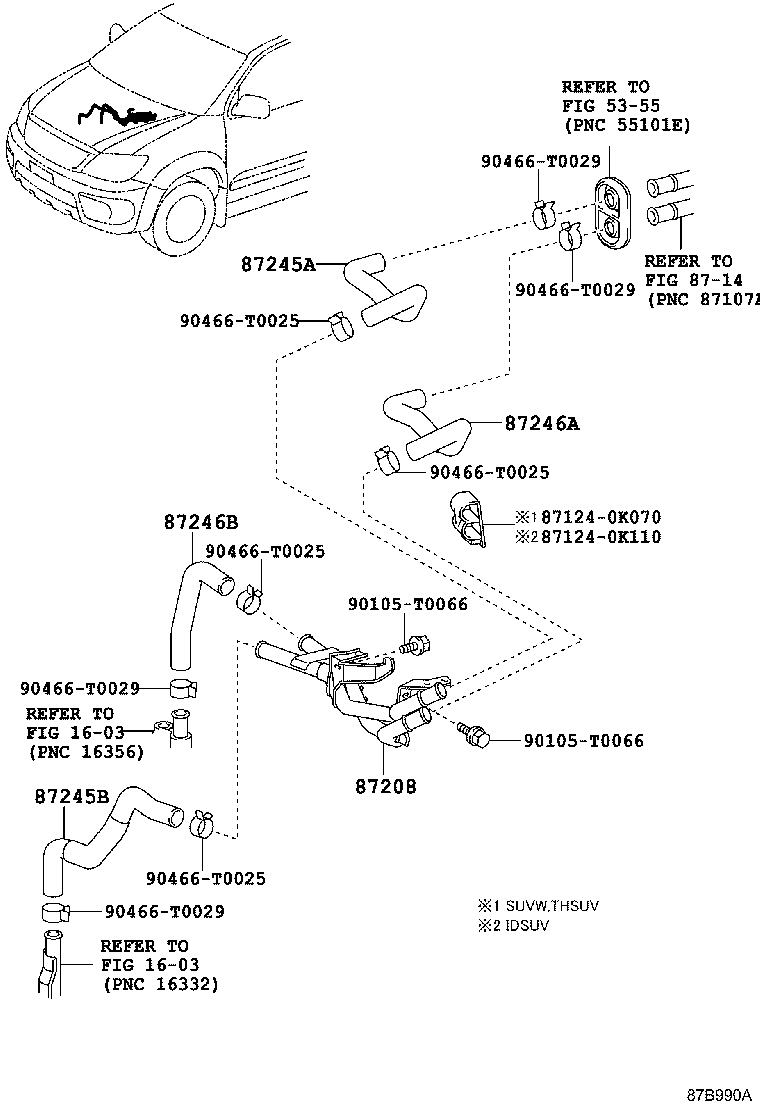

Figure 87B986C 87B986C 2011-07 → — Figure 87B988A 87B988A 2011-07 → — Figure 87B989A 87B989A 2011-07 → — Figure 87B990A 87B990A 2011-07 → — Figure 87B992A 87B992A 2011-08 → — Figure 87B991A 87B991A 2011-08 → — Figure 87C389A 87C389A 2011-10 → — Figure 87C390A 87C390A 2011-10 → — Figure 87C390A 87C390A 2011-11 → 2014-10 Figure 87C388B 87C388B 2011-10 → — Figure 87C388B 87C388B 2014-10 → — Figure 87C651A 87C651A 2012-04 → — Figure 87C652A 87C652A 2012-04 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246G Hose, Heater Water, Outlet G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
