Toyota Fortuner

2011-07 → 2021-10 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 6713A0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

55 part groups · 37 illustrations

Illustrations

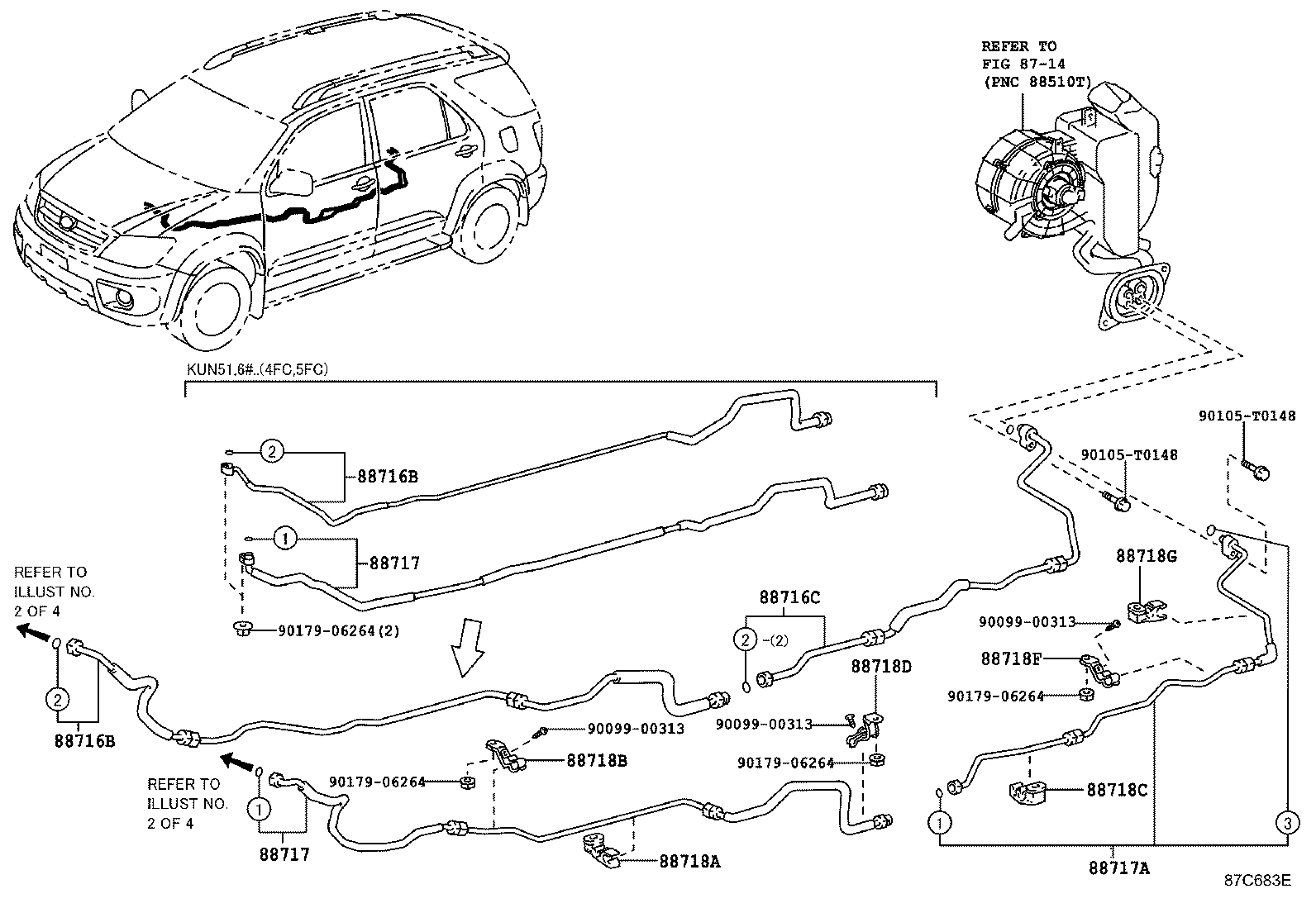

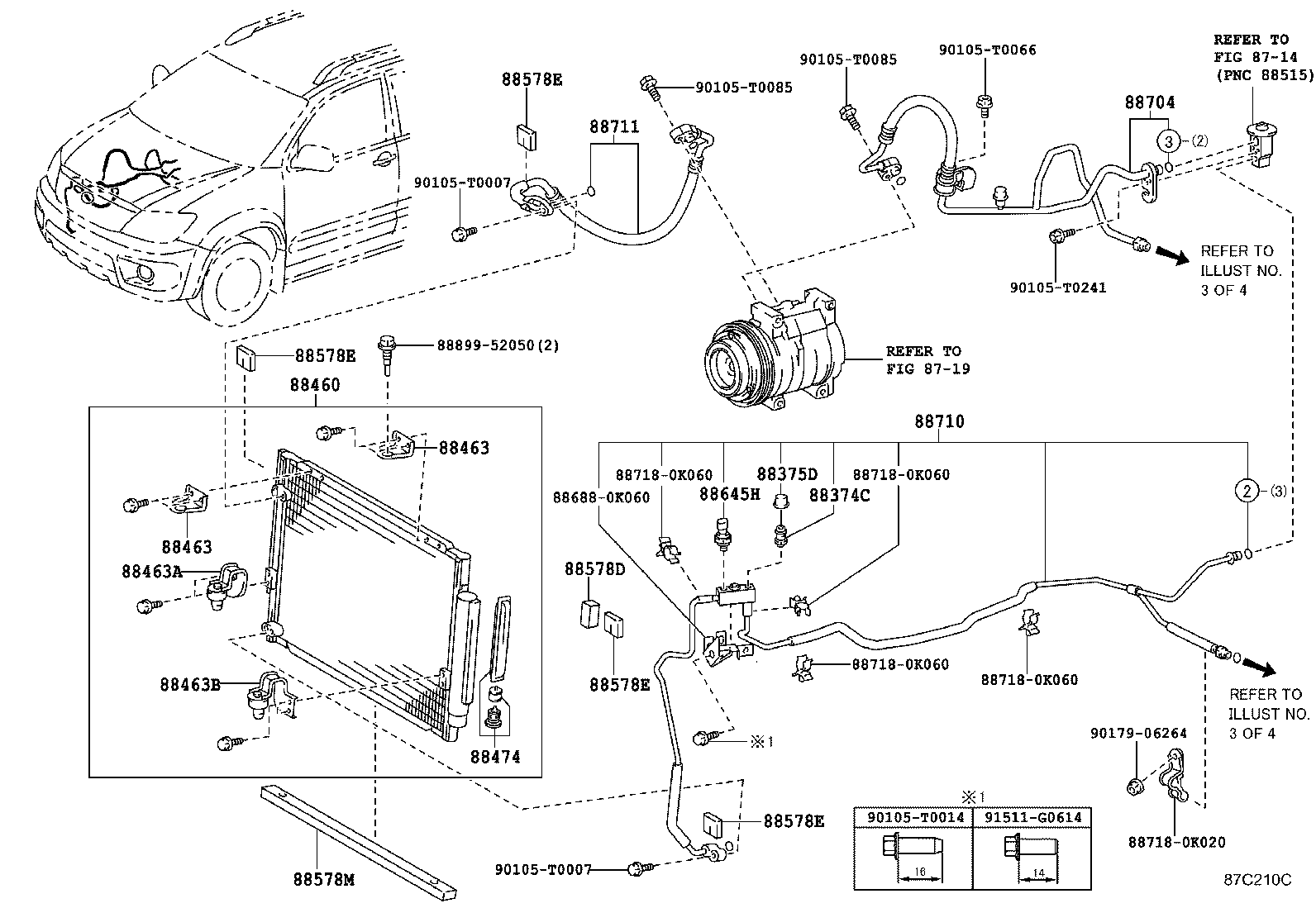

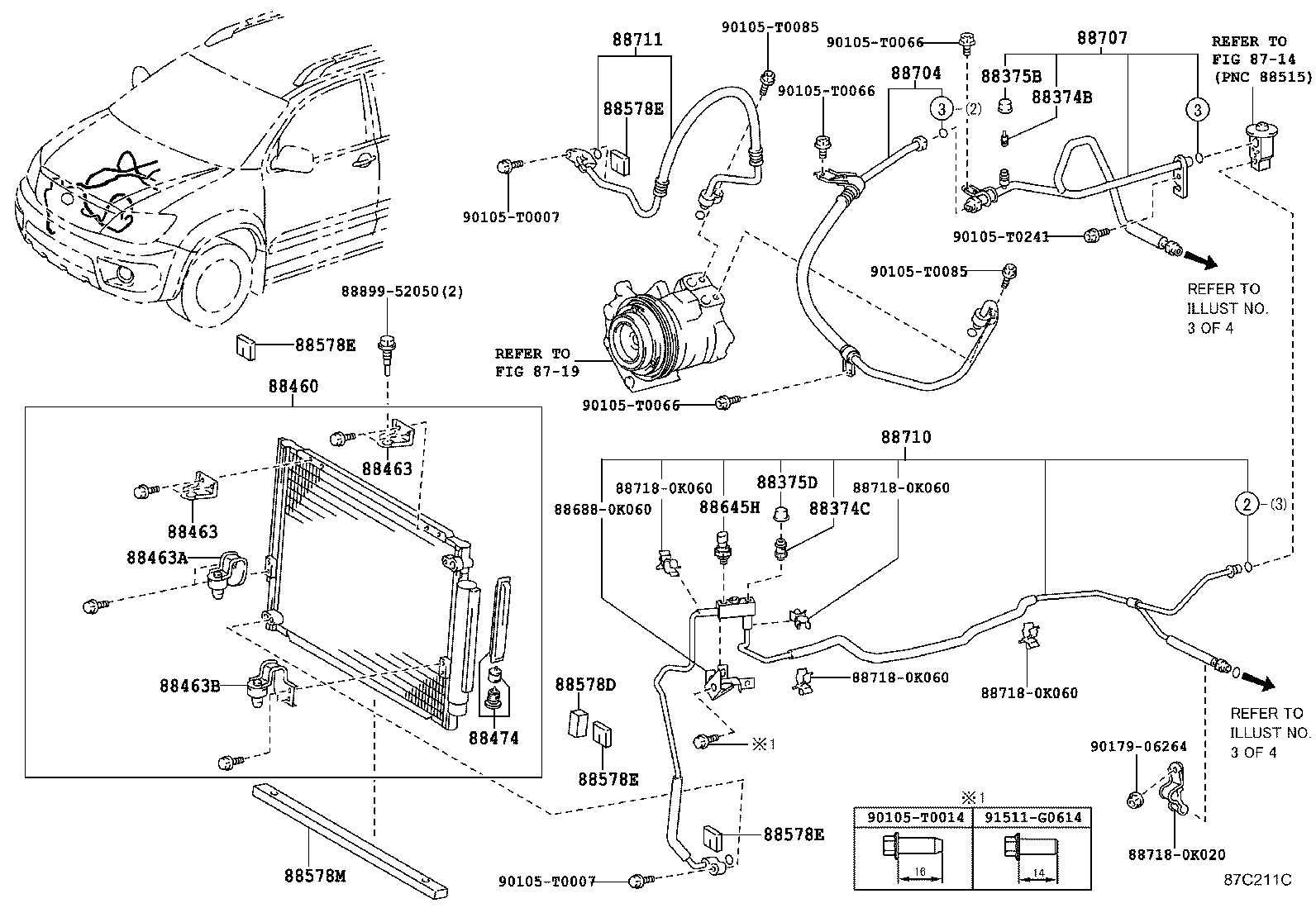

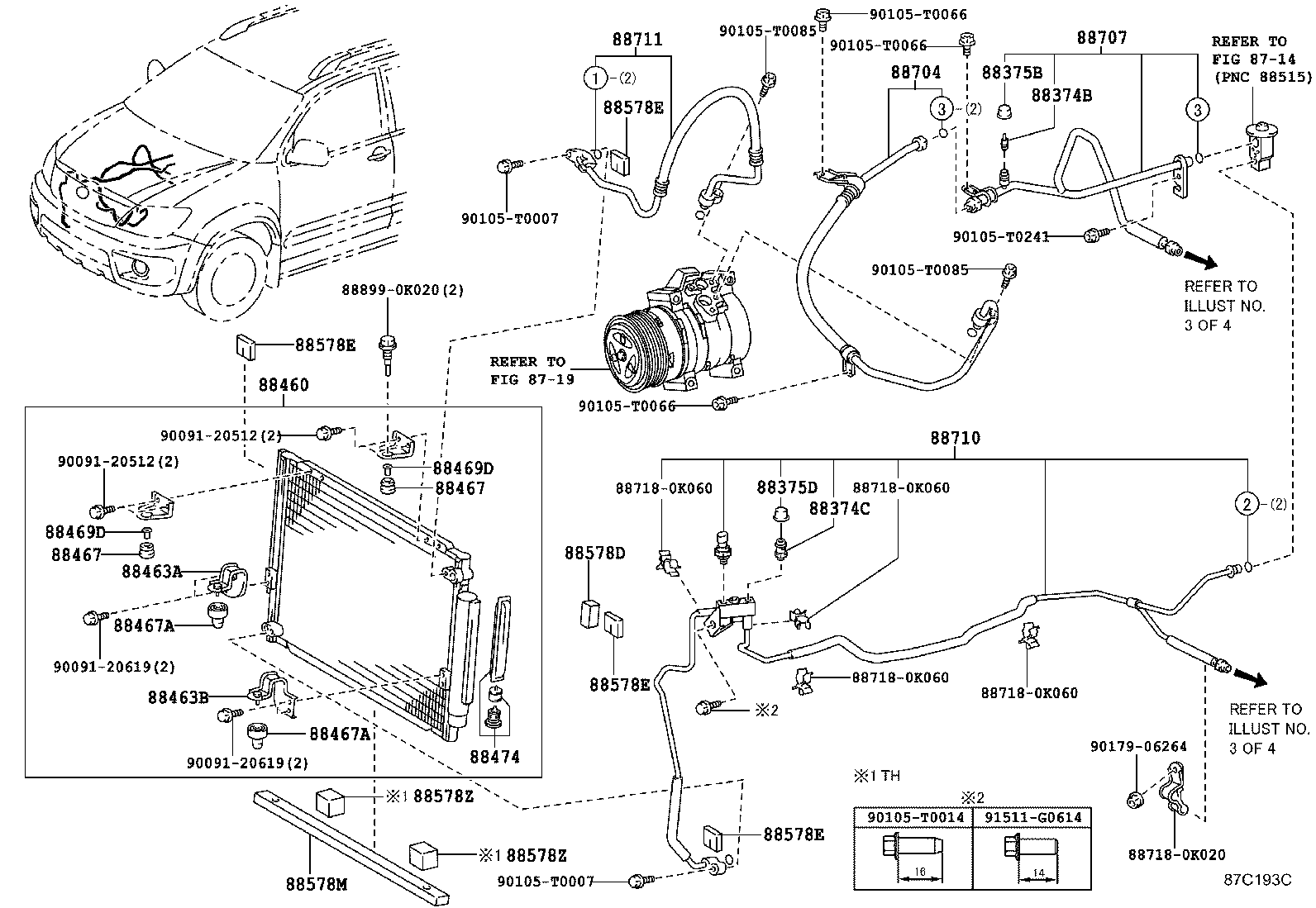

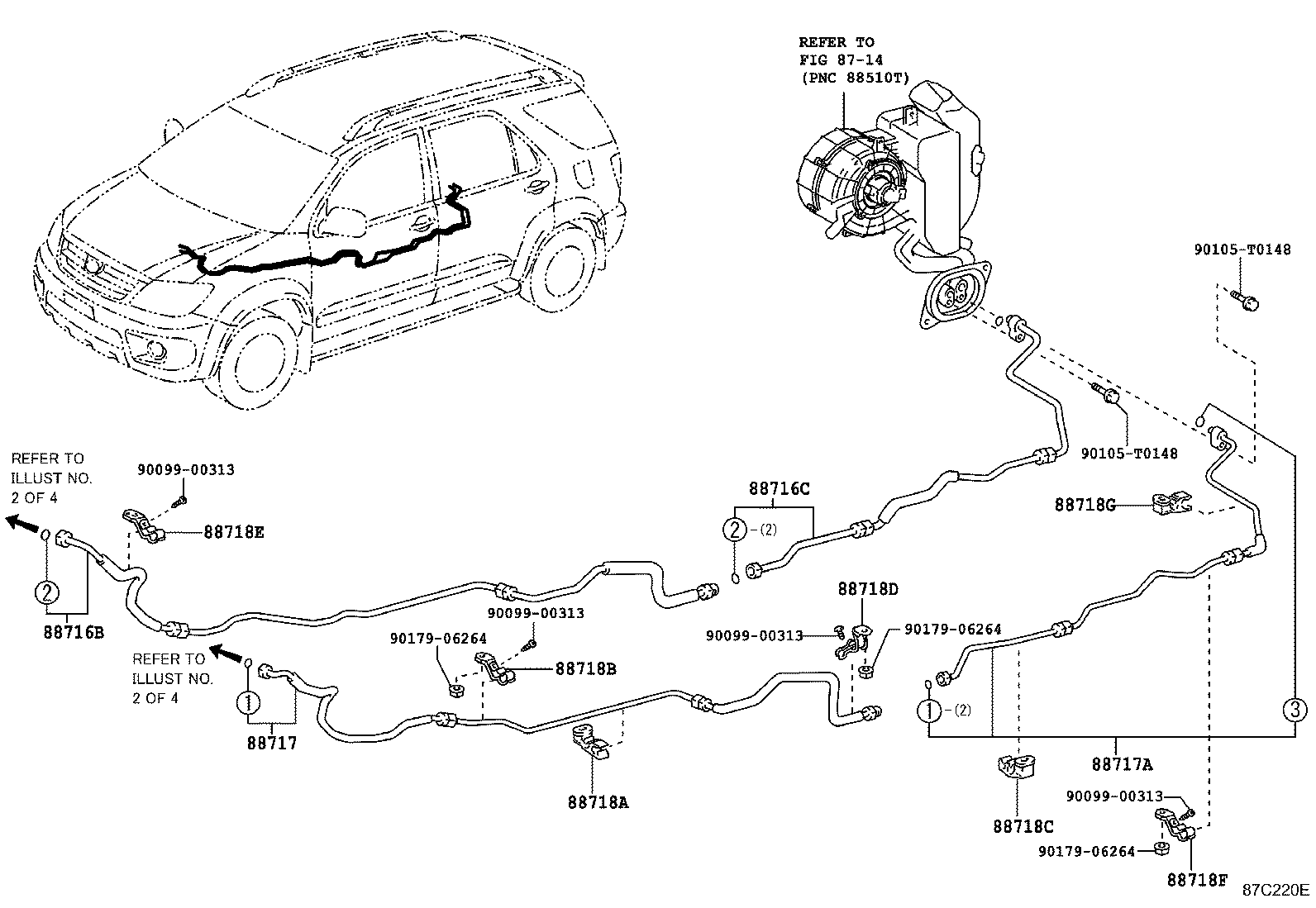

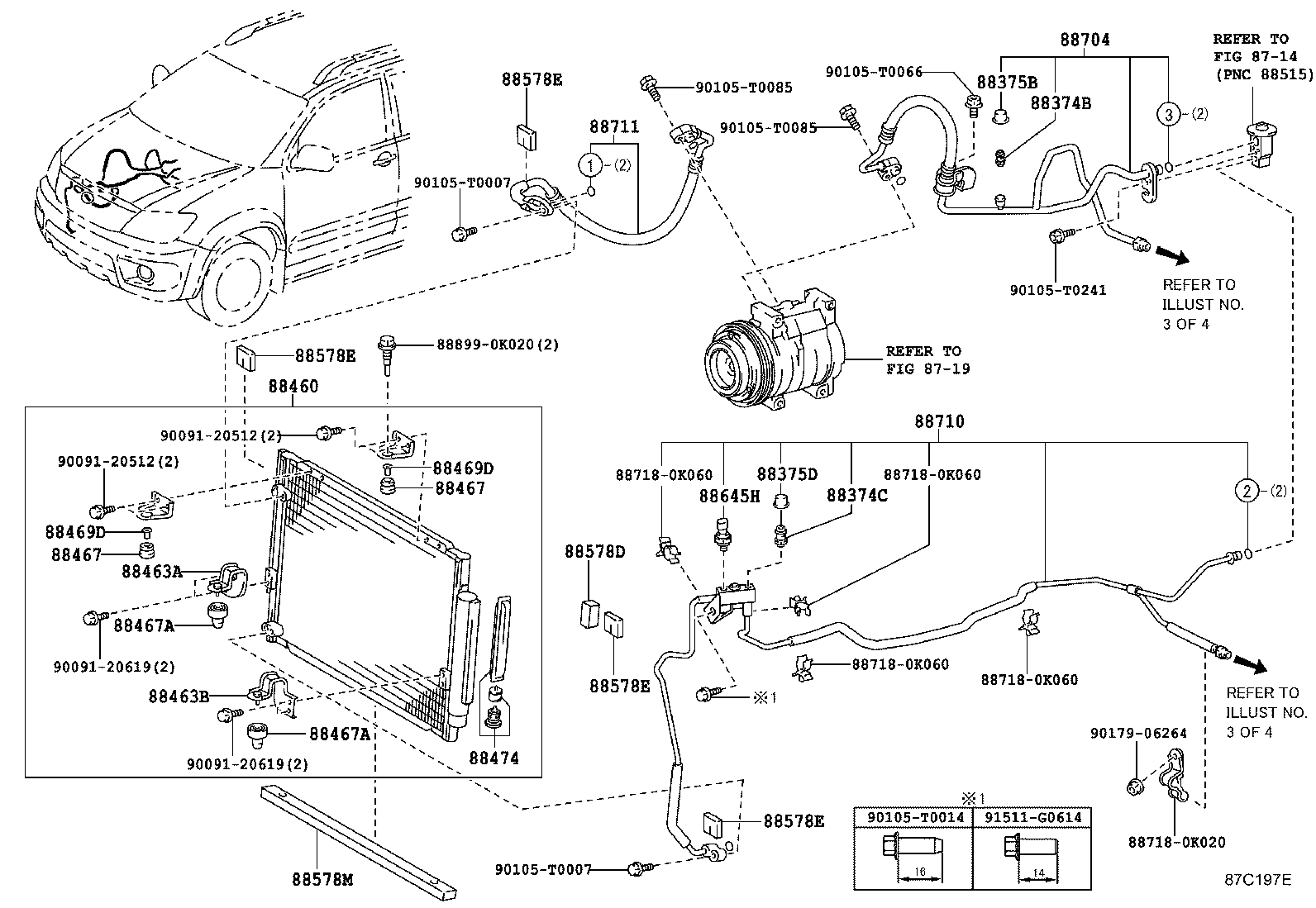

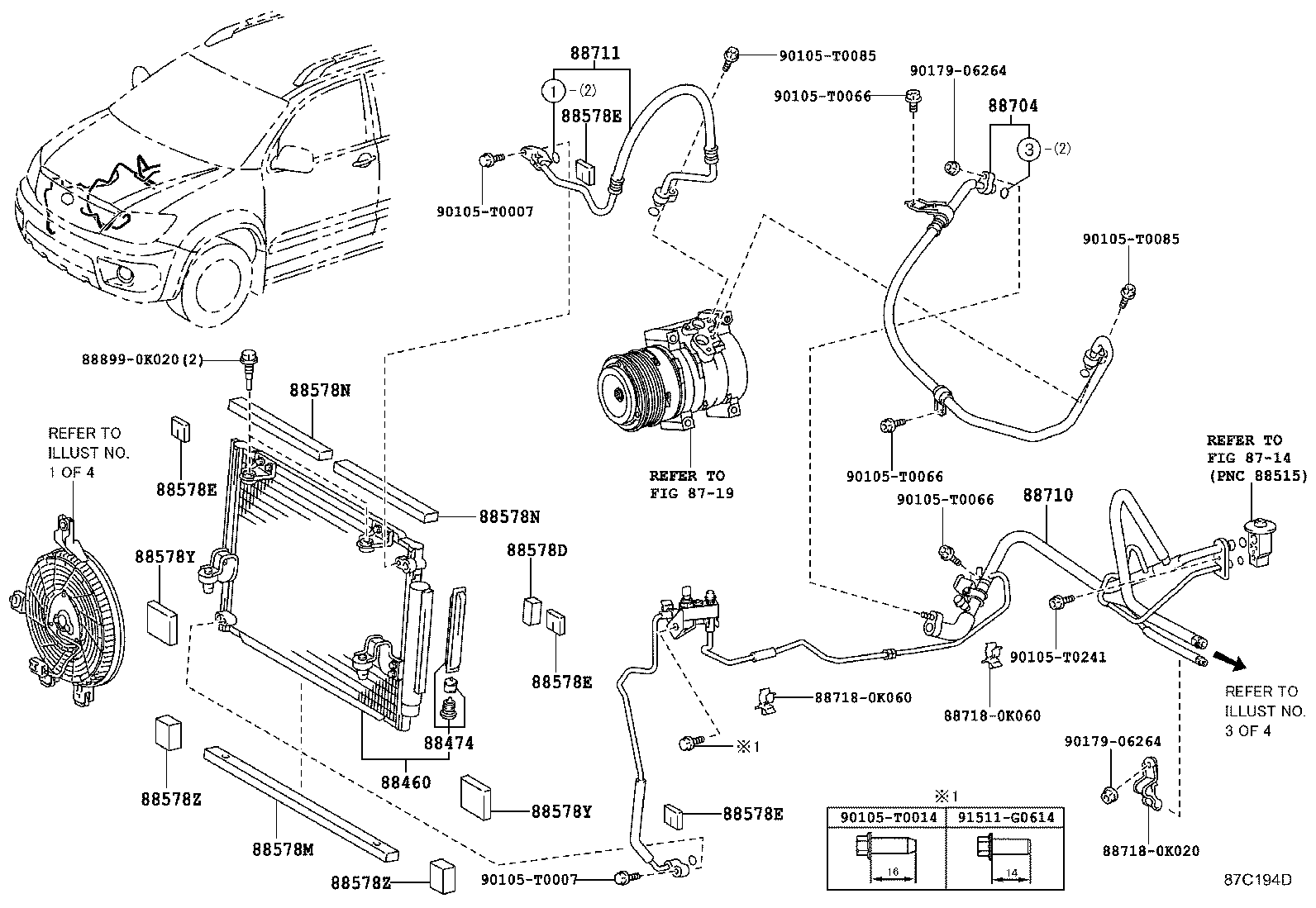

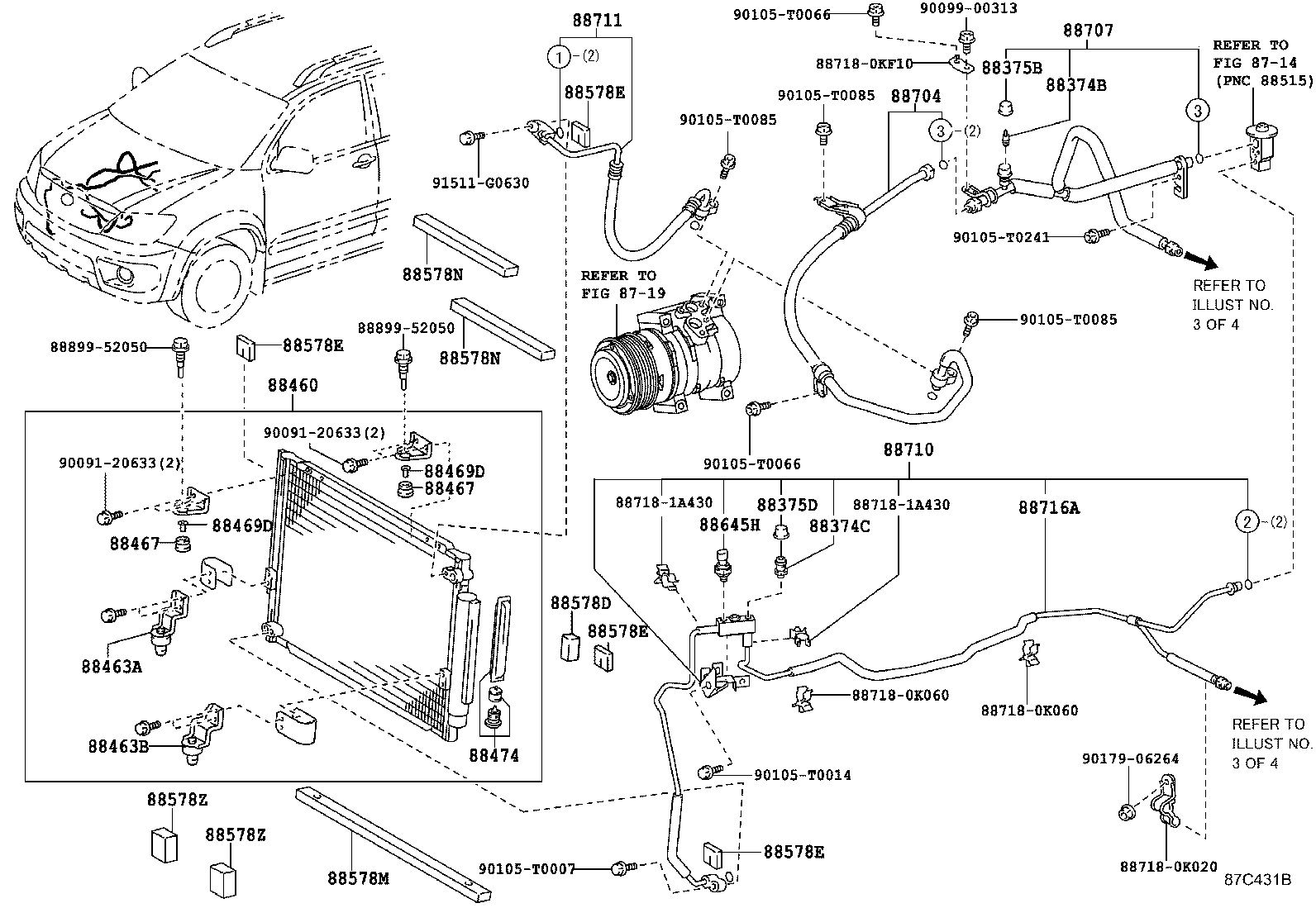

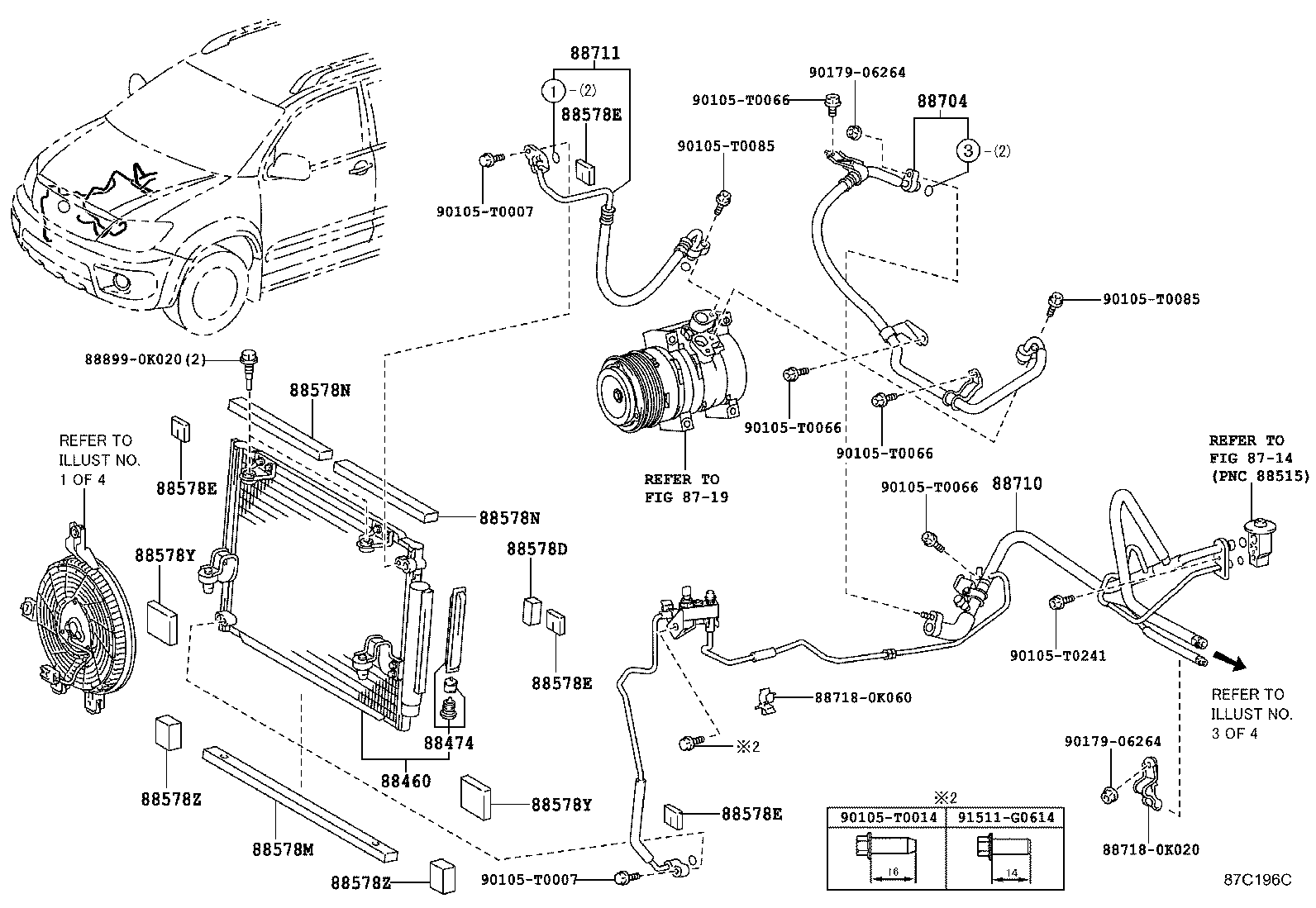

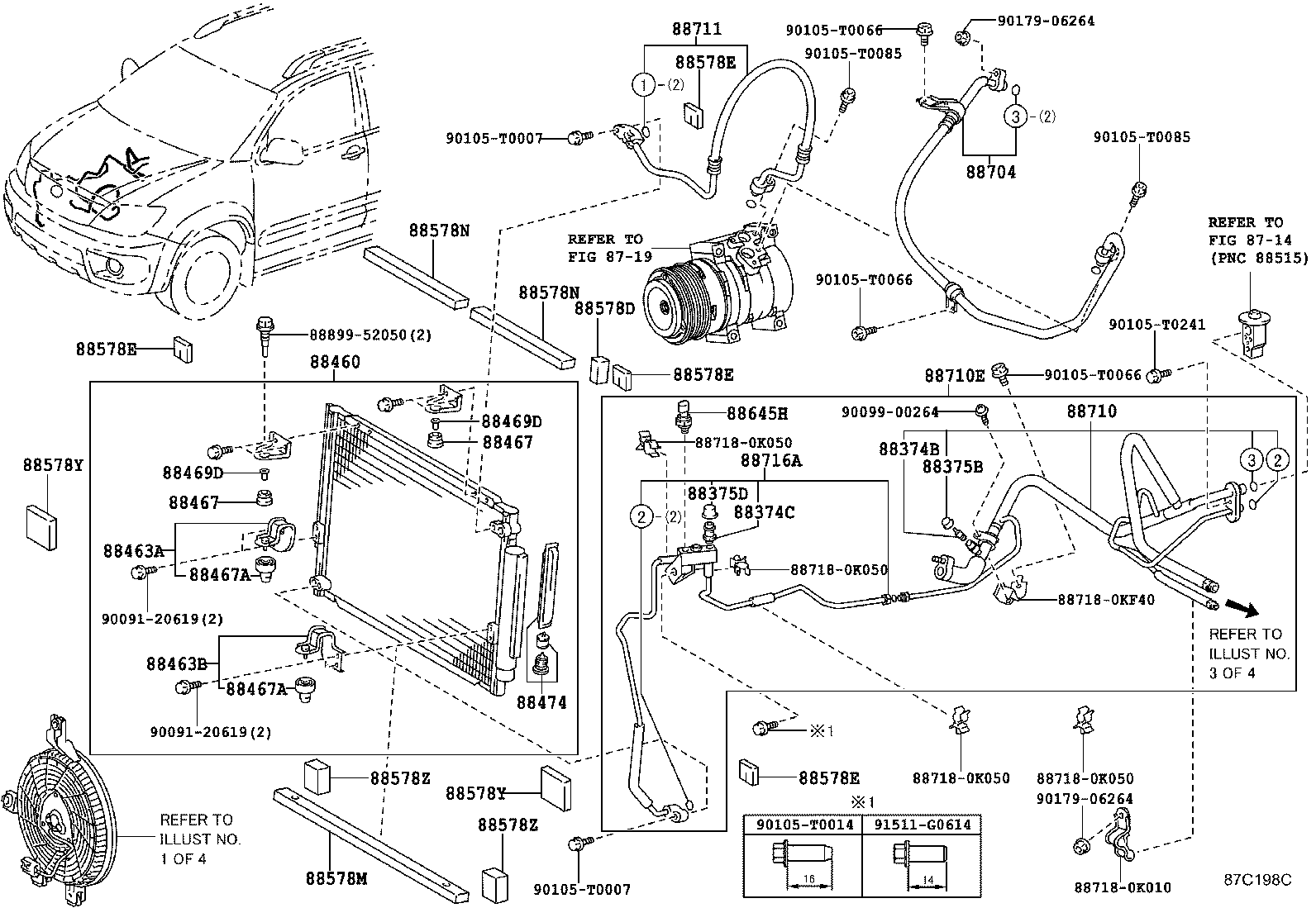

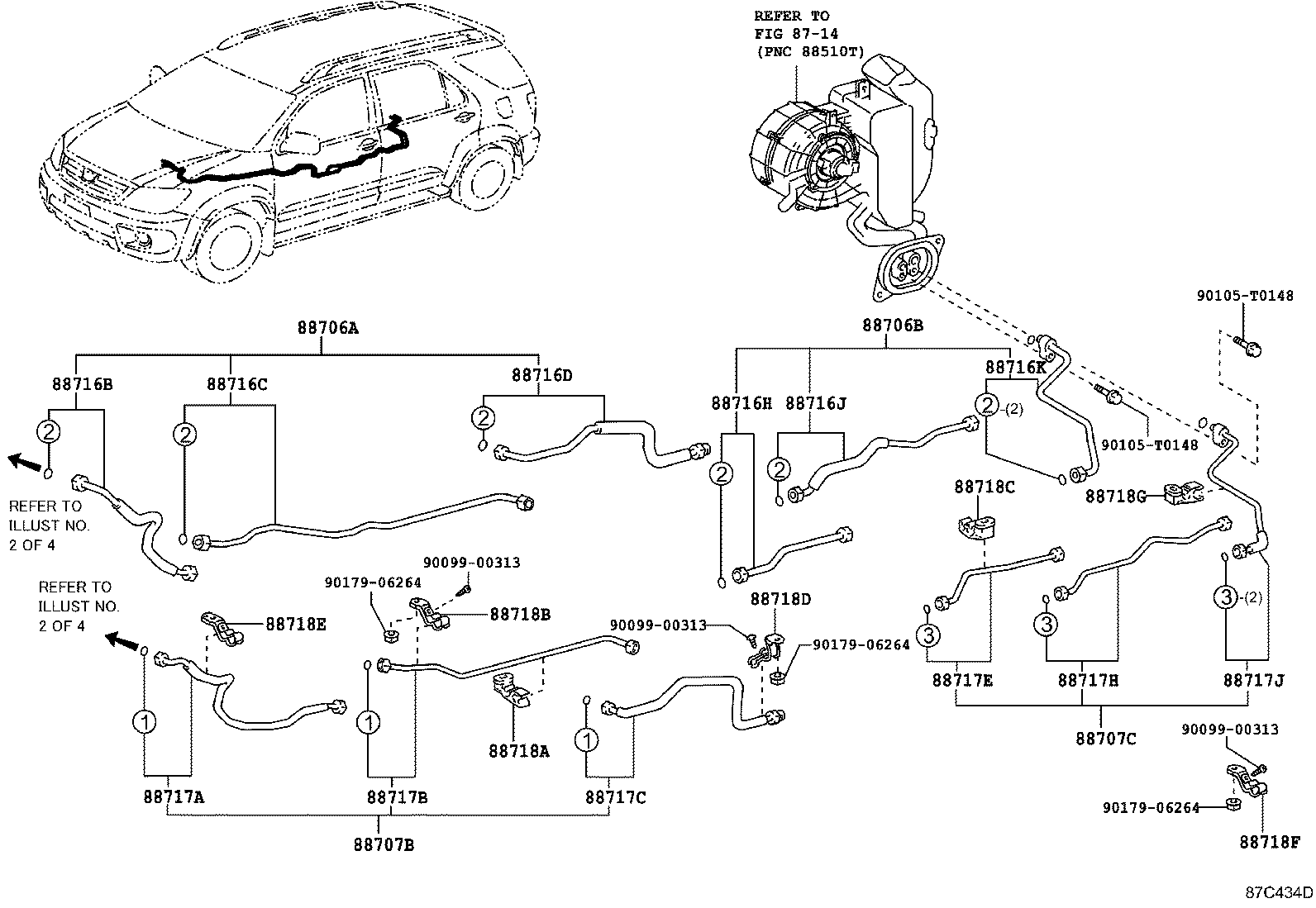

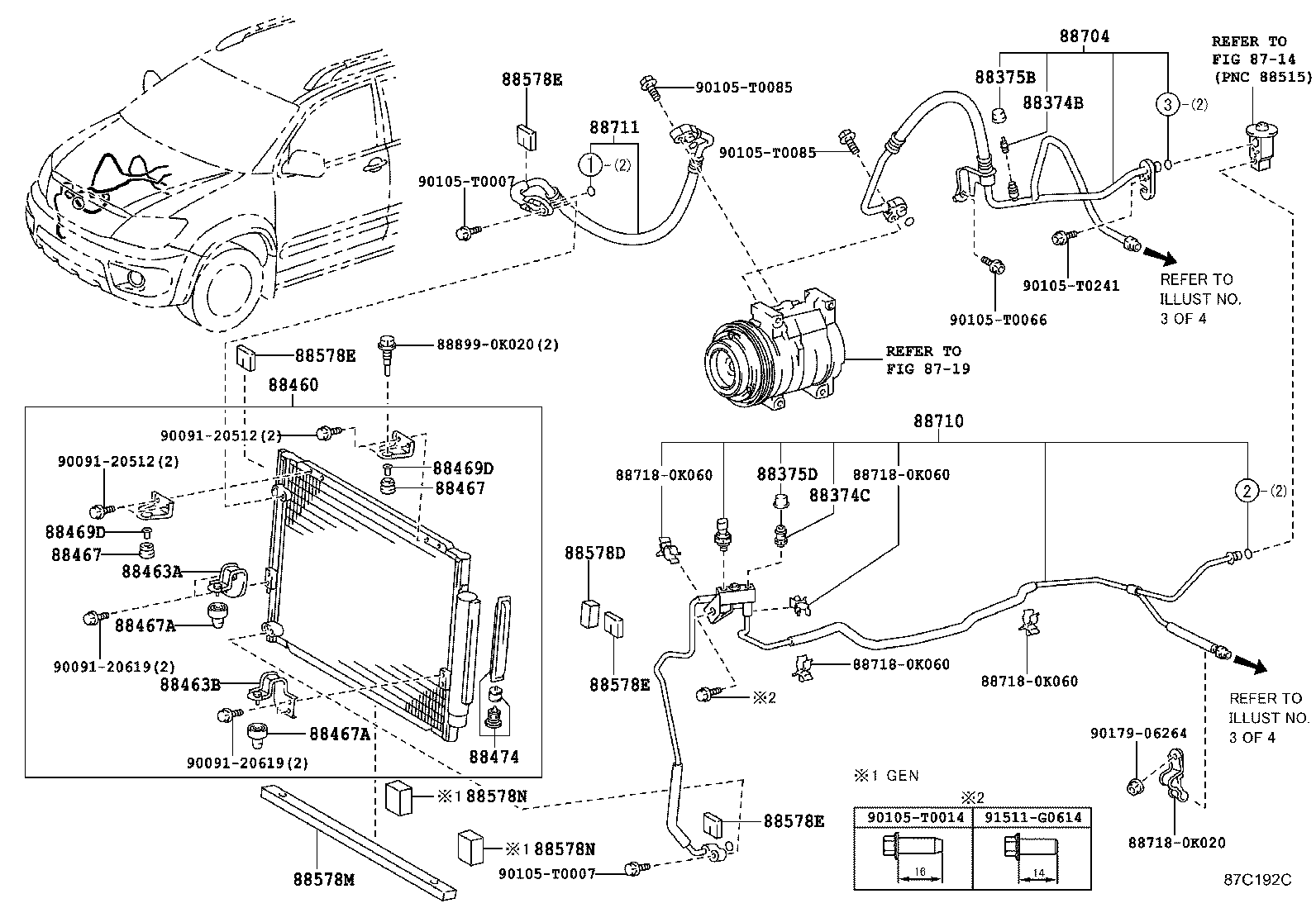

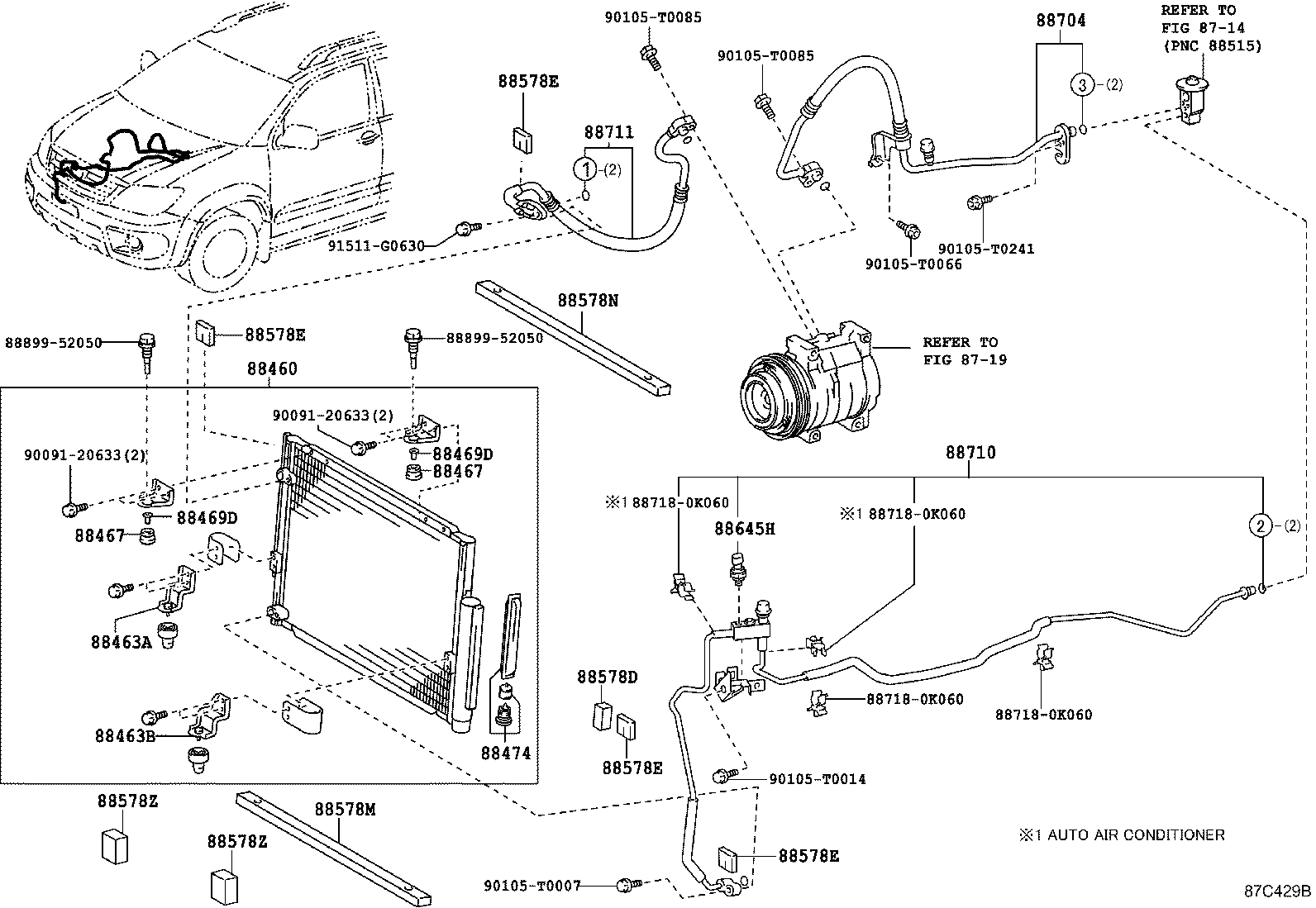

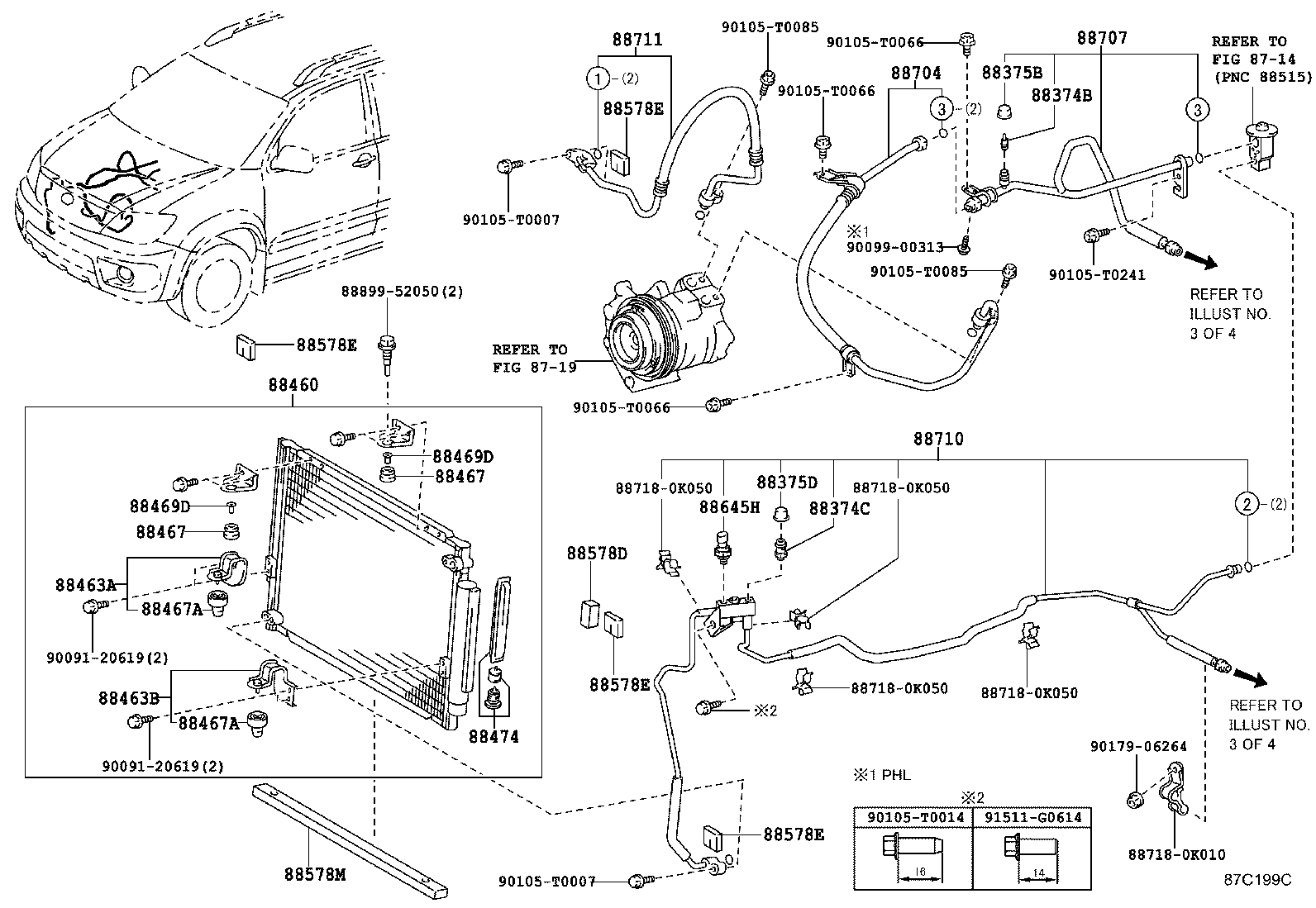

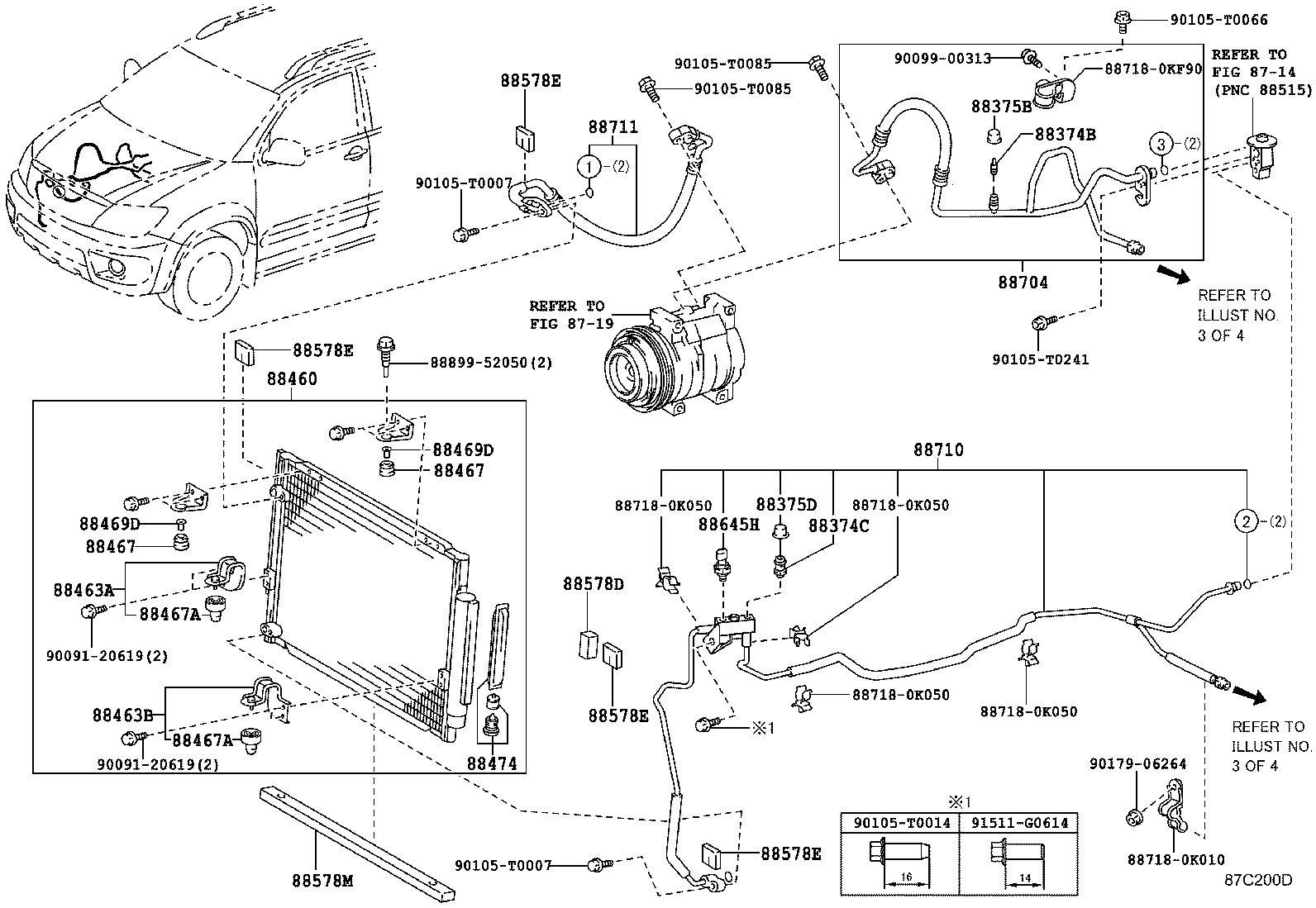

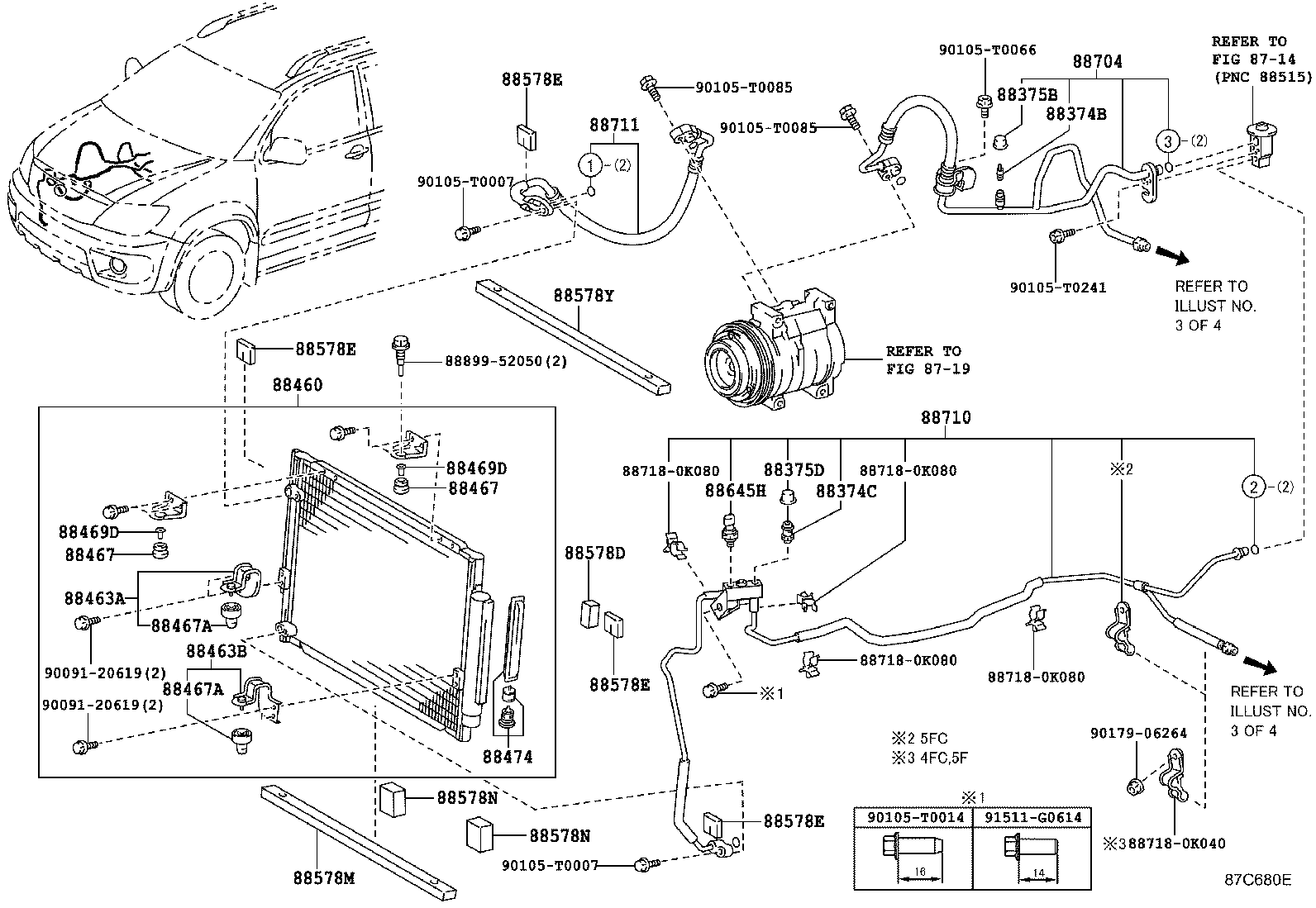

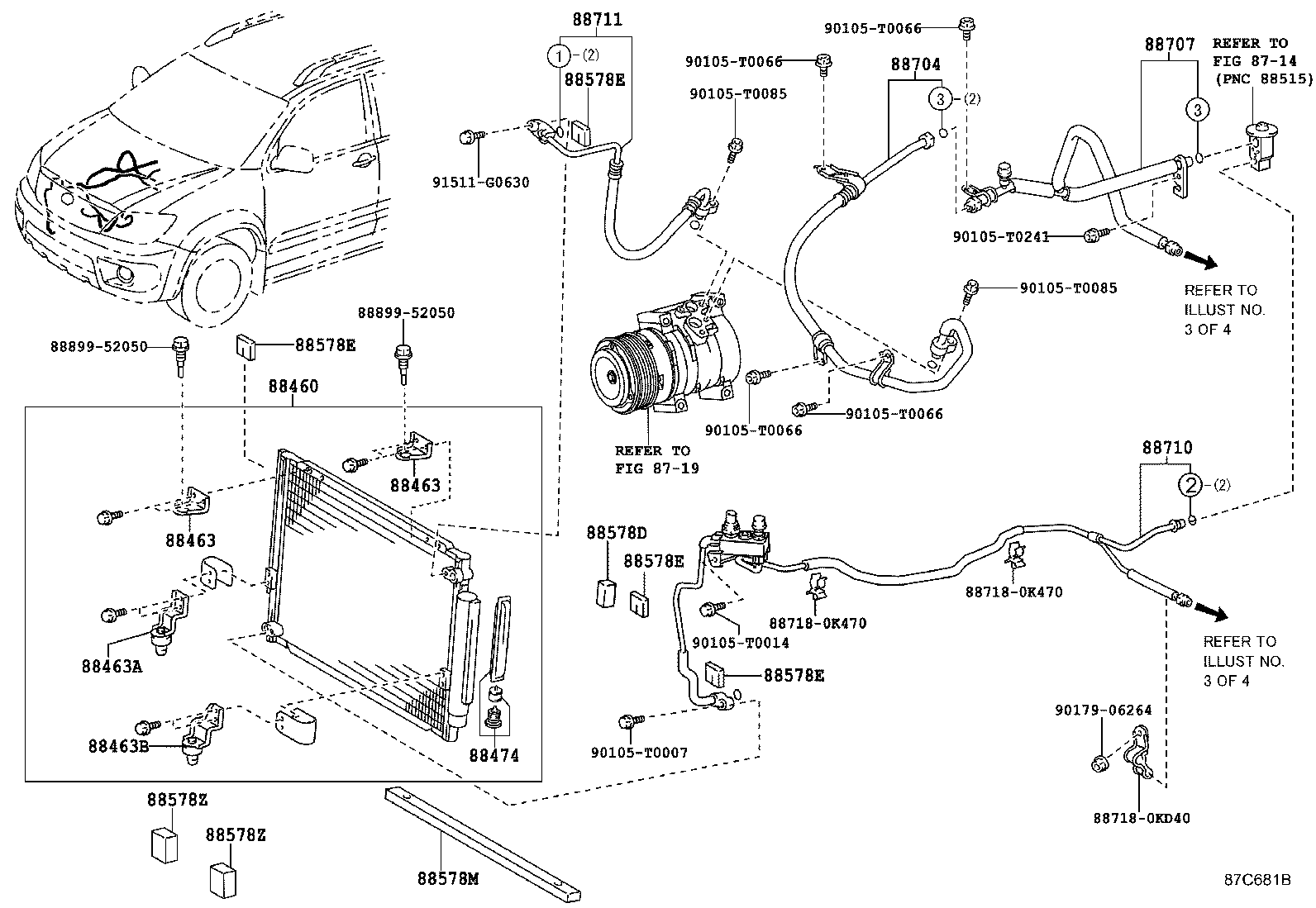

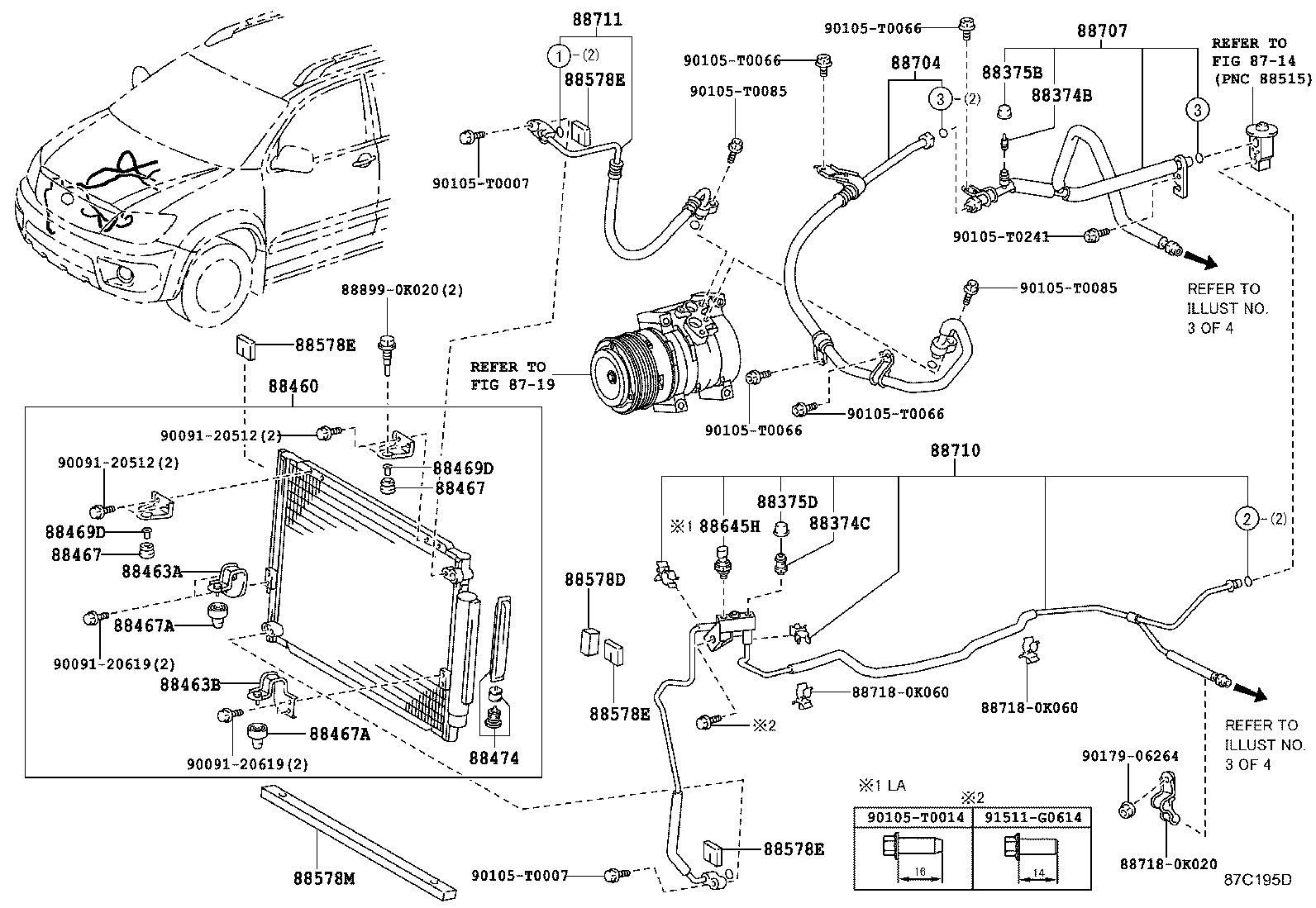

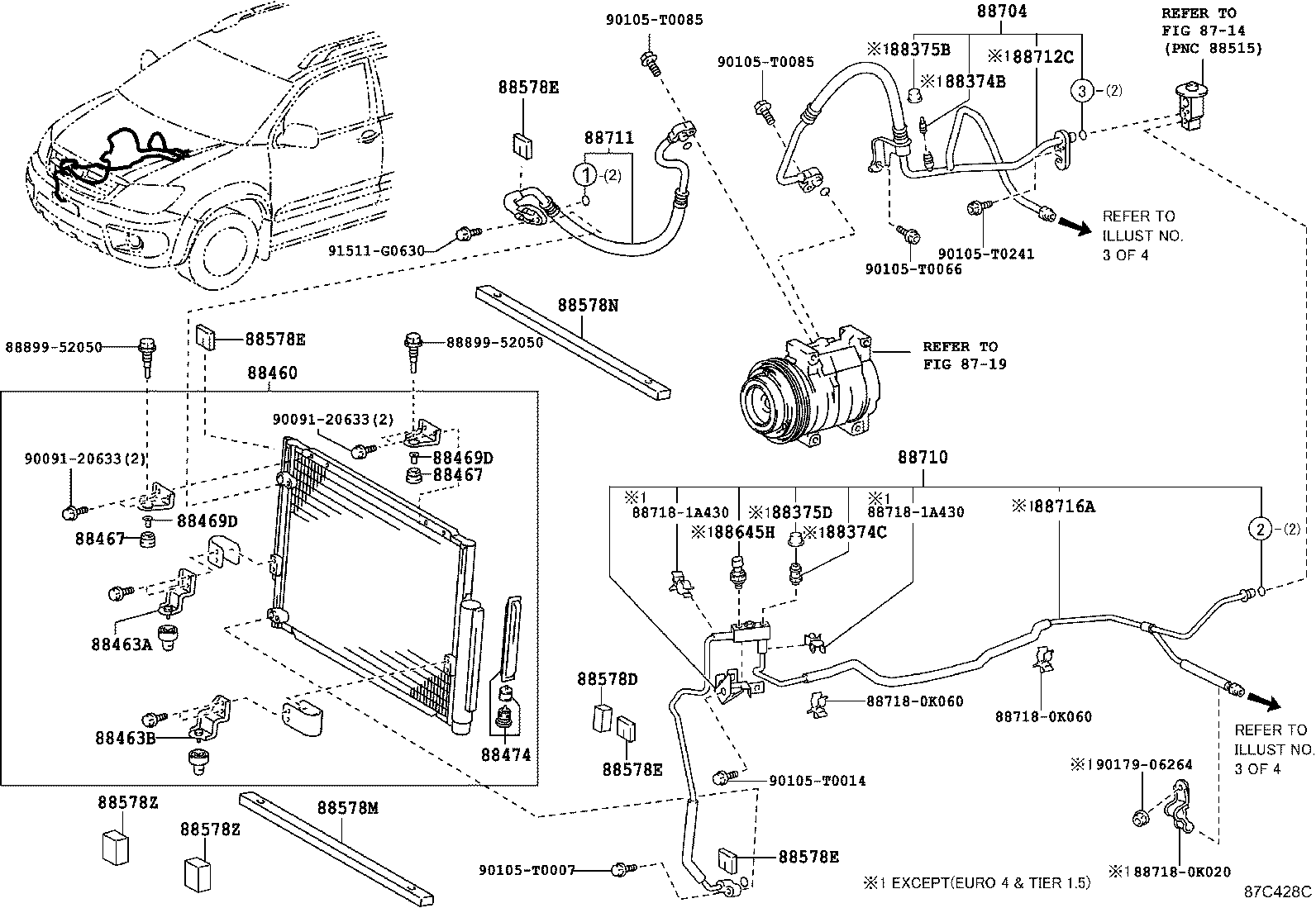

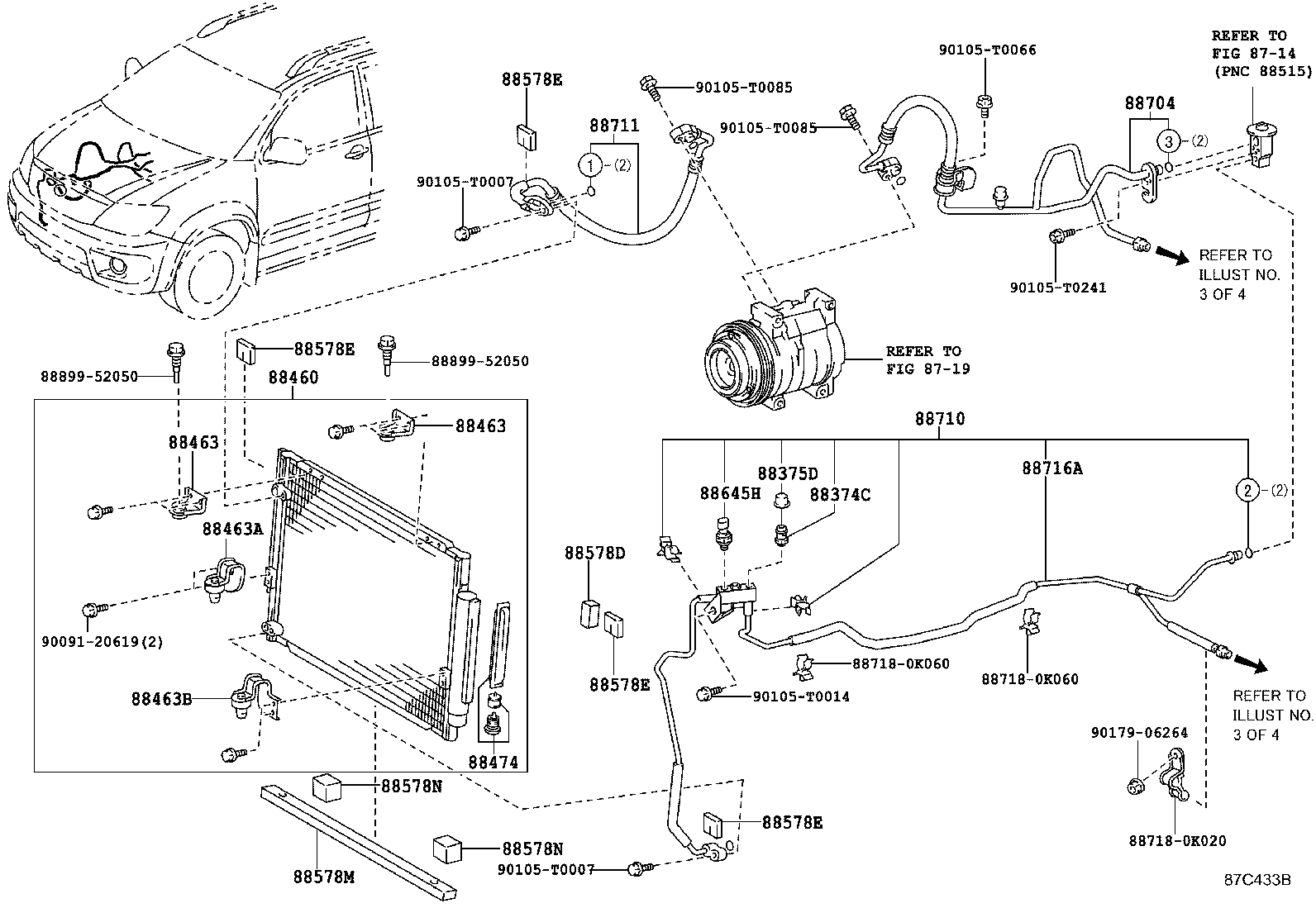

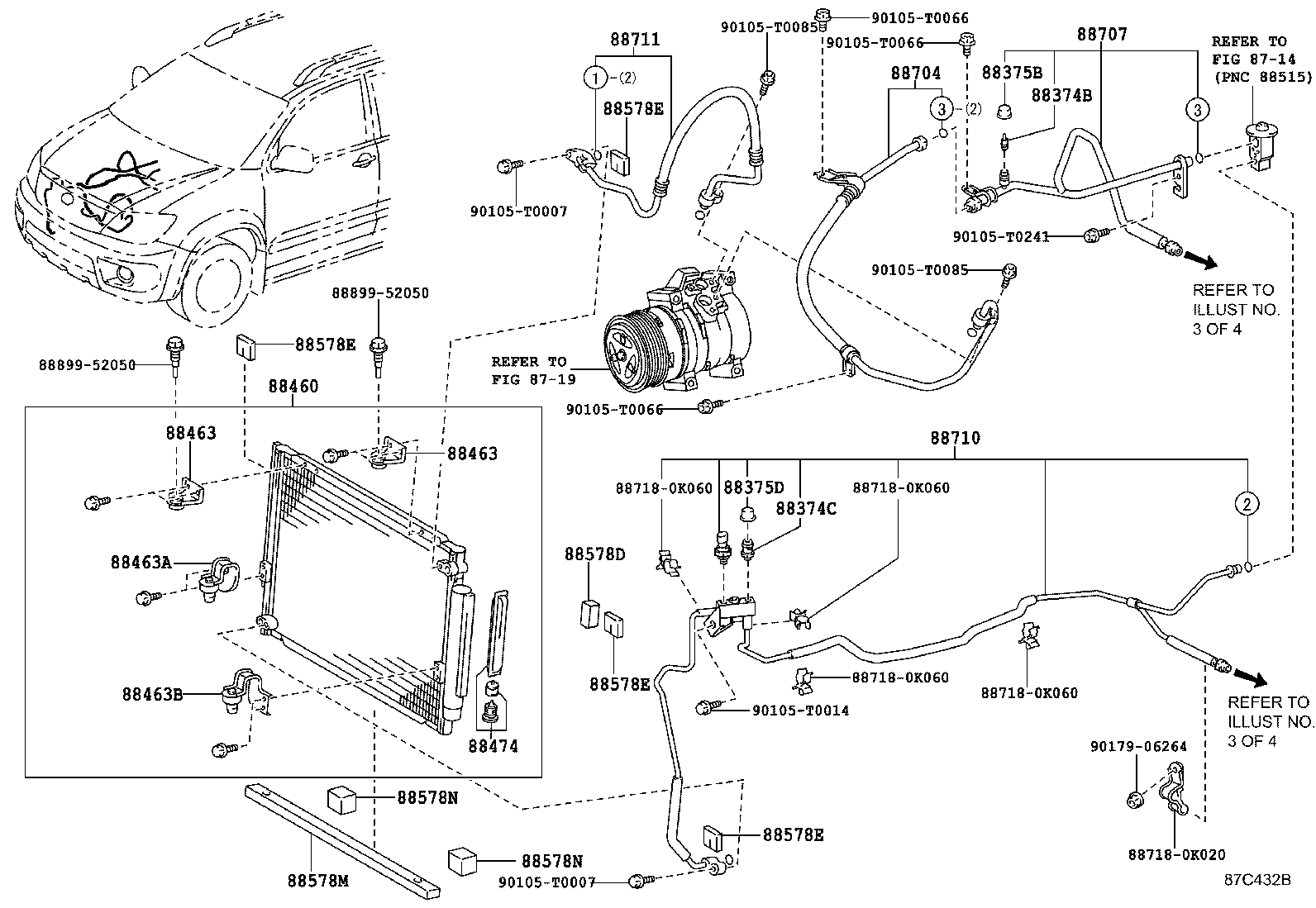

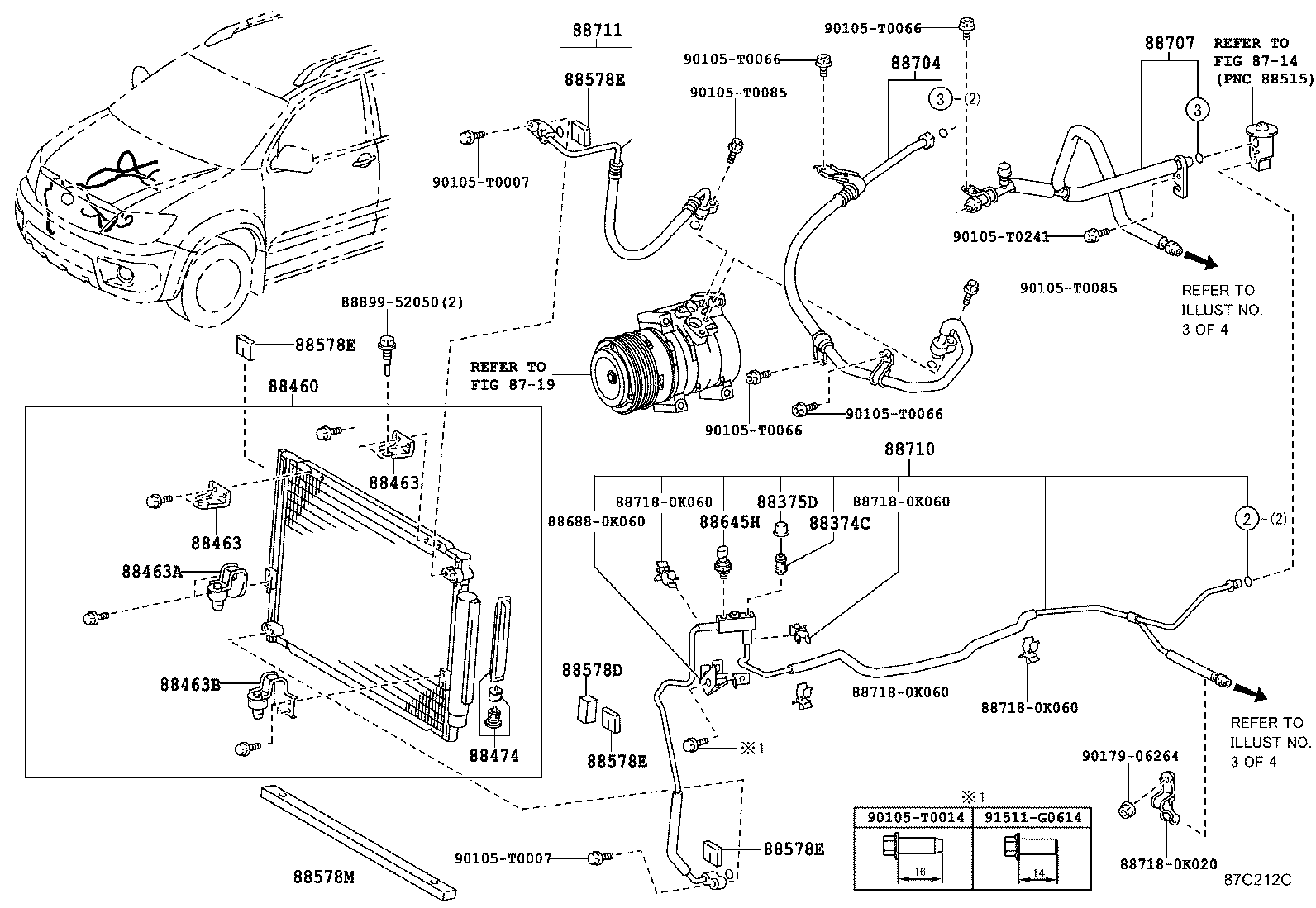

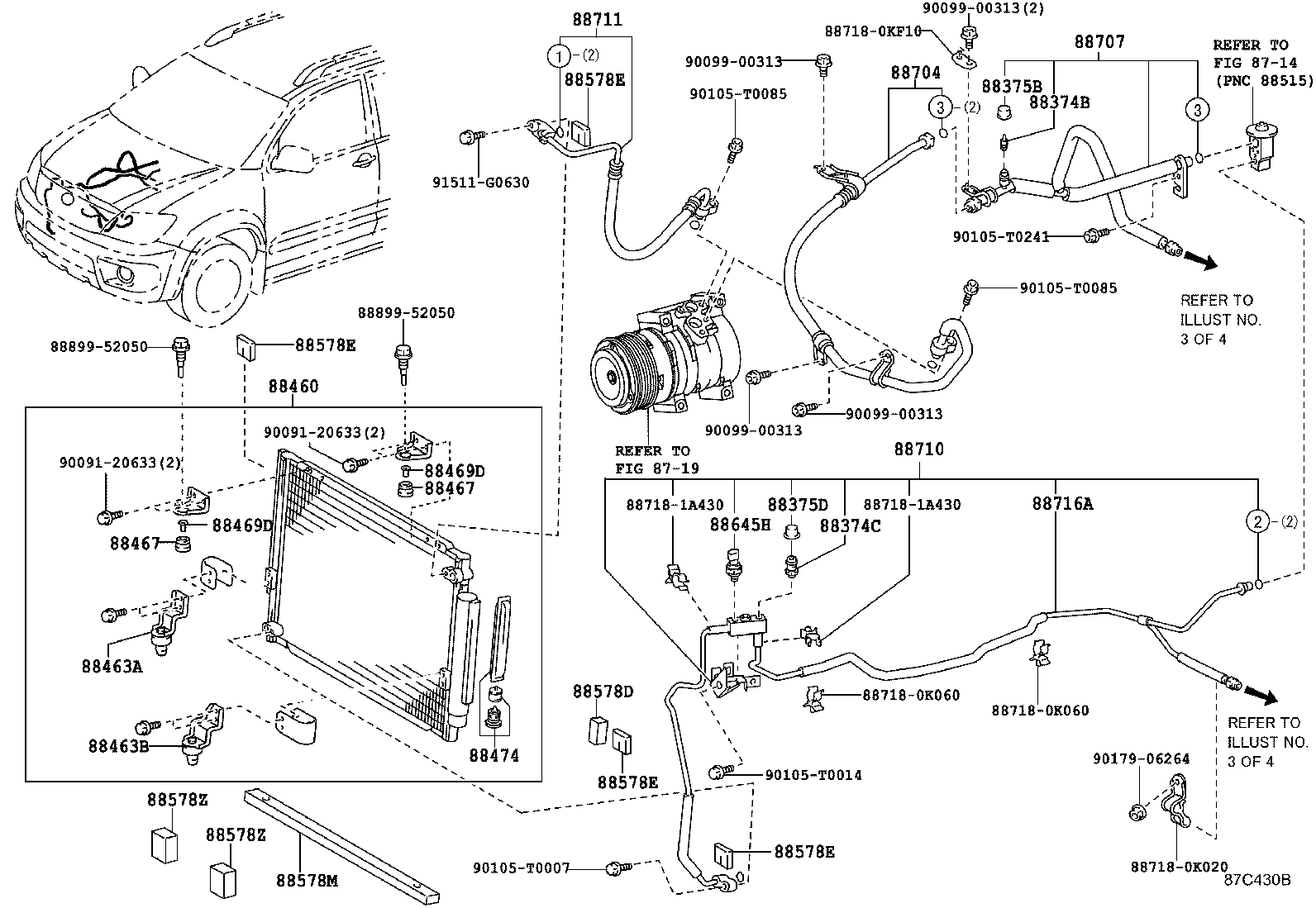

Figure 87C191A 87C191A 2011-07 → — Figure 87C191A 87C191A 2012-02 → — Figure 87C190A 87C190A 2011-07 → — Figure 87C192C 87C192C 2011-07 → — Figure 87C192C 87C192C 2012-02 → — Figure 87C193C 87C193C 2011-07 → — Figure 87C193C 87C193C 2012-02 → — Figure 87C194D 87C194D 2011-07 → — Figure 87C194D 87C194D 2012-02 → — Figure 87C195D 87C195D 2011-07 → — Figure 87C196C 87C196C 2011-07 → — Figure 87C196C 87C196C 2012-02 → — Figure 87C197E 87C197E 2011-07 → — Figure 87C197E 87C197E 2013-08 → — Figure 87C198C 87C198C 2011-07 → — Figure 87C199C 87C199C 2011-07 → — Figure 87C200D 87C200D 2011-07 → — Figure 87C200D 87C200D 2013-08 → — Figure 87C212C 87C212C 2011-08 → — Figure 87C210C 87C210C 2011-08 → — Figure 87C210C 87C210C 2012-01 → — Figure 87C211C 87C211C 2011-08 → — Figure 87C432B 87C432B 2011-09 → — Figure 87C433B 87C433B 2011-09 → — Figure 87C430B 87C430B 2011-10 → — Figure 87C428C 87C428C 2011-10 → — Figure 87C428C 87C428C 2012-04 → — Figure 87C431B 87C431B 2011-10 → — Figure 87C680E 87C680E 2012-01 → — Figure 87C681B 87C681B 2012-04 → — Figure 87C429B 87C429B 2011-10 → — Figure 87C429B 87C429B 2012-04 → — Figure 87C220E 87C220E 2011-07 → — Figure 87C434D 87C434D 2011-10 → — Figure 87C683E 87C683E 2012-01 → — Figure 87C683E 87C683E 2012-04 → — Figure 87C261I 87C261I 2011-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88578E Packing, Cooler Pipe, NO.2
88578M Packing, Cooling Pipe, NO.3
88578N Packing, Cooling Pipe, NO.4
88578Y Packing, Cooling Pipe, NO.5
88578Z Packing, Cooler, NO.1
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88707C Tube Sub-assy, Suction, C
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717E Pipe, Cooler Refrigerant Suction, E
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717J Pipe, Cooler Refrigerant Suction, J
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
