Engine Oil Cooler

11 part groups · 5 illustrations

Illustrations

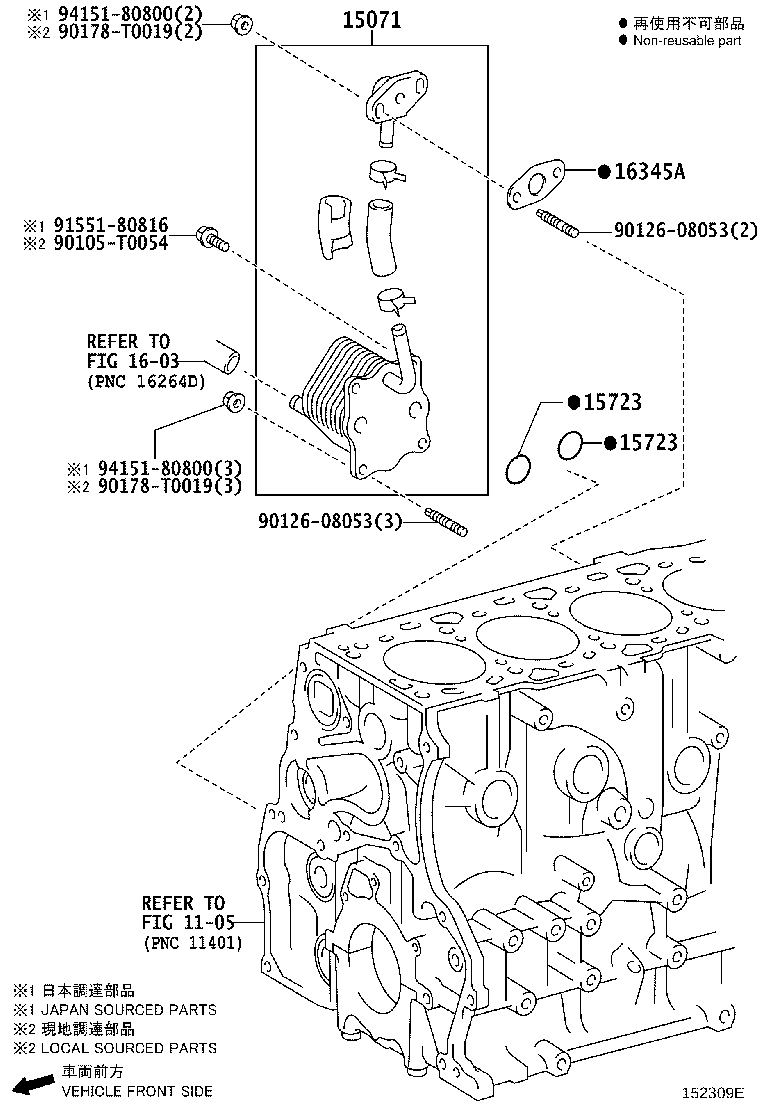

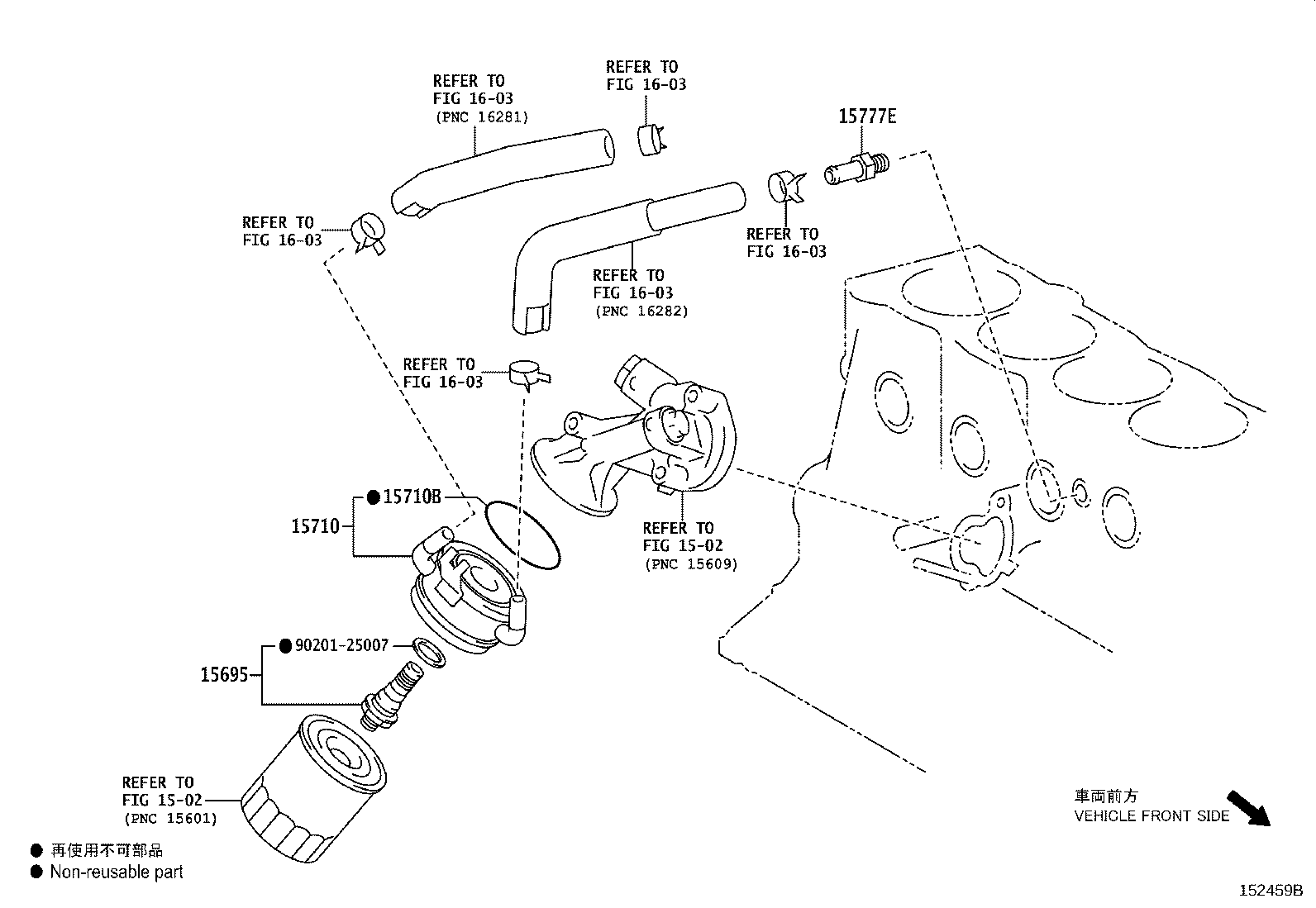

Figure 152308B 152308B 2015-12 → — Figure 152309E 152309E 2015-07 → — Figure 152302B 152302B 2015-12 → — Figure 152481D 152481D 2016-03 → — Figure 152459B 152459B 2015-12 → —

Part groups

PNCDescription
15071 Cooler Set, Engine Oil
15695 Bolt, Oil Cooler Union
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15723 Ring, O
15777 Hose, Oil Cooler
15777E Union
15778 Hose, Oil Cooler, NO.2
15785 Gasket, Oil Cooler
16345A Gasket, Water Outlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
