Toyota Fortuner
2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General
Supported model
Data version 2022-11

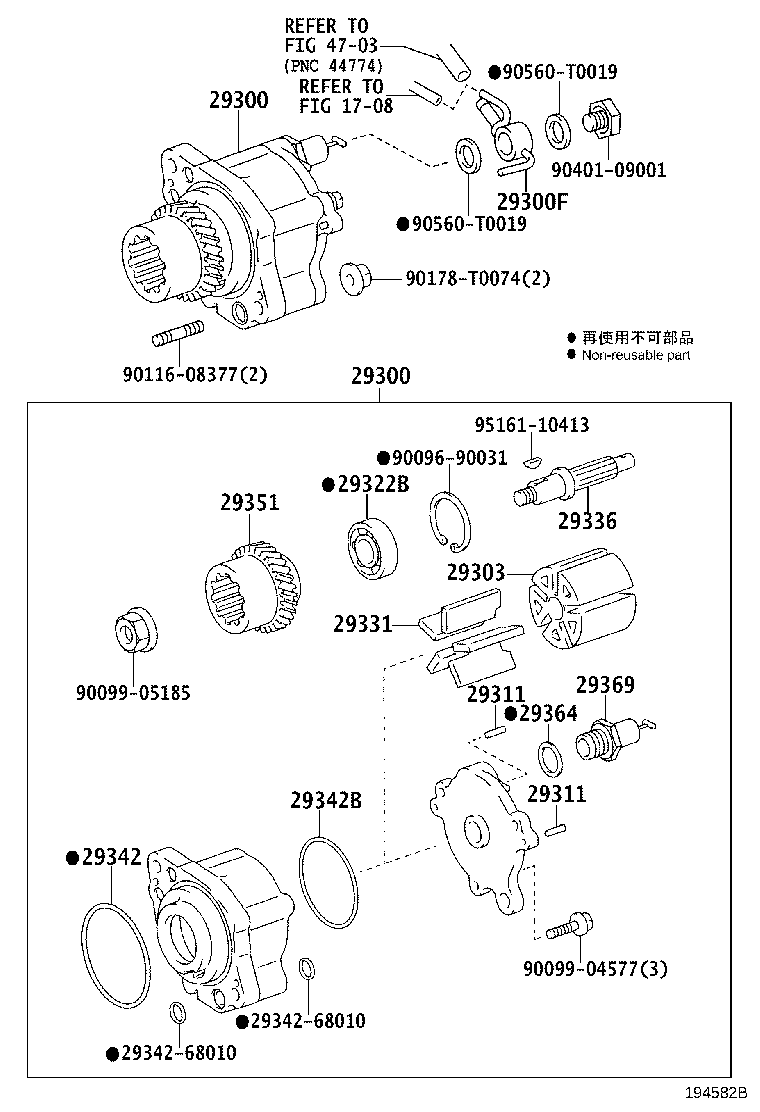

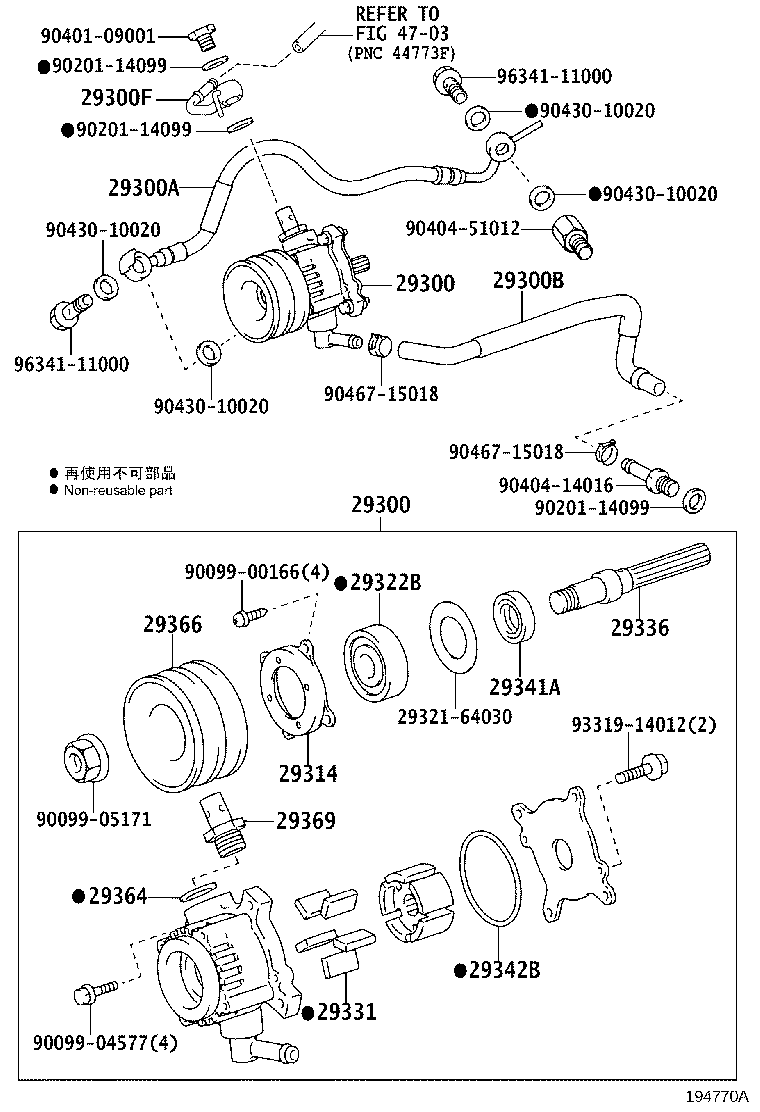

Vacuum Pump
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29300A | Hose, Vacuum Pump Oil Inlet |
| 29300B | Hose, Vacuum Pump Oil Outlet |
| 29300F | Union |
| 29303 | Rotor Sub-assy, Vacuum Pump |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29314 | Ring, Stop |
| 29314A | Cover, End |
| 29322B | Bearing, Vacuum Pump |
| 29329 | Cap, Vacuum Pump Vane |
| 29331 | Blade, Vacuum Pump, A |
| 29331A | Vane, Vacuum Pump |
| 29336 | Shaft, Vacuum Pump |
| 29341A | Seal, Oil |
| 29342 | Packing, Vacuum Pump |
| 29342B | Ring, O |
| 29343 | Ring, O Vacuum Pump, NO.1 |
| 29344 | Ring, O Vacuum Pump, NO.2 |
| 29345 | Ring, O Vacuum Pump, NO.3 |
| 29351 | Gear, Vacuum Pump |
| 29364 | Washer, Vacuum Pump |
| 29366 | Pulley, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
