Factory parts data · Europe

Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

4 part groups · 4 illustrations

Illustrations

260465 2015-07 → —

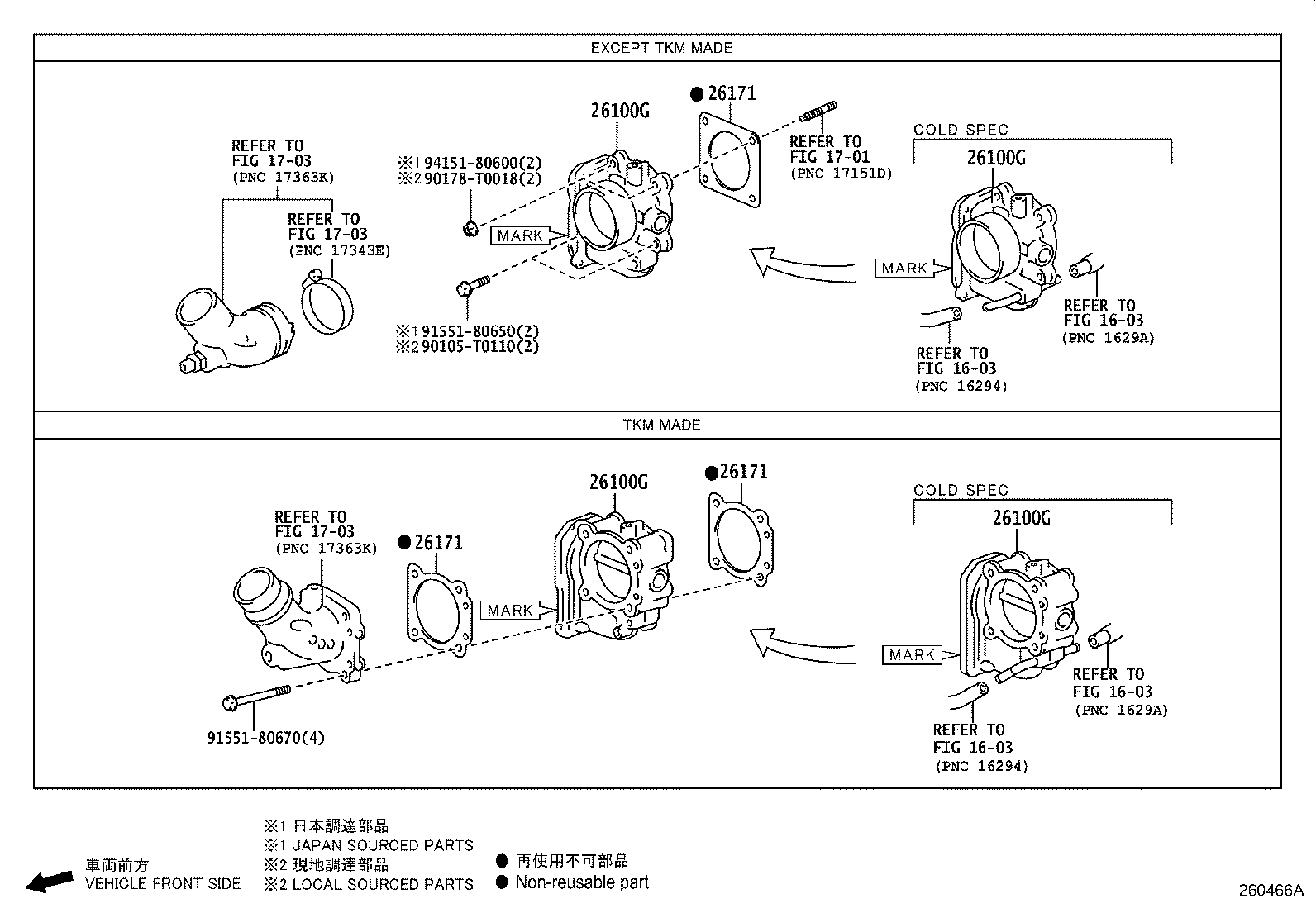

Figure 260466A

260466A 2015-07 → —

Figure 260421B

260421B 2015-12 → —

Figure 260425A

260425A 2016-03 → —

Part groups

PNC	Description
25712A	Wire, Emission Control Valve
26100	Venturi Assy
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
