Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

12 part groups · 8 illustrations

Illustrations

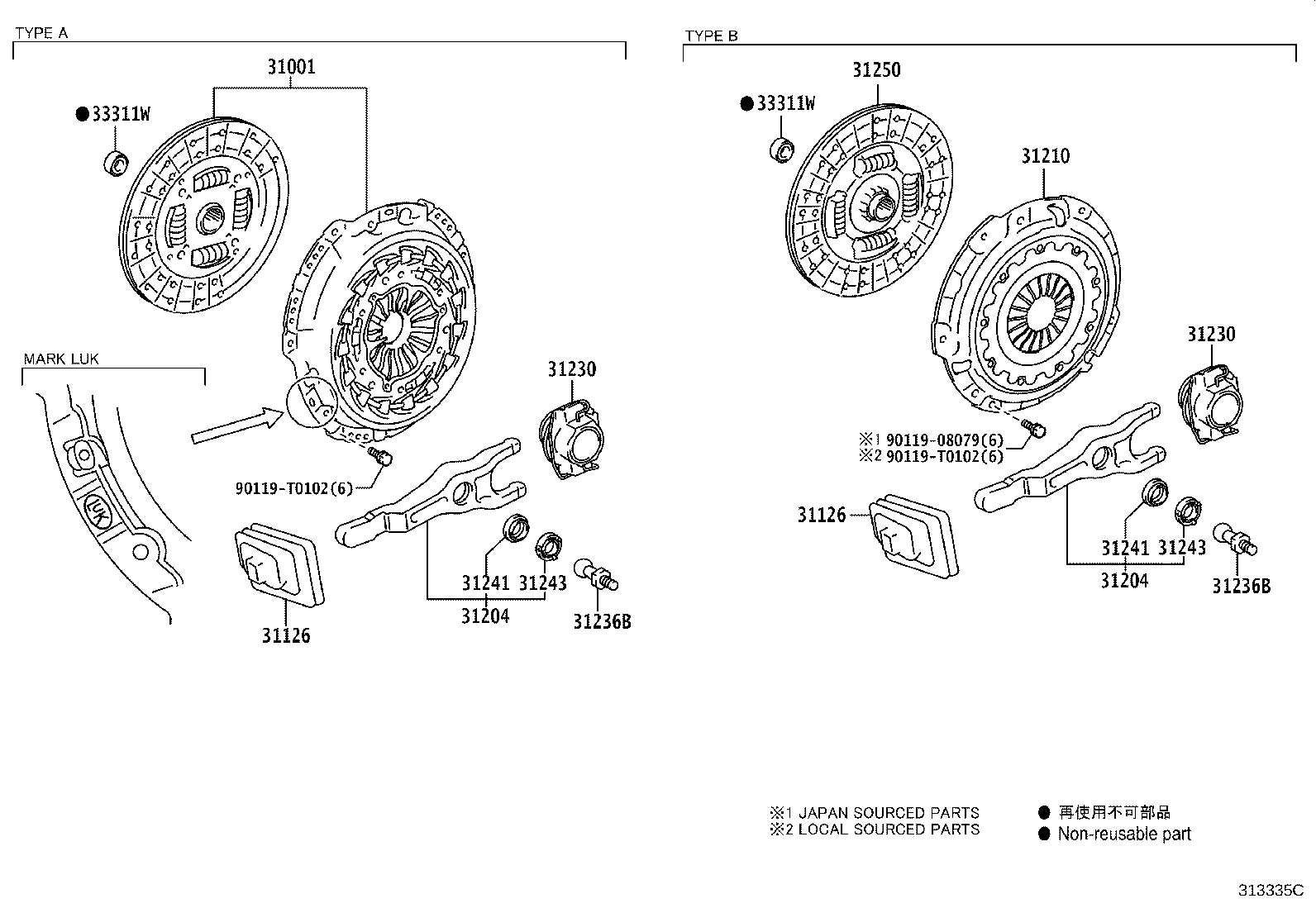

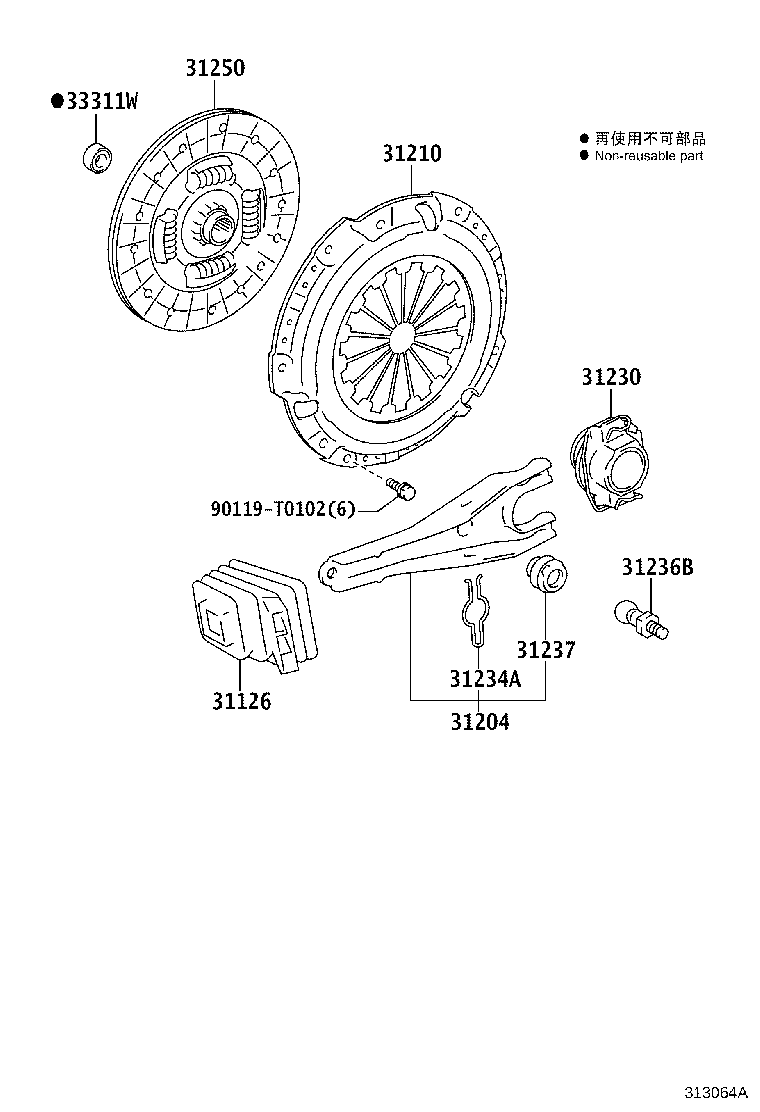

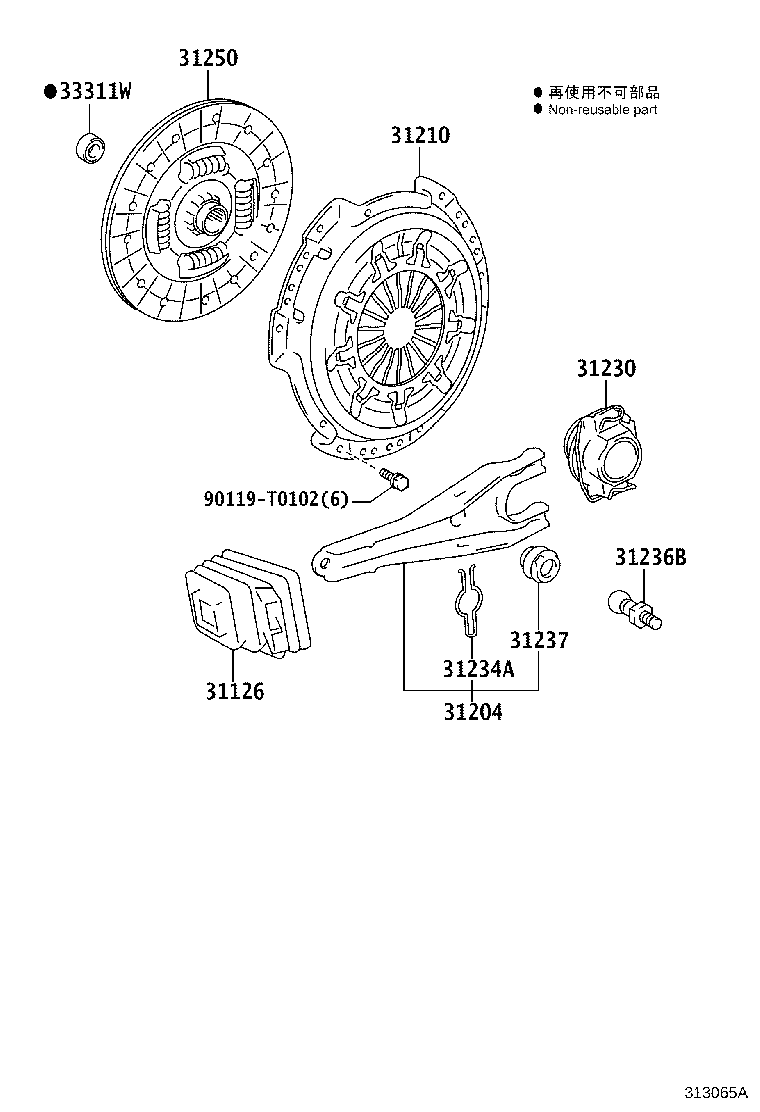

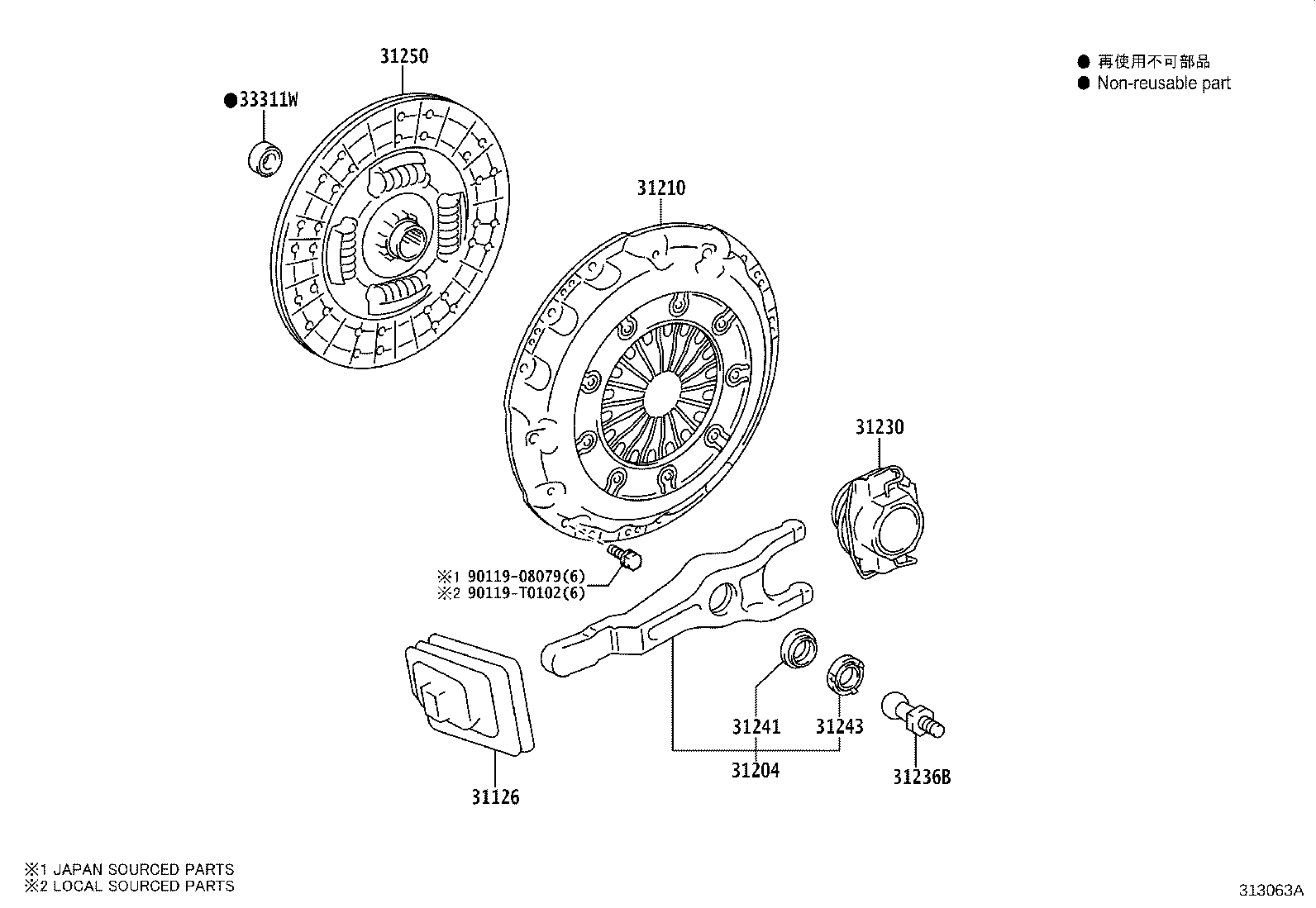

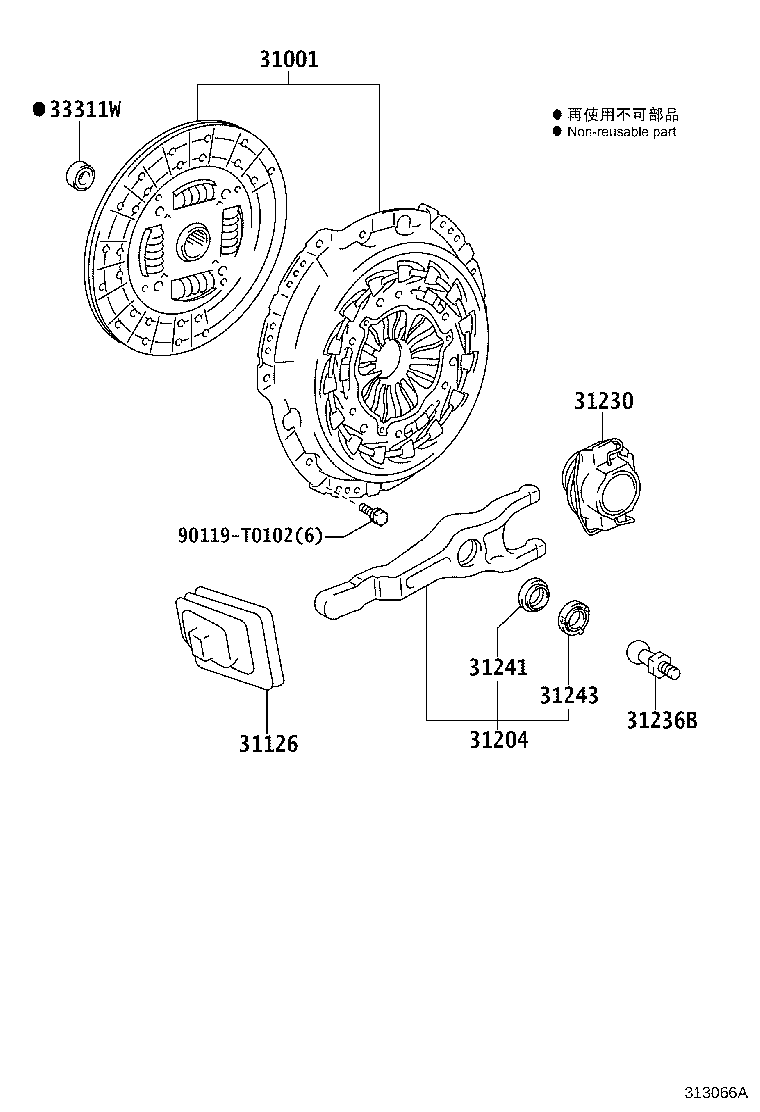

Figure 312986A 312986A 2015-07 → — Figure 312986A 312986A 2015-12 → 2016-09 Figure 313066A 313066A 2016-03 → — Figure 313066A 313066A 2016-09 → 2017-10 Figure 313335C 313335C 2017-10 → — Figure 313063A 313063A 2015-12 → — Figure 313064A 313064A 2016-01 → — Figure 313065A 313065A 2016-03 → —

Part groups

PNCDescription
31001 Clutch Set, Cover & Disc
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31234A Spring, Release Fork Support
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31241 Seal, Clutch Release Fork Dust
31243 Collar, Clutch Release Fork
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
