Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

6 part groups · 2 illustrations

Illustrations

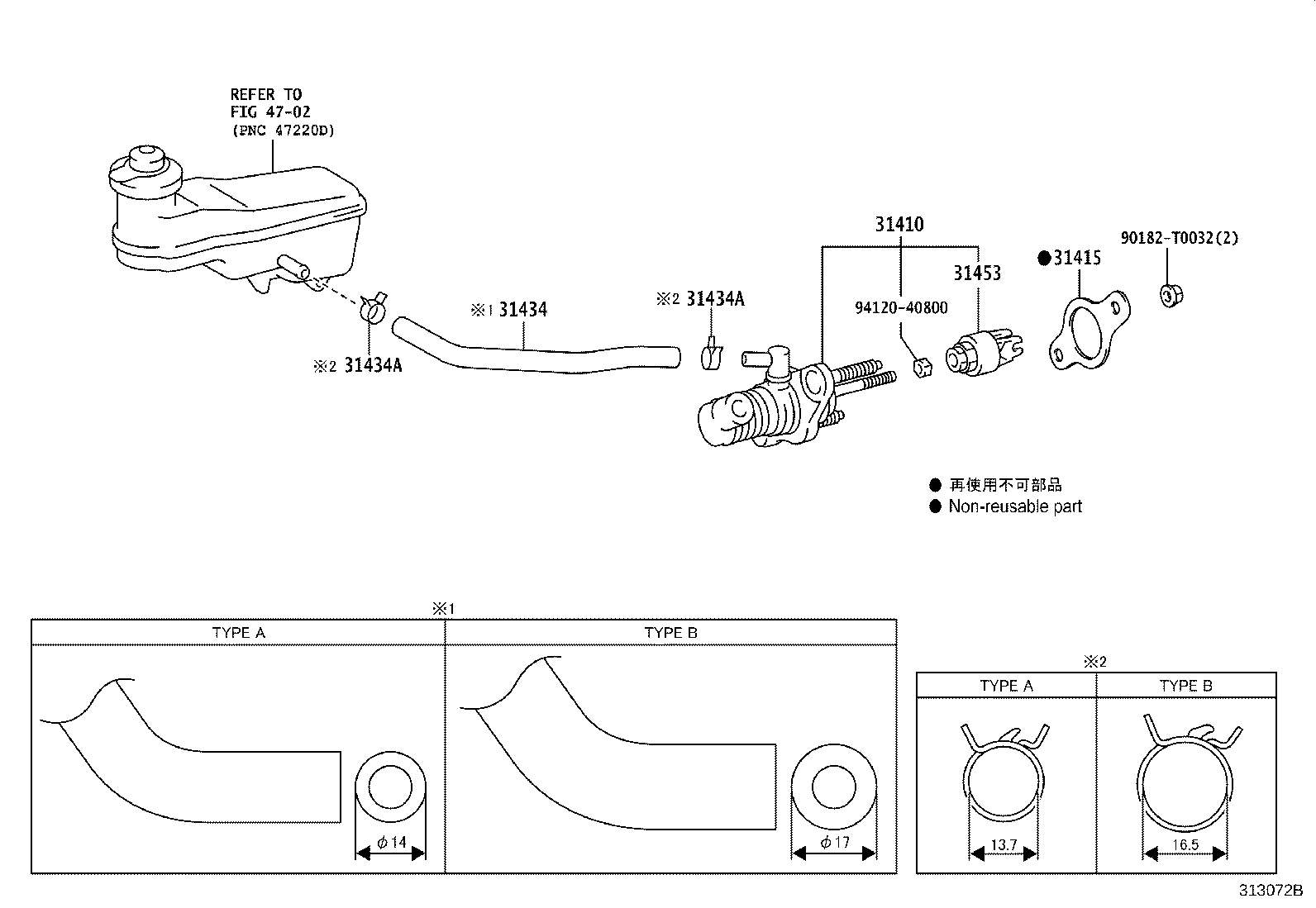

Figure 312996C 312996C 2015-07 → — Figure 313072B 313072B 2016-01 → —

Part groups

PNCDescription
31410 Cylinder Assy, Clutch Master
31415 Gasket, Clutch Master Cylinder
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31453 Clevis, Clutch Master Cylinder Push Rod
31459 Bracket, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
