Toyota Fortuner

2015-07 → 2021-04 · chassis GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# · catalogue 6713B0 · General

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 3 illustrations

Illustrations

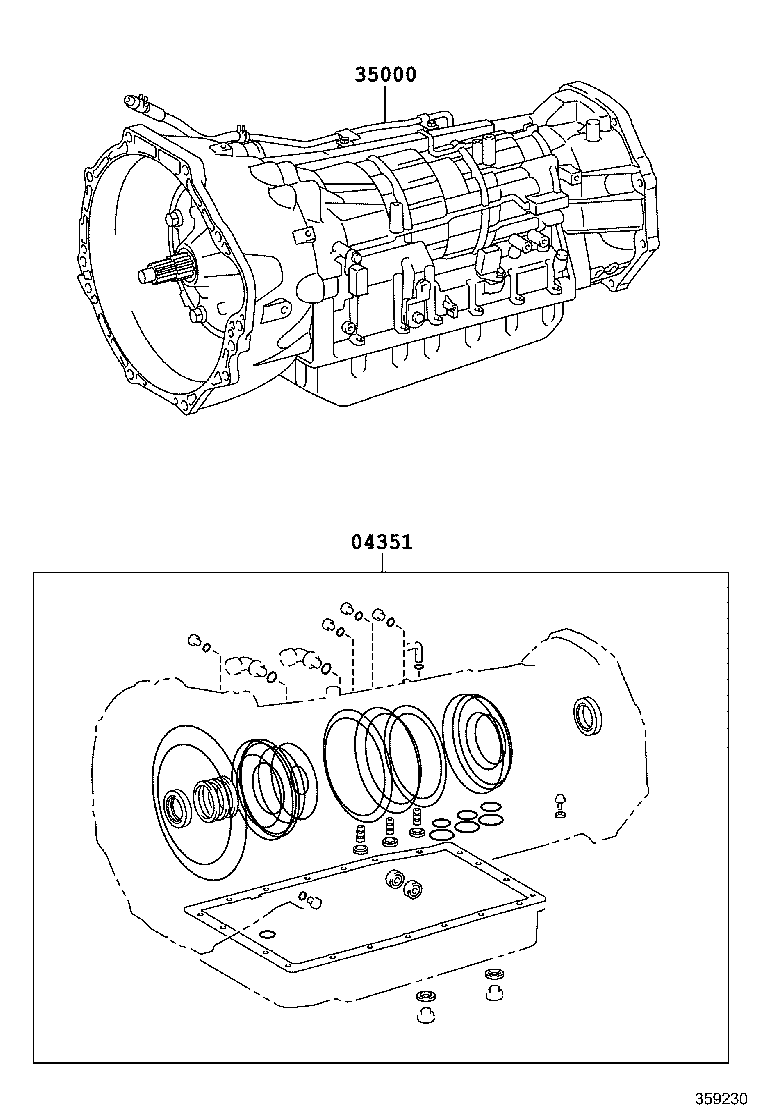

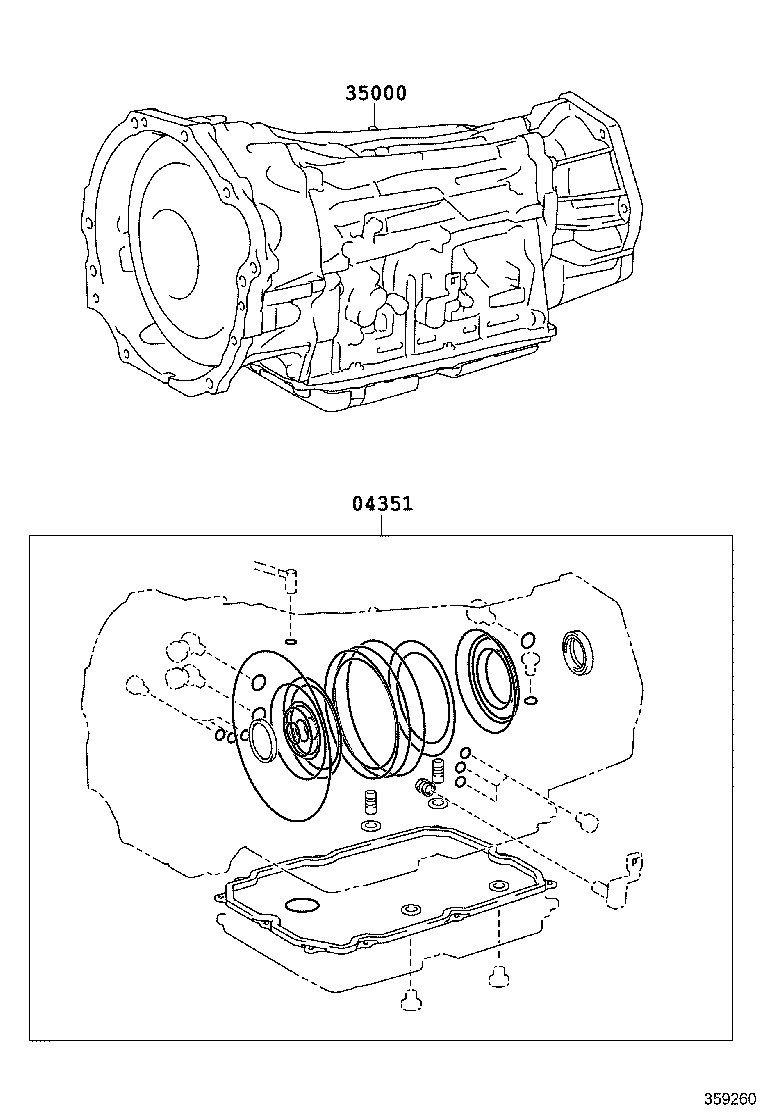

Figure 359259 359259 2015-07 → — Figure 359260 359260 2015-07 → — Figure 359230 359230 2015-12 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
